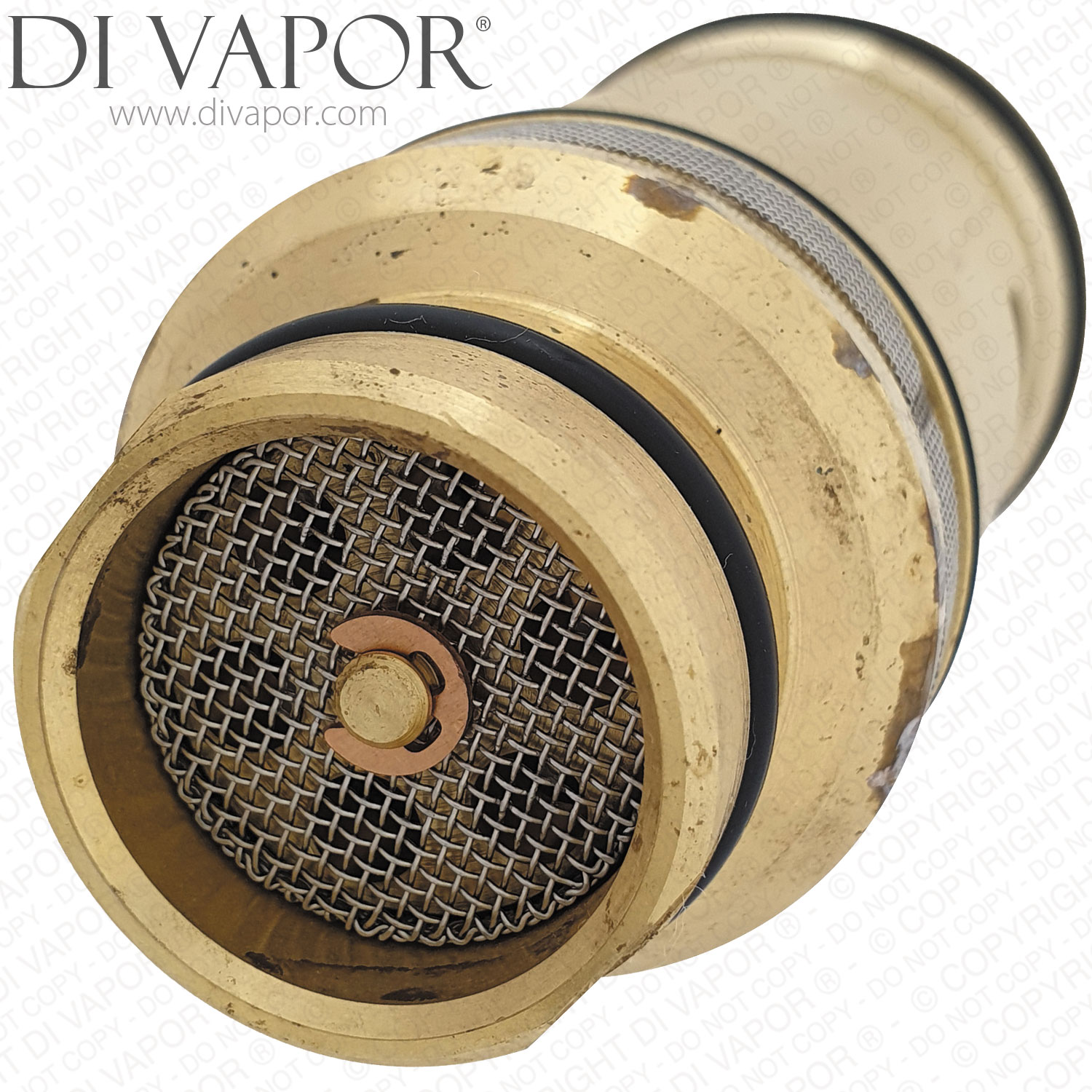

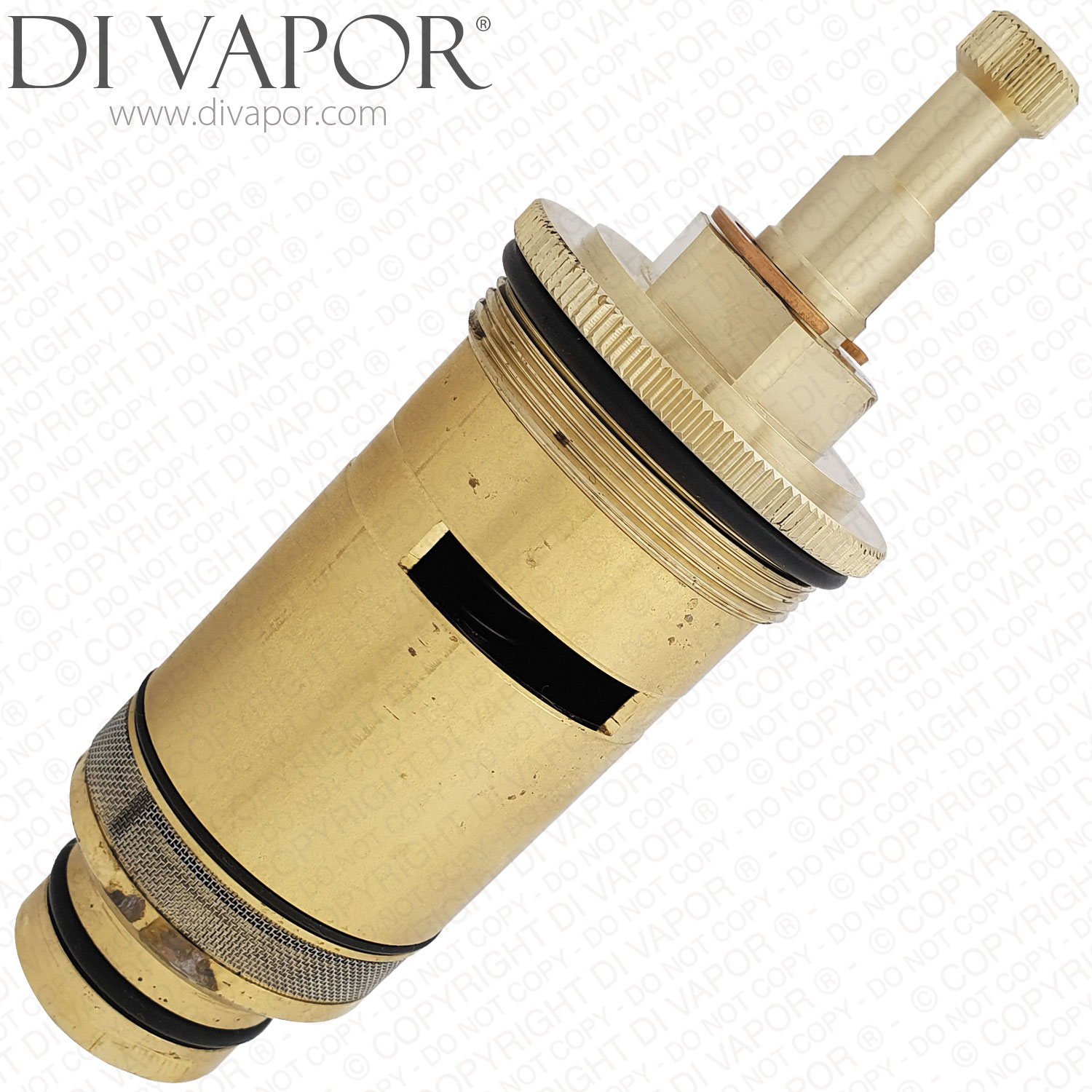

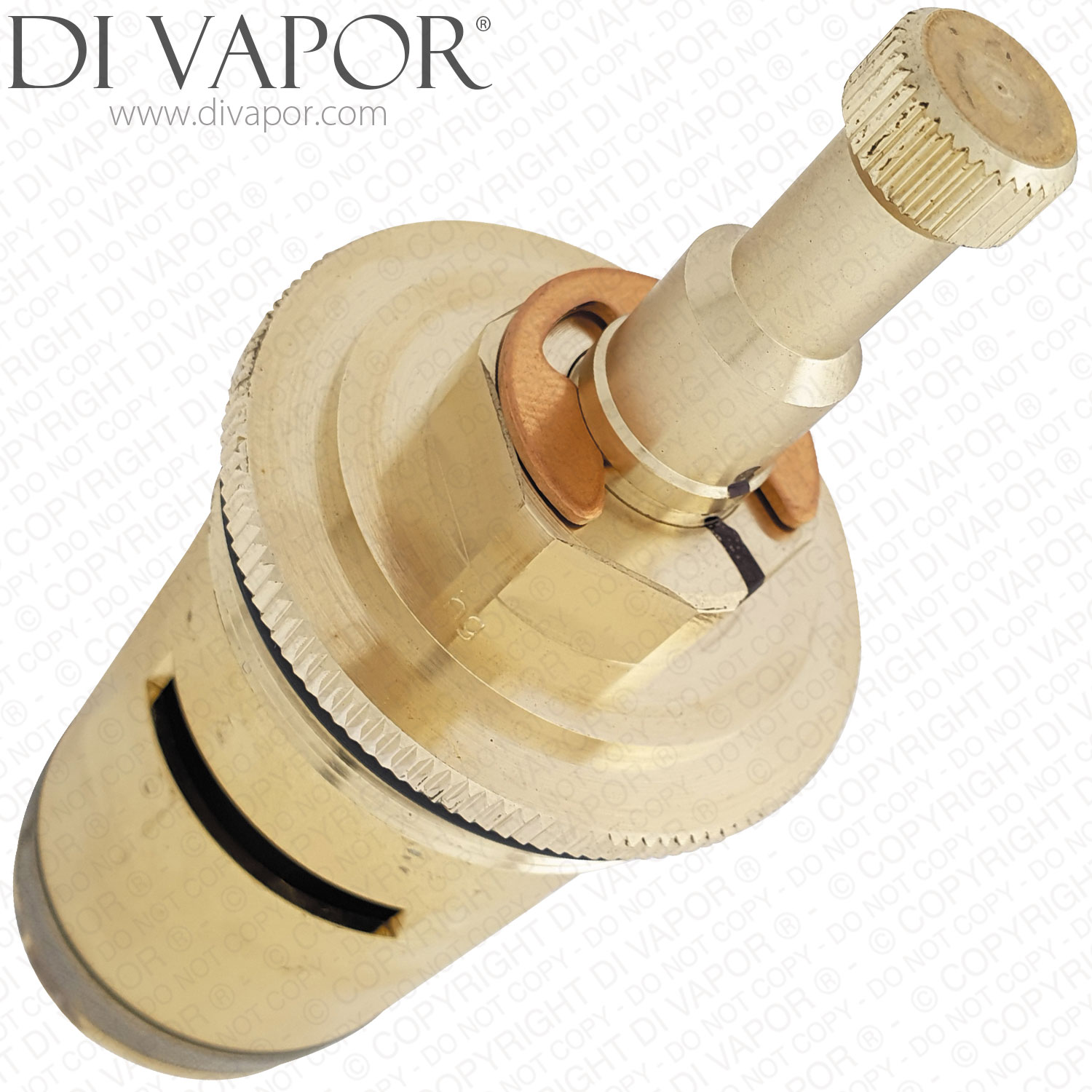

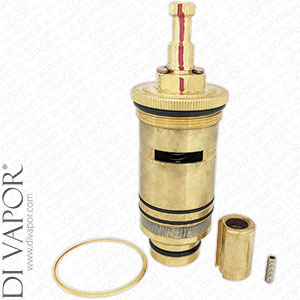

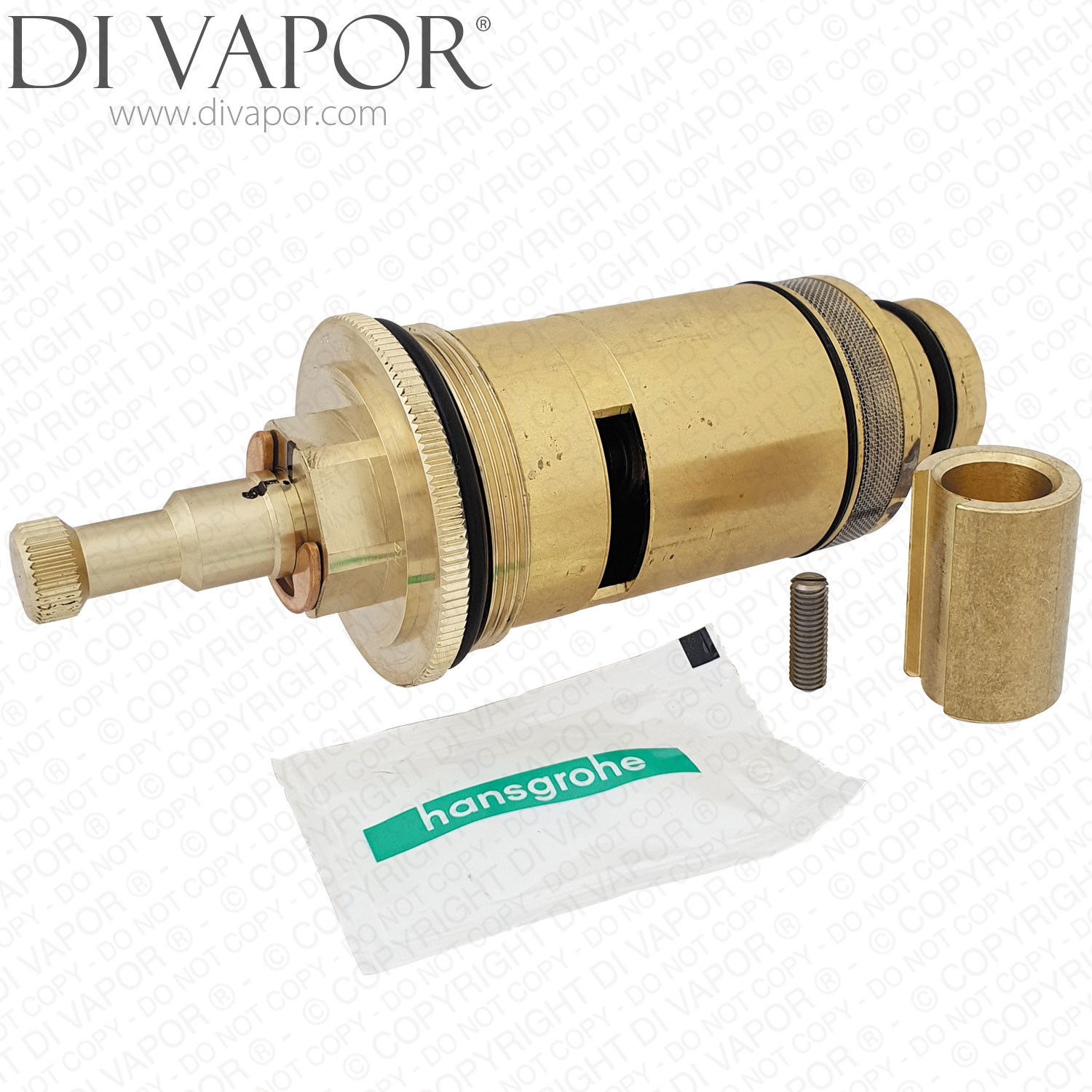

Hansgrohe 92631000 Thermostatic Cartridge for 3/4" Valves
Part number: HANSGROHE-92631000
Price: £228.00
Sale: £184.83
You save: £43.17 (19%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary
This Hansgrohe 92631000 thermostatic cartridge is the temperature control cartridge used in selected 3/4 inch DN20 Hansgrohe concealed thermostatic valves and shower systems.
It is a wax capsule thermostat that regulates the mixed water temperature inside the valve body. Replacing a worn or scaled cartridge can help restore stable temperature control where the shower is no longer regulating correctly.
Technical Details
| Hansgrohe code | 92631000 |
|---|---|
| Cartridge type | thermostatic temperature cartridge |
| Valve size | DN20 3/4 inch |
| Thermostat type | wax capsule |
| Total length | 141mm |
| Diameter at widest point | 49.7mm |
| Diameter of top splines | 12.1mm |
Before Ordering
- Check the full code 92631000 and compare the overall length, widest diameter and top spline size against the original cartridge before ordering
- This spare is for 3/4 inch DN20 thermostatic applications and is not the smaller DN15 92601000 cartridge
Confirmed Compatible Models
- Hansgrohe Thermostatic Mixer - 11/1986 to 08/1998
- Hansgrohe concealed thermostat 13374180
- Hansgrohe concealed thermostat 13377180
- Pharo Duschpaneel Exclusiv electronic
