Hansgrohe 92631000 Thermostatic Cartridge Compatible Spare

Summary

Hansgrohe 92631000 Thermostatic Cartridge Compatible Spare

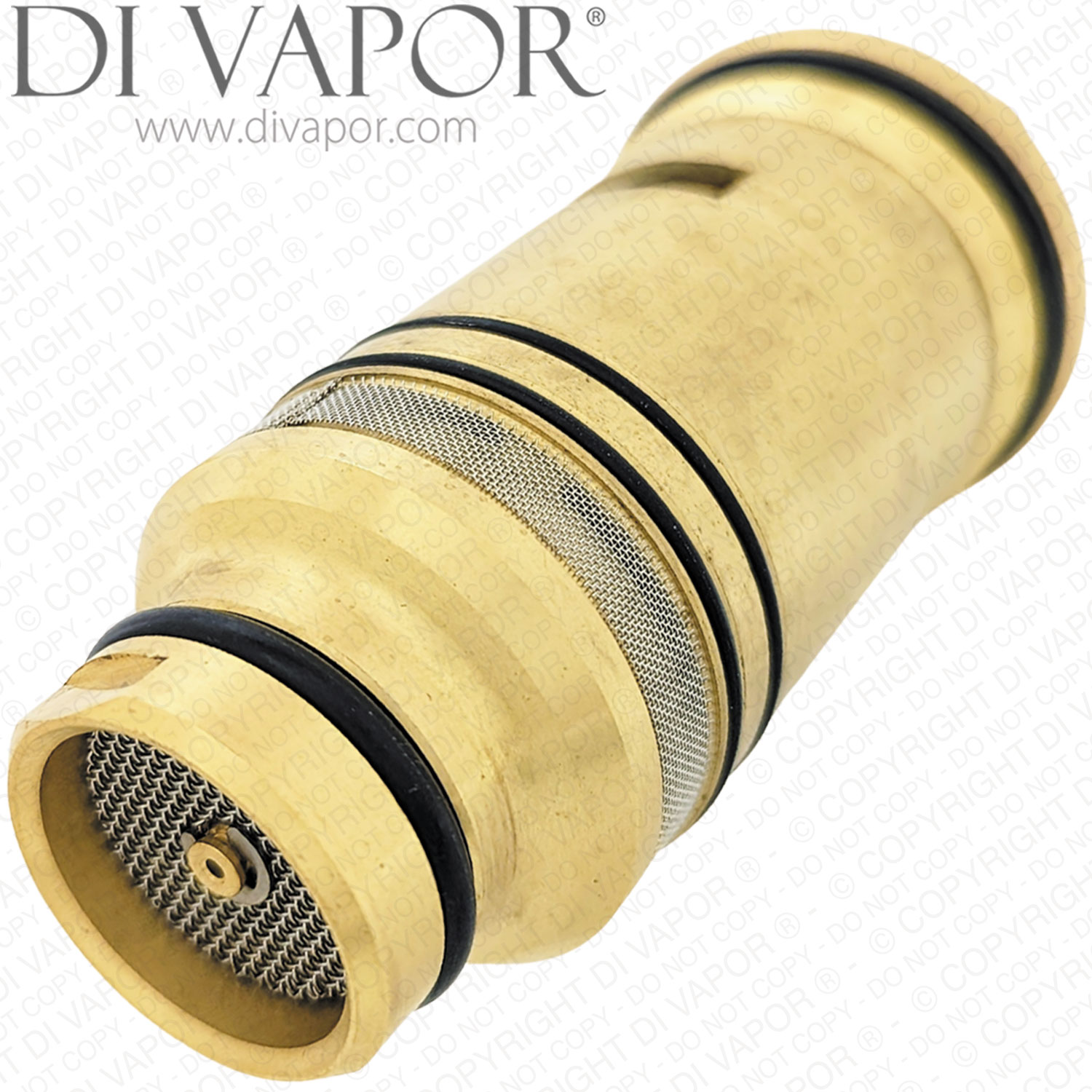

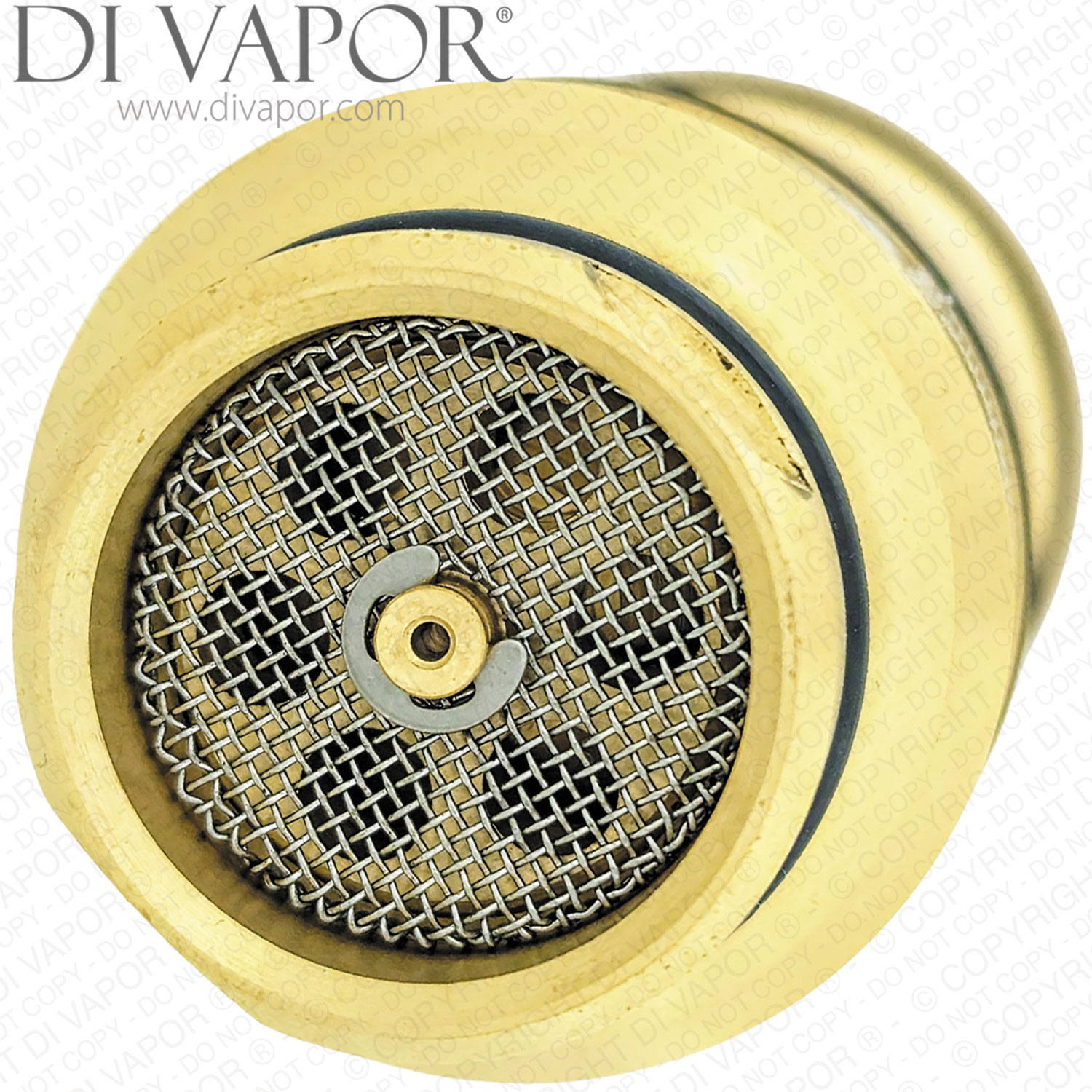

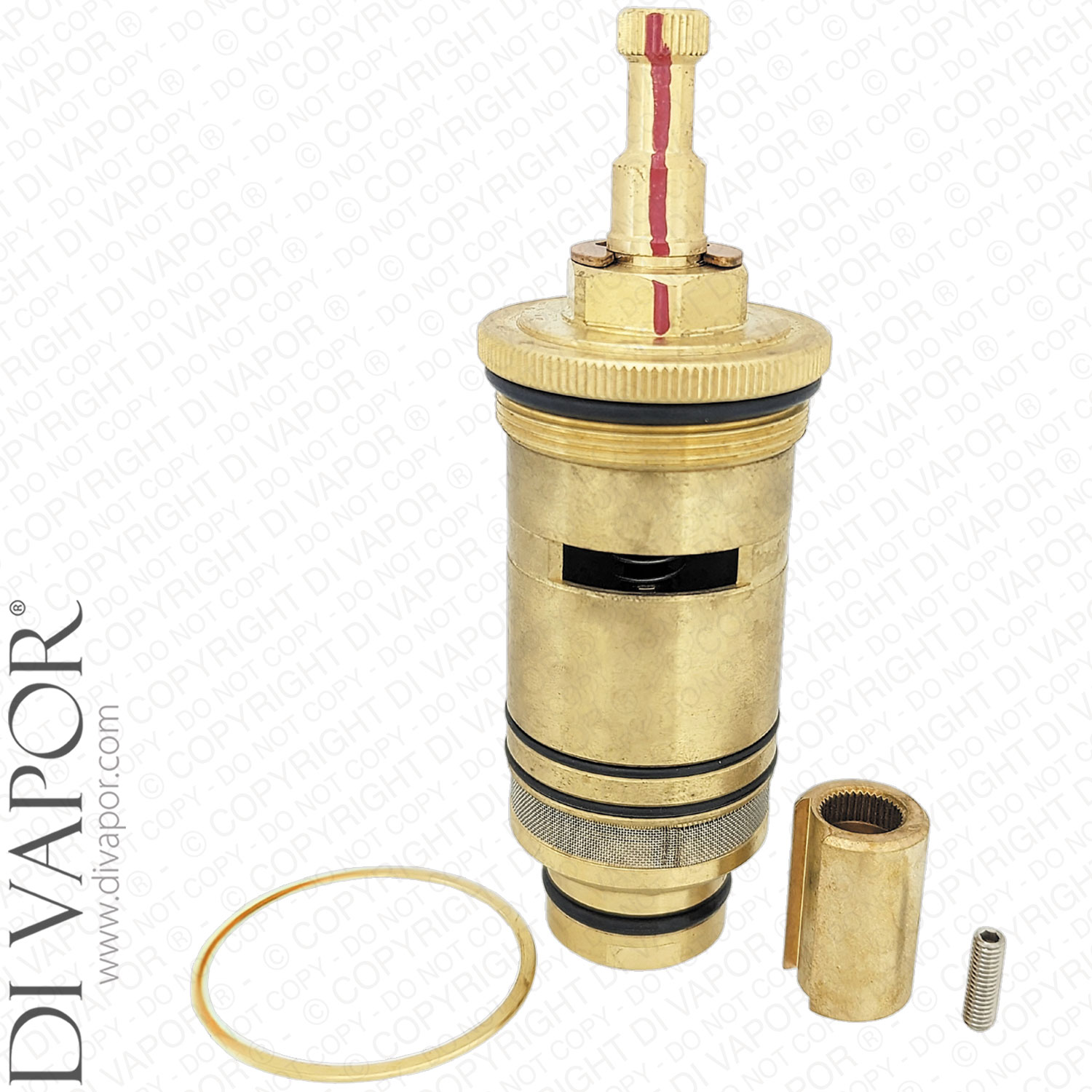

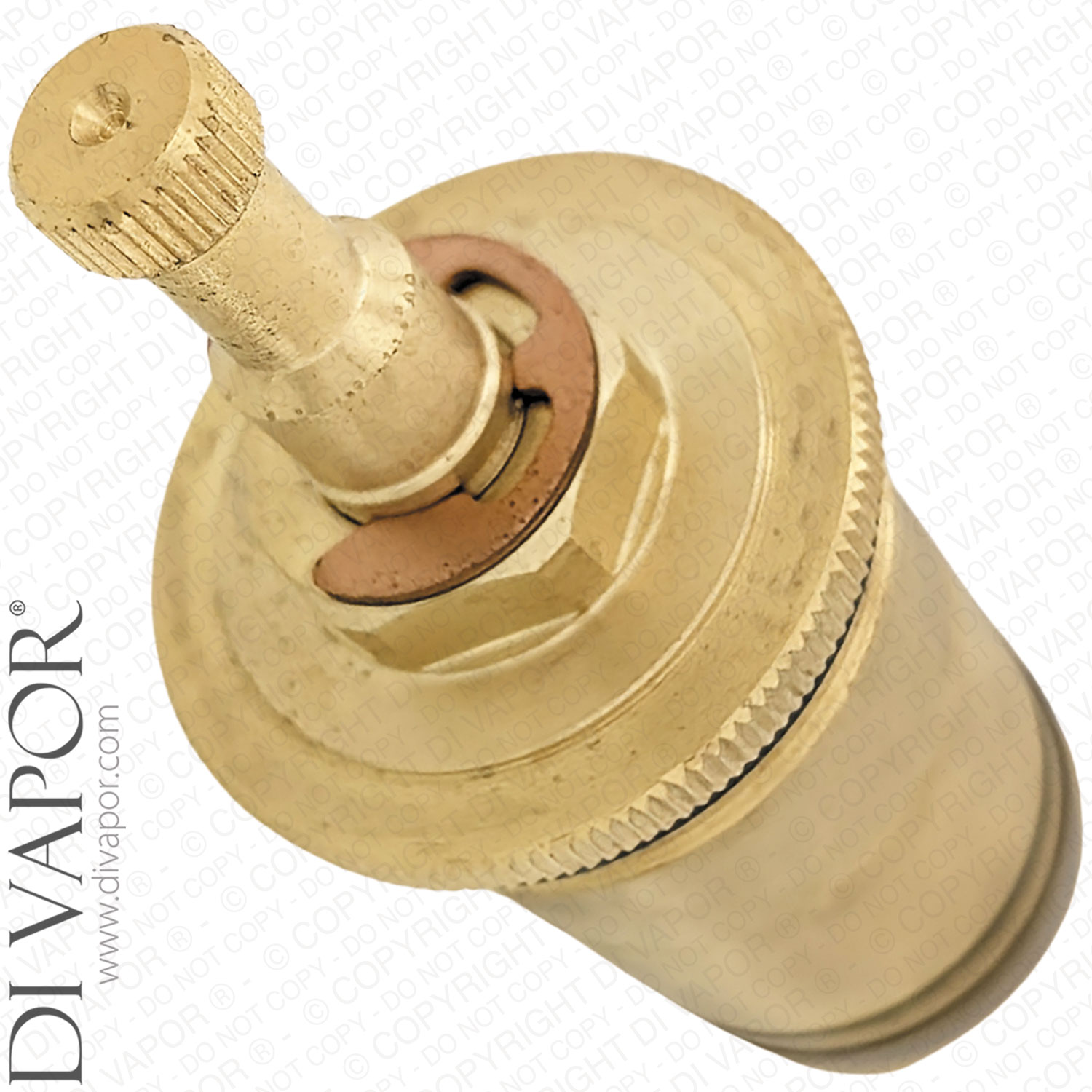

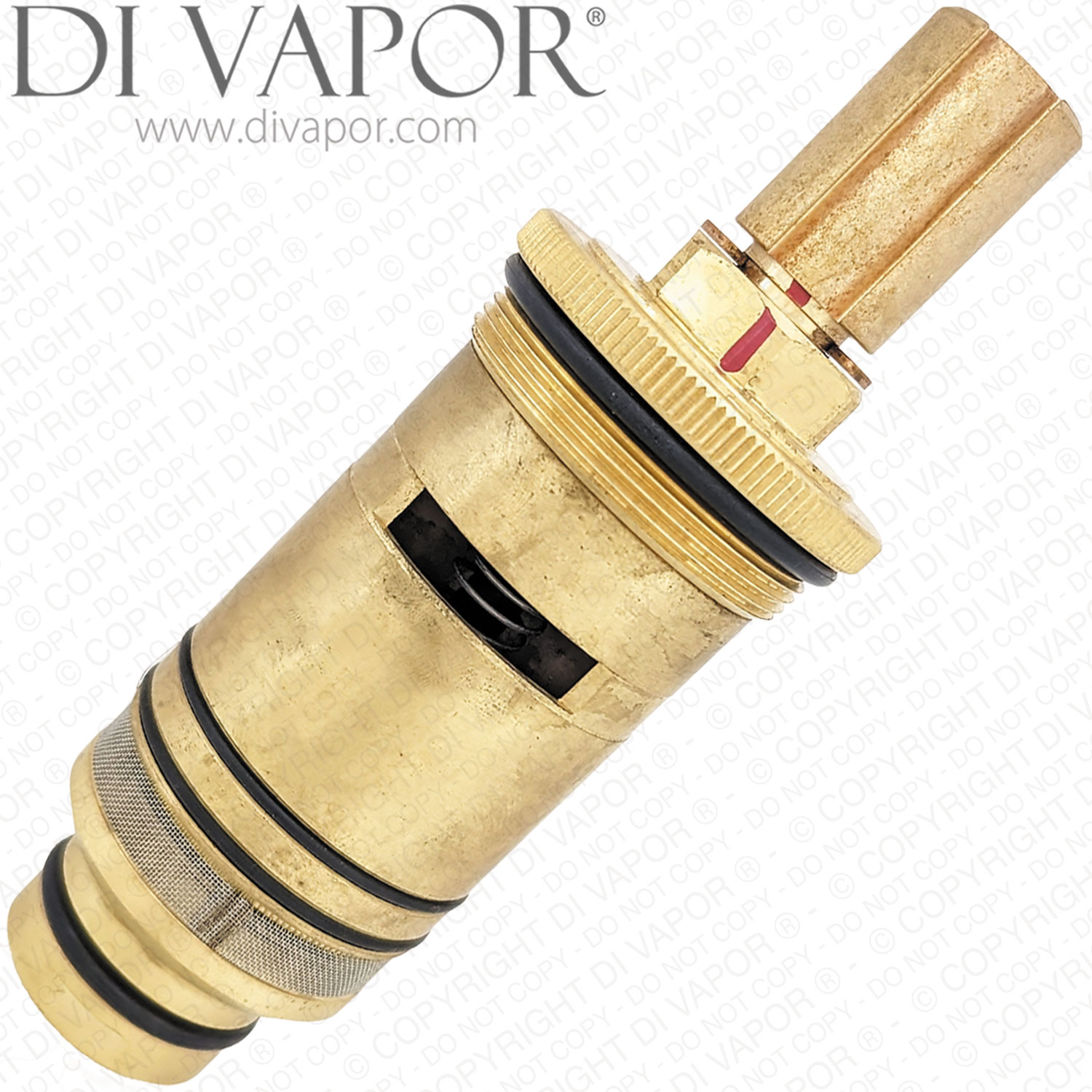

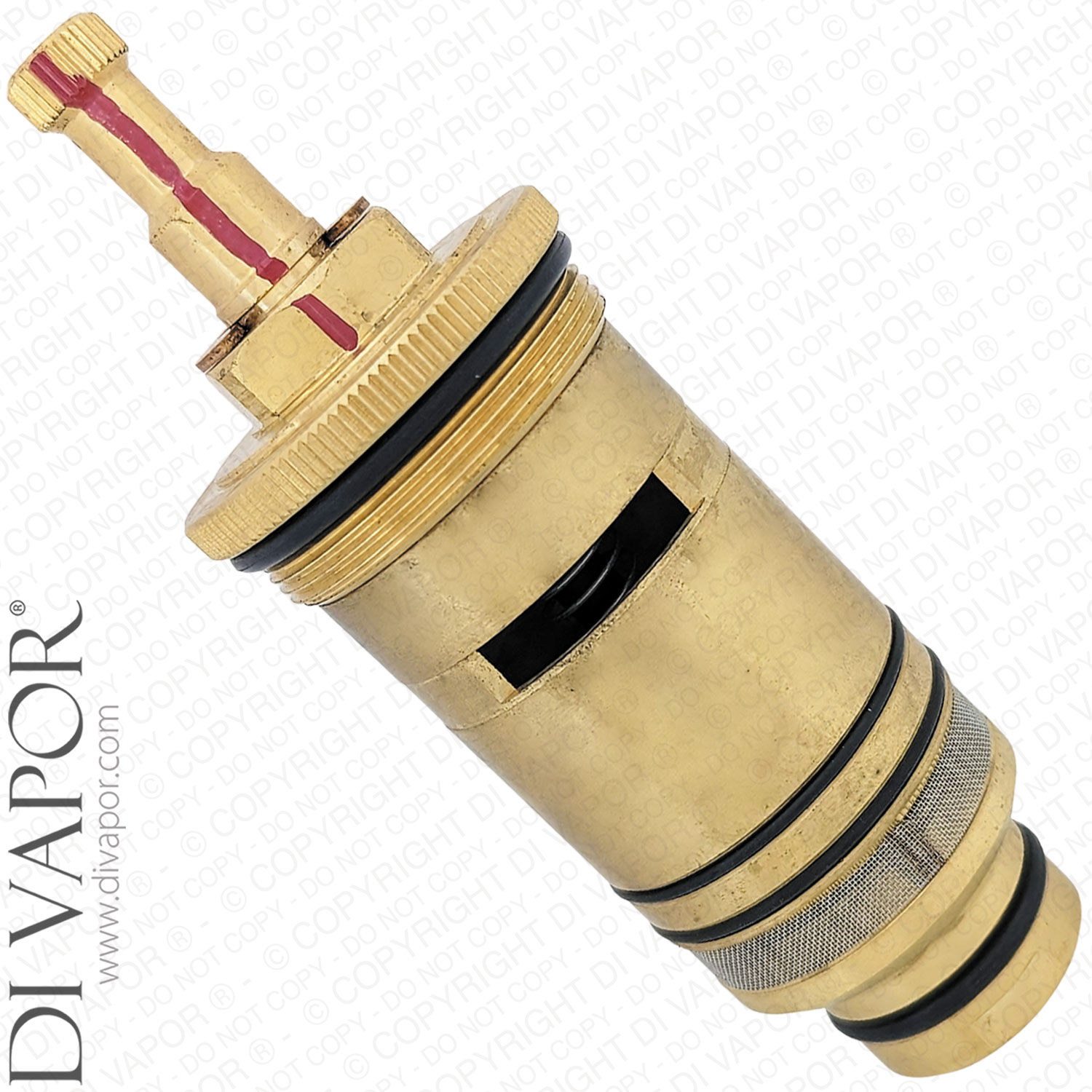

This compatible thermostatic cartridge is designed for selected DN20 3/4 inch Hansgrohe concealed thermostatic valves and PHARO shower systems that use cartridge reference 92631000.

The screw-in cartridge regulates the mixed-water temperature inside the valve. Replacing a worn or seized cartridge can help restore stable temperature control where the shower no longer responds correctly to adjustments or produces water at an incorrect or fluctuating temperature.

Technical Details

Common Fault Symptoms

• The shower temperature fluctuates during use.
• The water temperature does not correspond with the control position.
• The control becomes stiff or does not respond correctly.
• The shower cannot reach the expected hot or cold temperature range.

Confirmed Compatible Models

• PHARO II PH DUSCHTEMPEL RD 29020000 - production 04/1993 to 12/1998.
• PHARO II PH DUSCHTEMPEL ECK 29030000 - production 04/1993 to 01/1999.
• Hansgrohe Ecostat concealed part for thermostatic mixer 13374180 - production 01/1993 to 08/1998.
• Hansgrohe Mondial II finish set for thermostatic mixer 15378000 - production 01/1989 to 02/1999 - used with concealed thermostatic body 13374180.
• Hansgrohe Metropol II finish set for thermostat 14378000 - production 04/1993 to 01/1999 - used with concealed thermostatic body 13374180.
• Hansgrohe Metropol II finish set for thermostat 14378090 - production 04/1995 to 01/1999 - used with concealed thermostatic body 13374180.
• Hansgrohe Metropol II finish set for thermostat 14378880 - production 04/1993 to 03/1995 - used with concealed thermostatic body 13374180.
• Hansgrohe Metropol II finish set for thermostat 14378450 - production 04/1995 to 01/1999 - used with concealed thermostatic body 13374180.

Before Ordering

Check that the original cartridge or valve documentation specifies 92631000. This cartridge is intended for selected DN20 3/4 inch applications and must not be confused with the smaller Hansgrohe 92601000 DN15 cartridge. Do not identify the required cartridge from appearance or partial measurements alone.

After installation the temperature control should be checked and recalibrated according to the valve instructions. Isolate the hot and cold water supplies before removing the existing cartridge.

Related Spares You May Need

• TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - apply a light coating to the cartridge O-rings during installation.
• Hansgrohe 92631000 Thermostatic Cartridge for 3/4 Inch Valves - alternative Hansgrohe-branded version of the cartridge and not an additional component.
