Hansgrohe 92601000 Thermostatic Cartridge - DN15
Part number: HANS-92601000
Only 5 left in stock.
Price: £173.00
Sale: £104.50
You save: £68.50 (40%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

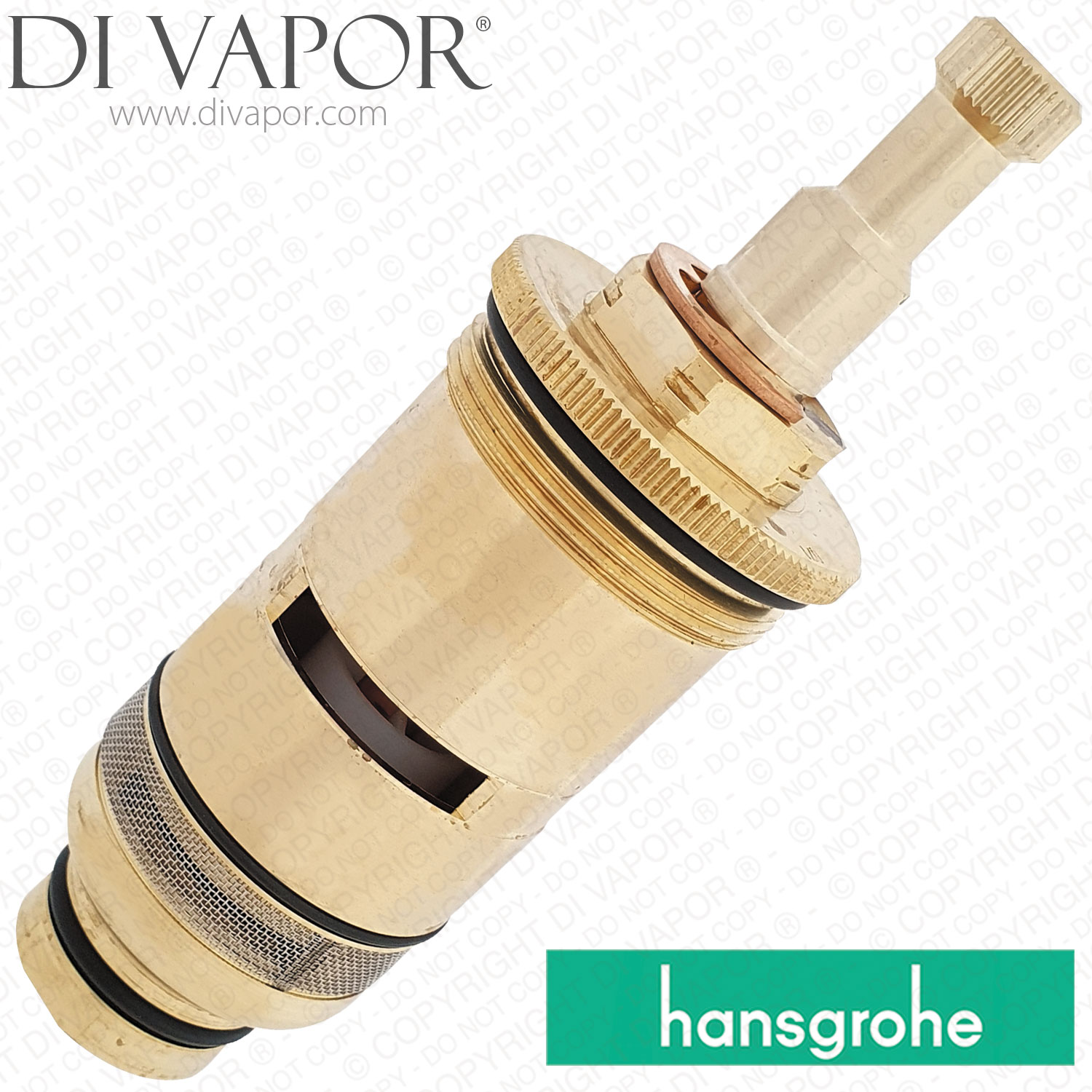

Hansgrohe 92601000 (also known as 92601) thermostatic cartridge.
The Hansgrohe 92601000 is a DN15 thermostatic cartridge for 1/2 inch Hansgrohe thermostatic mixers and selected Pharo shower panels and shower temples. It is also known as 92601 and is listed by Di Vapor under Part Number HANS-92601000.
This cartridge controls the mixed water temperature inside the valve. It is used when the original thermostatic cartridge is worn, scaled or no longer regulating correctly.

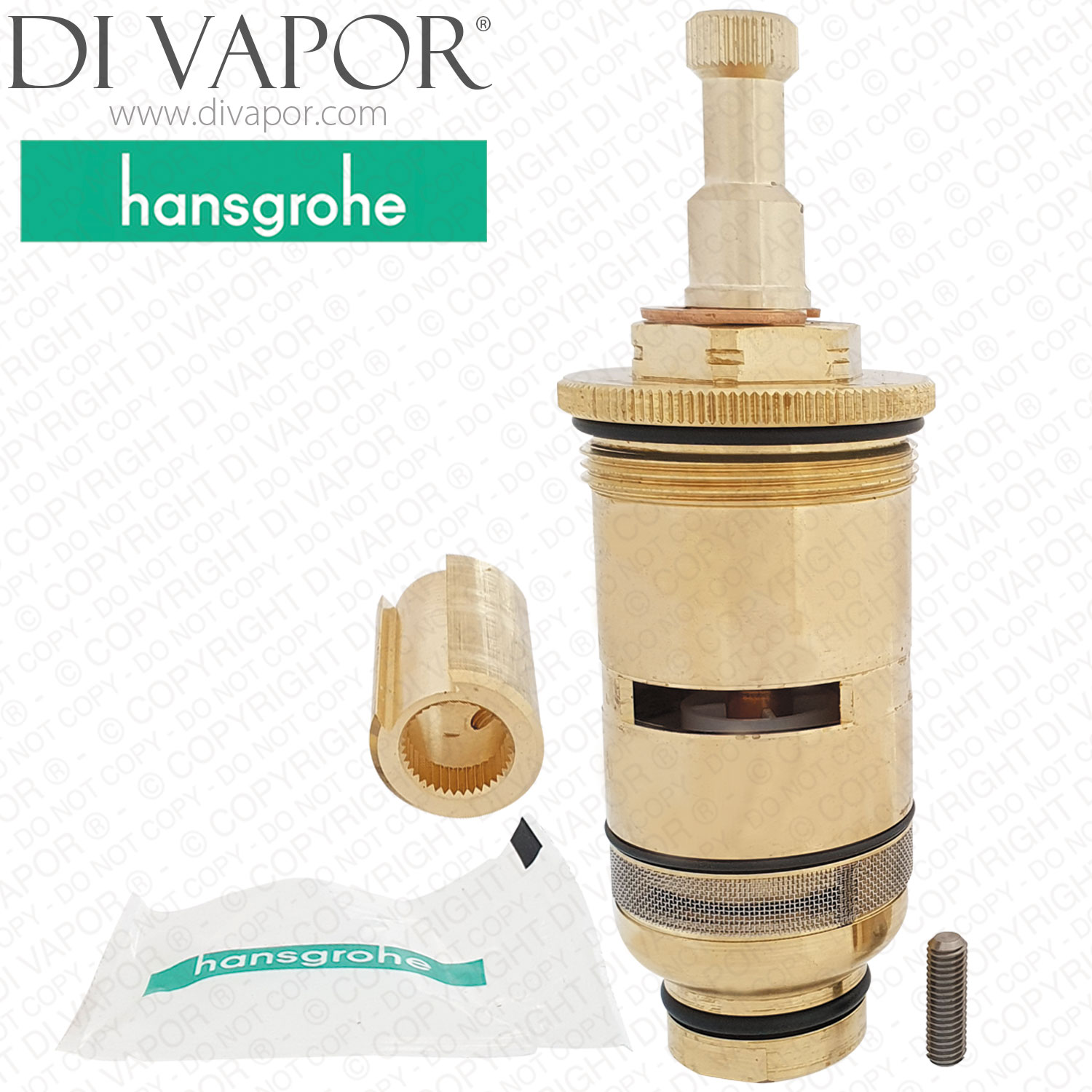

Included
- Hansgrohe 92601000 replacement cartridge
- Silicone grease
- Installation instruction manual

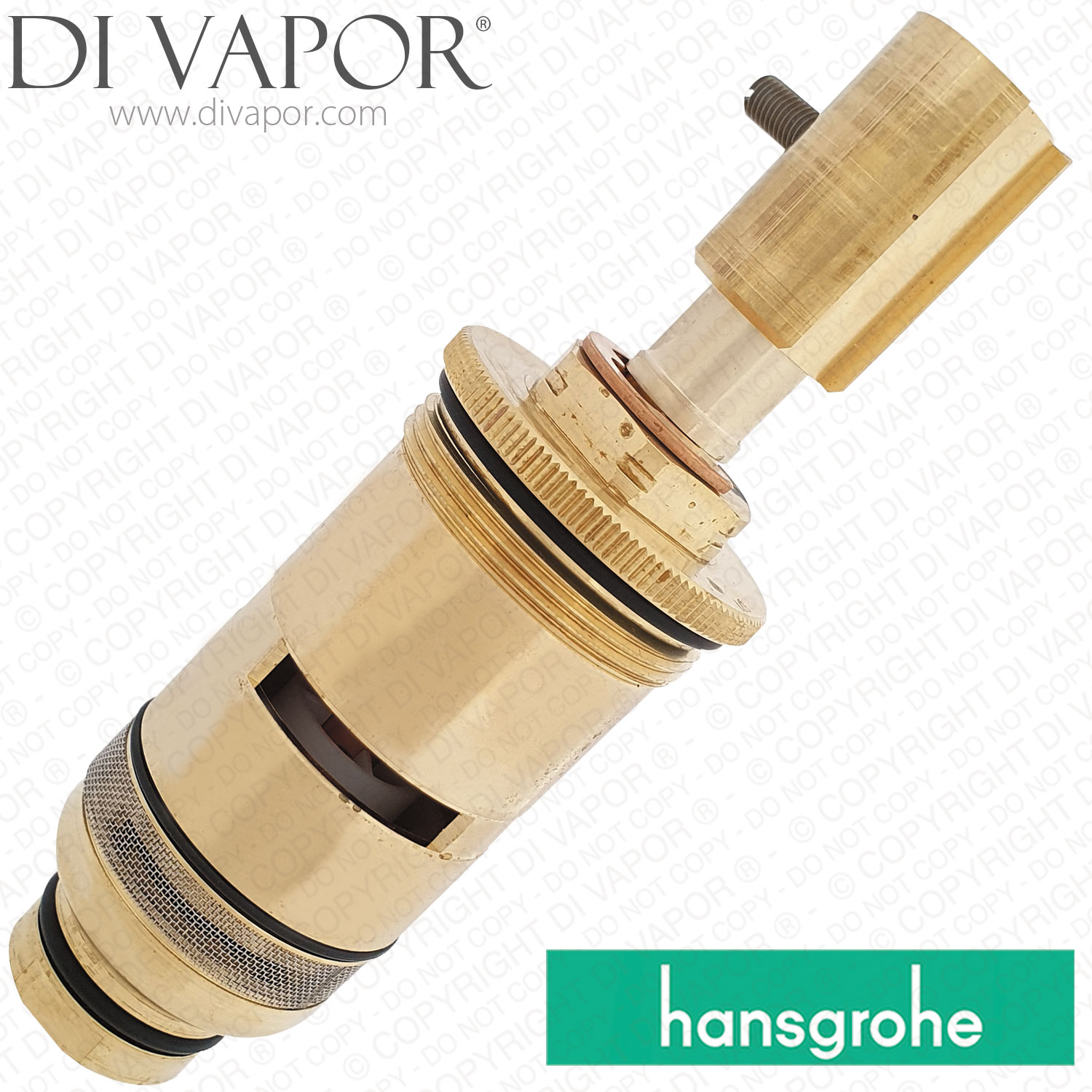

- Brass cartridge head carrier for the thermostatic cartridge spindle
Technical Details
| Hansgrohe code | 92601000 |
|---|---|
| Also known as | 92601 |
| Cartridge type | thermostatic temperature cartridge |
| Valve size | DN15 / 1/2 inch |
| Thermostat type | wax capsule |
| Material | brass |
| Colour | brass |
| Installation type | screw |
| Total length | 121.3mm |
| Widest diameter | 41.6mm |
| Diameter at top o-ring | 38.8mm |
| Diameter at middle o-ring | 36mm |
| Diameter at bottom o-ring | 25.1mm |
| Number of o-rings | 3 |
| Number of filters | 1 |

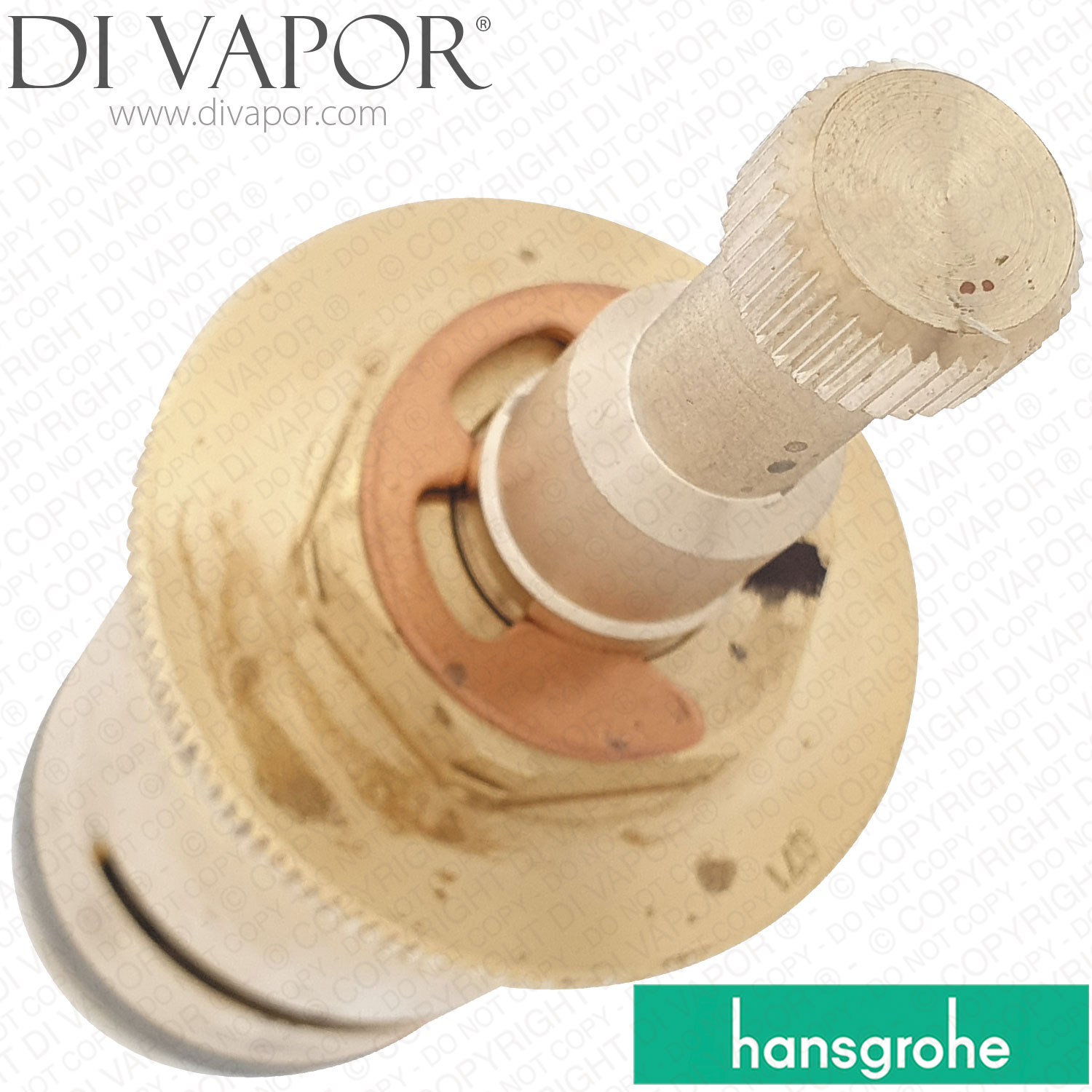

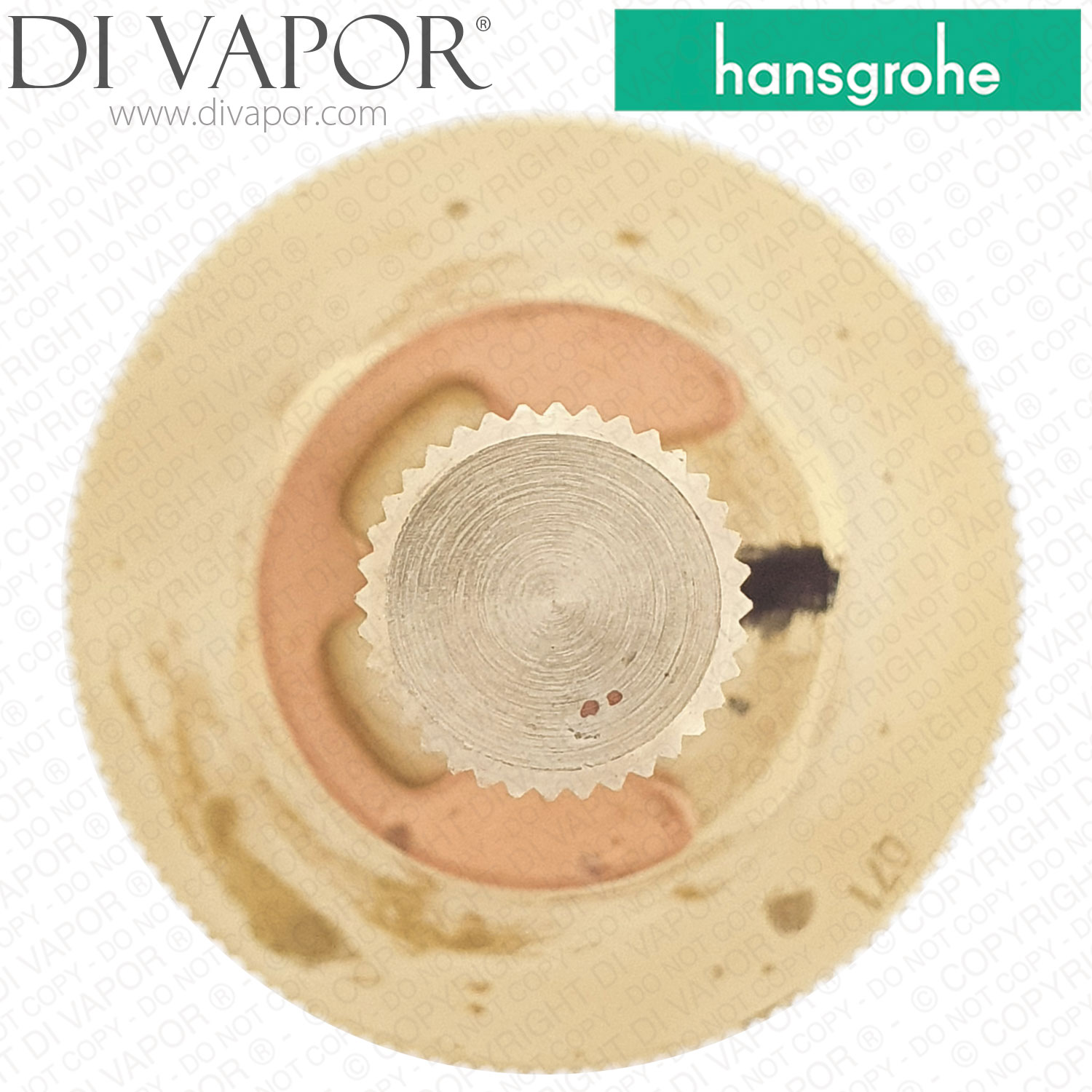

| Width of top spline | 12.2mm |
| Number of teeth on top spline | 36 |
Confirmed Hansgrohe Model Use
- Ecostat thermostatic mixer 13372180 - 11/1986 to 08/1998
- Hansgrohe concealed thermostatic mixer 13373180 - 11/1992 to 08/1998
- PHARO Shower Temple 115 CM 29180000 - 05/1997 to 05/2002
- PHARO Shower Temple 115 ML 10 wall version 29190000 - 05/1997 to 05/2002
- PHARO Shower Temple 100 White Thermo 29200000, 29200450, 29200880, 29200090, 29220090, 29220880, 29220450 and 29220000
- PHARO Shower Panel ML40 corner with light ROME 26245000 and 26245450
- PHARO II Corner Thermo Panel Light Grey 26246450
- PHARO II Corner Thermo Panel Light 26261450
- PHARO II Flat Wall Bath Panel 26441000
- PHARO Flat Wall Bath Panel 26445000
- PHARO II Flat Wall Bath Panel Grey and Chrome 26446000
- PHARO Flat Thermo Shower Panel Perga Chrome 26641000
- PHARO Shower Panel Exclusiv M 10 wall 26645000
- PHARO II Flat Thermo Shower Panel Grey 26646000
- PHARO II Flat Thermo Shower Panel 26661000
- PHARO II Flat Thermo Panel and Light Perga 26741000
- PHARO Wall Shower Temple 115cm Steamrom 29310000
- PHARO Corner Shower Temple 115 Steamrome 29340000
- PHARO Shower Panel ML 10 wall version ROME 26745000
- PHARO II Flat Thermo Panel and Light Grey 26746000
- PHARO II Corner Thermo Shower Panel Perga 26041000 and 26041450
- PHARO Shower Panel M40 corner without 26045000 and 26045450
- PHARO II Corner Thermo Shower Panel Grey 26046000 and 26046450
Before Ordering
- Check the old cartridge code and compare the overall length, widest diameter, o-ring positions and top spline against the original cartridge before ordering.

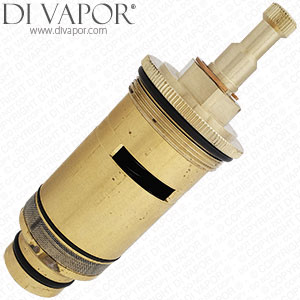

- This is the DN15 / 1/2 inch thermostatic cartridge and should not be ordered in place of the larger Hansgrohe 92631000 DN20 / 3/4 inch cartridge unless the shower documentation confirms that code.
- If the shower receives a steady hot water supply but the outlet temperature remains cold or unstable, the thermostatic cartridge may be the part to check.
