Grohe 47767000 Avensys Thermostatic Cartridge WITH Wax Thermostat and Slider Piston for Avensys (Flow Control Union)
Save with a compatible alternative
- Tested replacement
- 12-month warranty
- Simple returns
Send a photo of your item and we'll help confirm it.
Summary

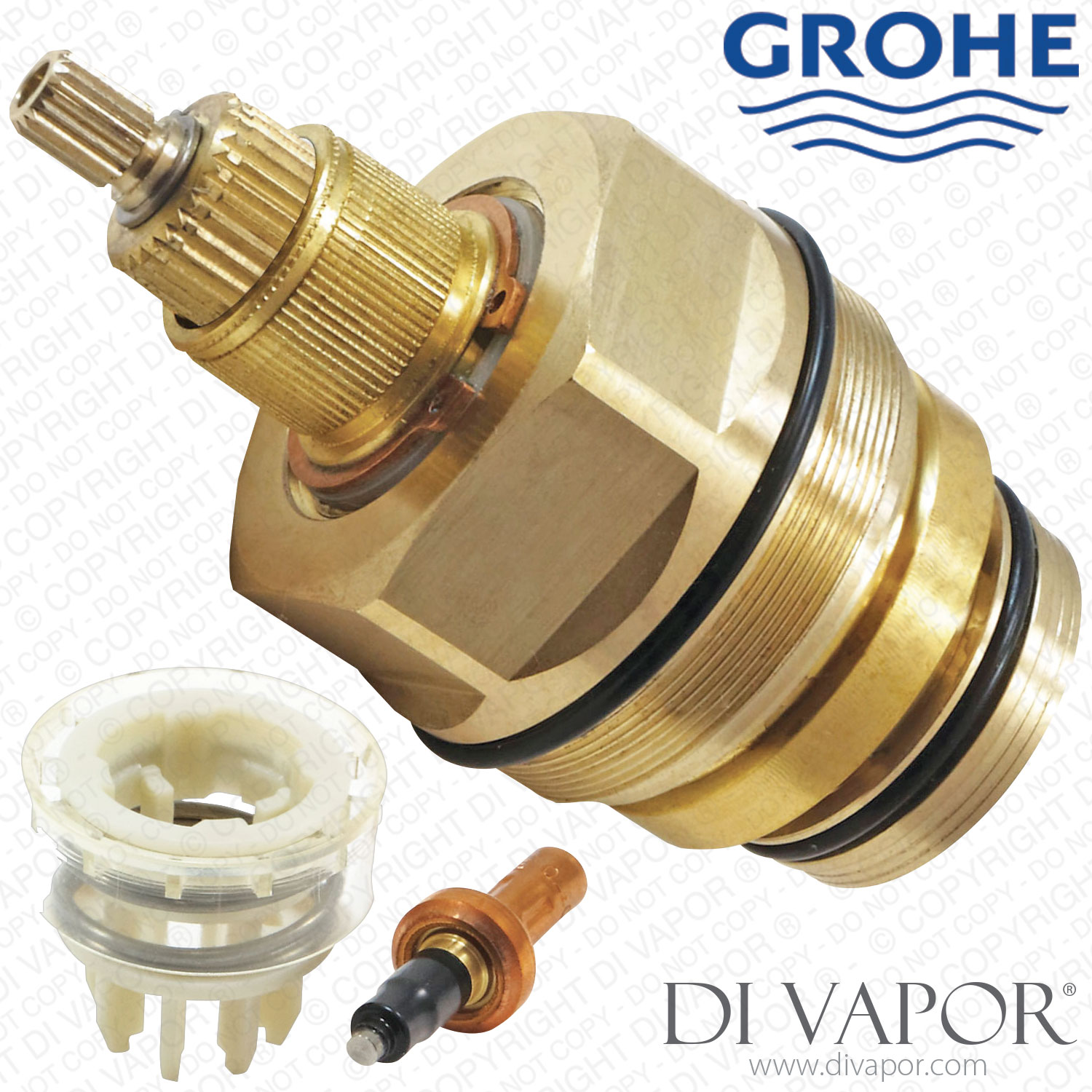

Grohe 47767000 Thermostatic Cartridge WITH Wax Thermostat and Slider Piston for Avensys (Flow Control Union). Please note that this comes with the plastic piston and wax thermostat (these are the parts of the cartridge which control the temperature of the water). Most sellers do not include the plastic piston or wax element with the brass housing.
Included:
- Grohe 47767000 Thermostatic Cartridge
- Plastic Piston
- Wax Thermostat Element
- Dimensions:
| Nut size | 45.7mm |
|---|---|
| Largest thread diameter | 49.7mm |
| Brass Length (excluding piston) | 99mm |
- The Grohe 47767000 is used in:
- Grohe Avensys Modern Dual Control Built-in Shower Mixer 34224000
- Grohe Avensys Modern Shower Mixer 34222000
GROHE 47767000 is a complete screw-in thermostatic control-unit cartridge for selected Avensys Modern and Precision Classic dual-control shower mixers. The assembly includes the brass control-unit housing with its plastic slider piston and wax thermostat element.
The wax thermostat responds to changes in mixed-water temperature while the slider piston regulates the hot and cold water blend. Replacing a worn control unit can restore more stable temperature regulation where the shower has developed temperature drift or a slow response to control adjustments.
Technical Details
- Complete screw-in thermostatic control-unit assembly
- Brass control-unit housing
- Includes the plastic slider piston and wax thermostat element
| Nut size | 45.7mm |
|---|---|
| Largest thread diameter | 49.7mm |
| Brass body length excluding the piston | 99mm |
| Manufacturer service access | 46mm spanner |
Common Fault Symptoms
- Mixed-water temperature drifting during use
- Slow or poor response when the temperature control is adjusted
- Inconsistent hot and cold water regulation
- Stiff or uneven temperature-control movement
Before Ordering
Compare the exact code 47767000 and the stated measurement points with the removed control unit. Similar-looking cartridges can differ internally and must not be selected from diameter or appearance alone. This product is the complete control-unit assembly rather than only the separate wax thermostat element.
Fitting Information
Isolate both the hot and cold water supplies before removing the existing control unit. The manufacturer service procedure uses a 46mm spanner to unscrew the assembly. Apply suitable valve grease during reassembly and recalibrate the outlet temperature after servicing; the documented factory setting is 43 degrees C.
Confirmed Compatible Models
- GROHE 34222000 Avensys Modern Exposed Dual Control Shower Mixer
- GROHE 34223000 Avensys Modern Exposed Thermostatic Mixer Shower
- GROHE 34224000 Avensys Modern Concealed Dual Control Shower Mixer
- GROHE 34225000 Avensys Modern Concealed Thermostatic Shower Valve
- GROHE 34538000 Precision Classic Dual Control Shower Mixer 1/2 Inch
Related Spares You May Need

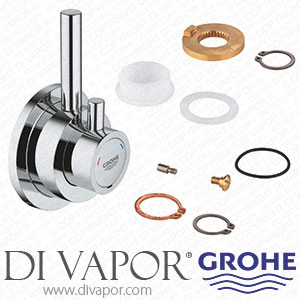

- GROHE 47766000 Control Handle for Avensys Shower Valve
- Wax Thermostat Element for GROHE 00798000 Avensys Grohmaster Vernet Retrofit
- GROHE Avensys 00798000 and 07587000 Piston Shuttle Slider and Wax Thermostat Kit
- GROHE 07587000 Avensys Piston Shuttle Slider
- GROHE 0654400M Pair of Non-Return Check Valves - 06544 00M
- TACSIL 3g WRAS Approved Silicone Grease for Tap and Shower Cartridges
