Grohe 47766000 Control Handle for Avensys Shower Valve
Send a photo of your item and we'll help confirm it.
Summary
GROHE 47766000 Control Handle for 34222000, 34223000, 34224000 and 34225000 Avensys Shower Valves

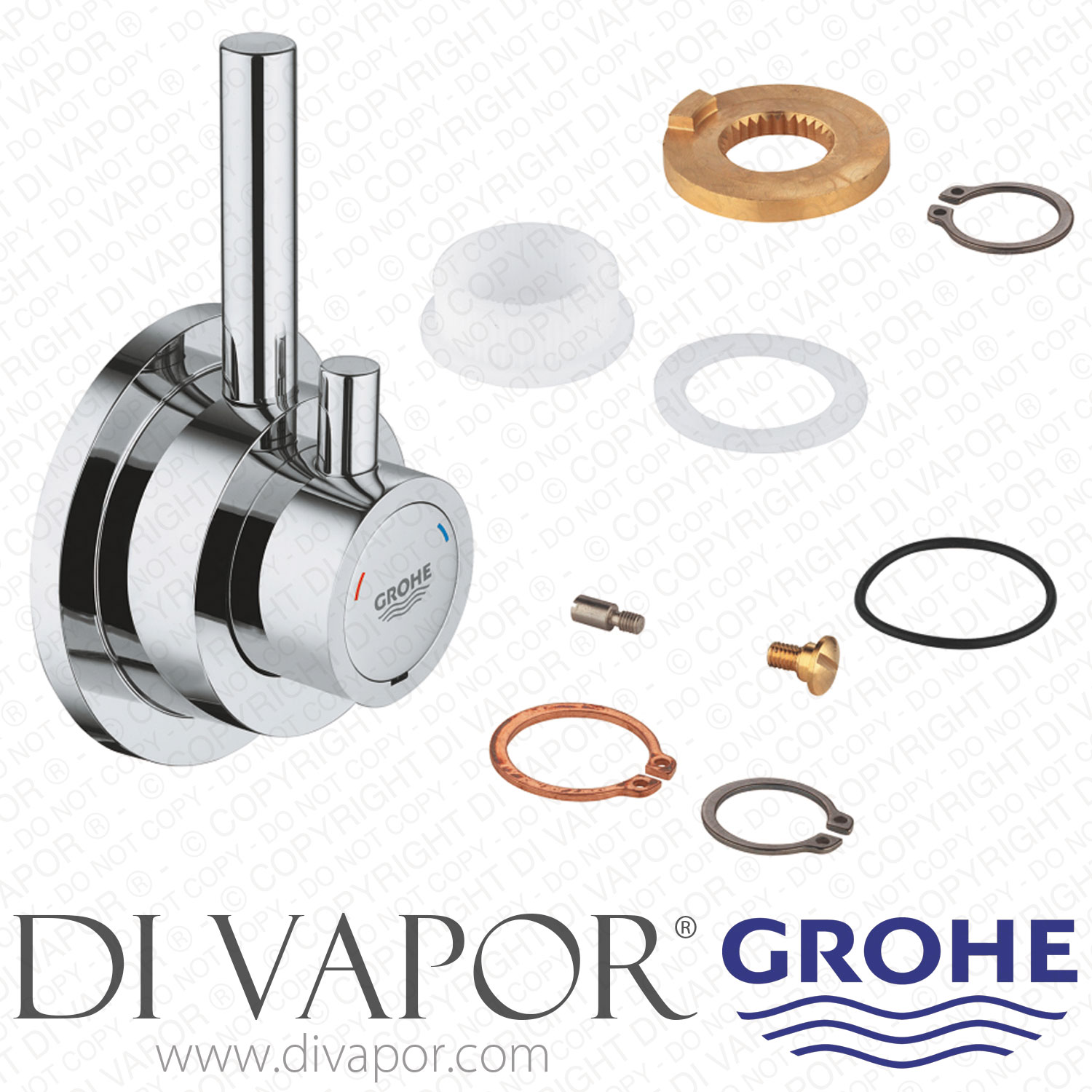

The GROHE 47766000 is a chrome control handle assembly used on selected Avensys Modern and Precision Classic dual-control thermostatic shower mixers. It is the user-facing control assembly for the shower valve and is supplied as the handle assembly rather than the complete mixer valve.
This GROHE spare part is used across both exposed and concealed shower valve arrangements. When replacing a worn, damaged or difficult-to-operate control handle, confirm the valve model before ordering because visually similar GROHE controls can use different internal fittings.
Technical Details
| GROHE code | 47766000 |
|---|---|
| Part type | shower valve control handle assembly |
| Finish | chrome |
| Application | dual-control thermostatic shower mixers |
| Installation types represented in the confirmed model set | exposed and concealed |
- Supplied as the control handle assembly rather than the complete shower mixer valve
Confirmed Compatible Models
- GROHE 34222000 Avensys Modern Exposed Dual Control Shower Mixer
- GROHE 34223000 Avensys Modern Exposed Thermostatic Mixer Shower
- GROHE 34224000 Avensys Modern Concealed Dual Control Shower Mixer
- GROHE 34225000 Avensys Modern Concealed Thermostatic Shower Valve
- GROHE 34538000 Precision Classic Dual Control Shower Mixer 1/2 Inch
Before Ordering
Check the GROHE valve model code before ordering and compare the existing control assembly with the product image. The 47766000 is a handle assembly only, so faults with temperature regulation or internal valve operation may require one of the associated thermostatic components instead.
Related Spares You May Need
- GROHE 47767000 Avensys Thermostatic Cartridge with Wax Thermostat and Slider Piston
- Wax Thermostat Element for GROHE 00798000 Avensys Grohmaster
- GROHE Avensys 00798000 and 07587000 Piston Shuttle Slider and Wax Thermostat
- GROHE 07587000 Avensys Piston Shuttle Slider
- GROHE 0654400M Pair of Non-Return Check Valves
- 150mm Universal Shower Hose NXT734
