GROHE 47600000 Assembly
GROHE 47600000 AssemblyGrohe 47600000 Cartridge4760000047600000 Cartridge47600000 Thermostatic CartridgeGrohe Avensys CartridgeGrohe 47600000

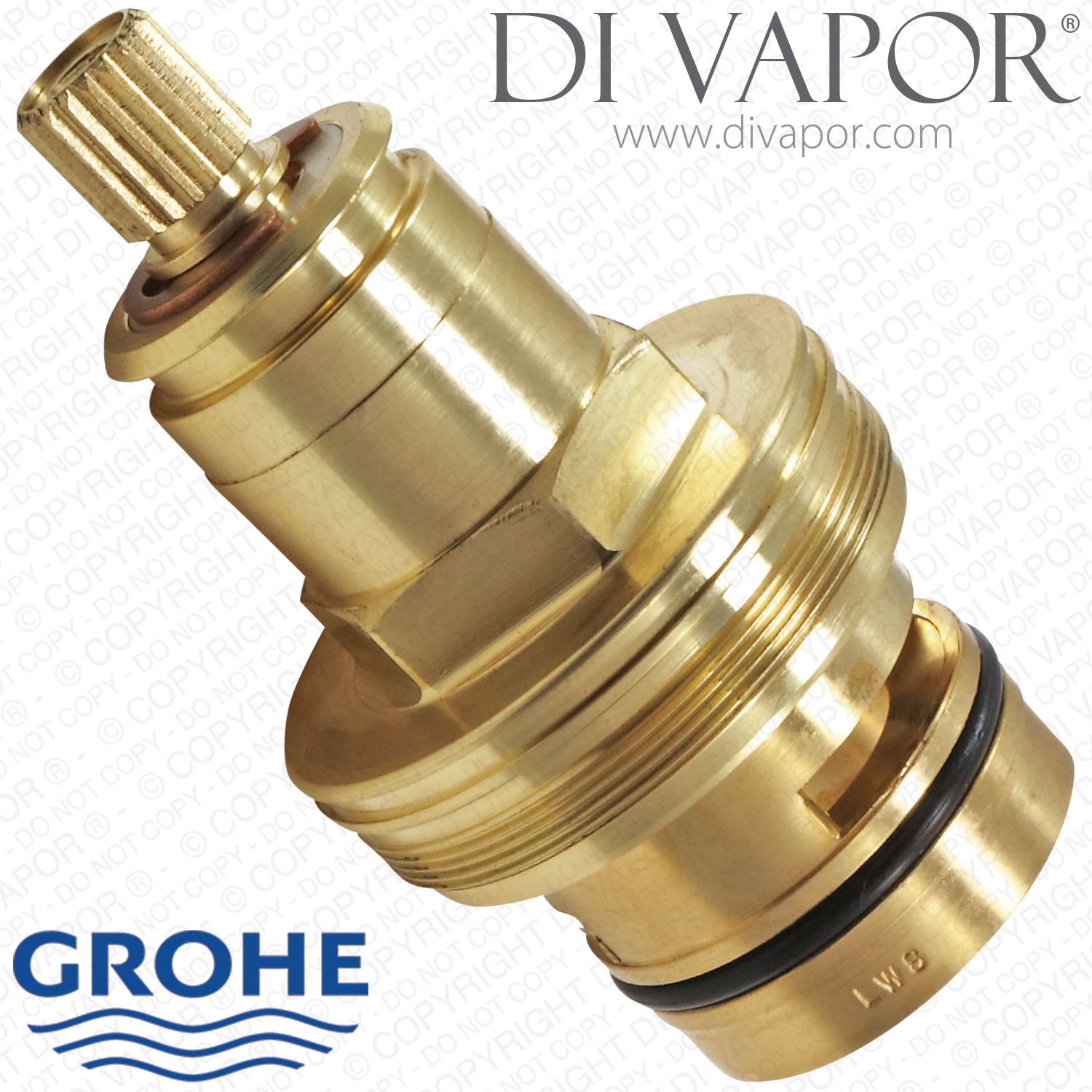

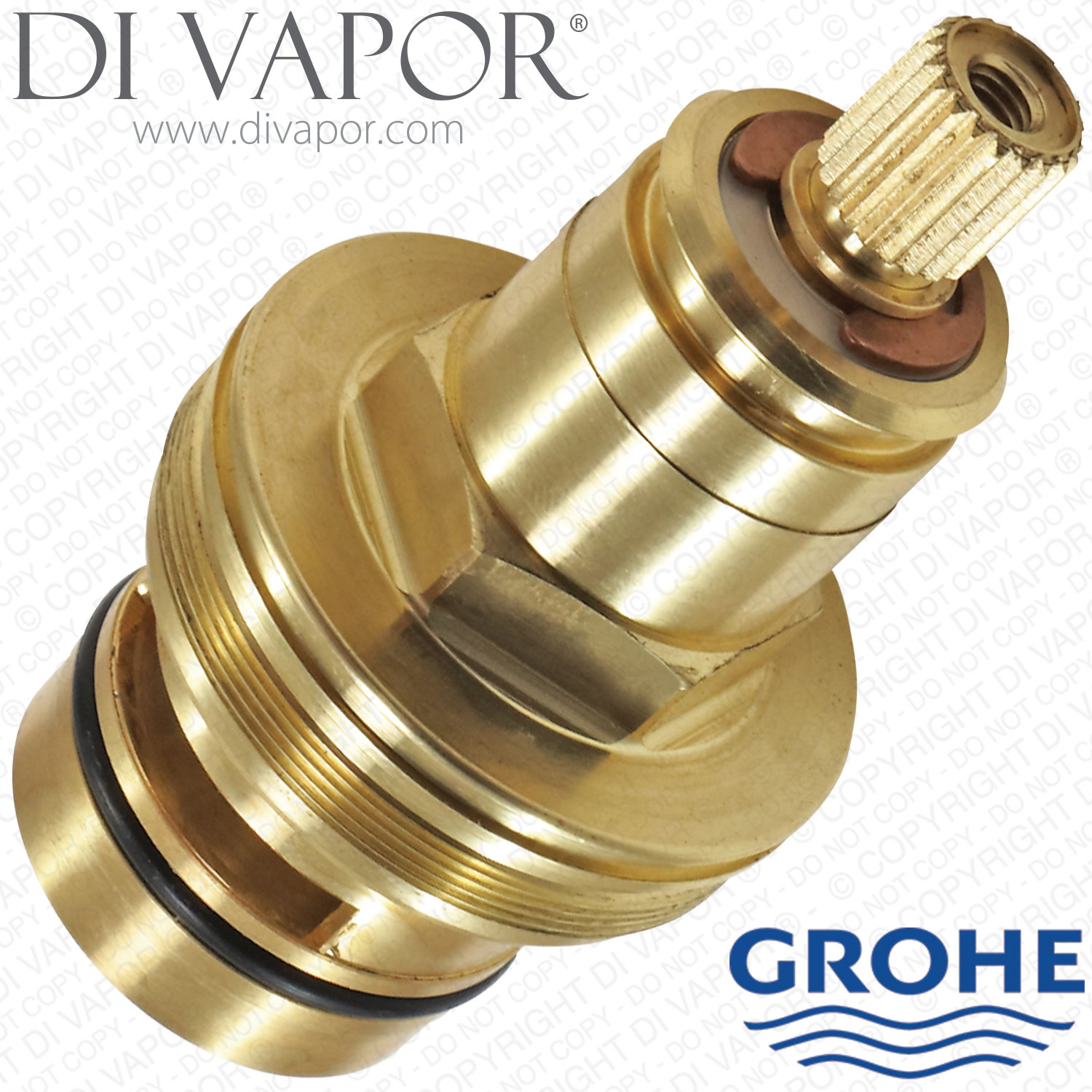

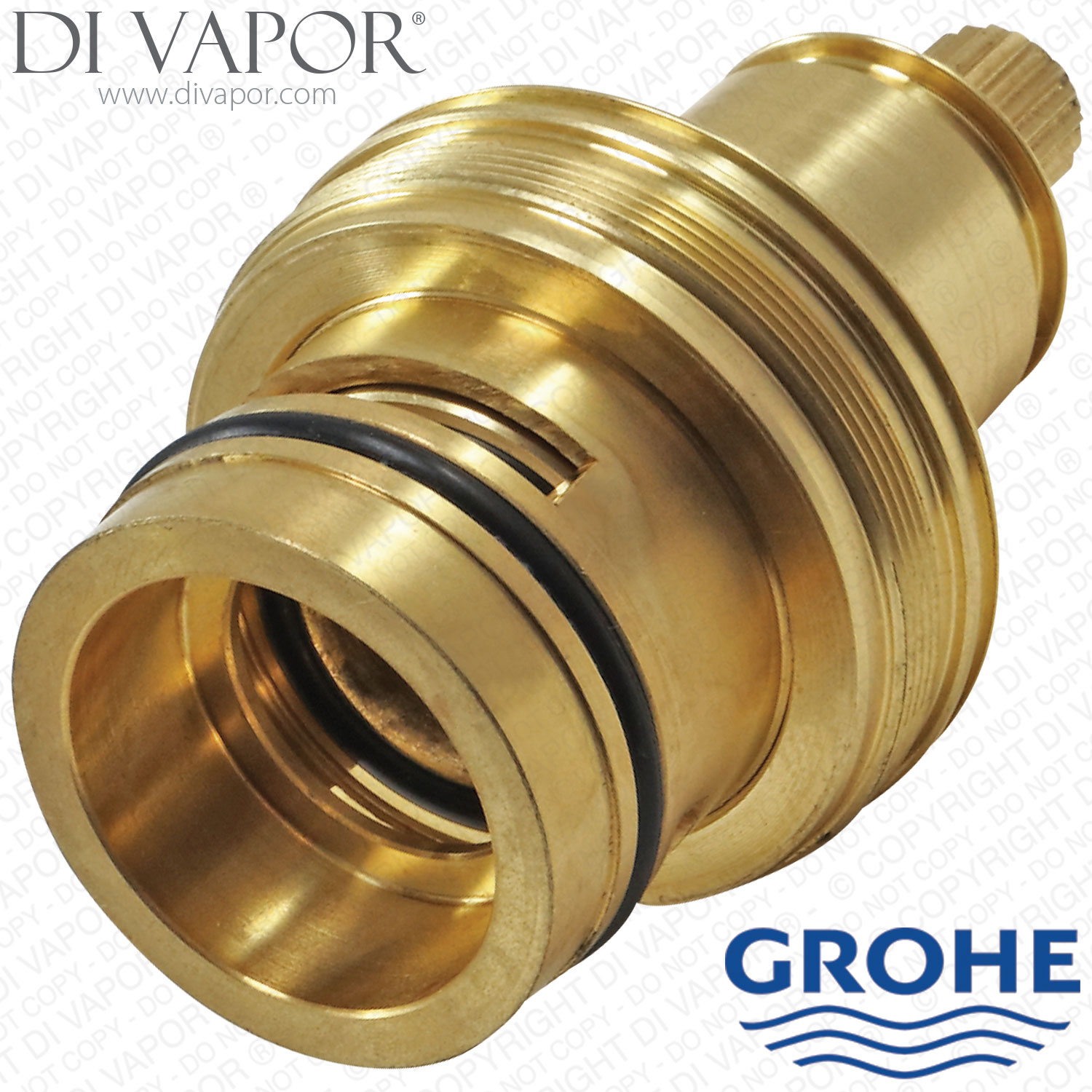

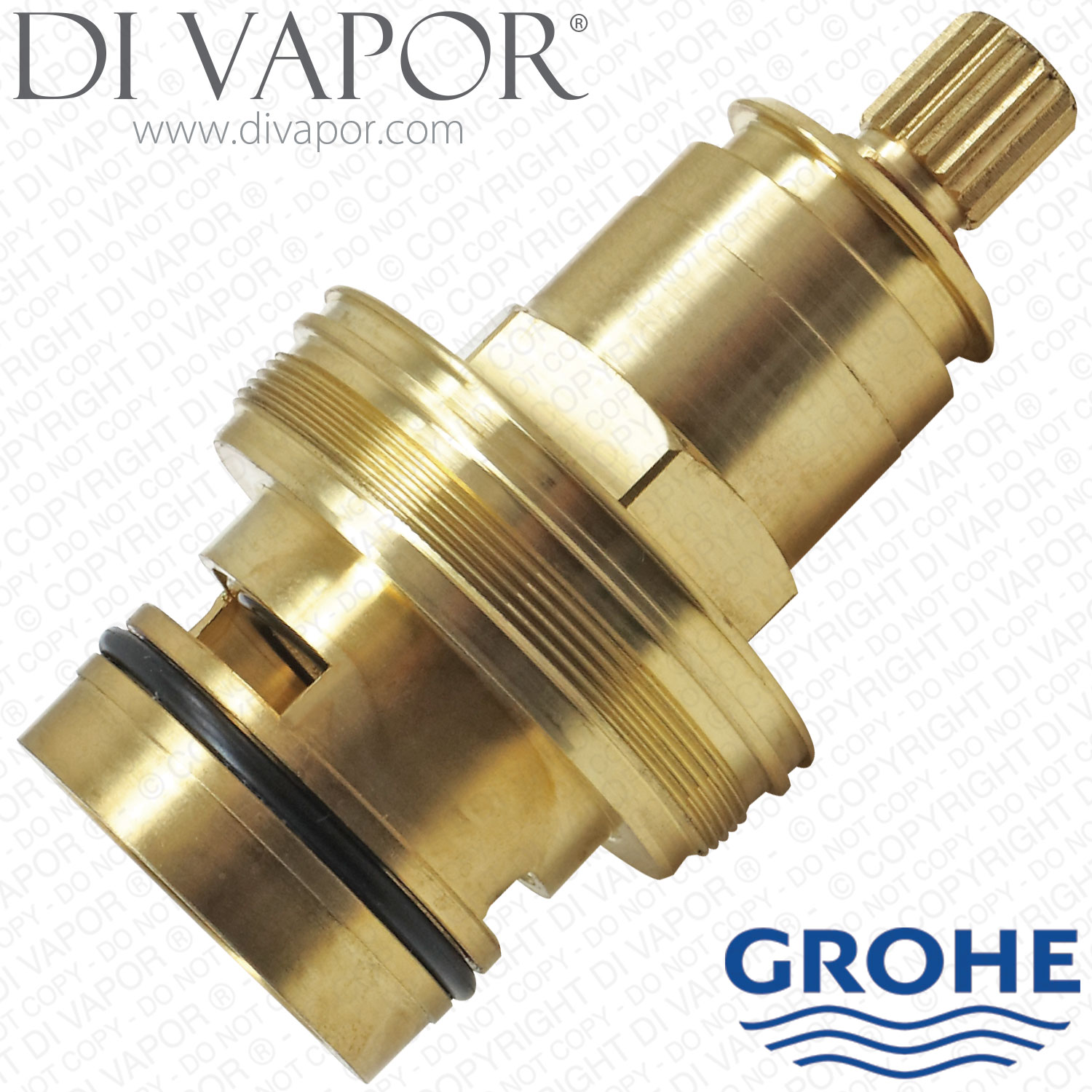

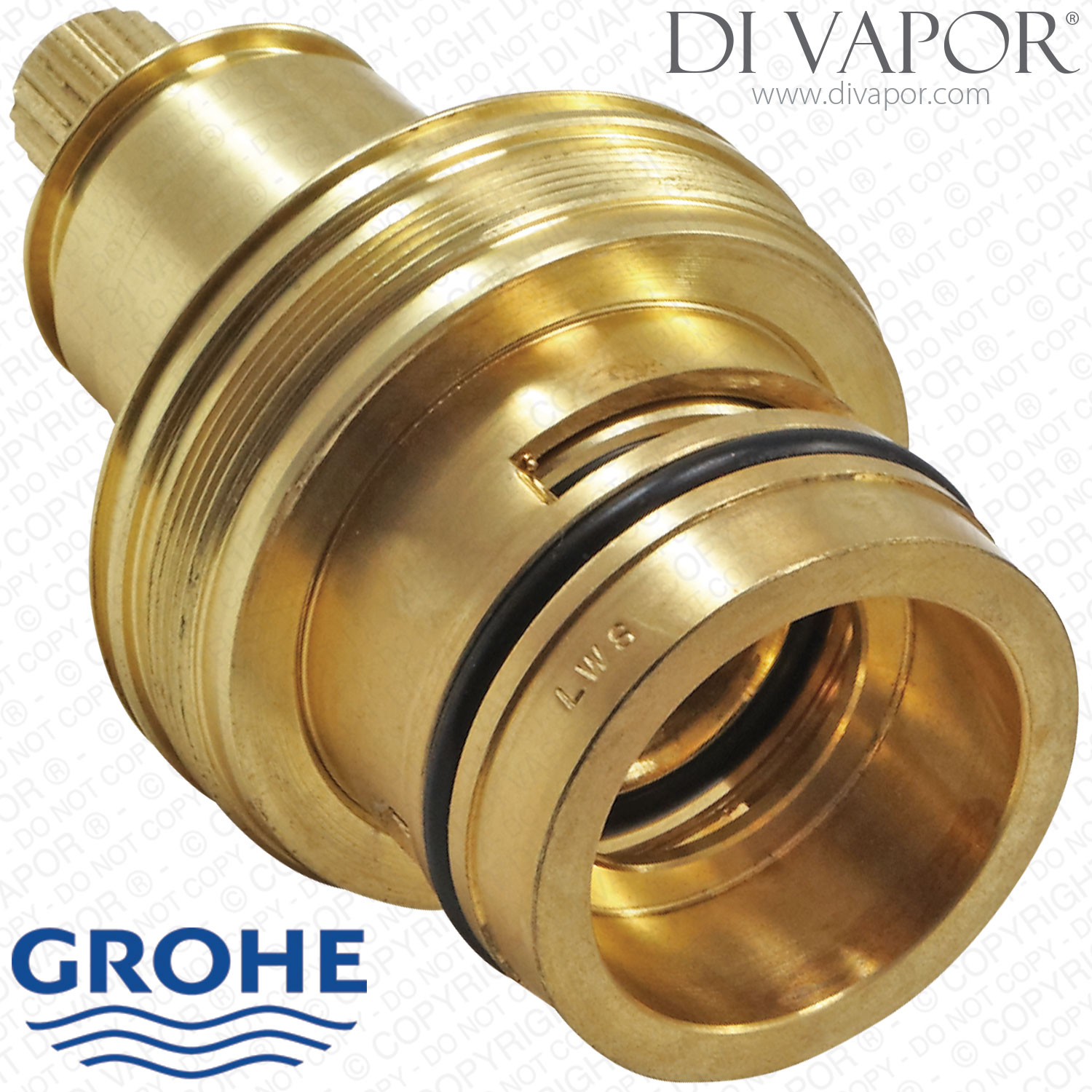

Grohe 47600000 Thermostatic Cartridge with Shuttle Piston and Wax Thermostat Element for Avensys and Grohmaster Valves

Part Number: GROHE-47600000

SALE: £289.17

You save: £98.83 (25%)
Price includes VAT
Wrong Item? Click to see More
UK Lowest Price Guaranteed
Next Day Delivery Available
Product description


Grohe 47600000 thermostatic cartridge with wax element control unit for Avensys and Grohmaster shower valves (Code also can be written 47600 000)

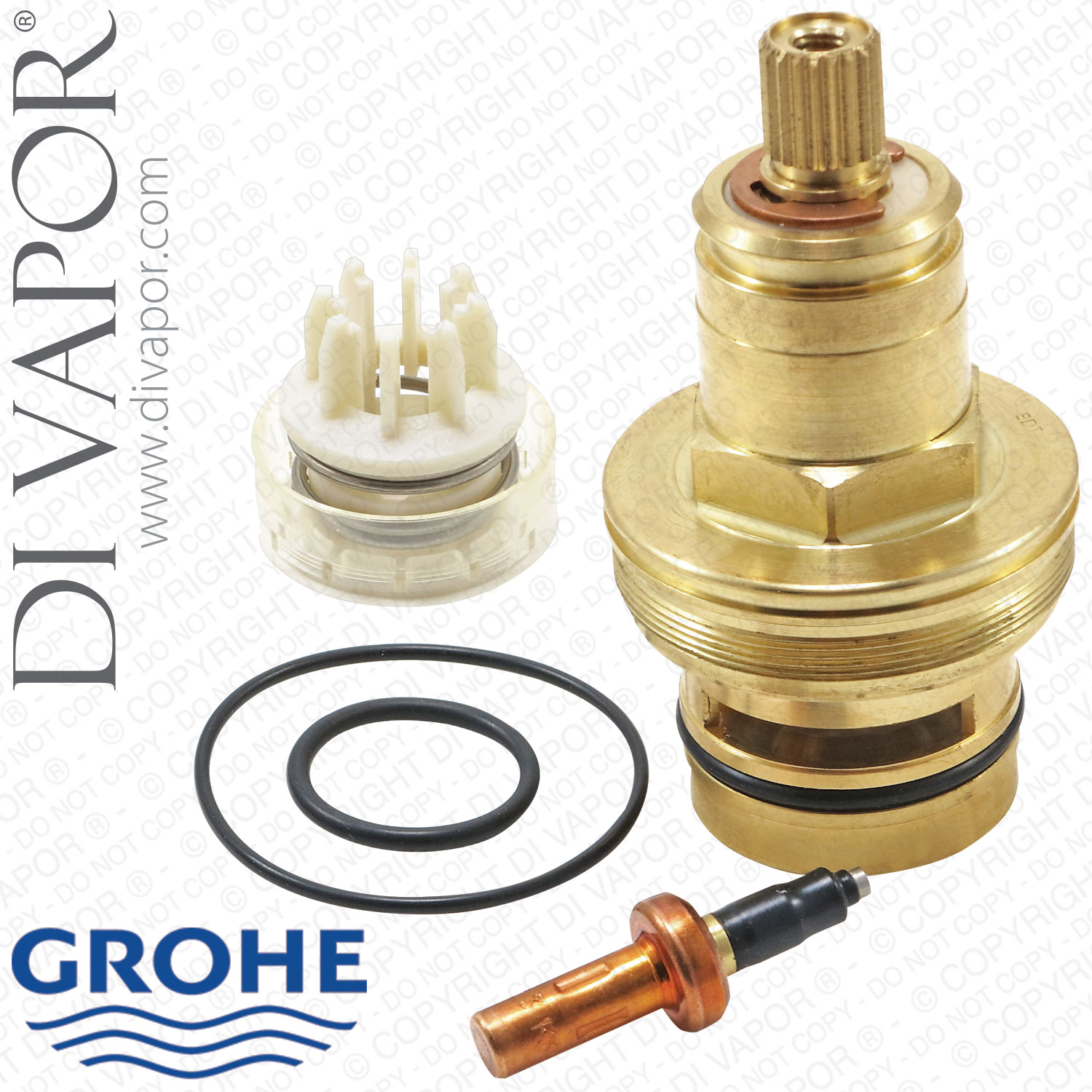

This cartridge comes WITH the wax thermostat element and plastic piston shuttle which is pictured. The wax thermostat element is the part of the cartridge which moves to regulate the temperature of the water. If you need to replace one of these parts, it's likely all of them will need to be replaced as they'll all be nearing the end of their life cycle.

Please be aware that most other sellers don't include the wax element. It is this part which controls the temperature of the shower and is at the heart of the shower. If this part stops working the shower will not regulate water temperature correctly.

The 47600000 cartridge is used in the following shower valves:
- Grohe Avensys Exposed Single Thermostat Mixing Valve
- Grohe Grohmaster 34 037 & 34 038 Avensys D08 Single Control Mixing Valve
- Grohe Grohmaster 34 033 Avensys Thermostatic Single Ev
- Grohe Grohmaster 34 045 Avensys Trad. Thermostatic Single 1/2" Inch
- Grohe Grohmaster 34 044 Avensys Trad. Thermostatic Single 1/2" Inch
- Grohe grohmaster 34 035 Avensys Thermostatic Single Biv

About the Grohe 47600000

Spare Part: Grohe 47600000 Control Unit

This set includes:
Wax Thermo-Element
Shuttle Piston
– 2 O-Rings

GROHE 47600000 is capable of handling high water pressure up to 5.0 bar.

Grohe Avensys 47600000 Shower Cartridge Replacement Guide in Ten Simple Steps

Appropriate for high and low water pressure, the Grohe Avensys is a single lever thermostatic shower mixer that comes in an exposed valve version and a built-in valve version. The units are factory calibrated to a maximum temperature of 41℃ (105.8℉). GROHE 47600000 is the cartridge assembly that will readily fit in the Avensys.

In attempting a Grohe Avensys cartridge replacement, one should not forget to isolate water supply lines to minimize cold shock or burns from unintentional water flow.

Step One
Remove the Grohe end cap to get to the screw holding the lever handle in place. Use a screwdriver to loosen the screw. The handle will fall off on its own. Be careful that it does not fall to the ground.

Step Two
Remove the Grohe fastening set by undoing the screw to release the part.

Step Three
Remove the cover ring and the stop ring.

Step Four
Use a 30-millimeter spanner to loosen and free the cartridge housing, the wax thermostat capsule, and the shuttle slider.

Step Five
Clean the valve housing using a small brush and rinse it with water.

Step Six
Construct the Grohe 47600000 control unit for Avensys and coat the O-rings with the proper silicone grease made for plumbing.

Step Seven
Insert the cartridge in the valve seat and tighten with the spanner until it stays in place.

Step Eight
Reattach the stop ring and the cover ring.

Step Nine
Screw the fastening part back.

Step Ten
Reattach the handle and screw it securely in place.

Once the cartridge is changed, open hot and cold water supplies to check if the installation is done flawlessly.

Other Useful Information
GROHE 47600000 comes factory calibrated out of the box. This pre-set setting can be changed to suit user preference. Calibrating the control unit can be done by inserting a thin screwdriver right in the middle of the cartridge head. Turn it anti-clockwise to increase the temperature (make it hotter) and clockwise to reduce the temperature (make it colder).
