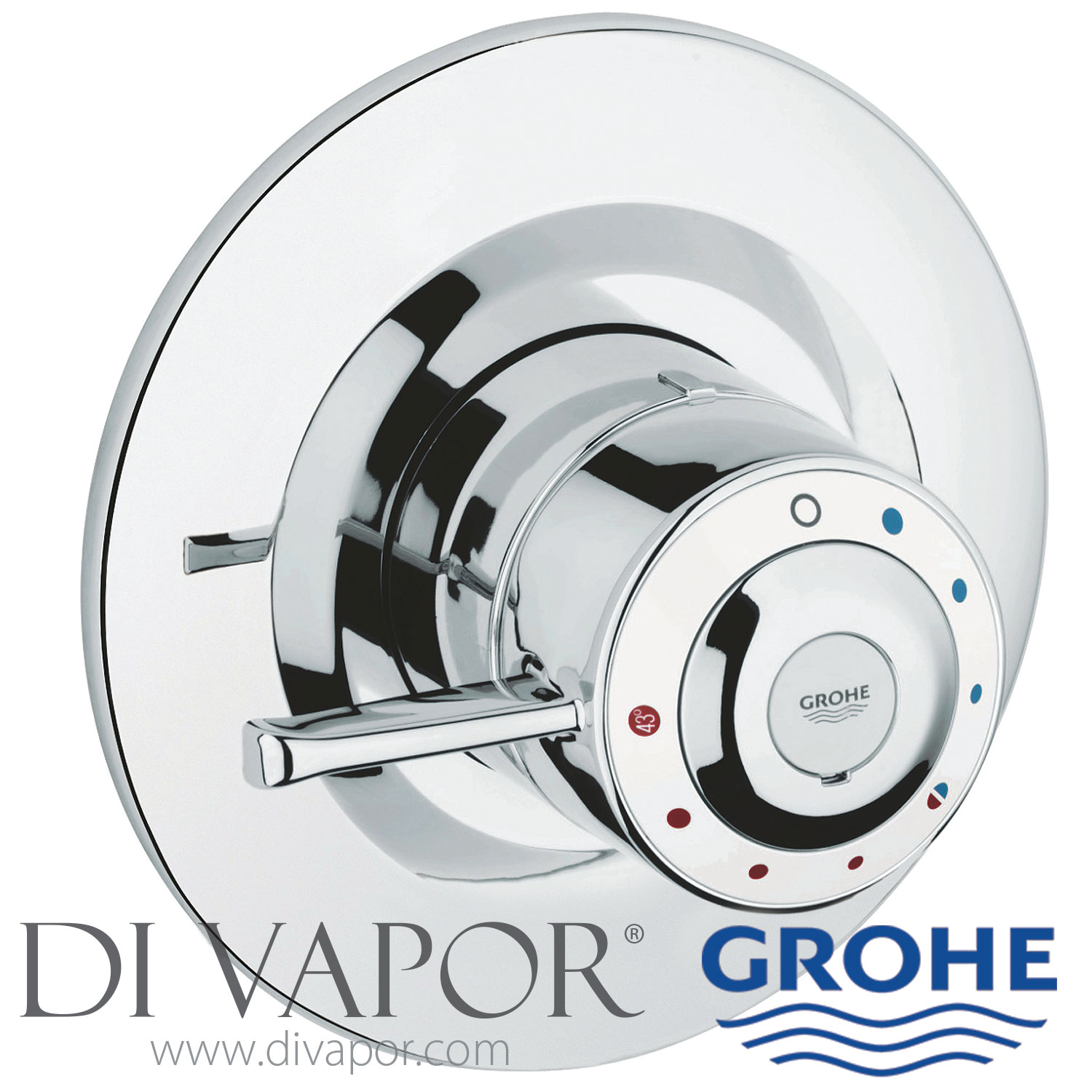

Grohe 34041IL0 Avensys 1/2" Concealed Single Control Shower Mixer Valve (Chrome)
Send a photo of your item and we'll help confirm it.
Summary
Grohe 34041IL0 Avensys 1/2" Concealed Single Control Shower Mixer Valve
Standard Specification:
--Thermostatic
--Suitable for high / low pressure
--Concealed brass body & trim set
--Factory set max. temperature 41°C
--Installation bracket for body
--In masonry / stud walls
--Combined flow & temperature control handle
--Metal lever
--Built-in non return valves
--Dirt strainers
--Shower outlet 1/2" top or bottom
--Reversible body for crossed supplies
--Flow limiters for high (>1.0 bar) or unequal pressures GROHE StarLight chrome finish recommended pressure 0.1 - 5.0 bar
Grohe Avensys 47595IL0 Lever HandleThe Grohe 47595IL0 lever handle is a genuine operating handle used on Grohe Avensys concealed shower valve installations. It provides the user interface for controlling water flow and temperature through the internal valve mechanism.FunctionThis...
Grohe Avensys 46455000 Concealing FaceplateThe Grohe 46455000 concealing faceplate is a genuine trim component designed for use with Grohe Avensys concealed shower valve installations. It mounts over the valve body to provide a finished appearance at the wall surface while allowi...
Grohe 47600000 thermostatic cartridge with wax element control unit for Avensys and Grohmaster shower valves (Code also can be written 47600 000) This cartridge comes WITH the wax thermostat element and plastic piston shuttle which is pictured. The wax thermostat element is t...
This is a genuine Vernet thermostatic element which is identical to the Grohe 00798000 (00798 000) Avensys wax element and can be used as a direct replacement. We deliver this thermostat element worldwide. The thermo element can be used with the following brands and models ...
Grohe 00798000 slider piston & 07587000 wax thermostat element. The wax thermostat element we use in this kit is a Vernet Element which is made in France. This piston (Grohe 07587000) and thermostat (Grohe 00798000) is used in the following Grohe shower models: - Grohe Grohm...

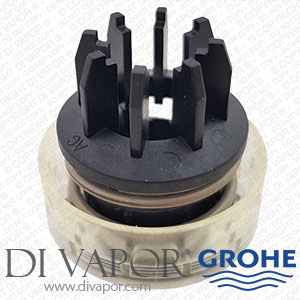

Grohe 07587000 Avensys Piston Shuttle Slider.The Grohe 07587000 is a piston shuttle slider used in Grohe Avensys and Grohmaster thermostatic shower valve assemblies. Di Vapor lists this spare under Part Number GR-07587000.The shuttle slider works with the wax thermostat element i...
Grohe 0654400M Pair of Non-Return Check Valves - 06544 00MThe Grohe 0654400M is a pair of non-return check valves for selected Grohe Avensys shower mixer and thermostatic shower valve assemblies. The valves sit within the waterway to help prevent reverse flow through the shower v...
