A952538NU11 Ideal Standard Trevi Thermostatic Cartridge for Idealux 715 and Trevi Lux Shower Valves

Summary

Ideal Standard Trevi A952538NU11 Thermostatic Cartridge (Genuine) for Idealux 712 / 715 and Lux Shower Valves

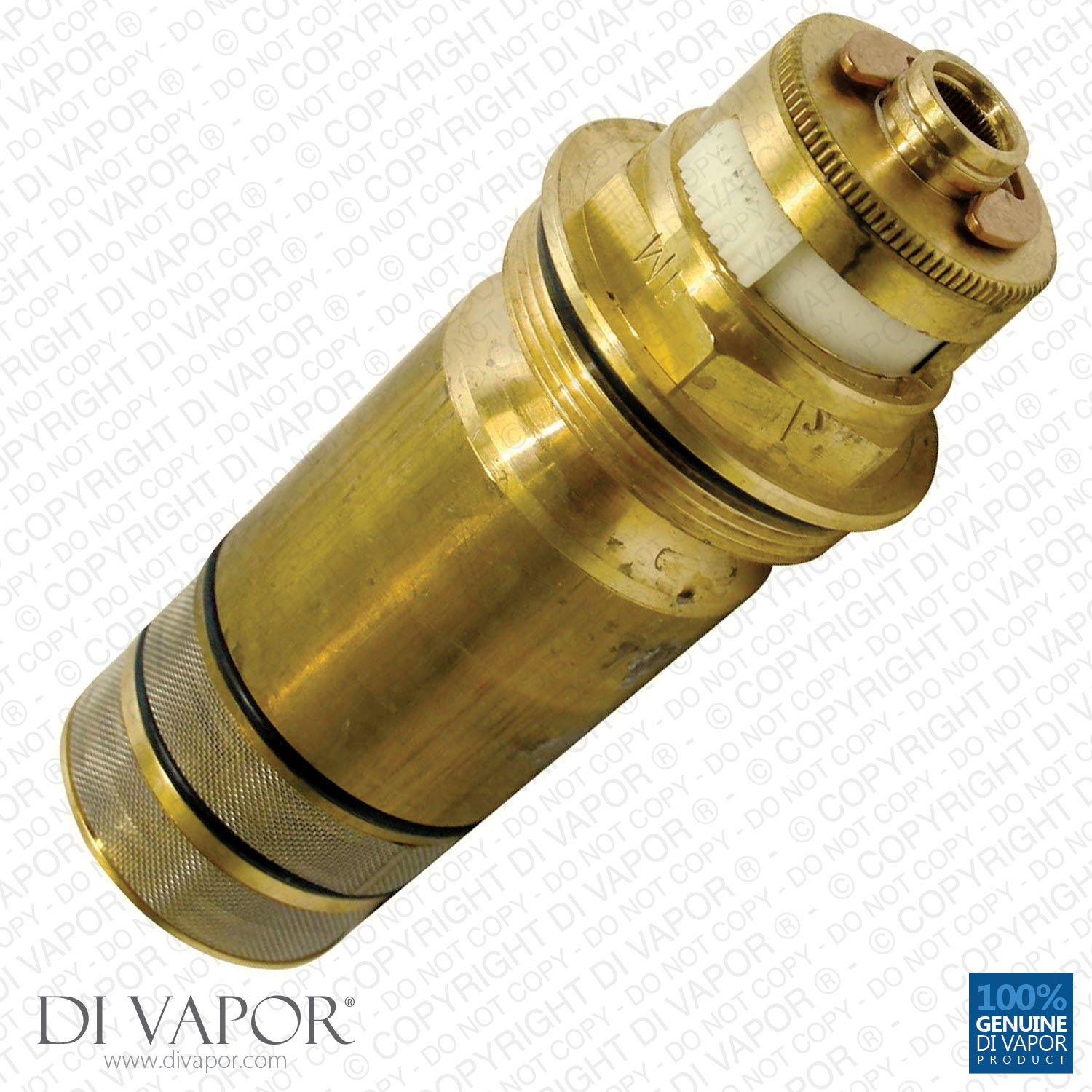

The Ideal Standard Trevi A952538NU11 is a genuine thermostatic cartridge for Idealux 712 exposed, Idealux 715 built-in and Trevi Lux built-in thermostatic shower mixer valves. It is the internal temperature-control cartridge, not a complete shower valve.

The cartridge regulates the mixture of hot and cold water to control the shower outlet temperature. Replacing a faulty cartridge can restore temperature adjustment while retaining the existing mixer body and external controls.

Technical Details

Confirmed Shower Models

• Trevi Idealux 712 Exposed Thermostatic Shower Mixer IDL DV 396
• Trevi Idealux 715 Built-in Thermostatic Shower Mixer IDL DV 112
• Trevi Lux Built-in Thermostatic Shower Mixer IDL DV 355
• American Standard 952538

Before Ordering

Check the shower model and compare the existing cartridge with the product photographs, paying attention to the threaded sections, control spindle, filter positions and O-ring layout. Idealux 712 identifies the exposed shower mixer; Idealux 715 identifies the built-in version. Diameter alone is not sufficient to establish the correct cartridge.

Temperature Problems

Symptom: the shower temperature fluctuates, responds poorly to adjustment or remains too cool despite an adequate hot-water supply. Likely Cause: wear or limescale affecting the thermostatic mechanism, although restricted filters or a supply problem can produce similar symptoms. Solution: check both water supplies and inspect the filters before replacing the cartridge where a cartridge fault has been established.

Installation Notes

Isolate both hot and cold water supplies before dismantling the mixer. Clean the cartridge seating area and inspect the seals and filters during servicing. Follow the shower manufacturer's fitting and temperature-setting instructions, then check for leaks and confirm the outlet temperature before using the shower.

Related Spares You May Need

These items are sold separately. Select the parts required for the particular valve fitted; they are not all necessary for a cartridge change.

• Ideal Standard A961697AA Volume Control Handle - for Idealux 712 exposed, Idealux 715 built-in and Trevi Lux built-in mixers
• Ideal Standard A961753AA Idealux Cover Cap
• Ideal Standard A960120AA Idealux Chrome Temperature Dial
• Ideal Standard Trevi A961008NU Idealux Isolating and Non-Return Valve - check the existing valve assembly before ordering
• A918434AA M4 x 50mm Chrome Cover Screw - aftermarket cover screw for the Idealux 715 built-in mixer
• TAC86 TACSIL 3g Cartridge Silicone Grease - for lubricating cartridge O-ring seals during installation

Related Shower Kit Spares

The following items are shower-kit accessories rather than internal cartridge components. Check the handset, hose connections and riser rail fitted to your installation before ordering.

• Ideal Standard B9400AA IdealRain S1 80mm Single-Function Chrome Handset - shower-kit spare for Idealux 715
• Ideal Standard B9403AA IdealRain M3 Shower Handset - shower-kit spare for Idealux 712 and 715
• Ideal Standard B960976AA Shower Slider Set - select to match the existing riser rail
• Ideal Standard Trevi E4745AA 135cm Easyclean Chrome Shower Hose - 1/2 inch BSP connections for Idealux 712 and 715 shower kits
