A961008NU Ideal Standard /​ Trevi Idealux isolating valve/​non-return valve

SUMMARY

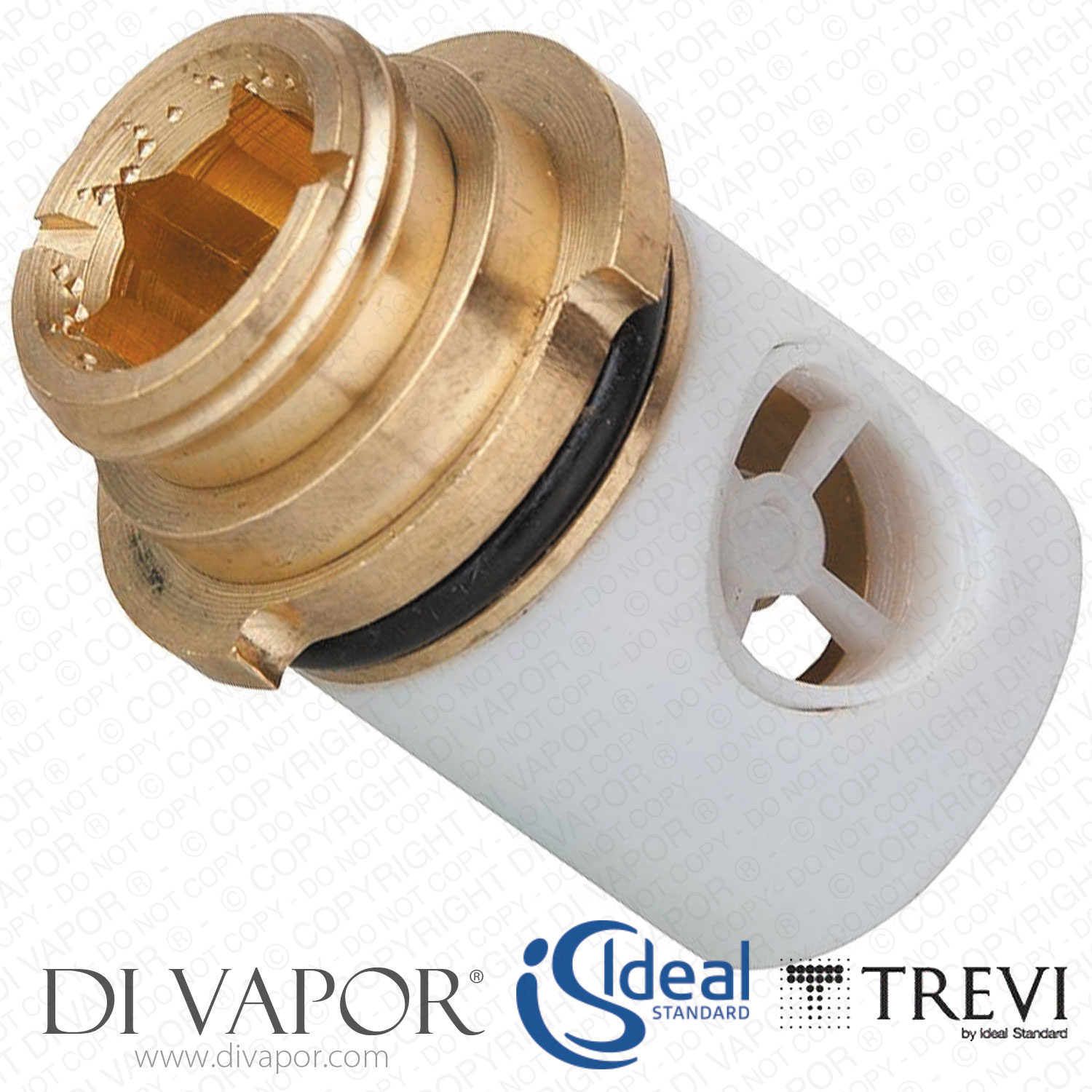

Ideal Standard A961008NU Trevi Idealux Side Valve Isolating and Non-Return Valve

The Ideal Standard A961008NU is a complete side valve assembly for selected older Ideal Standard and Trevi Idealux / Idealtherm thermostatic shower valves. The part is used as an isolating valve and non-return valve within the thermostatic mixer assembly, while Ideal Standard spare-parts documentation also describes it as a complete side valve.

The A961008NU forms part of the water-control section of the valve and should be matched by part number and valve model before ordering. Older Ideal Standard documentation shows this side valve across a number of Idealux and Idealtherm thermostatic valve variants.

Technical Details

- - Part Number: A961008NU

- - Manufacturer's alternative code format: A 961 008 NU

- - Part type: complete side valve / isolating and non-return valve

- - Total height: 42mm

- - Width of white body: 25mm

- - Diameter of brass flange at widest point: 29.8mm

The 29.8mm measurement is the diameter of the brass flange at its widest point and is not a confirmed thread diameter. Match the code A961008NU or A 961 008 NU and the valve model rather than identifying the part from this diameter alone.

Confirmed Compatible Models

- - Ideal Standard Idealtherm / Idealux A5410 old thermostatic valve range up to February 1995 - A 5410 - Chrome; A 5410 973 205 - White; A 5410 973 591 - Chrome-Edelmatt; A 5410 977 544 - Carat; A 5410 978 064 - Edelmeessing; A 5410 978 065 - Aranja

- - Ideal Standard Idealtherm / Idealux A5413 old thermostatic valve range up to February 1995 for instantaneous water heater applications - A 5413 - Chrome DE; A 5413 973 144 - Bronze DE; A 5413 973 210 - White DE; A 5413 973 592 - Chrome-Edelmatt DE

- - Ideal Standard Idealtherm / Idealux A5419 old thermostatic valve range up to February 1995 - A 5419 978 880 - Chrome; A 5419 978 881 - Chrome-Edelmatt; A 5419 978 882 - White; A 5419 978 883 - Carat; A 5419 978 884 - Edelmeessing; A 5419 978 885 - Aranja; A 5419 978 887 - Chrome-Edelmeessing; A 5419 978 888 - White-Edelmeessing; A 5419 978 905 - Satin; A 5419 978 906 - Satin-Gold

- - Ideal Standard Idealtherm / Idealux A5450 old thermostatic valve range up to February 1995 - A 5450 - Bronze

- - Ideal Standard Idealtherm / Idealux A5470 old thermostatic valve range up to February 1995 - A 5470 - Gold

- - Ideal Standard Idealux A5814 old G1/2 central thermostat range up to February 1995 - A 5814 - Chrome; A 5814 973 206 - White; A 5814 973 593 - Chrome-Edelmatt; A 5814 977 545 - Carat; A 5814 978 068 - Edelmeessing; A 5814 978 069 - Aranja

- - Ideal Standard Idealux A5817 old G1/2 central thermostat range up to February 1995 for instantaneous water heater applications - A 5817 - Chrome DE; A 5817 973 145 - Bronze DE; A 5817 973 211 - White DE; A 5817 973 635 - Chrome-Edelmatt DE

- - Ideal Standard Idealux A5819 old central thermostat range up to February 1995 - A 5819 978 890 - Chrome; A 5819 978 891 - Chrome-Edelmatt; A 5819 978 892 - White; A 5819 978 893 - Carat; A 5819 978 894 - Edelmeessing; A 5819 978 895 - Aranja; A 5819 978 897 - Chrome-Edelmeessing; A 5819 978 898 - White-Edelmeessing; A 5819 978 915 - Satin; A 5819 978 916 - Satin-Gold

- - Ideal Standard Idealux A5824 old G3/4 central thermostat range up to February 1995 - A 5824 - Chrome; A 5824 973 207 - White; A 5824 973 594 - Chrome-Edelmatt; A 5824 978 070 - Edelmeessing; A 5824 978 071 - Aranja

- - Ideal Standard Idealux A5854 old G1/2 central thermostat range up to February 1995 - A 5854 - Bronze

- - Ideal Standard Idealux A5864 old G3/4 central thermostat range up to February 1995 - A 5864 - Bronze

- - Ideal Standard Idealux A5874 old G1/2 central thermostat range up to February 1995 - A 5874 - Gold

- - Ideal Standard Idealux A5877 old G1/2 central thermostat range up to February 1995 for instantaneous water heater applications - A 5877 - Gold DE

- - Ideal Standard Idealux A5884 old G3/4 central thermostat range up to February 1995 - A 5884 - Gold

Related Spares You May Need

- - Ideal Standard A961753AA Idealux Cover Cap

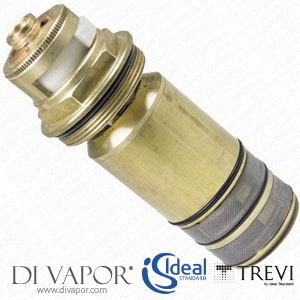

- - A960478NU Ideal Standard / Trevi Ceramix A5410 Thermostatic Cartridge

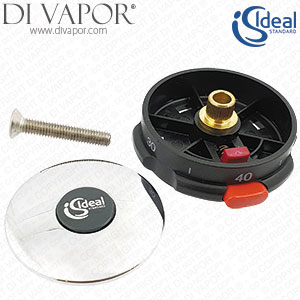

- - Ideal Standard A960120AA Temperature Dial Idealux Chrome

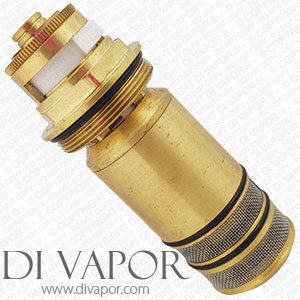

- - Ideal Standard A952538NU11 Thermostatic Cartridge - Compatible Replacement - A952538NU11-CP

Not sure this is the part you need? Use our part identification service and we can help identify it.
