Ideal Standard B9403AA IdealRain M3 Handspray Shower Head
Send a photo of your item and we'll help confirm it.
Summary

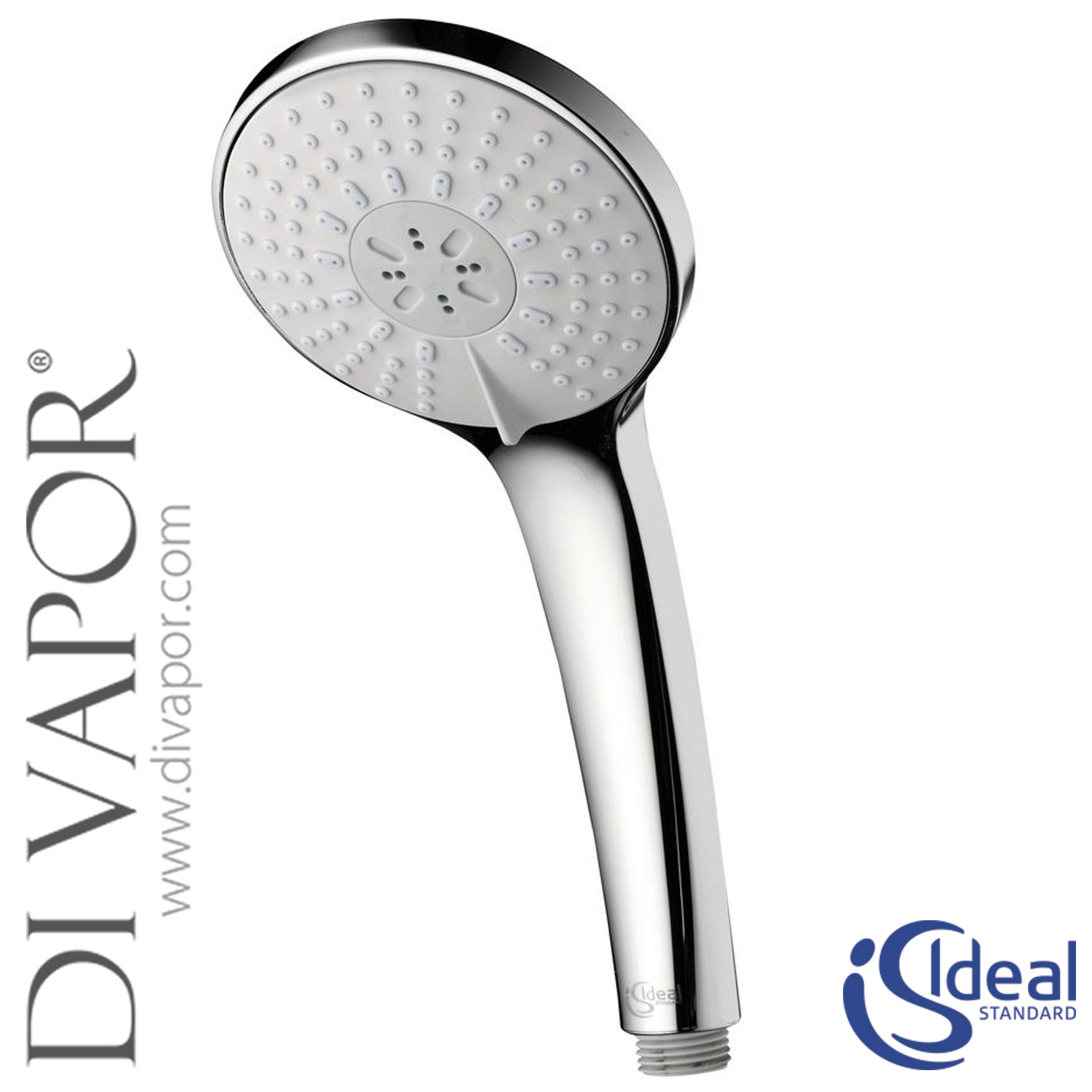

Ideal Standard B9403AA IdealRain M3 100mm Three-Function Chrome Shower Handset
The Ideal Standard B9403AA IdealRain M3 is a chrome-finished, three-function handheld shower head with a 100mm spray face. It is used in selected Ideal Standard Idealrain shower kits and Ceratherm shower systems and is also listed as a handset spare for a range of Trevi showers.
The handset offers three selectable spray patterns: rain, fine rain and massage. Its easy-grip handle provides comfortable use, while the rub-clean spray nozzles help make removing limescale deposits easier. A removable EcoFlow regulator limits water flow to 8 litres per minute at 3 bar.
The B9403AA is supplied as a shower handset only. The shower hose, wall holder and riser rail are separate components and are not included. Replacing a damaged or heavily scaled handset can help restore an even spray pattern without replacing the complete shower system.
Technical Details
| Manufacturer | Ideal Standard |
|---|---|
| Part Number | B9403AA |
| Product range | IdealRain M3 |
| Product type | Three-function handheld shower head |
| Finish | Chrome |

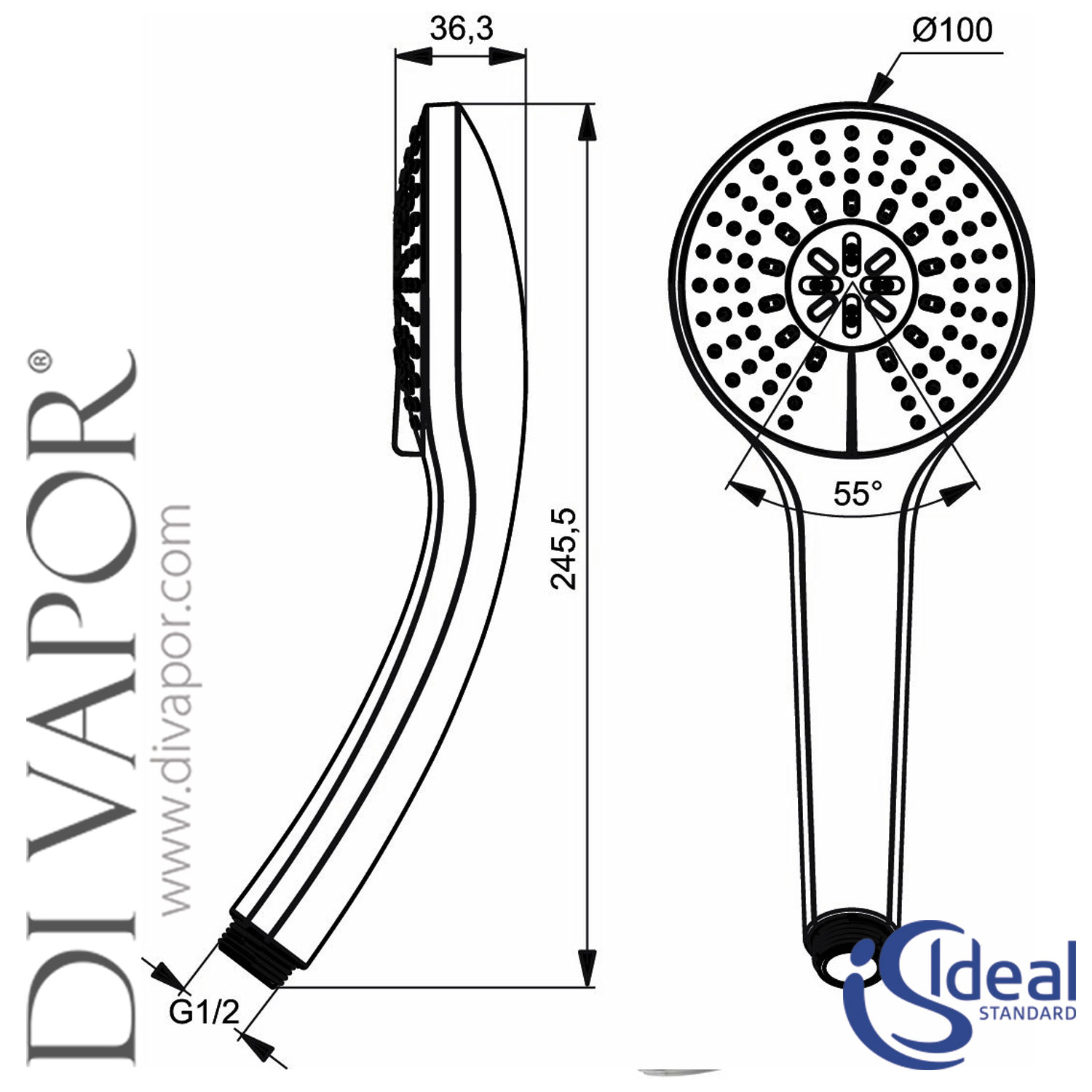

| Spray head diameter | 100mm |
| Overall height | 245.5mm |
| Spray settings | Rain, fine rain and massage |
| Flow rate | 8 litres per minute at 3 bar |
| Flow regulation | Removable EcoFlow regulator |
| Spray nozzles | Easy-clean, rub-clean design |
| Fitting method | Coupling nut connection |
| WRAS certificate | 2201077 |
| Included | Shower handset only |
| Not included | Shower hose, wall holder or riser rail |
Confirmed Shower Kits and Systems
Ideal Standard identifies B9403AA in the following shower kits and systems:
- Ideal Standard Idealrain M3 B9415AA shower kit
- Ideal Standard Idealrain M3 B9416AA shower kit with 600mm rail
- Ideal Standard Idealrain M3 B9417AA shower kit with 900mm rail
- Ideal Standard Idealrain M3 B9419AA shower kit
- Ideal Standard Idealrain M3 B9508AA shower kit
- Ideal Standard Idealrain B9452AA handspray set
- Ideal Standard Idealrain B9454AA handspray set
- Ideal Standard Idealrain B9456AA handspray set
- Ideal Standard Idealrain B9489AA handspray set
- Ideal Standard Idealrain Pro B9834AA shower kit
- Ideal Standard Idealrain Pro B9836AA shower kit
- Ideal Standard Idealrain M3 A5689AA dual shower system
- Ideal Standard Ceratherm T25 A7209AA dual shower system
- Ideal Standard Ceratherm T25 A7590AA bath and shower system
Additional Shower Model Spares Listings
B9403AA is used for the following shower models. The handset originally supplied may vary by installation, so check the existing handset before ordering.
- Ideal Standard Ceratherm T25 A7203AA
- Ideal Standard Ceratherm T25 A7204AA
- Ideal Standard Ceratherm T25 A7208AA
- Ideal Standard Ceratherm 100 A6290AA GEN1
- Trevi CTV A3101AA exposed shower
- Trevi Compact CTV A3102AA built-in shower
- Trevi Blend A4000 built-in shower
- Trevi Blend A4100 A4110 exposed shower
- Trevi PBV A5109AA shower
- Trevi Blend A3086AA exposed shower
- Trevi Outline A3700 built-in shower
- Trevi Glance A5346AA built-in shower
- Trevi TT A3969NU built-in shower
- Trevi Therm Traditional E3115AA shower
- Trevi Therm MK1 310 exposed shower
Related Spares You May Need
- Ideal Standard B960976AA Idealrain shower rail slider
- Ideal Standard E4745AA Trevi 135cm flexible chrome shower hose
Before Ordering
Check the part number, handset shape, spray face diameter and existing shower hose connection against the B9403AA. The shower system model alone may not establish which handset is currently fitted, particularly where accessories have been changed previously.
If you are unsure which handset you need, use the Di Vapor part identification service for help.
