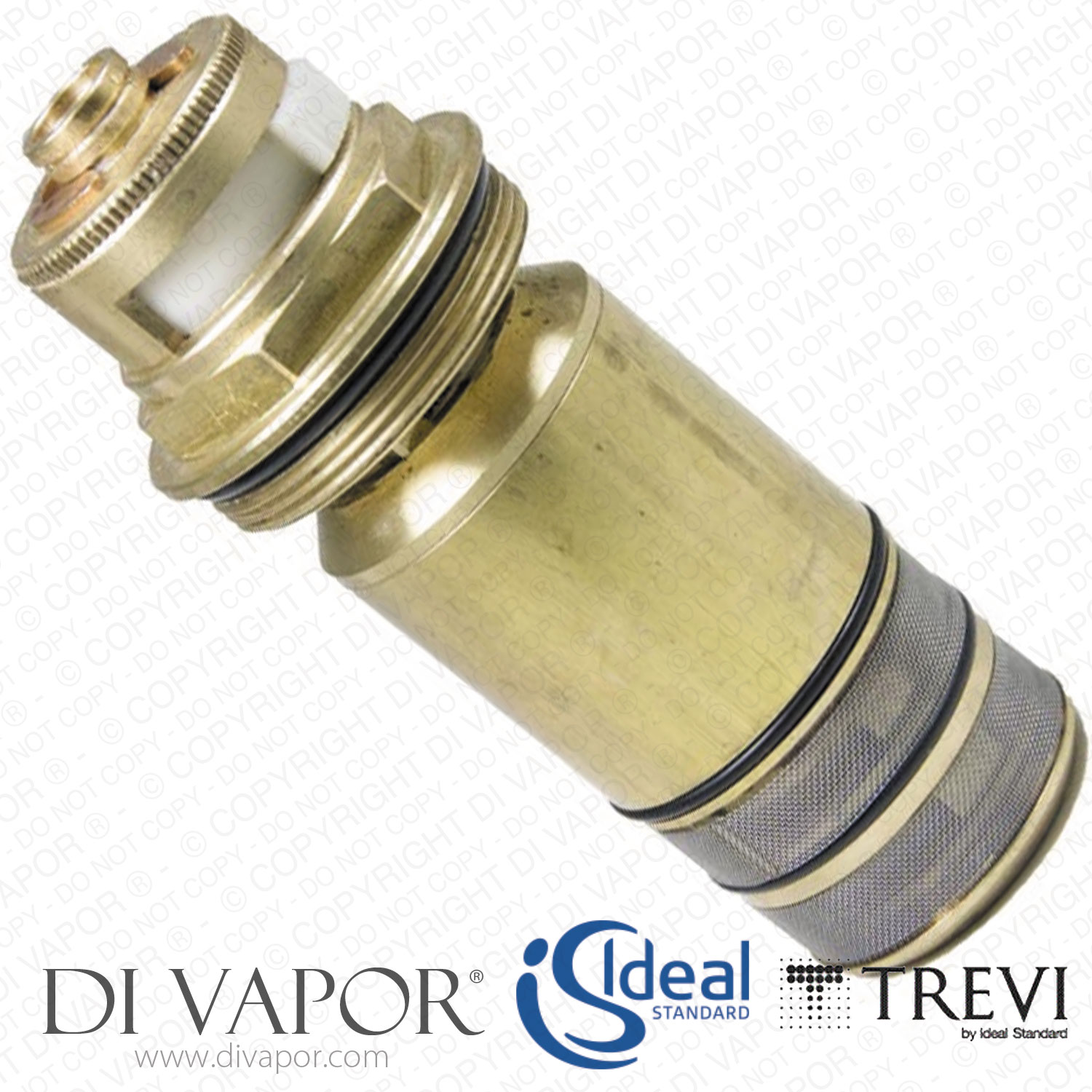

A960478NU Ideal Standard / Trevi Ceramix A5410 Thermostatic Cartridge
Send a photo of your item and we'll help confirm it.
Summary
A960478NU Ideal Standard / Trevi Ceramix A5410 Thermostatic Cartridge Replacement
Used in Avon 21 Basin Mixer Self Cls Chrome No Pu Non Domestic Taps
The A960478NU is an Ideal Standard / Trevi Ceramix A5410 thermostatic shower cartridge used to restore temperature control in the matching A5410 thermostatic valve application.
The thermostatic cartridge controls the blend of hot and cold water inside the valve so the selected outlet temperature can be regulated correctly. Replace this cartridge when the shower temperature is difficult to control, fluctuates, runs too hot or too cold, or when the existing cartridge is worn or scaled.
Technical Details
| Part Number | A960478NU |
|---|---|
| Cartridge type | thermostatic shower valve cartridge |
| Connection type | screw-in |
| Material / finish | brass body |
| Overall length | 121.3mm |
| Cartridge diameter | 44mm |
| Spline diameter | 13.4mm |
| O-rings | 3 |
Verified Application
- Idealux UP-Thermostat A5410/5330 up to 02/1995
- A5410 thermostatic valve application
- Ideal Standard Idealux UP-Thermostat A5410 up to 02/1995
- Ideal Standard Idealux UP-Thermostat A5330 up to 02/1995
- Ideal Standard Idealux old bath thermostatic mixer A5310...
- Ideal Standard Idealux old bath thermostatic mixer A5313... for instantaneous water heater versions up to 1992
- Ideal Standard Idealux old bath thermostatic mixer A535010016 bronze
- Ideal Standard Idealux old bath thermostatic mixer A537010016 gold
- Ideal Standard Idealux old shower thermostatic mixer A5330...
- Ideal Standard Idealux old shower thermostatic mixer A534000016 bronze
- Ideal Standard Idealux old shower thermostatic mixer A539000016 gold
- Ideal Standard Idealux old shower thermostatic mixer A533300016 chrome for instantaneous water heater versions up to 1992
- Ideal Standard Idealux old shower thermostatic mixer A5333973143 bronze for instantaneous water heater versions up to 1992
- Ideal Standard Idealux old shower thermostatic mixer A5333973209 white for instantaneous water heater versions up to 1992
- Ideal Standard Idealux old shower thermostatic mixer A5333973590 chrome-edelmatt for instantaneous water heater versions up to 1992
Pre-Order Checks
- Match the part code A960478NU against the original cartridge or service information before ordering.
- Check the overall cartridge shape, threaded body, spline, O-ring positions and cartridge diameter against the removed part.
- Do not order from the A5410 reference alone where there is any uncertainty, as A5410 appears in more than one Ideal Standard product context.
