Grohe 34767000 Grohtherm 800 Cosmopolitan Bar Shower Mixer Spare parts

SUMMARY

Spares for Grohe 34767000 Grohtherm 800 Cosmopolitan Bar Shower Mixer

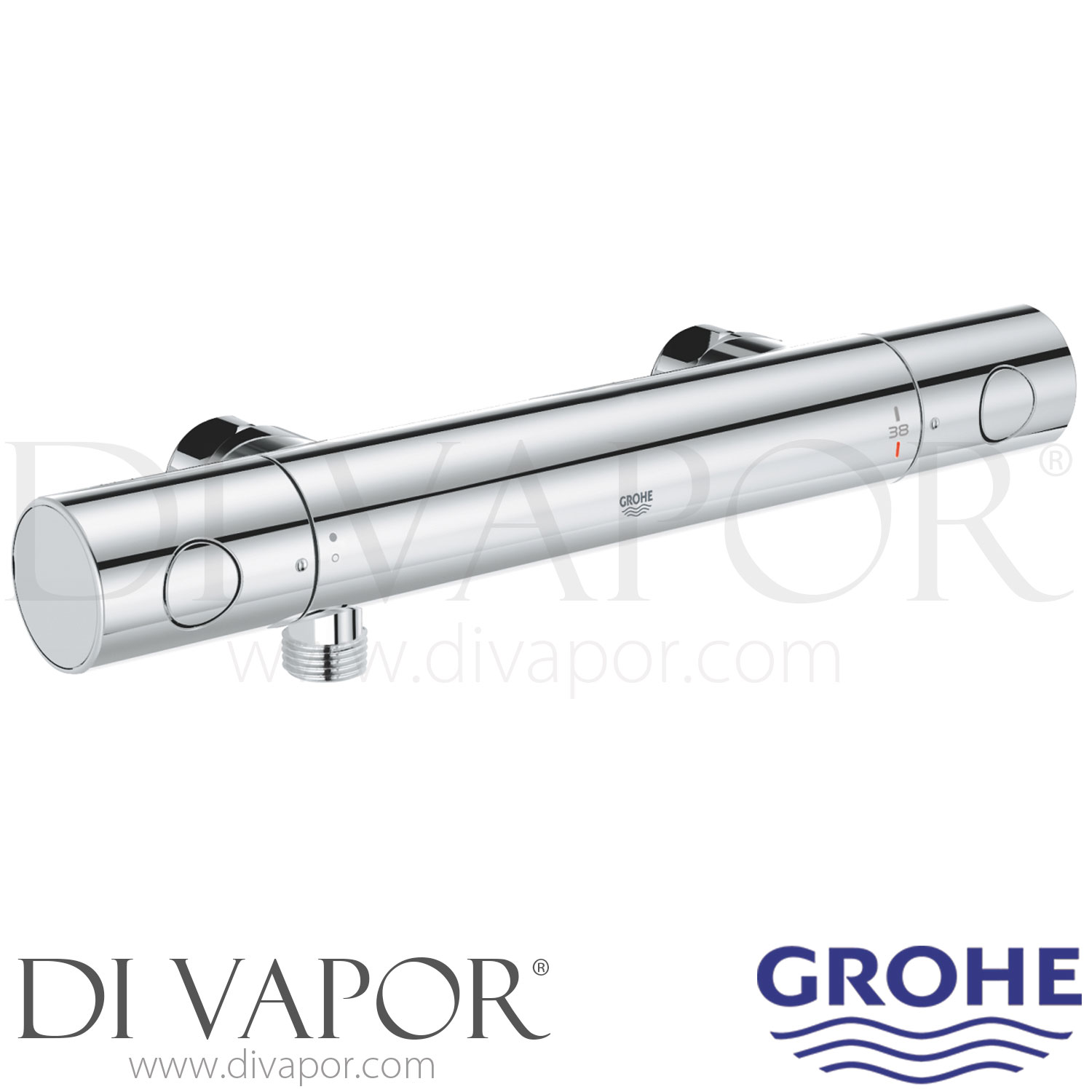

Grohe 34767000 is an exposed Grohtherm 800 Cosmopolitan thermostatic shower mixer with a 1/2 inch connection and chrome finish. This wall-mounted bar shower mixer is the version supplied without connection unions and uses separate controls for temperature regulation and water flow.

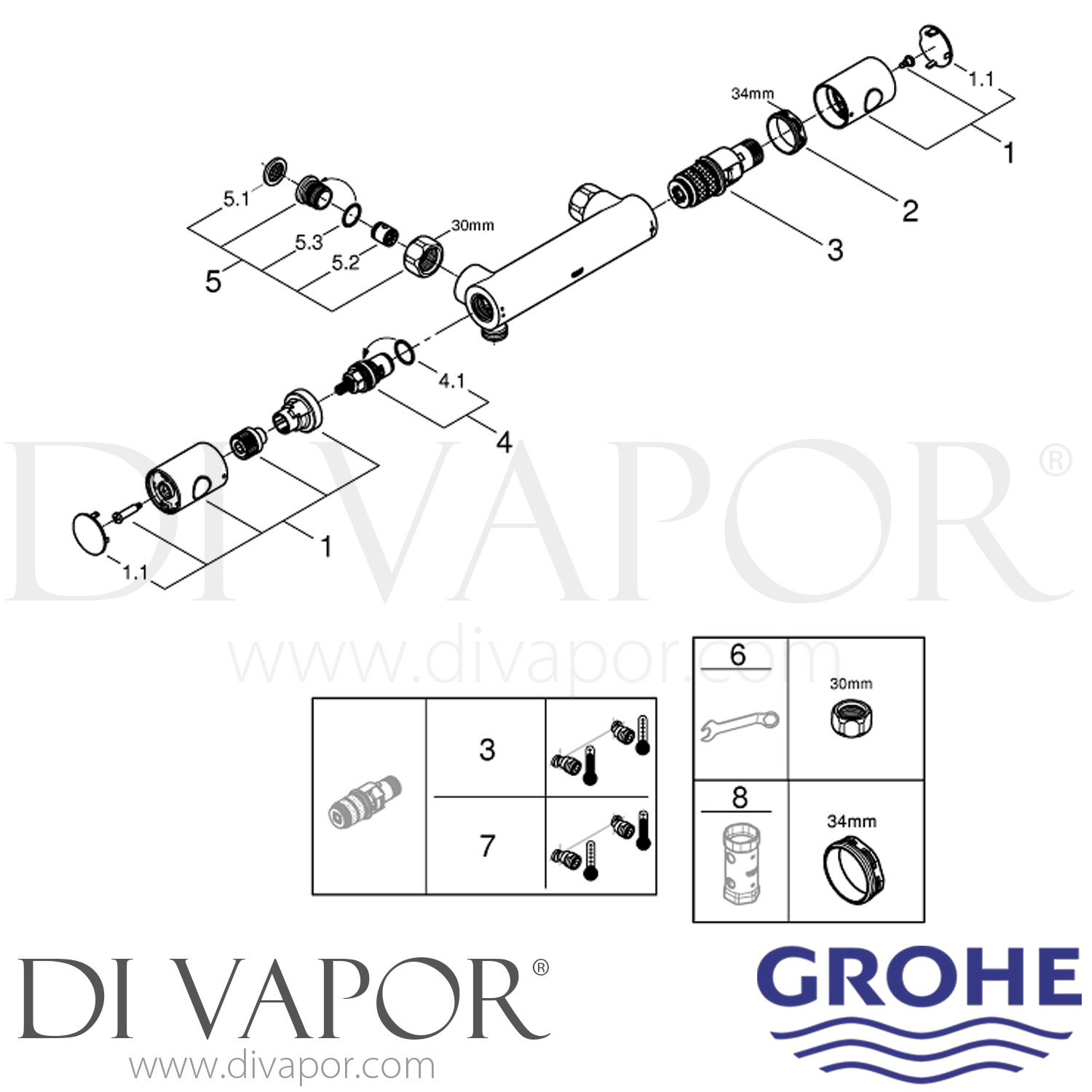

The thermostatic control maintains the selected mixed-water temperature, while the flow control opens and closes the shower outlet. The mixer incorporates Grohe TurboStat temperature control, a 38C SafeStop setting and SafeStop Plus temperature limiting up to 43C. For servicing this mixer, the Grohe shower spare parts below cover the principal handle, retaining, cartridge and service components shown for the valve.

Technical Details

- - Brand: Grohe

- - Range: Grohtherm 800 Cosmopolitan

- - Category: Thermostatic shower mixer

- - Product code: 34767000

- - Installation: Exposed wall-mounted bar mixer

- - Connection size: 1/2 inch

- - Configuration: Without connection unions

- - Finish: Chrome

- - Shower outlet: Bottom outlet

- - Temperature safety stop: 38C

- - Additional temperature limiter: Up to 43C

- - Flow control: Ceramic 1/2 inch headpart with 180 degree operation

- - EAN: 4005176612046

Flow Cartridge Details

The Grohe 45346000 1/2 Inch Carbodur Half Turn Flow On/Off Cartridge controls the on/off water flow function.

- - Turn orientation: Clockwise close

- - Operation: Half turn

- - Total length: 56mm

- - Widest diameter: 23.8mm

- - Bottom thread diameter: 20.6mm

- - Top spline diameter: 7.6mm

- - Number of splines: 20

- - Top thread diameter: 23.8mm

Before you order check

Check the mixer code and the cartridge already fitted before ordering a thermostatic cartridge. The standard exploded spare information for 34767000 identifies 47439000 as the thermostatic cartridge, while the valve spares page also lists the reverse 47175000 cartridge. These should not be assumed to be interchangeable without matching the installed part.
