Grohe 47984000 Metal Control Handle

SUMMARY

Grohe 47984000 Metal Control Handle for Thermostatic Shower and Bath Mixers

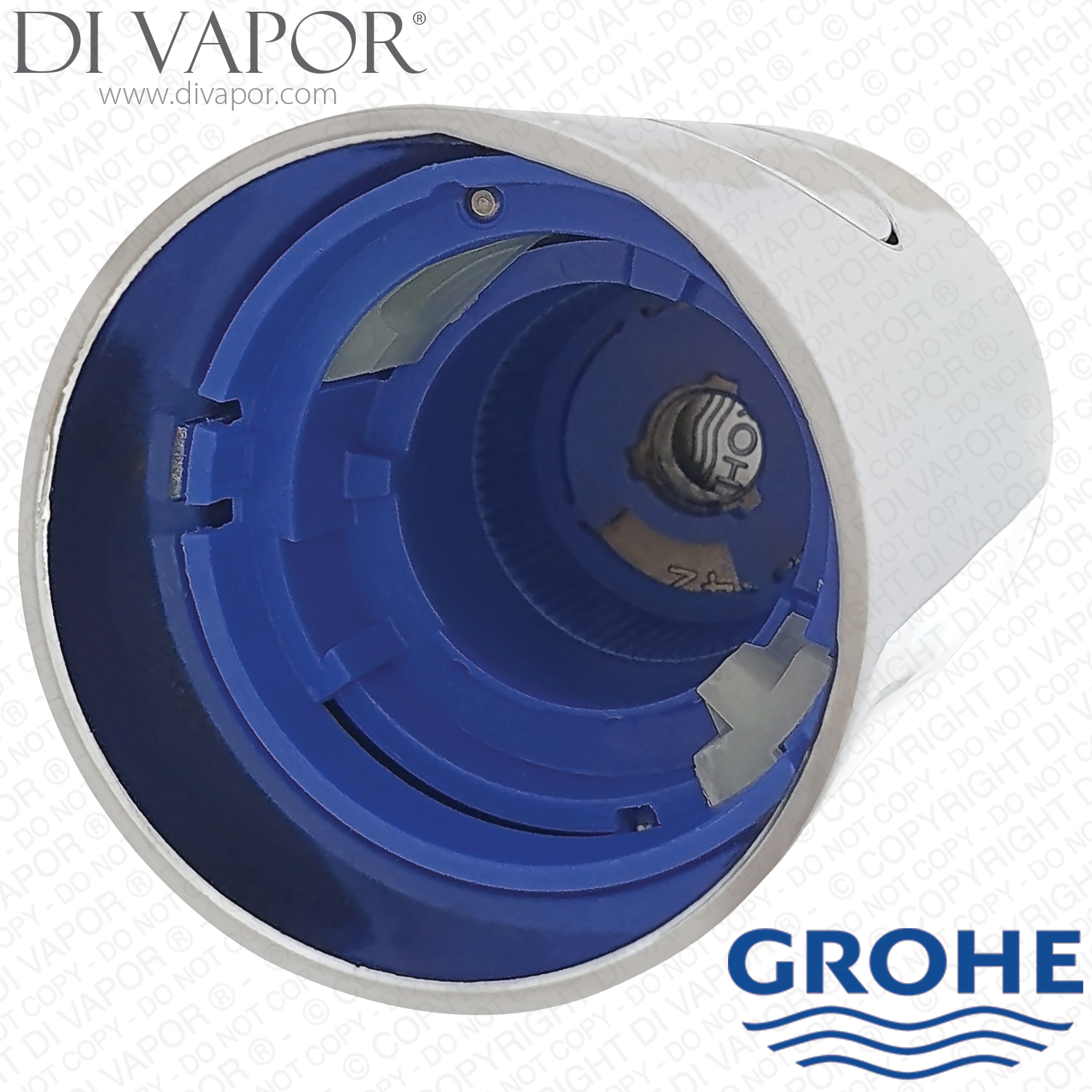

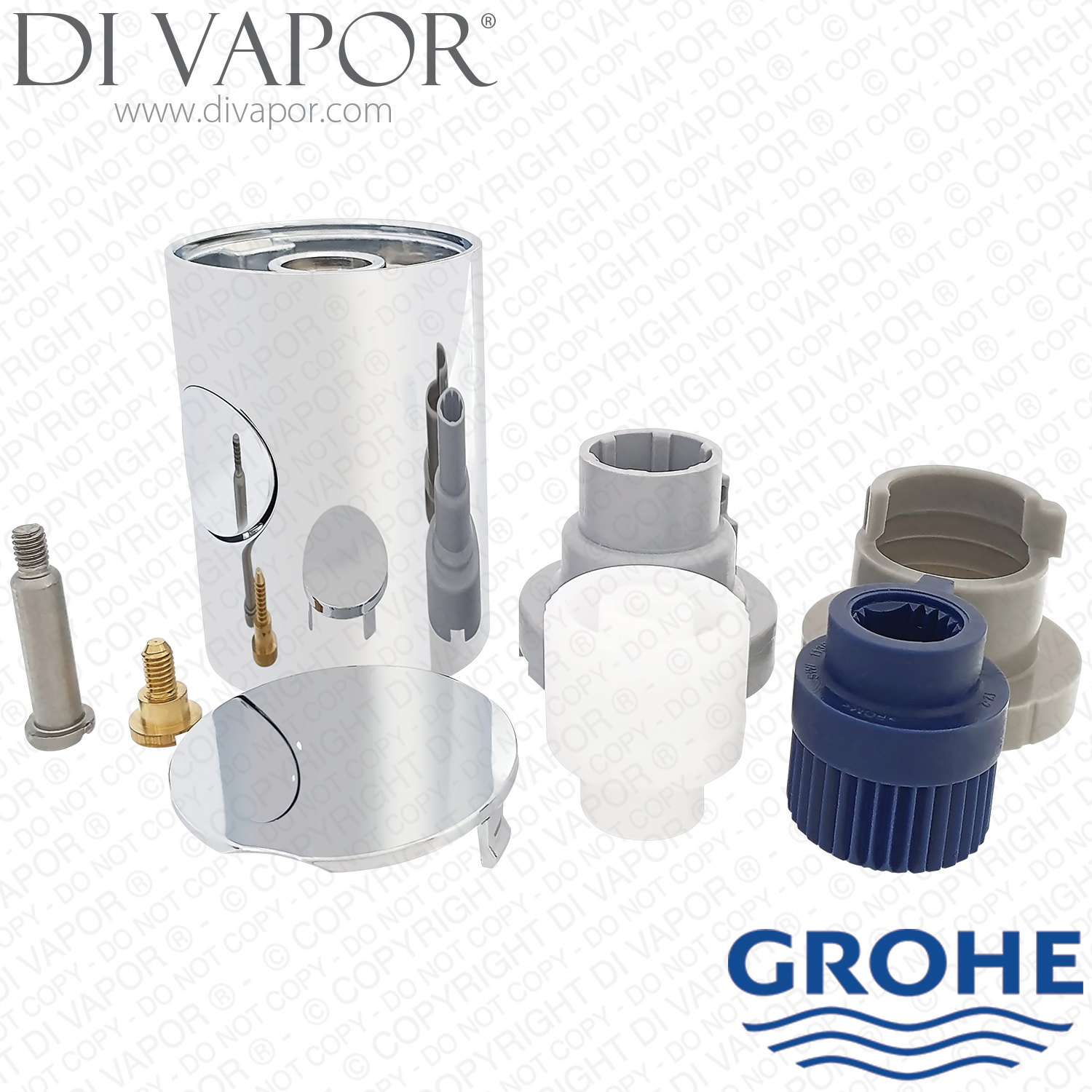

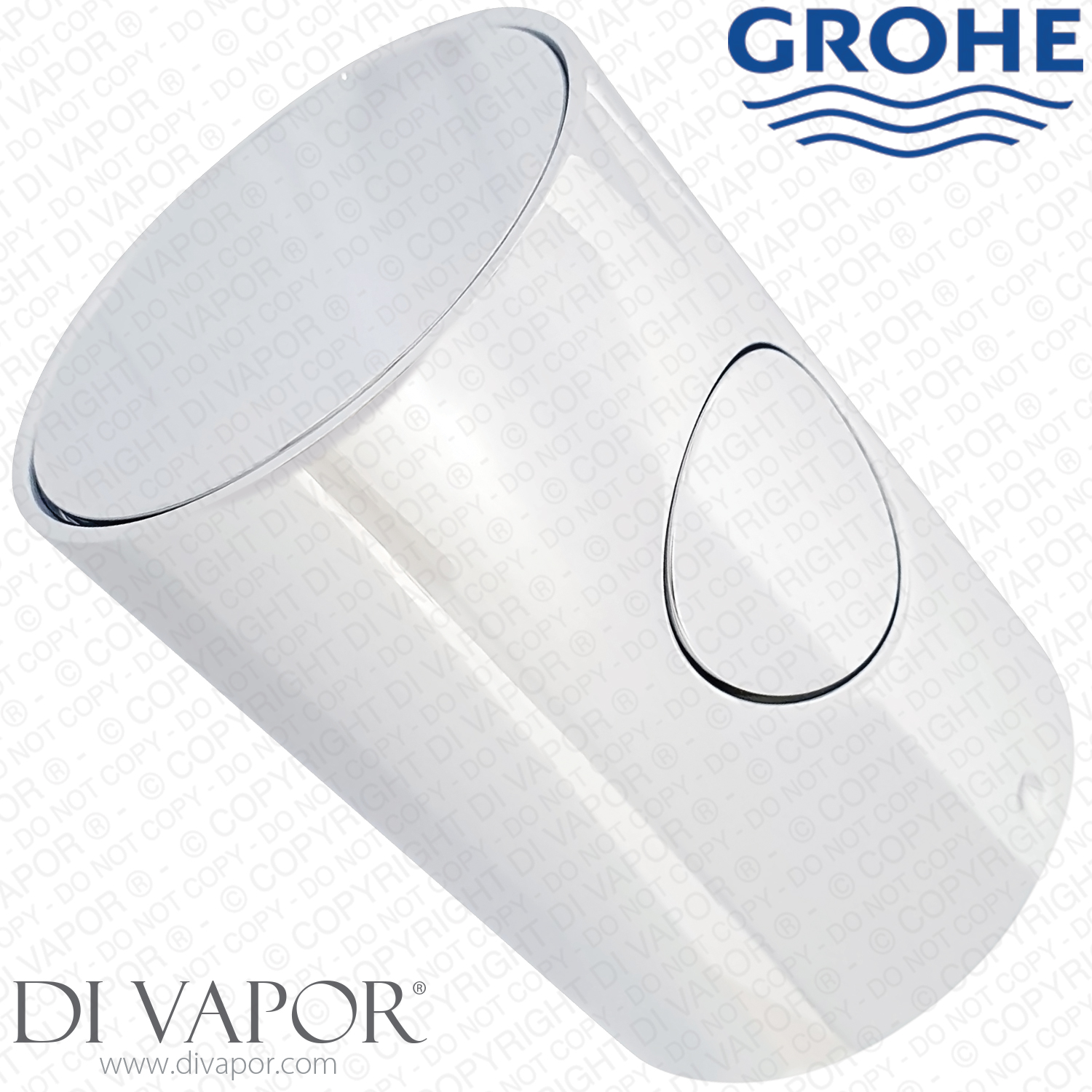

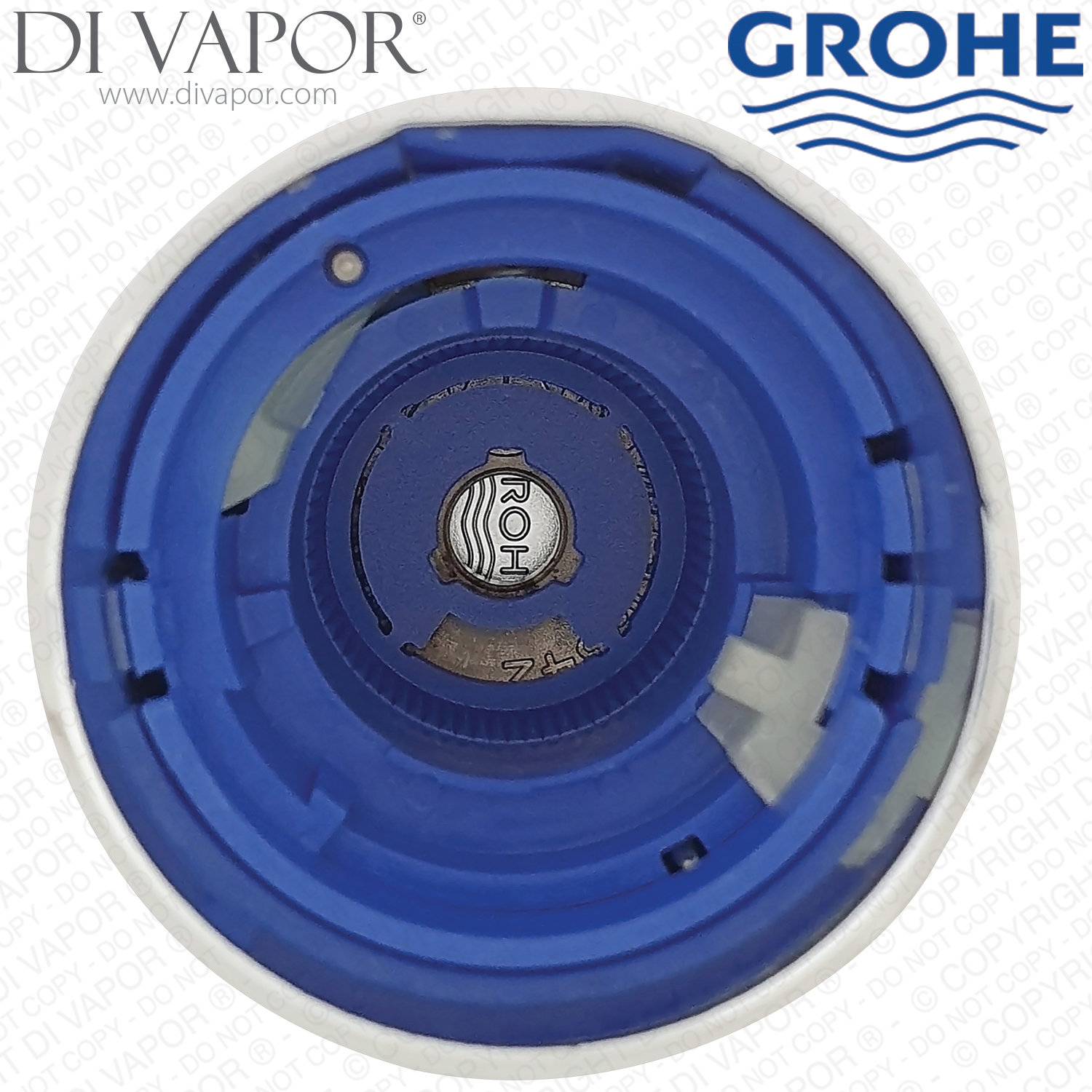

GROHE 47984000 is a chrome metal control handle used on selected GROHE thermostatic shower mixers, bath/shower mixers and exposed shower systems. It forms the external operating control and should be matched to the exact GROHE model before ordering.

The operating function varies by installation. On many systems 47984000 forms part of the Aquadimmer or flow-and-outlet control arrangement, while other applications use the same handle in the temperature-control position. Matching the exact mixer or shower-system code is therefore essential.

Technical Details

- - Part type: metal control handle

- - Material: metal

- - Finish: chrome

- - Part code: 47984000

- - Earlier handle code 47718000 is replaced by 47984000

- - Used on selected exposed thermostatic shower mixers, bath/shower mixers and shower systems

- - Control function varies according to the GROHE mixer or shower-system configuration

- - Check the exact GROHE model code before ordering because the surrounding cartridge and adapter arrangement varies between installations

Confirmed Compatible Models

Grohtherm 1000 Cosmopolitan M

- - GROHE 34323002 Grohtherm 1000 Cosmopolitan M Thermostatic Bath Shower Mixer

- - GROHE 34215002 Grohtherm 1000 Cosmopolitan M Thermostatic Bath Shower Mixer

- - GROHE 34268002 Grohtherm 1000 Cosmopolitan M Thermostatic Shower Mixer

- - GROHE 34065002 Grohtherm 1000 Cosmopolitan M Thermostatic Shower Mixer

- - GROHE 34286002 Grohtherm 1000 Cosmopolitan M Thermostatic Shower Set

- - GROHE 34321002 Grohtherm 1000 Cosmopolitan M Thermostatic Shower Set

- - GROHE 34440002 Grohtherm 1000 Cosmopolitan M Thermostatic Shower Mixer

- - GROHE 34441002 Grohtherm 1000 Cosmopolitan M Thermostatic Bath Mixer

Grohtherm 800 Cosmopolitan

- - GROHE 34765000 Grohtherm 800 Cosmopolitan Thermostatic Shower Mixer

- - GROHE 34758000 Grohtherm 800 Cosmopolitan Thermostatic Bar Shower Mixer

- - GROHE 34759000 Grohtherm 800 Cosmopolitan Thermostatic Shower Mixer

- - GROHE 34766000 Grohtherm 800 Cosmopolitan Thermostatic Bath Mixer

- - GROHE 34769000 Grohtherm 800 Cosmopolitan Thermostatic Shower Set

- - GROHE 34770000 Grohtherm 800 Cosmopolitan Thermostatic Bath Mixer

- - GROHE 34768000 Grohtherm 800 Cosmopolitan Thermostatic Shower Set

Precision Get

- - GROHE 34773000 Precision Get Thermostatic Shower Mixer

- - GROHE 34774000 Precision Get Thermostatic Bath Mixer

Euphoria Systems

- - GROHE 26075000 GEN2 Euphoria System 310 Shower System with Thermostatic Mixer 2015 to 2017

- - GROHE 26187000 GEN2 Euphoria System 230 Shower System with Thermostat 2015 to 2017

- - GROHE 26128001 Euphoria System 260 Shower System with Thermostat

- - GROHE 27964000 Euphoria Shower System with Thermostat

- - GROHE 27296002 Euphoria System 260 Shower System with Thermostat

- - GROHE 26114001 Euphoria System 260 Shower System with Bath Thermostat

- - GROHE 27932000 Euphoria System 150 Shower System with Thermostatic Mixer

- - GROHE 27932000 GEN2 Euphoria System 150 Shower System with Thermostatic Mixer 2016 to 2017

- - GROHE 26707000 Euphoria System 260 Shower System with Thermostat for Wall Mounting

- - GROHE 27475001 Euphoria System 260 Shower System with Bath Thermostat

- - GROHE 26273000 Euphoria System 180 Shower System with Thermostat

- - GROHE 26208000 Euphoria System 180 Shower System with Thermostat

- - GROHE 26711000 Euphoria System 310 Shower System with Thermostatic Mixer for Wall Mounting

- - GROHE 26515000 Euphoria System 260 Shower System with Thermostat

- - GROHE 26383001 Euphoria System 210 Shower System with Thermostat

- - GROHE 26384001 Euphoria System 310 Shower System with Thermostatic Mixer

- - GROHE 27296001 Euphoria Shower System with Thermostat for Wall Mounting

- - GROHE 26363000 Euphoria Shower System with Thermostat

Tempesta Cosmopolitan

- - GROHE 26223001 Tempesta Cosmopolitan System Shower System with Bath Thermostat

- - GROHE 27922001 Tempesta Cosmopolitan System Shower with Thermostat for Wall Mounting

Additional GROHE-Confirmed Models

- - GROHE 26302002 Tempesta System 210 Shower System with Thermostat for Wall Mounting

- - GROHE 26818001 Tempesta System 250 Shower System with Thermostat for Wall Mounting

- - GROHE 26670000 Tempesta Cosmopolitan System 250 Thermostatic Shower System

- - GROHE 26670001 Tempesta System 250 Shower System with Thermostat for Wall Mounting

- - GROHE 26672000 Tempesta Cosmopolitan System 250 Thermostatic Bath Shower System

- - GROHE 26672001 Tempesta System 250 Shower System with Bath Thermostat for Wall Mounting

- - GROHE 26689001 Tempesta System 250 Cube Shower System with Thermostat for Wall Mounting

- - GROHE 26691001 Tempesta System 250 Cube Shower System with Bath Thermostat for Wall Mounting

- - GROHE 26978001 Tempesta System 250 Shower System with Bath Thermostat for Wall Mounting

- - GROHE 27475002 Euphoria System 260 Shower System with Bath Thermostat

- - GROHE 26128000 Euphoria 180 Thermostatic Shower System

- - GROHE 26241000 Euphoria Shower System

- - GROHE 34768001 Grohtherm 800 Cosmopolitan Shower Safety Mixer

Related Spares You May Need

- - Grohe 47743000 Retaining Ring - used in the same control assembly on selected verified 47984000 applications; confirm the exact mixer model before ordering

Before You Order

Confirm the exact GROHE model code before ordering. 47984000 is used across several control arrangements, and the surrounding cartridges, adapters and diverter parts are not identical on every installation.
