Grohe 34765000 Grohtherm 800 Cosmopolitan Thermostatic Shower Mixer (1/2 Inch) Spare Parts
Send a photo of your item and we'll help confirm it.
Summary

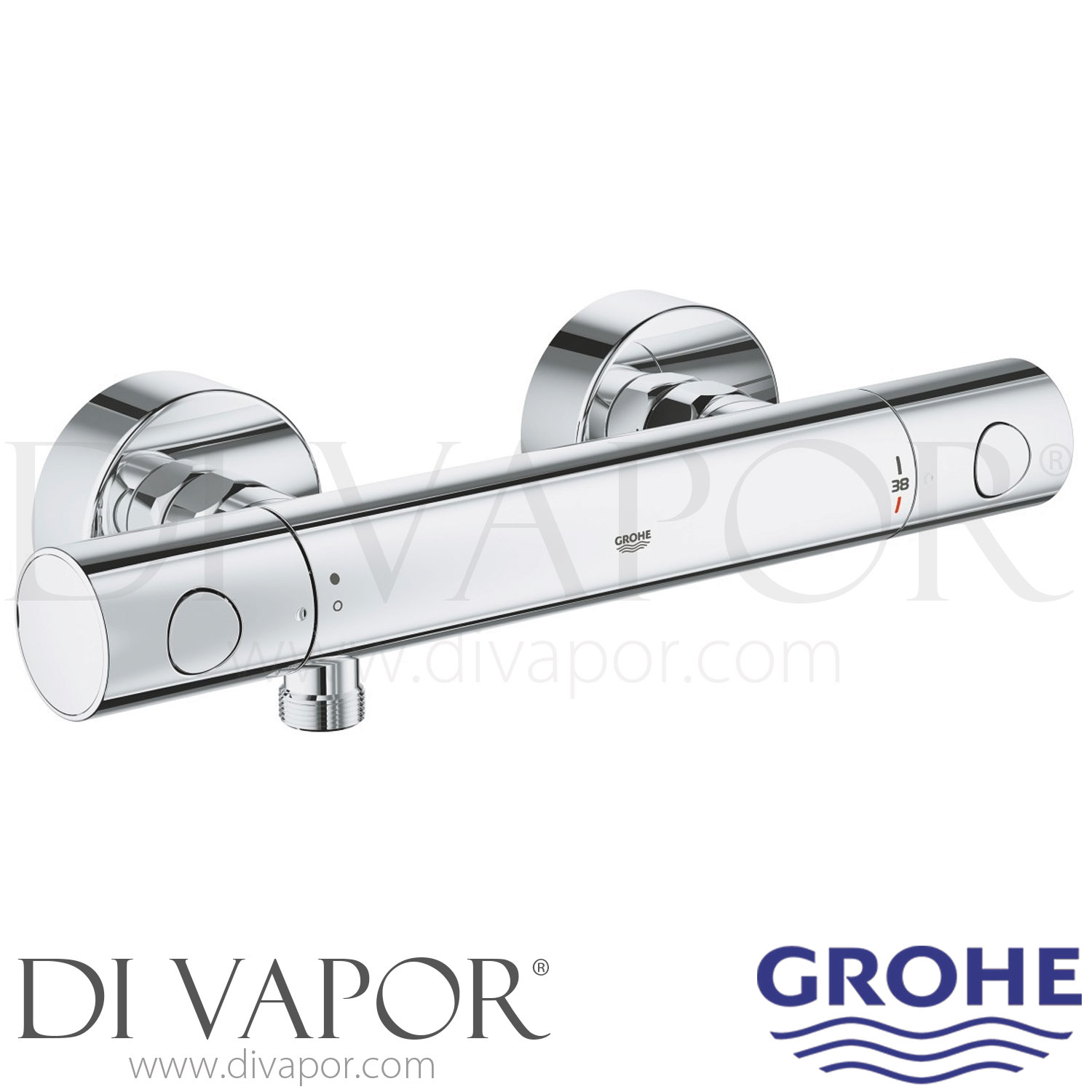

Spare parts for the Grohe 34765000 Grohtherm 800 Cosmopolitan exposed thermostatic shower mixer with 1/2 inch shower outlet. This wall-mounted mixer combines thermostatic temperature regulation with separate flow control and uses Grohe service components for the handles, thermostatic cartridge, flow headpart, retaining parts, non-return valves and seals.
The mixer incorporates a GROHE TurboStat compact thermostatic cartridge, a 38°C SafeStop temperature stop, an optional 43°C SafeStop Plus limit and a ceramic 1/2 inch flow headpart. These Grohe shower spares can be used to service specific worn or damaged components without replacing the complete mixer where the corresponding component is the cause of the fault.
Technical Details
| Brand | Grohe |
|---|---|
| Range | Grohtherm 800 Cosmopolitan |
| Category | Thermostatic shower mixer |
| Product code | 34765000 |
| Installation | exposed wall-mounted thermostatic shower mixer |
| Finish | chrome |

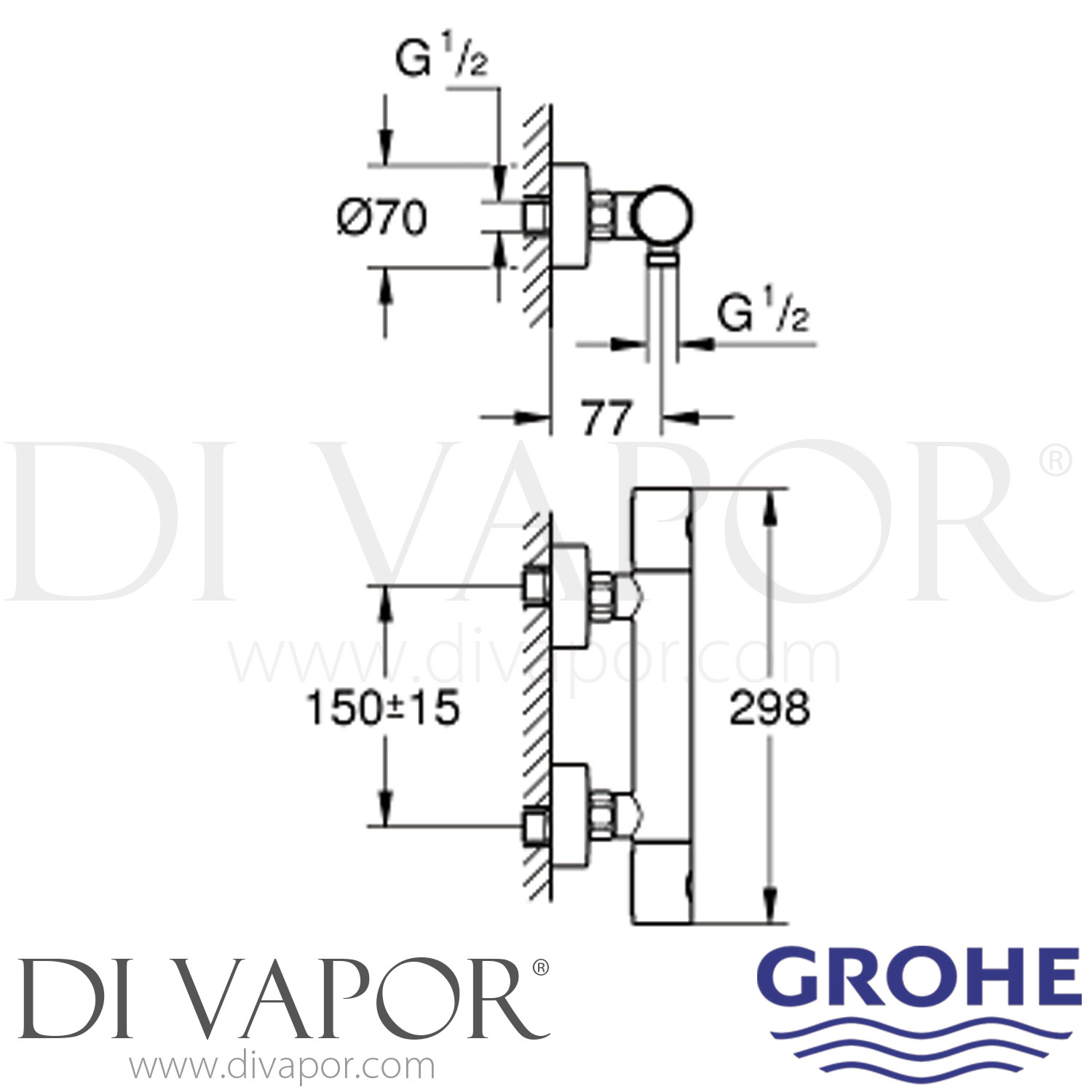

| Supply centres | 150 +/- 15mm |
| Shower outlet | G 1/2 |
| Escutcheon diameter | 70mm |
| Approximate mixer body length | 298mm |
| Temperature safety stop | 38°C |
| Optional temperature limit | 43°C |
| Flow control | ceramic 1/2 inch headpart with 180° rotation |
| EAN | 4005176612022 |
Before You Order Check

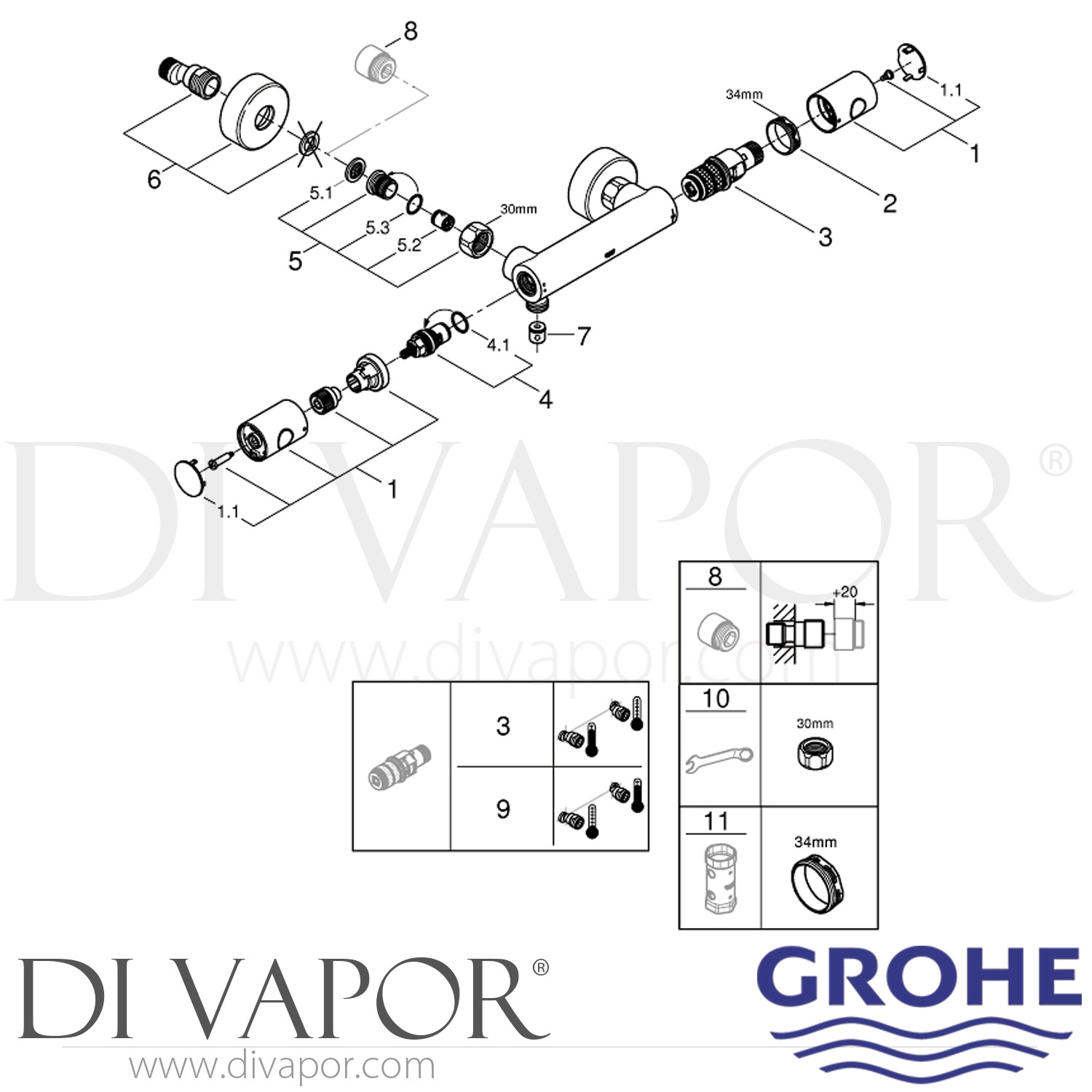

Confirm the mixer code is 34765000 and compare the part being replaced with the corresponding component shown for this valve. Some service items listed for this mixer are optional accessories rather than standard fitted components.
Grohe 47984000 Metal Control Handle for Thermostatic Shower and Bath MixersGROHE 47984000 is a chrome metal control handle used on selected GROHE thermostatic shower mixers, bath/shower mixers and exposed shower systems. It forms the external operating control and should be match...
GROHE 47743000 Thermostatic Cartridge Retaining Ring for Shower and Bath MixersThe GROHE 47743000 is a thermostatic cartridge retaining ring for the specified shower mixers, bath/shower mixers and concealed thermostatic mixer assemblies listed below. It fits behind the temperatur...
The 47439000 (47.439) cartridge is used in the following Grohe shower valves: - Grohe 1/2” Grohtherm 3000 Cosmopolitan 34275 Thermostatic shower mixer valve - Grohe 1/2” Grohtherm 2000 Special 34205 Thermostatic shower mixer valve - Grohe 1/2” Concealed body for THM 3...
Grohe 45346000 1/2" carbodur half turn flow cartridge for hot taps / showers. This flow cartridge controls the on and off water flow function and is a genuine Grohe product. Measurements: Turn Orientation: Clockwise Close Turn: Half Turn Total Length: 56mm Diameter at wid...
Grohe 08565000 Non-Return Valve for Selected Mixers and Shower SystemsGROHE 08565000 is a non-return valve used in selected GROHE mixers, shower systems, shower outlets and pull-out spray assemblies. The valve allows water to pass in the intended direction while helping to preven...
Grohe 47175000 1/2 Inch Reverse Turbostat Thermostatic Cartridge for Grohtherm,Allure,THM and Rainshower Valves The Grohe 47175000 is used in the following Grohe valves: - Grohe Rainshower 27374 Shower system for wall mounting - Grohe Grohtherm 1000 34323 Thermostatic ba...
GROHE 19332000 34mm and 32mm Socket Box Spanner for Tap and Shower CartridgesGROHE 19332000 is a double-ended tubular socket box spanner for servicing selected GROHE tap cartridges and thermostatic shower mixer assemblies. Its two differently sized hexagonal ends are used for the...
