Ideal Standard A954703NU Cartridge for Trevi Ceramix Alto Shower Valves

Summary

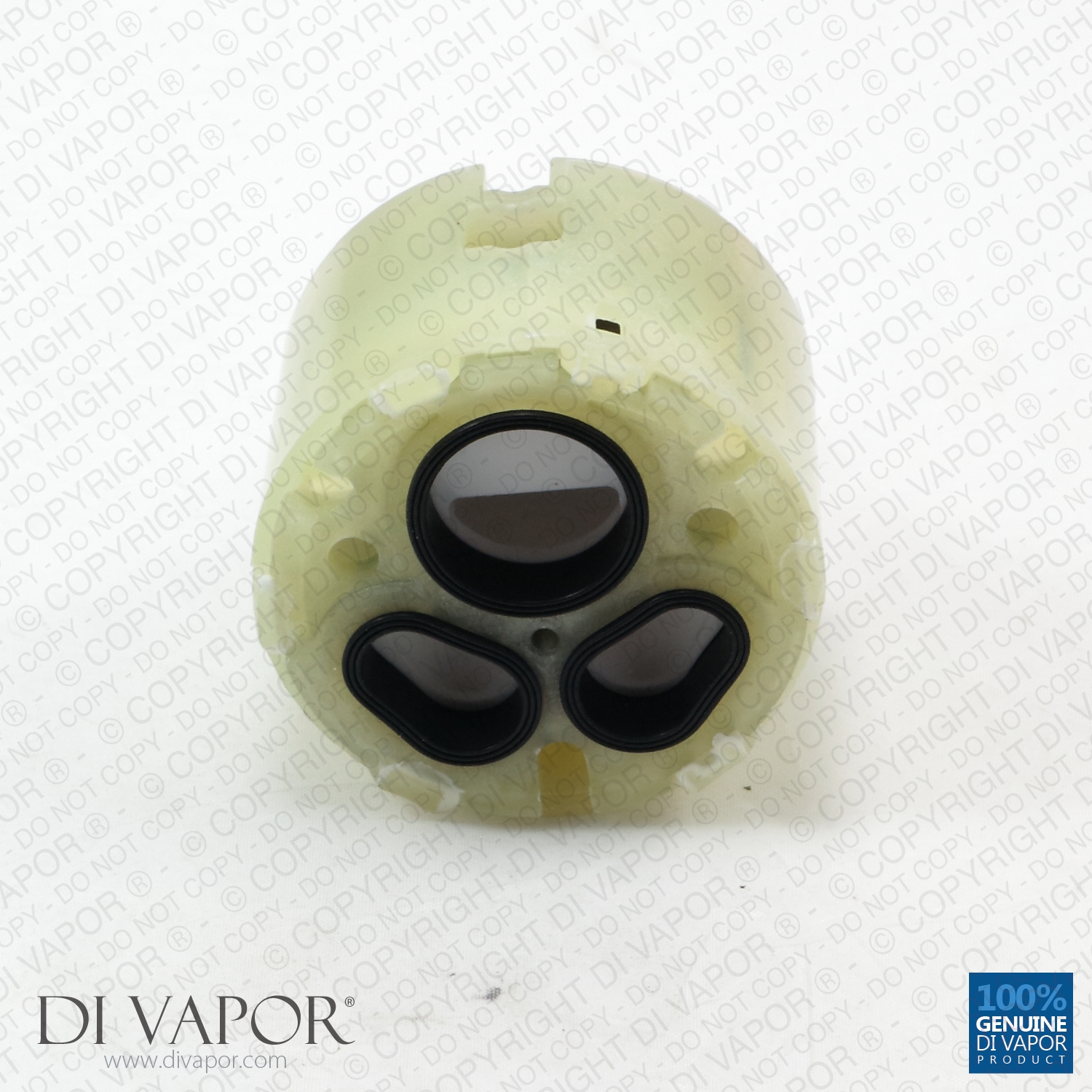

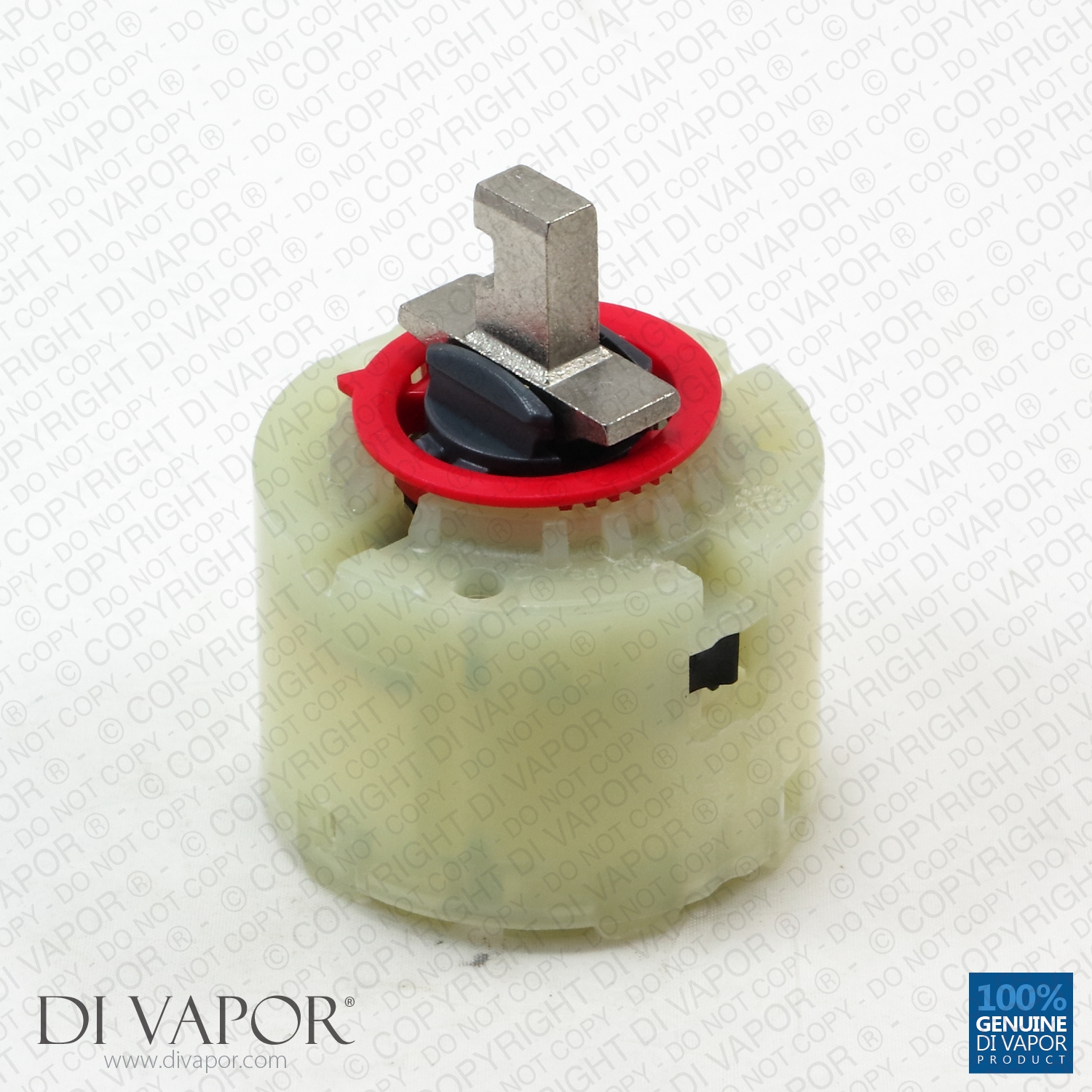

Ideal Standard A954703NU Single Click Lever Cartridge Replacement for Trevi Ceramix Alto Showers and Taps

Ideal Standard A954703NU is a single-click lever cartridge for the Trevi Ceramix Alto built-in manual shower valve and the specific basin and bidet mixers listed below. It is the internal cartridge operated by the mixer lever, not a thermostatic cartridge.

The cartridge controls water flow and shut-off. In the listed single-lever mixers, the lever also adjusts the hot and cold water mix. A worn or damaged cartridge can cause persistent dripping from the shower head or tap spout when turned off, stiff lever movement or difficulty controlling the flow.

Technical Details

Part Code Information

A954703NU is the earlier cartridge reference and was superseded by the Ideal Standard E960679NU lever cartridge. Check the existing cartridge reference and assembly when identifying the part required.

Confirmed Models

• Ideal Standard A5026AA Ceramix single-lever built-in manual shower valve
• Ideal Standard A5410AA Ceramix Alto single-lever basin mixer with pop-up waste
• Ideal Standard A5411AA Ceramix Alto single-lever bidet mixer with pop-up waste
• Sottini A5422AA Bari single-lever basin mixer with pop-up waste
• Armitage Shanks B4447AA Sandringham SL single-lever basin mixer with pop-up waste
• Armitage Shanks B4448AA Sandringham S/L single-lever bidet mixer with pop-up waste

Before Ordering

Check the exact shower valve or mixer model and compare the existing cartridge's overall shape, metal lever, base connections, locating points and sealing arrangement with the product photographs. The dimensions are identification aids, not proof that another cartridge of the same diameter will fit. Do not select this part from the Ceramix or Sandringham range name alone.

Fitting Notes

Isolate both hot and cold water supplies before removing the cartridge. Follow the servicing instructions for the exact mixer or shower valve, remove any old cartridge seals left in the housing and check that the new cartridge is correctly located before securing it. Inspect the existing handle, retaining screws and surrounding seals for damage while the assembly is accessible. After reassembly, restore the supplies and check for leaks, smooth operation and complete shut-off.

Related Spares You May Need

These service items are used in the relevant cartridge and control assemblies. Requirements vary by model; they are not a single kit and should not all be ordered automatically.

• TACSIL TAC86 3g cartridge silicone grease - for lubricating cartridge O-rings and bottom seals during installation
• Ideal Standard A960807AA Ceramix chrome lever - operating lever for the A5026AA shower valve and the listed Ceramix mixer assemblies
• Ideal Standard A961957NU M4 x 45.5 screw set of three - cartridge retaining screws listed for the A5026AA shower valve
• Ideal Standard A963309NU M5X8 lever securing screw - control assembly screw listed for A5026AA and Sandringham B4447AA and B4448AA
• Ideal Standard A904629NU plastic manifold - cartridge manifold for the B4447AA Sandringham basin mixer

Not sure which cartridge you need? Use the Di Vapor part identification service and send us a photo of your existing part.
