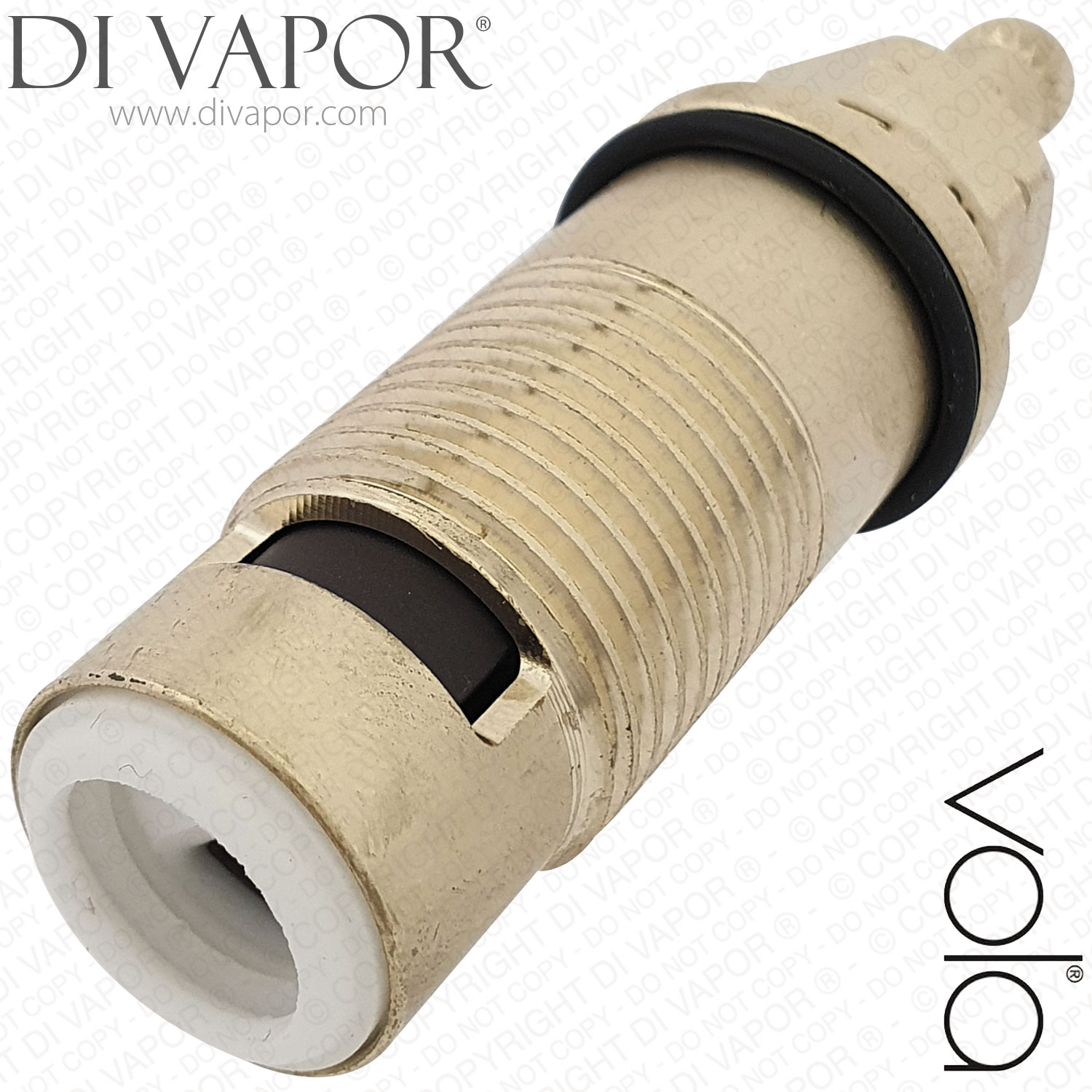

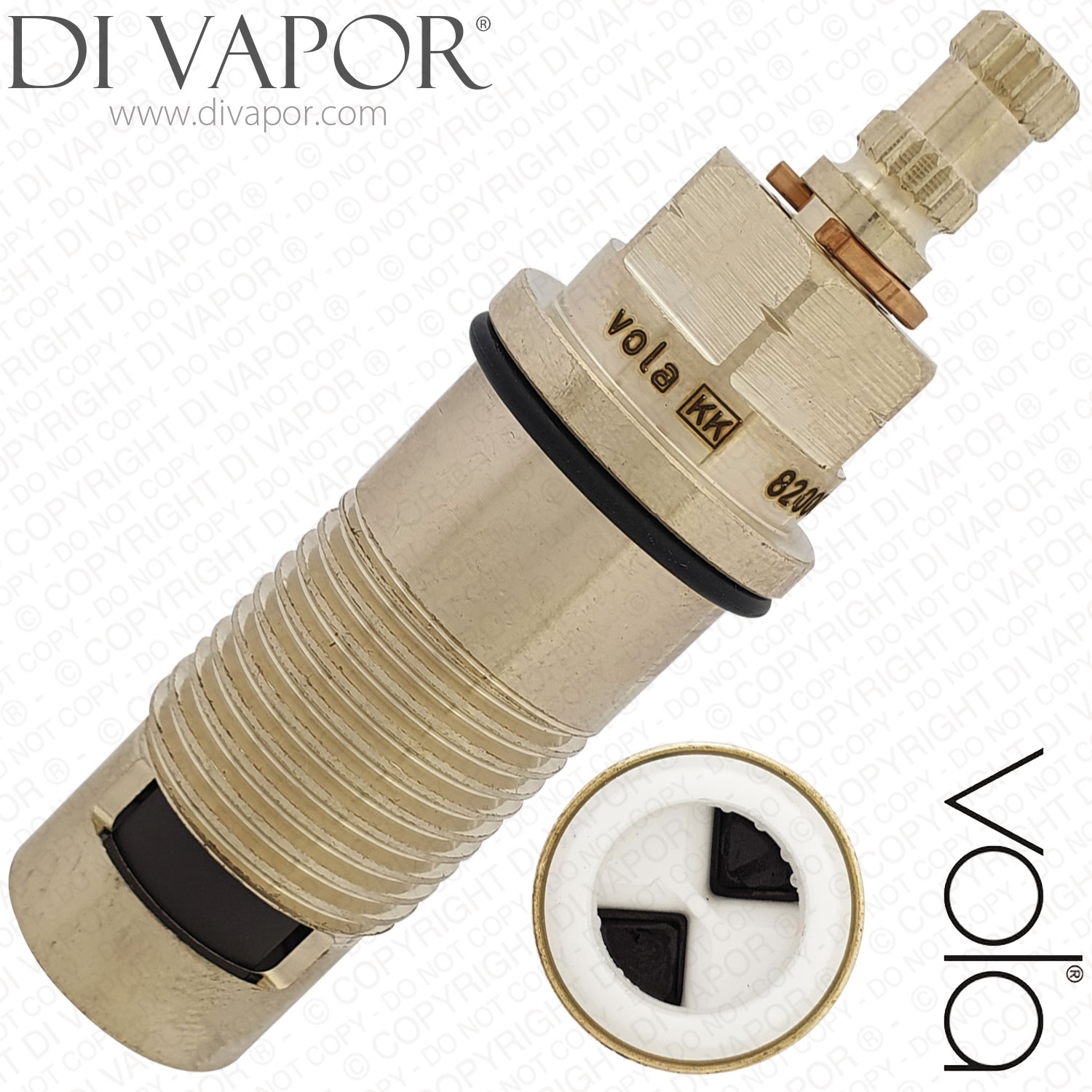

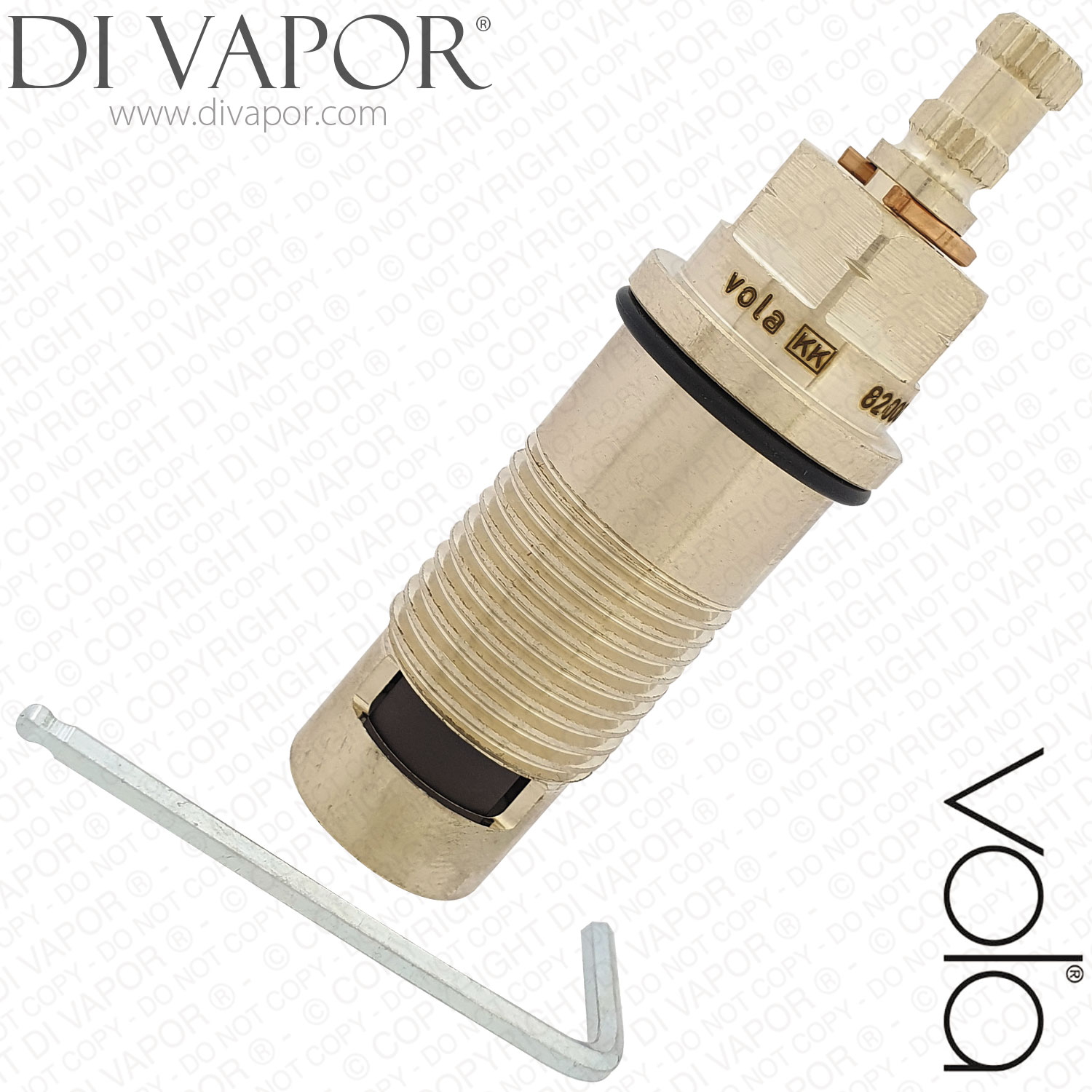

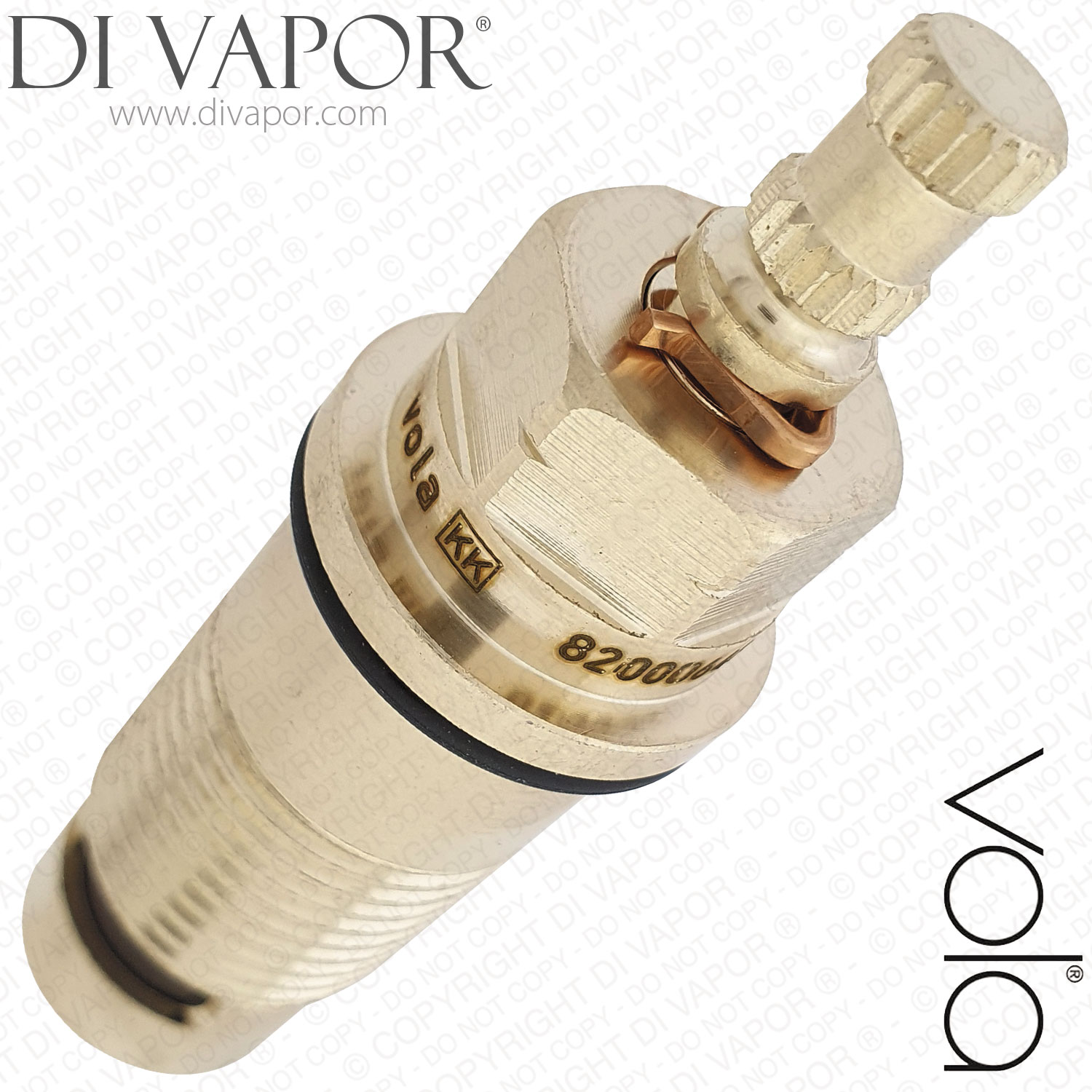

Vola VR691K Ceramic Cartridge (Hastings) - Cold Side
SUMMARY
The Vola VR691K Ceramic Cartridge Hastings Cold Side is a quarter turn ceramic flow cartridge used to control cold water flow in selected VOLA mixer taps and ceramic stop-valve assemblies.
This cartridge opens anti-clockwise and closes clockwise, helping restore smooth cold-side operation and positive shut-off where the existing cartridge has become worn, stiff, difficult to turn or is allowing water to drip from the spout after the tap or valve is turned off.
Technical Details
- - Brand: Vola
- - Part Number: VR691K
- - Cartridge type: Quarter turn ceramic cartridge
- - Side: Cold side
- - Total length including bottom seal: 76.5mm
- - Diameter at widest point: 23.7mm
- - Top spline diameter: 7.6mm
- - Top spline teeth / notches: 20
- - Lower fitting thread diameter: 20.3mm (1/2" BSP)
- - Barrel diameter below lower thread: 18.6mm
- - Bottom seal colour: White
- - Close direction: Clockwise close and anti-clockwise open
- - Turn: Quarter turn 1/4 turn 90 degrees
Confirmed Compatible Models
- - Vola Three-Hole Mixer Quarter Turn Ceramic Stop Valves (KV3) Spare Parts
- - Vola Three-Hole Mixer Quarter Turn Ceramic Stop Valves (KV4) Spare Parts
- - Vola Three-Hole Mixer Quarter Turn Ceramic Stop Valves (KV10) Spare Parts
- - Vola Three-Hole Mixer Quarter Turn Ceramic Stop Valves (KV15) Spare Parts
- - Vola Three-Hole Mixer Quarter Turn Ceramic Stop Valves (HV8) Spare Parts
- - Vola Three-Hole Mixer Quarter Turn Ceramic Stop Valves (HV10) Spare Parts
- - VOLA Two-Handle Mixer S50DH + S50D (SC2) Spare Parts
- - VOLA Two-Handle Mixer S50DH + S50D (SC4) Spare Parts
- - VOLA Two-Handle Mixer S50DH + S50D with Double Swivel Spout 090D (SC6) Spare Parts
- - VOLA Two-Handle Mixer S50DH + S50D with Swivel Spout 090E (SC8) Spare Parts
- - VOLA Two-Handle Mixer S50DH + S50D with Double Swivel Spout 090D (SC11) Spare Parts
- - VOLA C600
Before Ordering
- - Check the cartridge code VR691K where possible and compare the measurements, 20 tooth spline, 1/2" BSP lower thread and clockwise close direction before purchase.
- - This is the cold-side cartridge. If the hot side is required, check the related VR692K options below.
Related Spares You May Need
- - Vola VR692K Ceramic Cartridge (Hastings) - Hot Side Compatible Replacement
- - Vola VR692K Ceramic Cartridge (Hastings) - Hot Side
- - Vola VR691K Ceramic Cartridge (Hastings) - Cold Side Compatible Replacement
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
