Vado GEO-109-VALVE/CD/CL Cold Flow Cartridge for Geo 3 Hole Basin Mixers Compatible Spare
Send a photo of your item and we'll help confirm it.
Summary
Vado GEO-109/VALVE/CD/CL Cold Flow Cartridge for Geo 3 Hole Basin Mixers Compatible Spare. This valve is usually mounted on the wall.

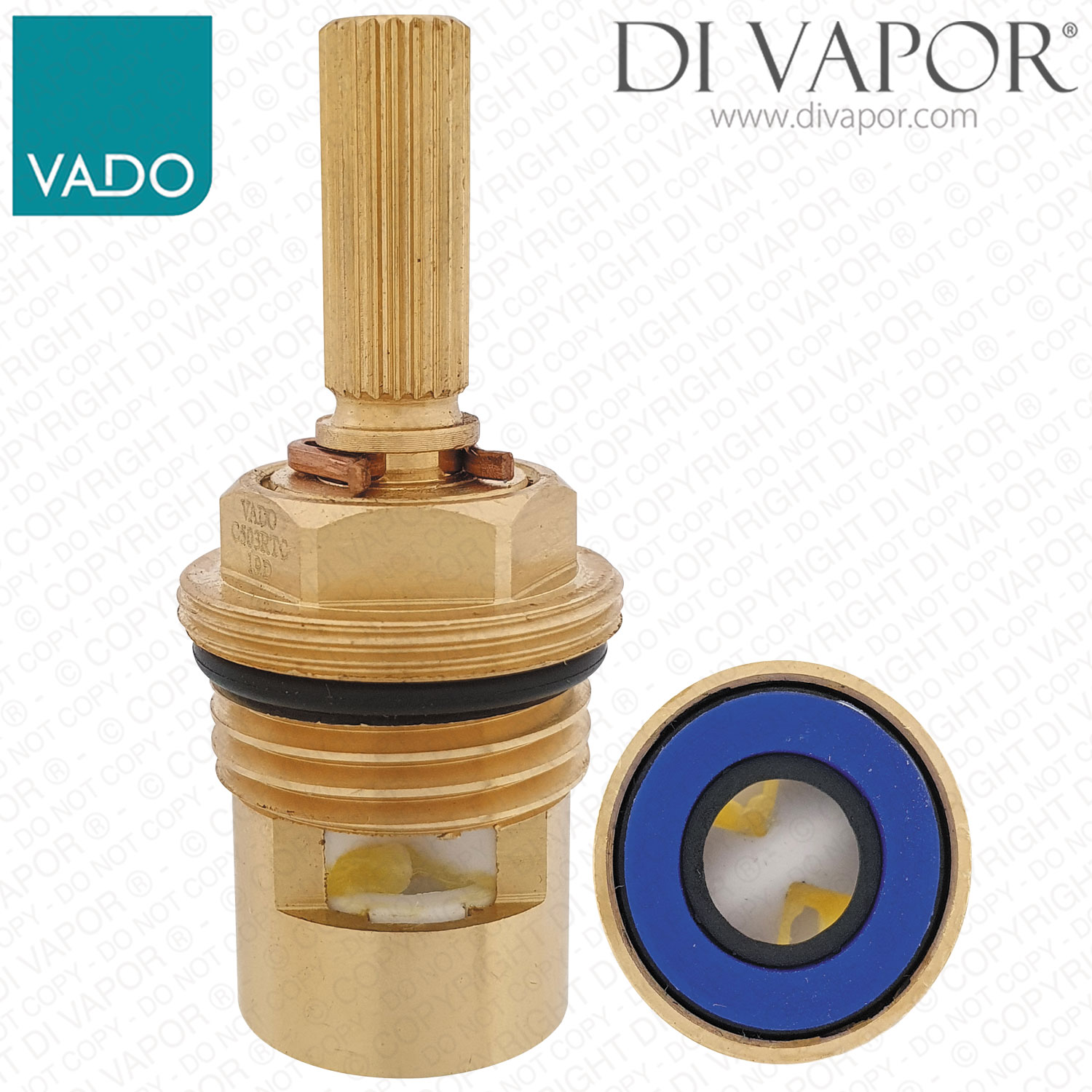

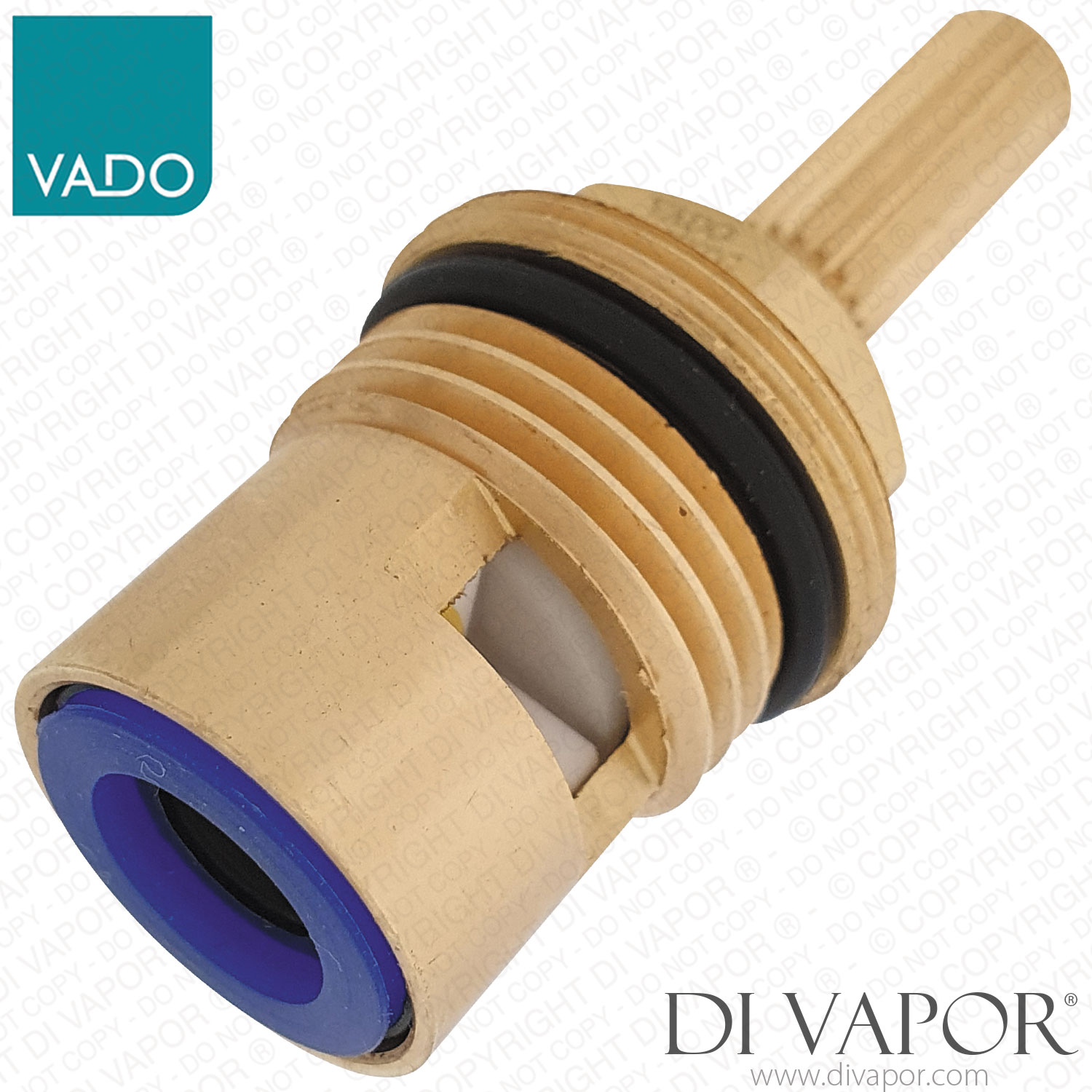

Vado GEO-109/VALVE/CD/CL is a compatible cold side ceramic disc flow cartridge for selected Vado Geo 3 hole wall mounted basin mixer tap assemblies. It controls the cold water flow through one side of the mixer and is used where the original cartridge part number and rotation match GEO-109/VALVE/CD/CL.
This quarter turn cartridge opens and closes the waterway through the ceramic discs as the handle is turned. Replacing a worn flow cartridge can help restore smooth handle operation and proper shut off where the tap is dripping from the spout when turned off or the cold control no longer closes cleanly.
Technical Information
| Part number | GEO-109/VALVE/CD/CL |
|---|---|
| Type | cold ceramic disc flow cartridge |
| Application | Vado Geo 3 hole basin mixer tap flow control |
| Total length including bottom seal | 56mm |
| Diameter at widest point | 23.8mm at the screw in thread |

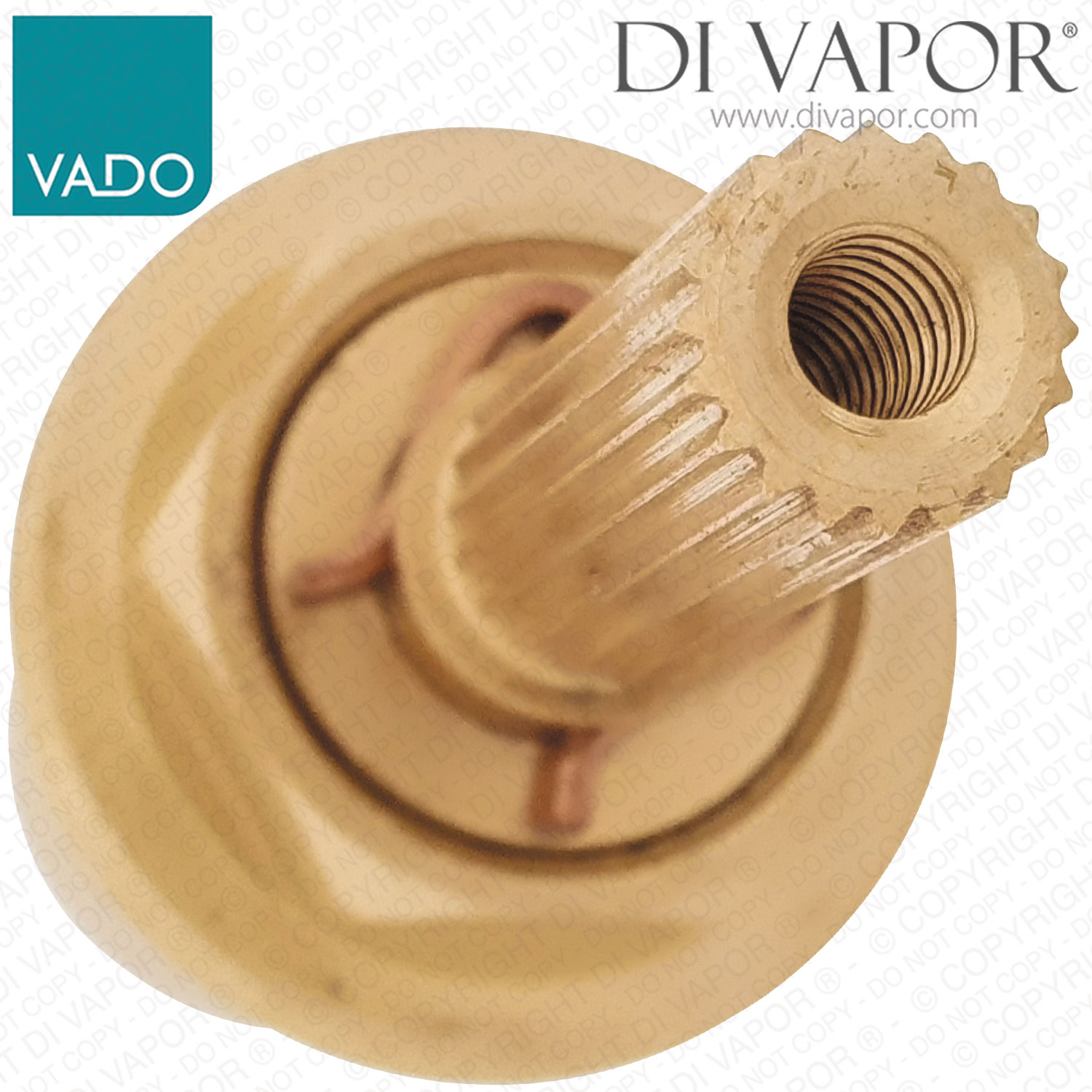

| Top spline diameter | 7.5mm |
| Top spline teeth | 20 |
| Lower thread diameter | 20.6mm |
| Barrel diameter below lower thread | 18.5mm |
| Bottom seal colour | blue |
| Close direction | clockwise close and anti-clockwise open |
| Turn | quarter turn 90 degree operation |
Confirmed Compatible Models
- VADO GEO-109/220-C/P GEO 3 Hole Basin Mixer with 220mm Spout Wall Mounted
- VADO GEO-109-C/P GEO 3 Hole Basin Mixer Wall Mounted Older Version
Before Ordering
- Match the full part number GEO-109/VALVE/CD/CL against your existing cartridge or Vado spare parts information before ordering
- Check the cold side blue bottom seal and clockwise close direction against the cartridge being removed
- Check the 20 tooth spline and cartridge measurements carefully because similar Vado Geo mixers may use different cartridge codes
- This listing is for the cold flow cartridge only and does not include the handle shroud hot cartridge or spout
Related Spares You May Need
- Vado GEO-109/VALVE/CD/HT Hot Flow Cartridge for Geo 3 Hole Basin Mixers
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Vado GEO-109/SHROUD-C/P Shroud for Geo Valves
- Vado GEO-1/109-C/P GEO Control Handle
- Vado GEO-1/109-SCREW Tap Grub Screw and Blanking Cap for GEO-1/109-C/P Handle
- Vado GEO-109/SPOUT-C/P Spout Only to Suit GEO-109-C/P
- Vado GEO-109/220-SPOUT-CP Spout to Suit GEO-109/220-C/P - Chrome
