VADO GEO-109/220-C/P GEO 3 Hole Basin Mixer with 220mm Spout Wall Mounted
Send a photo of your item and we'll help confirm it.
Summary
VADO GEO-109/220-C/P GEO 3 Hole Basin Mixer with 220mm Spout Wall Mounted
The VADO GEO-109/220-C/P is a Geo 3 hole basin mixer with a 220mm spout for wall mounted basin installations. This chrome mixer assembly uses separate wall mounted hot and cold controls with a central spout and is listed by Di Vapor under Part Number GEO-109/220-C/P.
The mixer uses ceramic disc flow control cartridges to open and shut the hot and cold water supplies. If the tap begins dripping from the spout when turned off or a side control no longer shuts off cleanly, the relevant flow cartridge should be checked before replacing the complete mixer.
Technical Details
| Product code | GEO-109/220-C/P |
|---|---|
| Product type | 3 hole basin mixer |
| Mounting | wall mounted |
| Spout length | 220mm |
| Finish | chrome |
| Aerator | water flow aerator |
| Hot cartridge reference | GEO-109/VALVE/CD/HT |
| Cold cartridge reference | GEO-109/VALVE/CD/CL |
| Connections | 2 x 1/2 inch male x 1/2 inch male x 90mm straight connections and 1 x 1/2 inch x 1/2 inch x 1/2 inch x 47mm female T-piece connection |
| Wall mount range | 59mm to 68mm |
| Minimum operating pressure | 0.2 bar LP |
| Flow rate | 27 litres per minute at 3.0 bar |
Before Ordering
- Check the exact mixer code GEO-109/220-C/P against the existing tap or spare parts diagram before ordering replacement spares
- Check whether the required spare is for the hot control, cold control, handle, shroud or 220mm spout because the Geo range includes similar looking parts for shorter spout versions
- When replacing a flow cartridge, match the cartridge code, spline, seal colour and close direction before fitting
Related Spares You May Need
- Vado GEO-109/VALVE/CD/HT Hot Flow Cartridge for Geo 3 Hole Basin Mixers
- Vado GEO-109-VALVE/CD/CL Cold Flow Cartridge for Geo 3 Hole Basin Mixers Compatible Spare
- Vado GEO-109/SHROUD-C/P Shroud for Geo Valves
- Vado GEO-1/109-C/P GEO Control Handle
- Vado GEO-1/109-SCREW Tap Grub Screw and Blanking Cap for GEO-1/109-C/P Handle
- Vado GEO-109/220-SPOUT-CP Spout to Suit GEO-109/220-C/P - Chrome
- Vado C-503-LTC Hot Flow Cartridge Compatible Spare (C503LTC 19D)
- Vado C-503-RTC Cold Flow Cartridge Compatible Spare (C503RTC 19D)
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

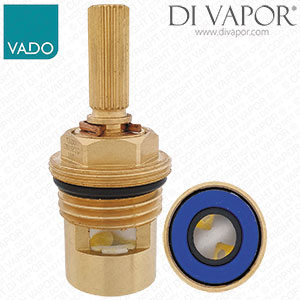

Vado GEO-109/VALVE/CD/CL Cold Flow Cartridge for Geo 3 Hole Basin Mixers Compatible Spare. This valve is usually mounted on the wall.Vado GEO-109/VALVE/CD/CL is a compatible cold side ceramic disc flow cartridge for selected Vado Geo 3 hole wall mounted basin mixer tap assemblie...

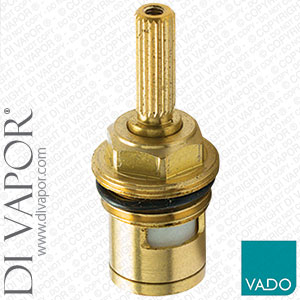

Vado GEO-109/VALVE/CD/HT hot flow cartridge for Geo 3 hole basin mixer taps. This ceramic flow cartridge is used in the flow control side of compatible Vado Geo wall mounted basin mixer tap assemblies and provides quarter turn operation for smooth opening and shut-off.What This P...
Vado GEO-109/VALVE/CD/CL Cold Flow Cartridge for Geo 3 Hole Basin Mixers Compatible Spare. This valve is usually mounted on the wall.Vado GEO-109/VALVE/CD/CL is a compatible cold side ceramic disc flow cartridge for selected Vado Geo 3 hole wall mounted basin mixer tap assemblie...
Vado GEO-109/VALVE/CD/HT hot flow cartridge for Geo 3 hole basin mixer taps. This ceramic flow cartridge is used in the flow control side of compatible Vado Geo wall mounted basin mixer tap assemblies and provides quarter turn operation for smooth opening and shut-off.What This P...
Vado GEO-1/109-C/P is a control handle for Vado Geo wall mounted 3 hole basin mixer tap assemblies. It is supplied as 1 x control handle as shown and is used on the side control positions of the mixer.This handle is used with the Geo square shroud and the matching quarter turn ce...
Vado C-503-LTC Hot Flow Cartridge
Vado C-503-RTC Cold Flow Cartridge Compatible Spare Cartridge Measurements: Total Length (including bottom seal): 53.5mm Spindle Length:...
