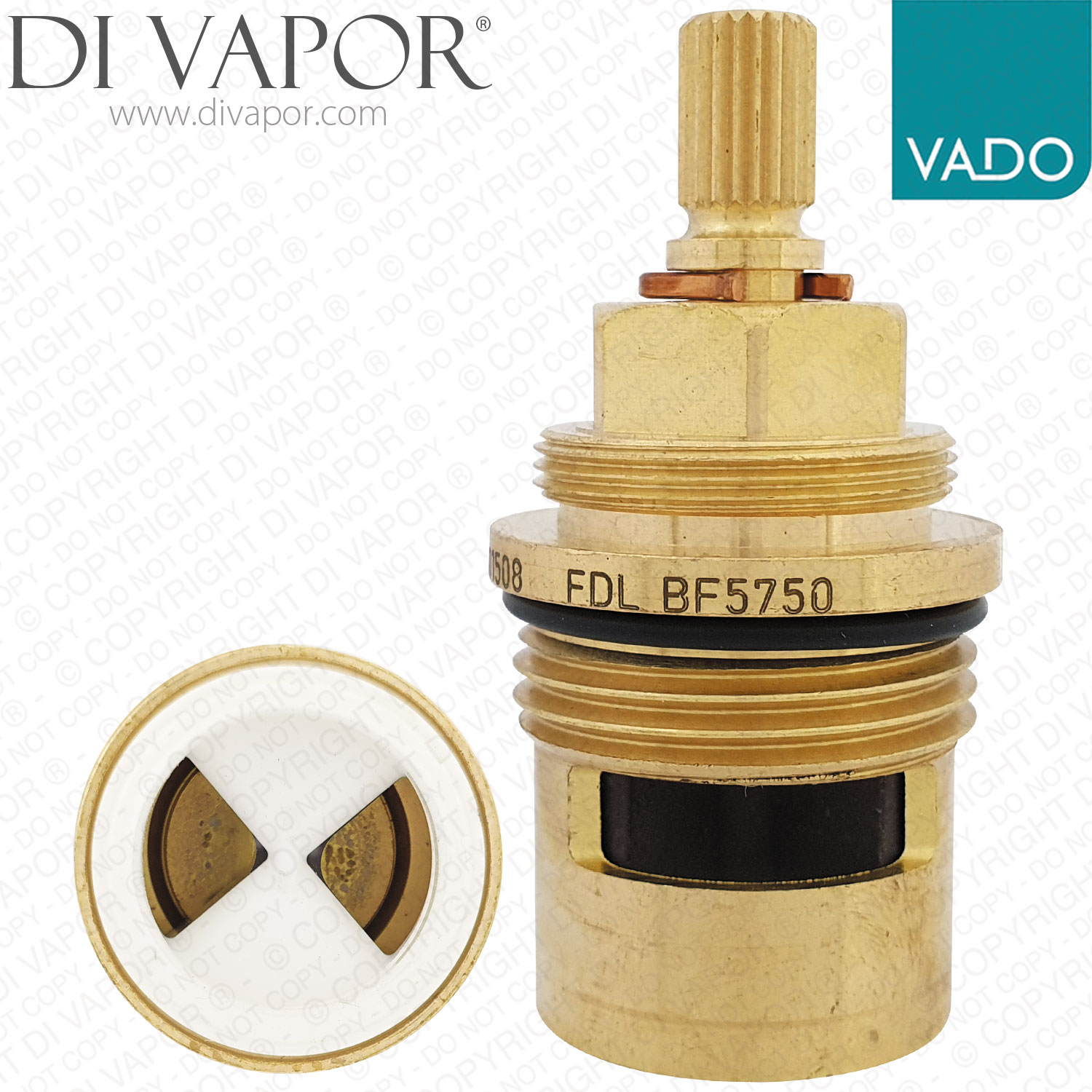

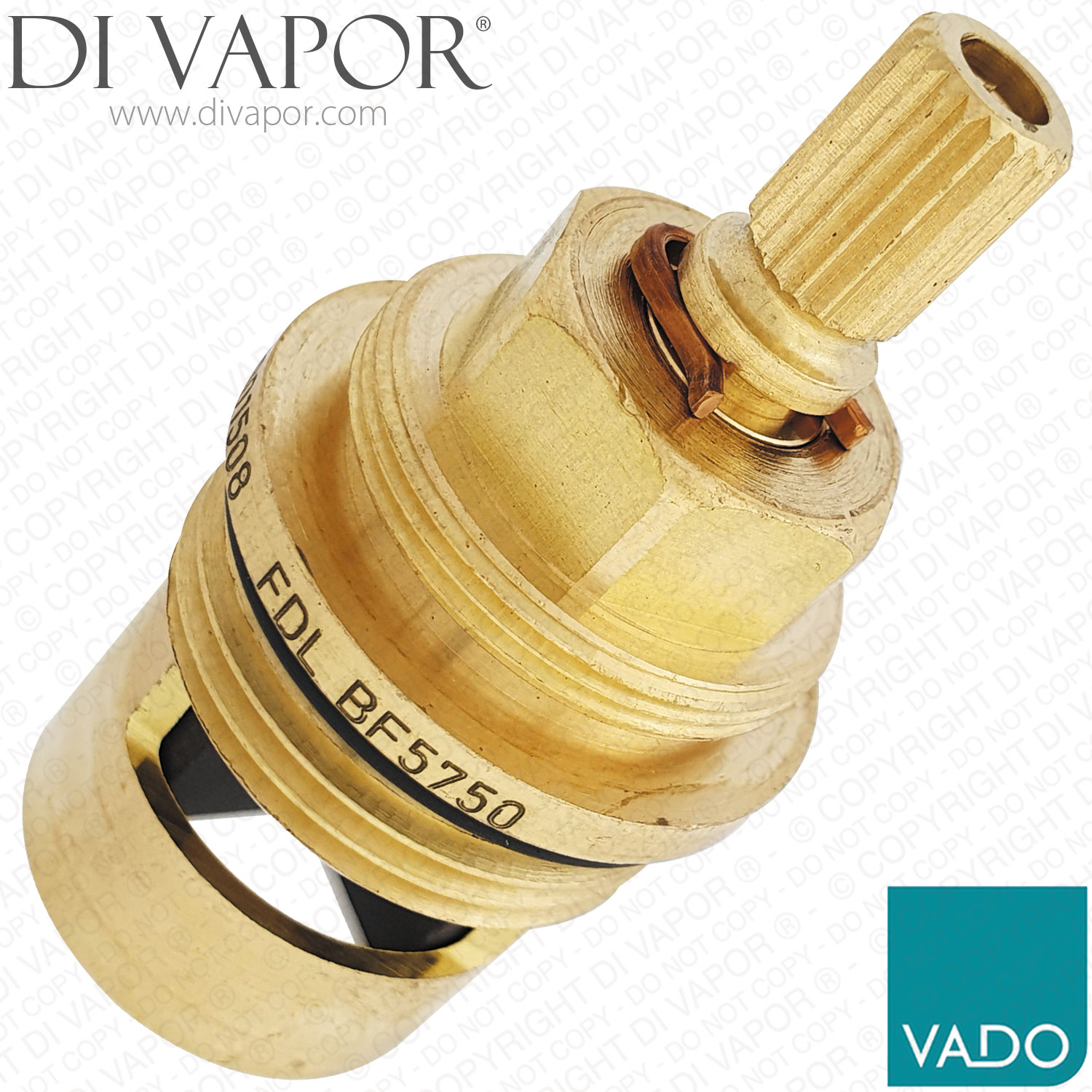

Vado FL-301-RTC 3/4 Flow Cartridge
Send a photo of your item and we'll help confirm it.
Summary
Vado FL-301-RTC is a 3/4 flow cartridge for selected Vado concealed thermostatic shower valves. It is the clockwise-close quarter turn flow control cartridge used to open and shut the water flow through the valve outlet.
This part is used where the original flow cartridge is worn, scaled, stiff, passing water or no longer shutting off cleanly. A common symptom of flow cartridge failure is water dripping from the shower head or outlet when the shower valve is turned off.
Technical Details
| Exact part code | FL-301-RTC |
|---|---|
| Part type | 3/4 flow cartridge |
| Turn orientation | clockwise close |
| Turn | quarter turn |
| Total length | 56.5mm |
| Diameter at widest point | 28.9mm |
| Diameter at brass section above the white seal | 24mm |
| Diameter of bottom thread | 26.3mm |

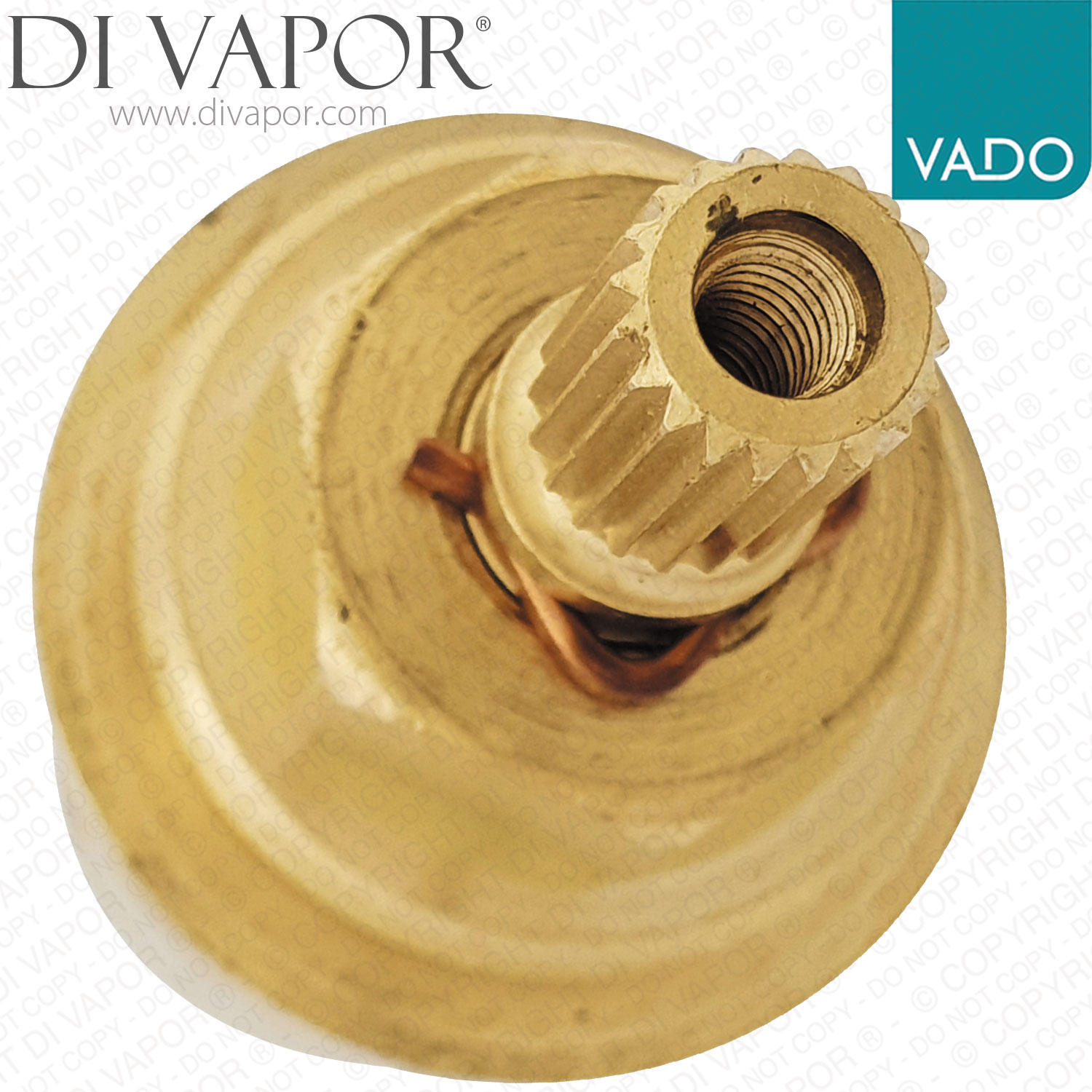

| Diameter of top spline | 7.6mm |
| Number of splines | 20 |
| Diameter of top thread | 23.8mm |
- Older code for this Vado 3/4 flow cartridge family: TAB-002A-3/4
Check the printed part code, spline count, turn direction and original valve spare parts page before ordering because Vado uses several different flow and diverter cartridge types across similar concealed shower valve ranges.
Confirmed Compatible Models
- VADO TAB-128/3-H-NOT-C/P Tablet Notion Horizontal Concealed 3 Outlet 3 Handle Thermostatic Shower Spare Parts
- Vado TAB-1753/WO-ALT-CP Tablet Altitude 3 Outlet Thermostatic Shower Set Spare Parts
- Vado TAB-128/3WO-S-ARR-CP Tablet Arrondi Thermostatic Valve Spare Parts
- Vado TAB-128/3WO-B-ARR-CP Tablet Arrondi Thermostatic Valve Spare Parts
- Vado IND-T128/3-H-BRGK Knurled Accents Tablet 3 Outlet Thermostatic Valve Spare Parts
- Vado IND-T128/3-H-ALT-BRZ Tablet Altitude 3 Outlet Thermostatic Valve Spare Parts
- Vado IND-T148-ALT-BRG Tablet Altitude 1 Outlet Thermostatic Shower Valve Spare Parts
- Vado IND-T148-ALT-BLK Tablet Altitude 1 Outlet Thermostatic Shower Valve Spare Parts
- Vado IND-T148-ALT-BRN Tablet Altitude 1 Outlet Thermostatic Shower Valve Spare Parts
- VADO BC-AXB-148-CP Axbridge 1 Outlet 2 Handle Concealed Thermostatic Shower Valve Spares
- VADO BC-AXB-148-BN Axbridge 1 Outlet 2 Handle Concealed Thermostatic Shower Valve Bright Nickel Spare Parts
- VADO TAB-128/3-H-OMI-TRIM Trim Kit Tablet Omika Horizontal 3 Outlet 3 Handle Concealed Thermostatic Valve Spare Parts
Related Spares You May Need
If you are unsure which cartridge is fitted, remove the handle and match the cartridge code, spline count, turn direction and valve model before ordering. Send clear photos and measurements to the Di Vapor parts team if the fitted cartridge does not match these details.
