Grohe 45342000 1/2 Inch Carbodur Half Turn Flow On/Off Cartridge for Cold (Anti-Clockwise Close) - GROHE-45342000
Send a photo of your item and we'll help confirm it.
Summary
Grohe 45342000 1/2 Inch Carbodur Half Turn Cold Flow Cartridge Anti-Clockwise Close
This flow cartridge controls the on and off water flow function and is a genuine Grohe product.
The 45346000 cartridge is used in the following Grohe models:
- Grohe Grohtherm 2000 34282 Comfort set Grohtherm 2000
- Grohe Tenso 19402 Thermostatic shower mixer PARENT-633
- Grohe 34 650 Automatic 2000 Mixer (Basic/Clova)
- Grohe Aria 21090 Basin mixer 1/2” Inch
- Grohe Tenso 34027 Thermostatic shower mixer 1/2” Inch PARENT-643
- Grohe Grohtherm 2000 Special 34205 Thermostatic shower mixer 1/2” Inch
- Grohe Grohtherm 2000 Special 19416 Thermostatic shower mixer
- Grohe Aria 25081 Bath / shower mixer 1/2” Inch
- Grohe Grohtherm 3000 Cosmopolitan 19467 Thermostatic shower mixer
- Grohe Allure 20143 Three - hole basin mixer 1/2” Inch
- Grohe Allure 19380 Thermostatic shower mixer
- Grohe Grohtherm 1000 34268 Thermostatic shower mixer 1/2” Inch
- Grohe Grohtherm 3000 19359 Thermostatic shower mixer
- Grohe Aria 21091 Basin mixer 1/2” Inch
- Grohe Aria 24030 Bidet mixer 1/2” Inch
- Grohe Grohtherm 3000 Cosmopolitan 34275 Thermostatic shower mixer 1/2” Inch
- Grohe GD2 38661 WC concealed cistern 6 / 4 litre PARENT-356
- Grohe Aria 26008 Shower mixer 1/2” Inch
- Grohe Grohtherm 1000 34156 Thermostatic bath/shower mixer 1/2” Inch
- Grohe Grohtherm 1000 34146 Thermostatic shower mixer 1/2” Inch
- Grohe Aria 31043 Sink mixer 1/2” Inch
- Grohe Grohtherm 1000 34065 Thermostatic shower mixer 1/2” Inch
- Grohe Grohtherm 2000 19354 Thermostatic shower mixer
- Grohe Grohtherm 3000 Cosmopolitan 34274 Thermostatic shower mixer 1/2” Inch
- Grohe Grohtherm 1000 34323 Thermostatic bath/shower mixer 1/2” Inch
- Grohe Allure 34236 Thermostatic shower mixer 1/2” Inch
- Grohe Grohtherm 1000 34215 Thermostatic bath/shower mixer 1/2” Inch
- Grohe Grohtherm 1000 34143 Thermostatic shower mixer 1/2” Inch
- Grohe Grohtherm 2000 Special 34255 Thermostatic shower mixer 1/2” Inch
- Grohe Allure 20144 Three - hole basin mixer 1/2” Inch
- Grohe Grohmaster 34181 Grohtherm 3000
- Grohe Aria 20147 Three - hole basin mixer 1/2” Inch
- Grohe 34 357 Automatic 2000 Bath Mixer (Basic/Clova)
- Grohe Grohmaster 34154 Grohtherm 1000
- Grohe Grohtherm 1000 34321 Thermostatic shower mixer 1/2” Inch
- Grohe Grohmaster 34 025 Grohtherm 1000 Ev
- Grohe Grohtherm 1000 34286 Thermostatic shower mixer 1/2” Inch
- Grohe Chiara 19412 Thermostatic shower mixer PARENT-154
- Grohe Grohtherm 1000 34155 Thermostatic bath/shower mixer 1/2” Inch
- Grohe Grohtherm 3000 34179 Thermostatic shower mixer 1/2” Inch
The hot cartridge is GROHE-45346000.

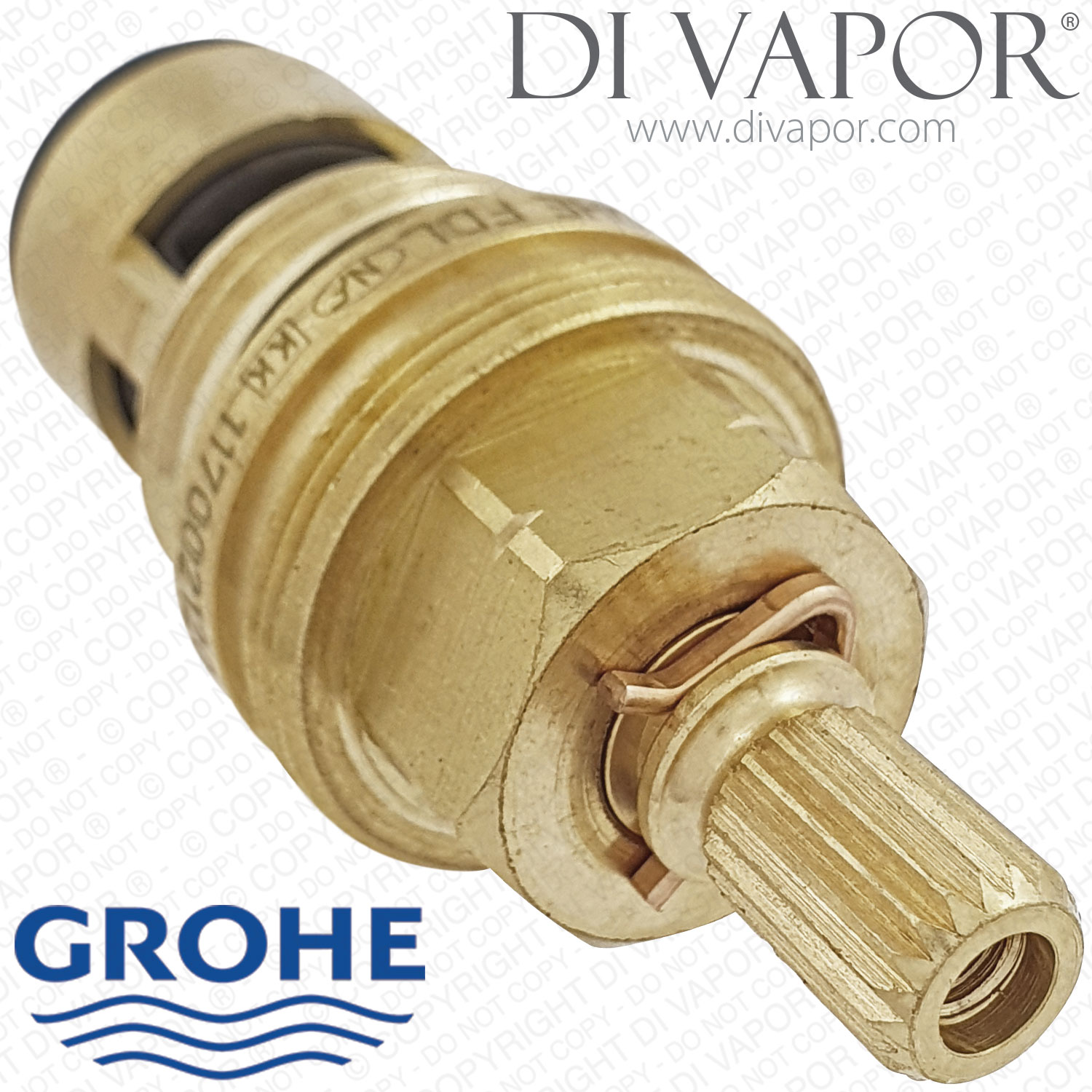

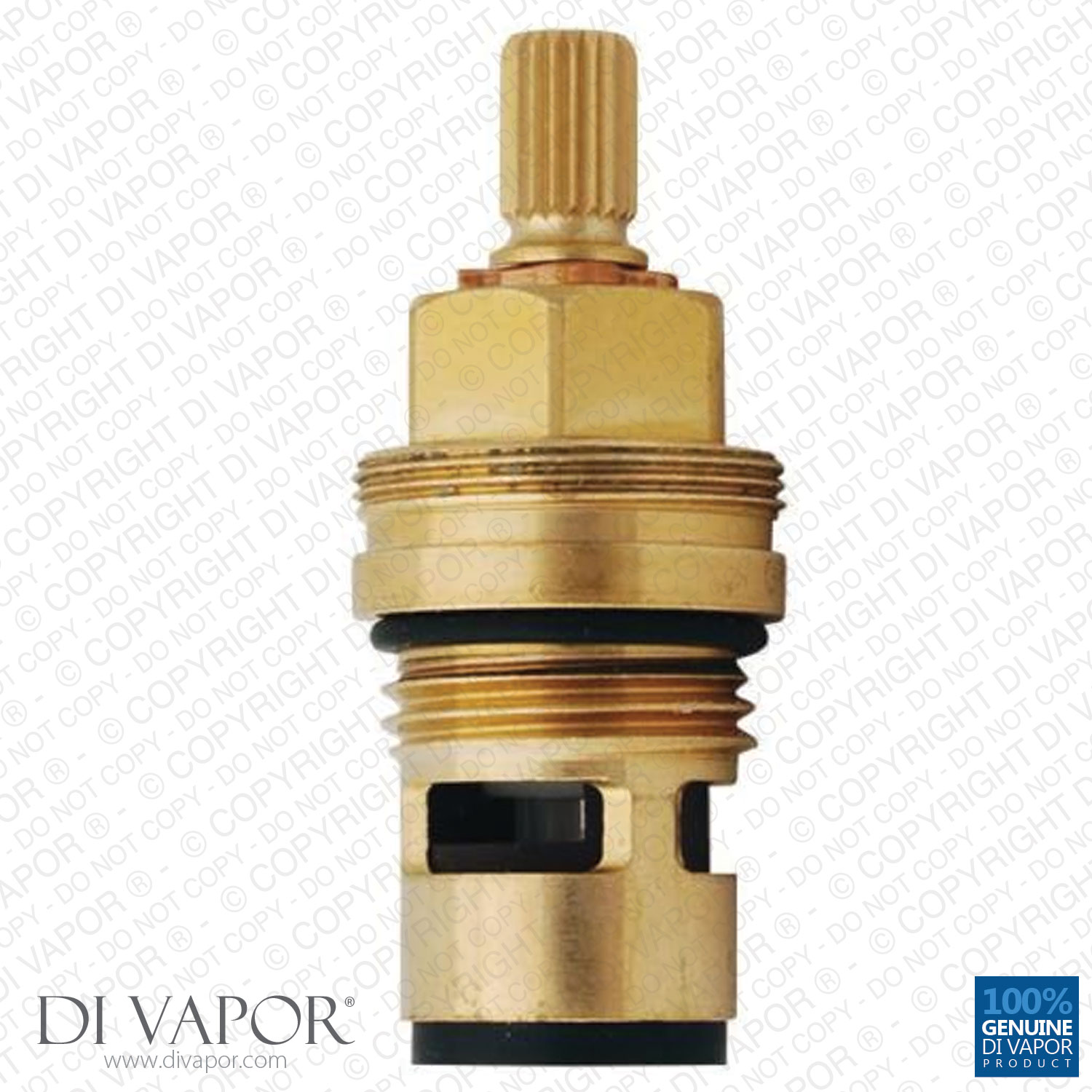

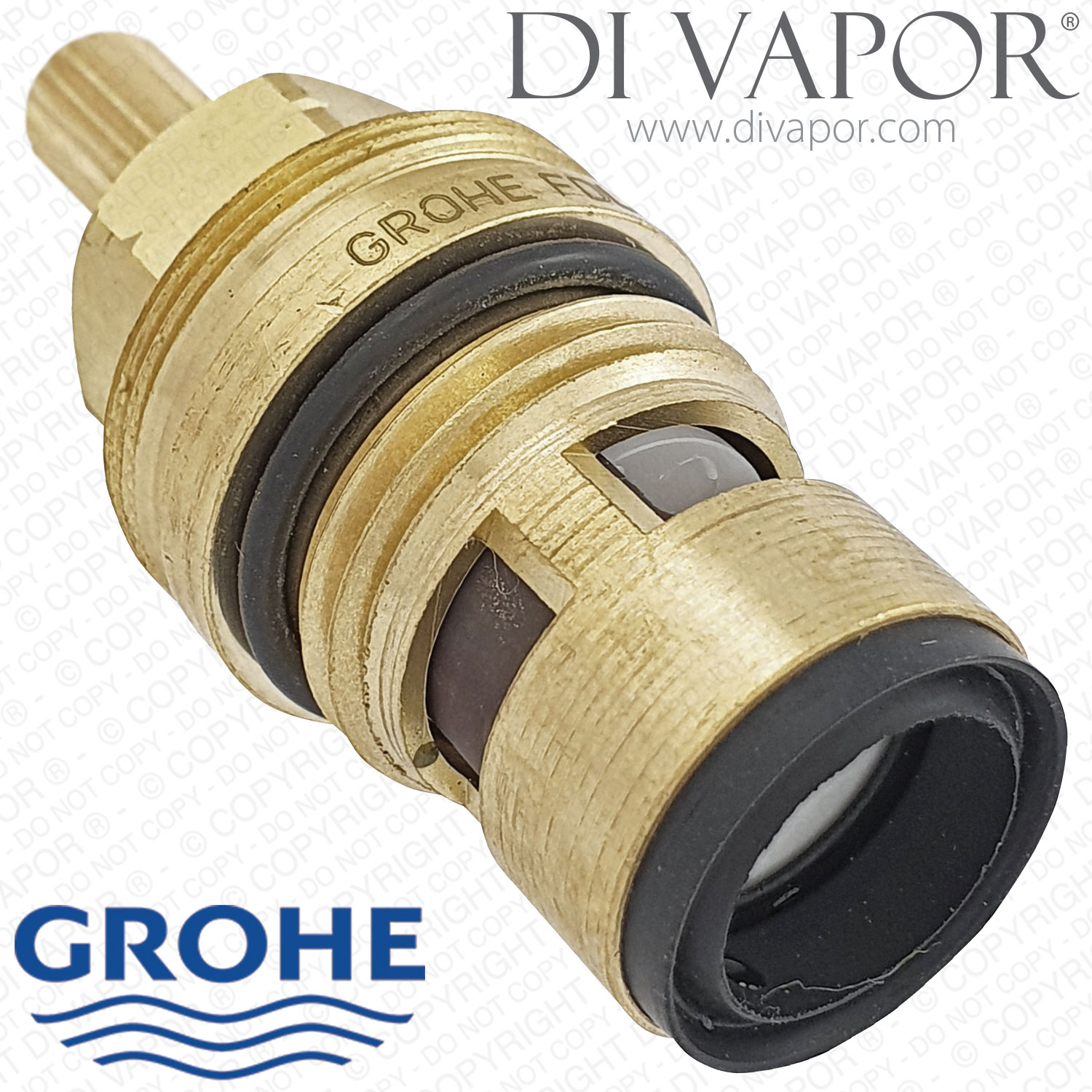

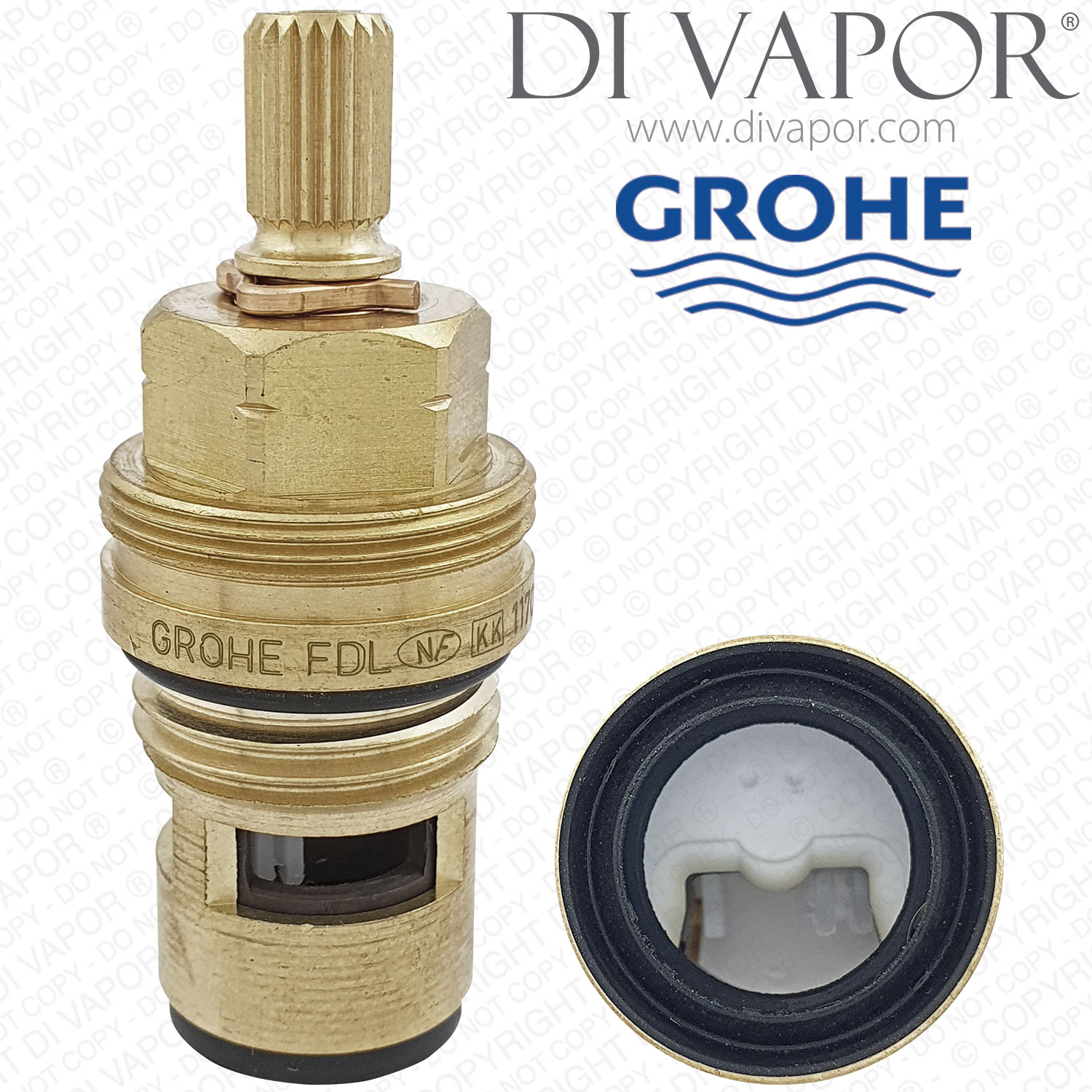

The Grohe 45342000 is a 1/2 inch ceramic flow cartridge used as a cold-side flow control headpart in selected Grohe taps and concealed valves. It uses ceramic sealing discs and provides half-turn operation for controlling and shutting off the water flow.
The cartridge has a left-hand stop and operates through 180 degrees. In its cold-side application, the control closes anti-clockwise. A worn flow cartridge can cause stiff operation, incomplete shut-off, or water continuing to drip from the tap spout or shower outlet after the control has been turned off.
Technical Details
| Brand | Grohe |
|---|---|
| Part number | 45342000 |
| Part type | Ceramic flow cartridge / ceramic headpart |
| Nominal size | 1/2 inch |
| Application | Cold-side flow control |
| Operation | Half turn |
| Rotation | 180 degrees |
| Stop orientation | Left-hand stop |
| Closing direction | Anti-clockwise |
- Ceramic sealing discs
| Approximate overall length | 56 mm |
|---|---|
| Spline count | 20 teeth |
| Approximate spline diameter | 7.5 mm |
| Associated O-ring | 0392400M |
| EAN | 4005176129865 |
These dimensions can be used as additional pre-order checks, but the valve or tap model, cartridge orientation, closing direction and existing part should also be checked before ordering. This cartridge should not be selected solely because another Grohe headpart has a 1/2 inch nominal size.
Confirmed Compatible Models
For the Grohe 18934000 Clova basin taps, 45342000 is the cold ceramic headpart, while 45346000 is the corresponding hot-side headpart. For the Grohe 29811000 concealed valve, 45342000 forms part of the valve's flow-control assembly.
Before You Order
- Check that the required cartridge is for the cold side
- Check that the required closing direction is anti-clockwise
- Check for a 180-degree half-turn action and left-hand stop
- Compare the existing cartridge code and physical form with 45342000
- Check the 20-tooth spline and approximately 7.5 mm spline diameter where accessible
When fitting Grohe spare parts of this type, a small amount of suitable potable-water-safe silicone grease can be applied to the O-ring or external sealing surfaces where required. Do not apply grease to the ceramic sealing faces.
Related Spares You May Need
- Grohe 0392400M Pack of 10 O-rings
- Grohe 45346000 1/2 Inch Carbodur Half Turn Flow On/Off Cartridge for Hot Clockwise Close
- Grohe Flow Cartridge Seat 45023000
- Grohe 45186000 Fixing Set For Facetta Handles
- Grohe 45203000 Cartridge Extension Set 200mm
- TACSIL 3g Premium Cartridge Silicone Grease WRAS Approved
- GROHE Premium Plumbers Silicone Grease 2g SYNTHESO LM 220 18007031
