Grohe 45203000 Cartridge Extension Set - 200mm

SUMMARY

Grohe 45203000 Concealed Valve Extension Set 200mm

Grohe 45203000 is a 200mm concealed valve extension set used where a supported GROHE concealed valve is installed too deeply behind the finished wall for the standard trim connection. The set extends the operating connection between the concealed valve and the exposed control components.

The extension components can be shortened during installation to suit the required finished-wall depth. Check the concealed valve or trim code and establish the required extension depth before cutting or fitting the components.

Technical Details

- - Part code: 45203000

- - Part type: concealed valve extension set

- - Nominal extension set length: 200mm

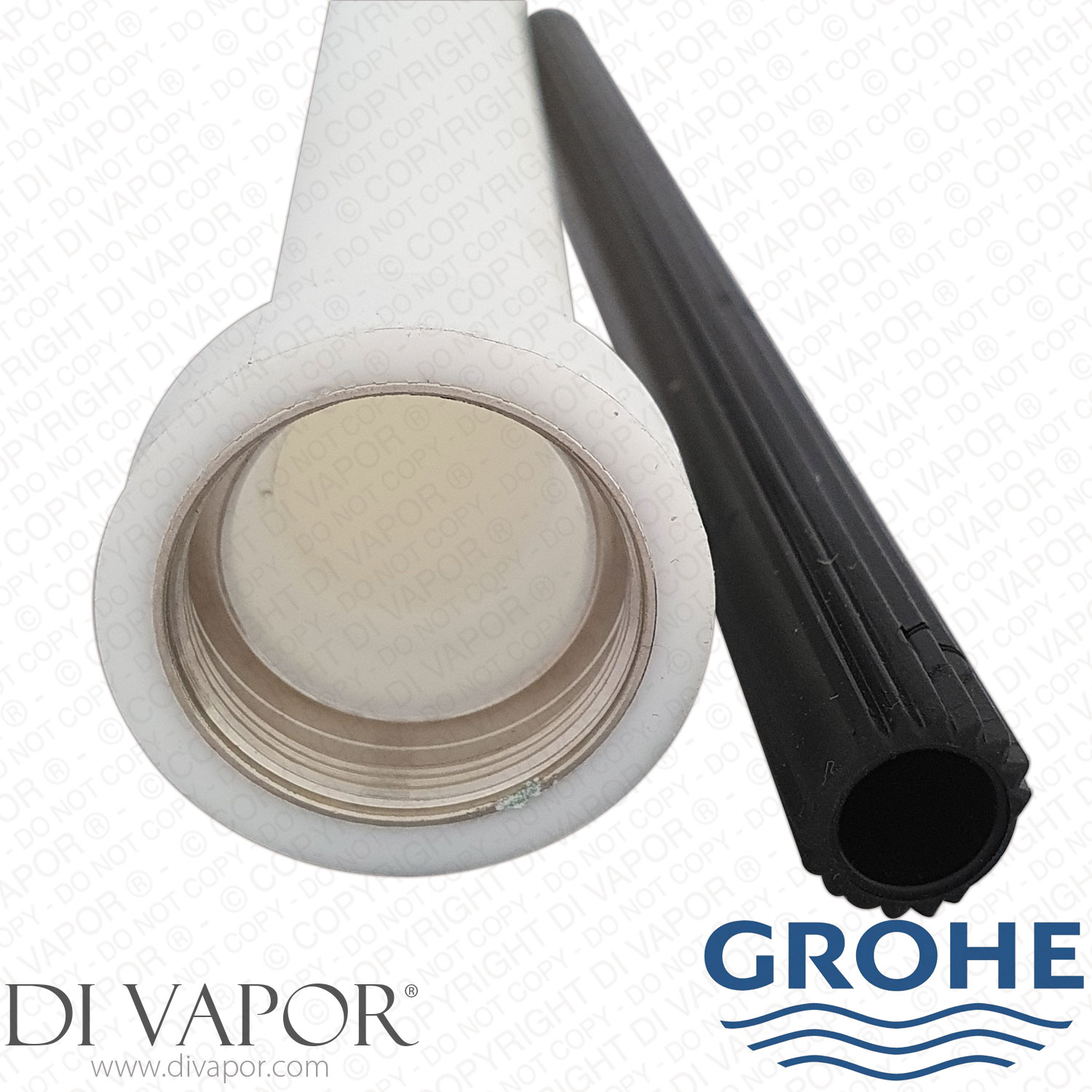

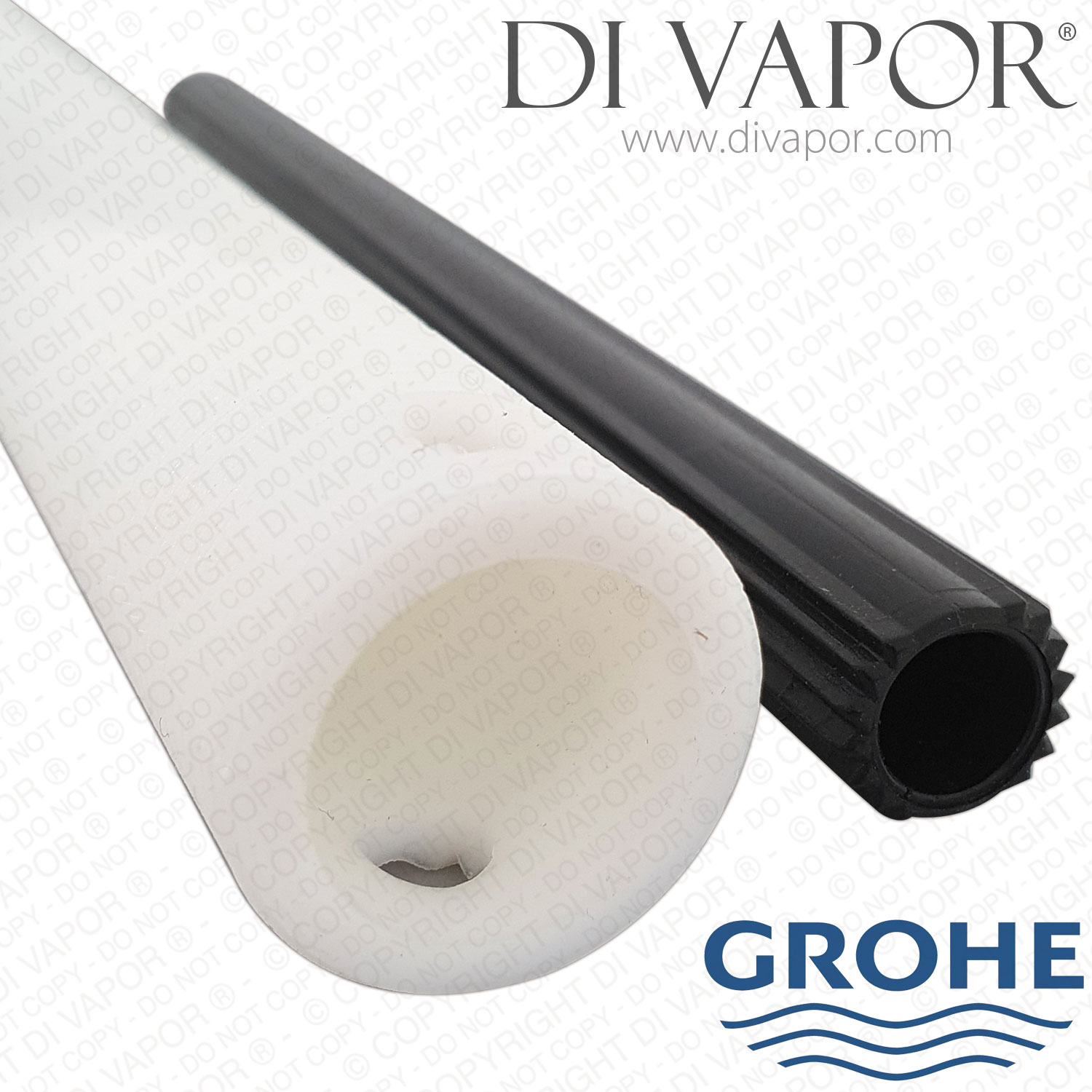

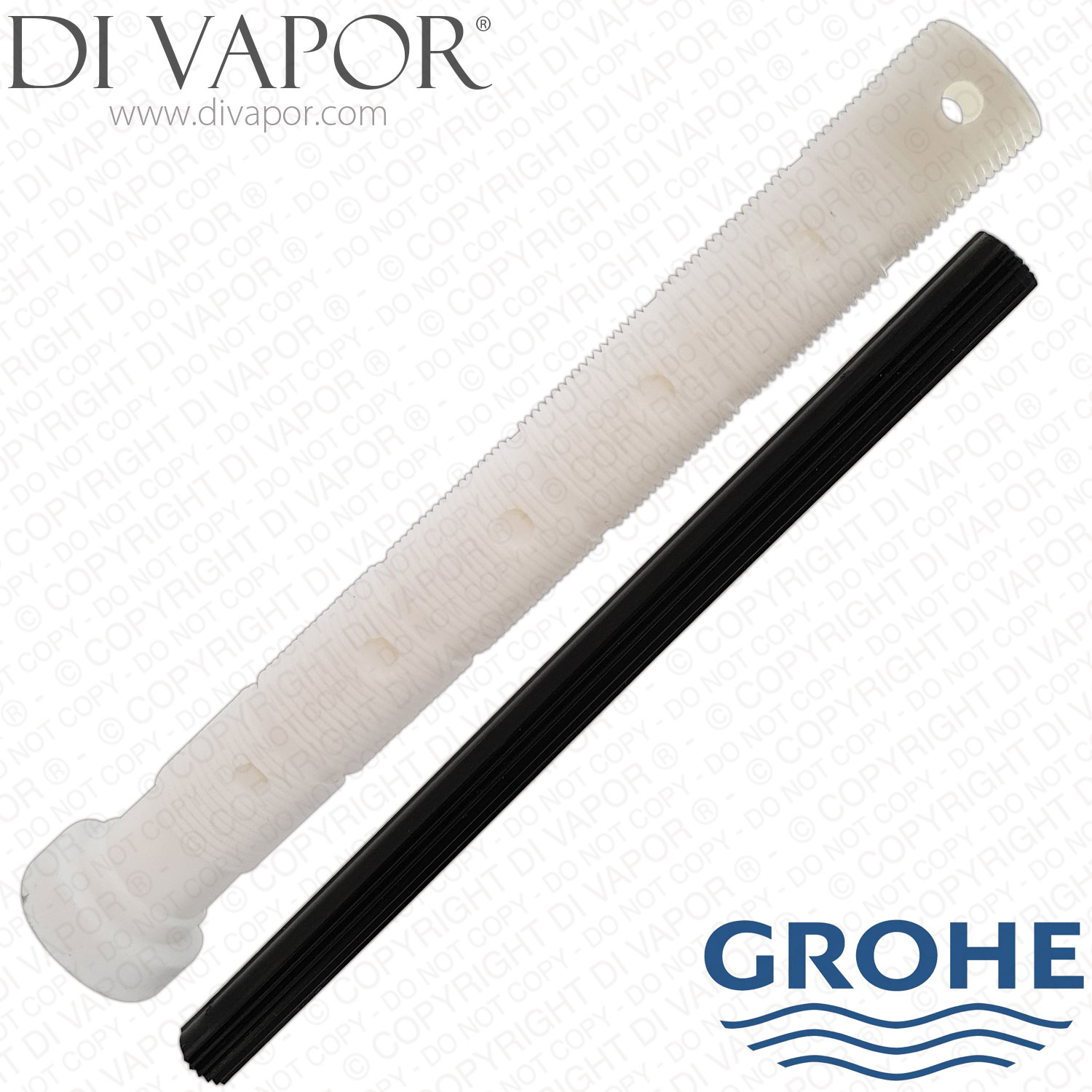

- - White extension length: 200mm

- - Black extension length: 180mm

- - Manufacturer drawing threaded extension length: approximately 202mm

- - Manufacturer drawing operating rod length: approximately 184mm

- - Thread sizes: M24x1 and M23x1.5

- - EAN: 4005176052842

Confirmed Applications

GROHE specifies 45203000 directly for the following concealed valve bodies:

- - GROHE 29800000 Concealed Valve 1/2"

- - GROHE 29802000 Concealed Valve 3/4"

- - GROHE 29805000 Concealed Valve 1"

Confirmed Trim and Exposed-Part Applications

The following trims and exposed parts list 45203000 as an extension accessory or component. These are trim or accessory relationships rather than additional direct concealed-valve-body applications.

- - GROHE 19808001 Costa L Concealed Stop-Valve

- - GROHE 19809001 Costa L Concealed Stop-Valve Trim

- - GROHE 19470000 Grohtherm 3000 Cosmopolitan Concealed Valve Exposed Part

- - GROHE 19182000 Atrio Concealed Valve Exposed Part

- - GROHE 19981000 Grohtherm 1000 Trim Set Concealed Valve

- - GROHE 19243001 Grohtherm 2000 Concealed Valve Exposed Part

- - GROHE 19796000 Allure Brilliant Concealed Valve Exposed Part

- - GROHE 19797000 Allure Brilliant Volume Control Trim

- - GROHE 19385000 Allure Volume Control Trim

- - GROHE 19384000 Allure Concealed Valve Exposed Part

- - GROHE 19334000 Allure Concealed Valve Exposed Part for 35 028 000

- - GROHE 19796A00 Allure Brilliant Concealed Valve Exposed Part

- - GROHE 19258 Grohtherm 3000 Concealed Stop Valve Exposed Part

- - GROHE 19243 Grohtherm 2000 Concealed Stop Valve Exposed Part

- - GROHE 19470 Grohtherm 3000 Cosmopolitan Concealed Stop Valve Exposed Part

- - GROHE 19806001 Costa L Volume Control Valve Trim

- - GROHE 19807001 Costa L Volume Control Valve Trim

- - GROHE 19237000 Grohtherm 1000 Concealed Valve Exposed Part

- - GROHE 19243000 Grohtherm 2000 Concealed Valve Exposed Part

- - GROHE 29398000 Allure Brilliant Concealed Stop-Valve Trim

- - GROHE 29398AL0 Allure Brilliant Concealed Valve Exposed Part

- - GROHE 29398DC0 Allure Brilliant Concealed Valve Exposed Part

- - GROHE 100754MG00 Grohtherm F Single Volume Control Trim

- - GROHE 100754MS00 Grohtherm F Single Volume Control Trim

Before Ordering

Check the exact GROHE valve or trim code and the required extension depth before ordering. Do not identify 45203000 from connection size or installation depth alone. GROHE 45202000 is a separate 80mm extension set and is not a superseding code for 45203000.
