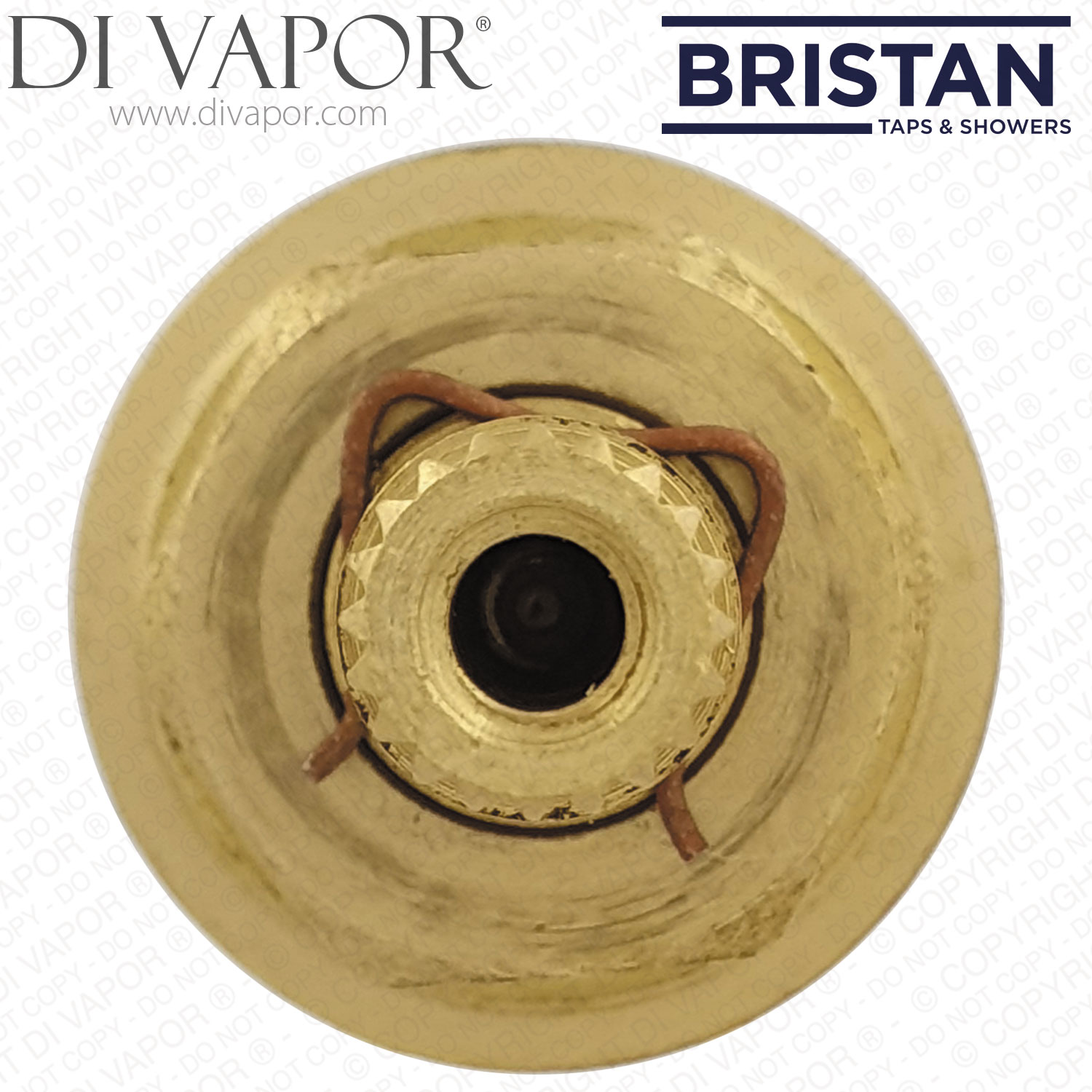

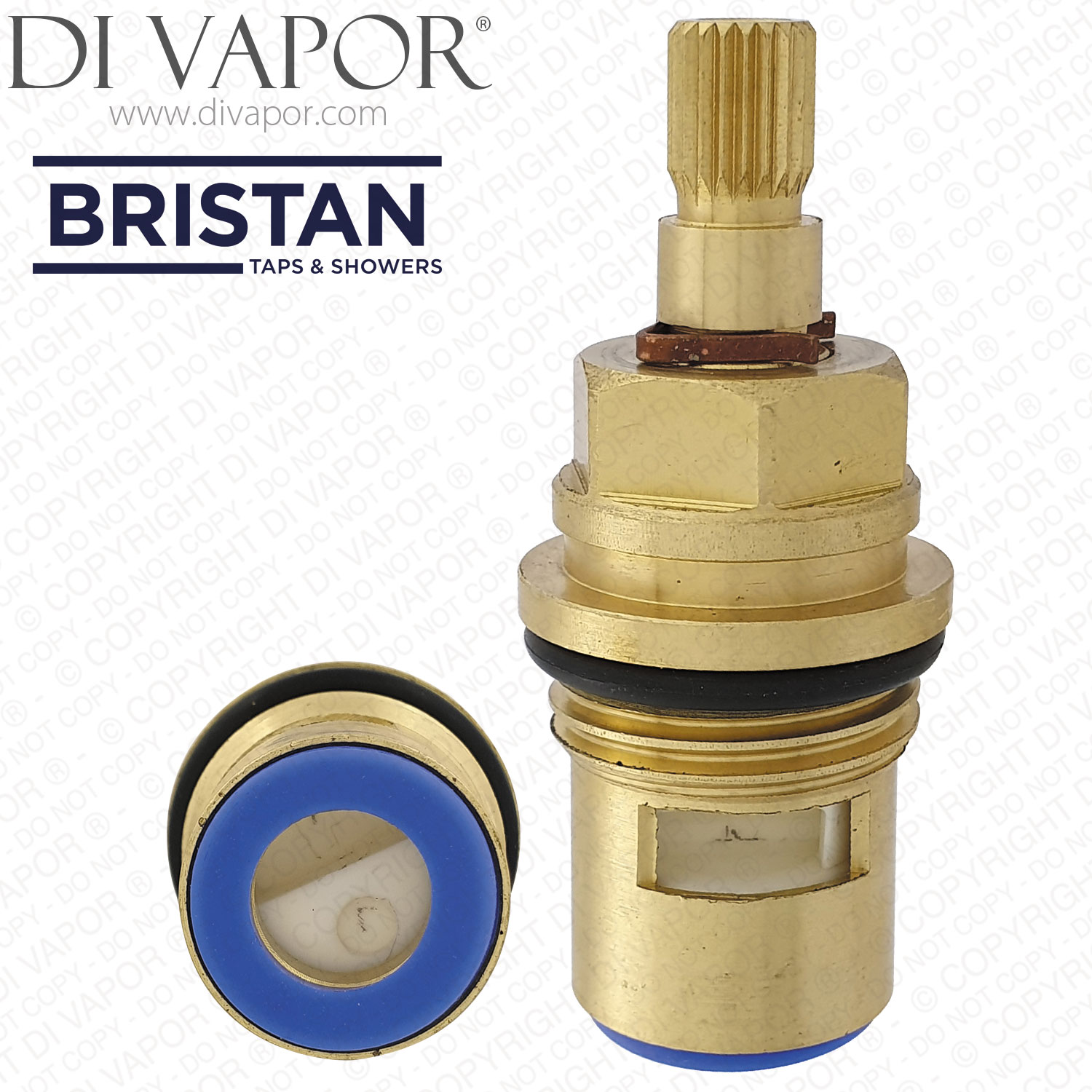

Bristan 04048OF Flow Control Cartridge Assembly used in SU0510

Summary

Bristan 04048OF is the flow control cartridge assembly used on the flow side of selected Bristan Artisan exposed thermostatic bar shower valves and shower kits where the 04048OF / SU0510 arrangement is specified.

This cartridge opens and shuts off the water flow. When worn, seized or scaled, it can cause stiff operation, reduced flow, or water continuing to drip from the shower head when the shower is turned off.

Technical Details

• Used in selected Bristan Artisan surface mounted bar shower variants and associated kit versions listed below.
• Official Bristan AR2 Artisan spares drawings identify the matching flow-side service part as the 3/4 inch ceramic disc valve position.
• Check the exact shower model code and spare-page layout before ordering because confirmed 04048OF applications are paired with different thermostatic cartridge assemblies depending on the version.
• Lightly grease serviceable seals during installation and isolate the water supplies before dismantling the valve.

Confirmed Compatible Models

• Bristan AR SHXVOFF C Artisan Thermostatic Surface Mounted Bar Shower Valve & Fast Fit Connections Spare Parts - BR DV 138
• Bristan AR SHXVOFF CC Artisan Thermostatic Surface Mounted Bar Shower Spare Parts
• Bristan AR2 SHXVOFF C Artisan Thermostatic Bar Shower Spare Parts
• Bristan AR SHXMTFF C Artisan Thermostatic Bar Shower with Multi Function Handset Spare Parts
• Bristan AR2 SHXMTFF MK1
• Bristan AR2 SHXSMFF C Artisan Thermostatic Bar Shower Valve Single EVO Function Kit and Fast Fit Connections Spare Parts

Related Spares You May Need

• TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
• GROHE Premium Plumbers Silicone Grease - 2g - SYNTHESO LM 220 (18007031)
• Bristan 00622415 Thermostatic Cartridge (Screw-in) for versions that use the threaded thermostatic cartridge.

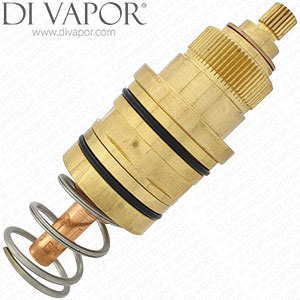

• Thermostatic Cartridge for Bristan CART 06734B | Cart 18 Push Fit with Spring for versions that use the push-fit thermostatic cartridge.
• Bristan K93H6 Spring for SK1850-2 & SK1400-5 & SK1500 Range of Thermostatic Cartridges where the push-fit thermostat version is fitted.
• Bristan WMNT10 C Wall Mount Fixing Kit Spare Parts
• Bristan OR 08015 O Ring (17.17mm x 1.78mm) (MZ)
• Bristan 00515129 Outlet Connector and O Ring for AR SHXMT C and AR SHXSM C
• Bristan 00411087 Eco Stop for AR SHXMTFF C
• Bristan 00622064 White Washer for NRV
• Bristan SCW 05588B Screw for Tap Heads - Post Aug 2006
• Bristan 00410903 Temperature Stop for AR SHXMT C and AR SHXSM C
• Bristan 58.9031.10000 7 l/m Flanged Green Flow Limiter for AR bar Showers
• Bristan BLH74 Flat Filter Washer 24mm Outer Diameter 15mm Outer Diameter - Pair
• Bristan Artisan Temp Handle Assembly C - 00621763
• Bristan BLH231 Thermostatic Cartridge
• Bristan BLH228 3/4 Flow Valve
• 150mm Universal Shower Hose - NXT734

If you are unsure which Artisan version you have, match the exact model code and spare-page layout before ordering because Bristan used more than one thermostat arrangement across confirmed 04048OF applications.
