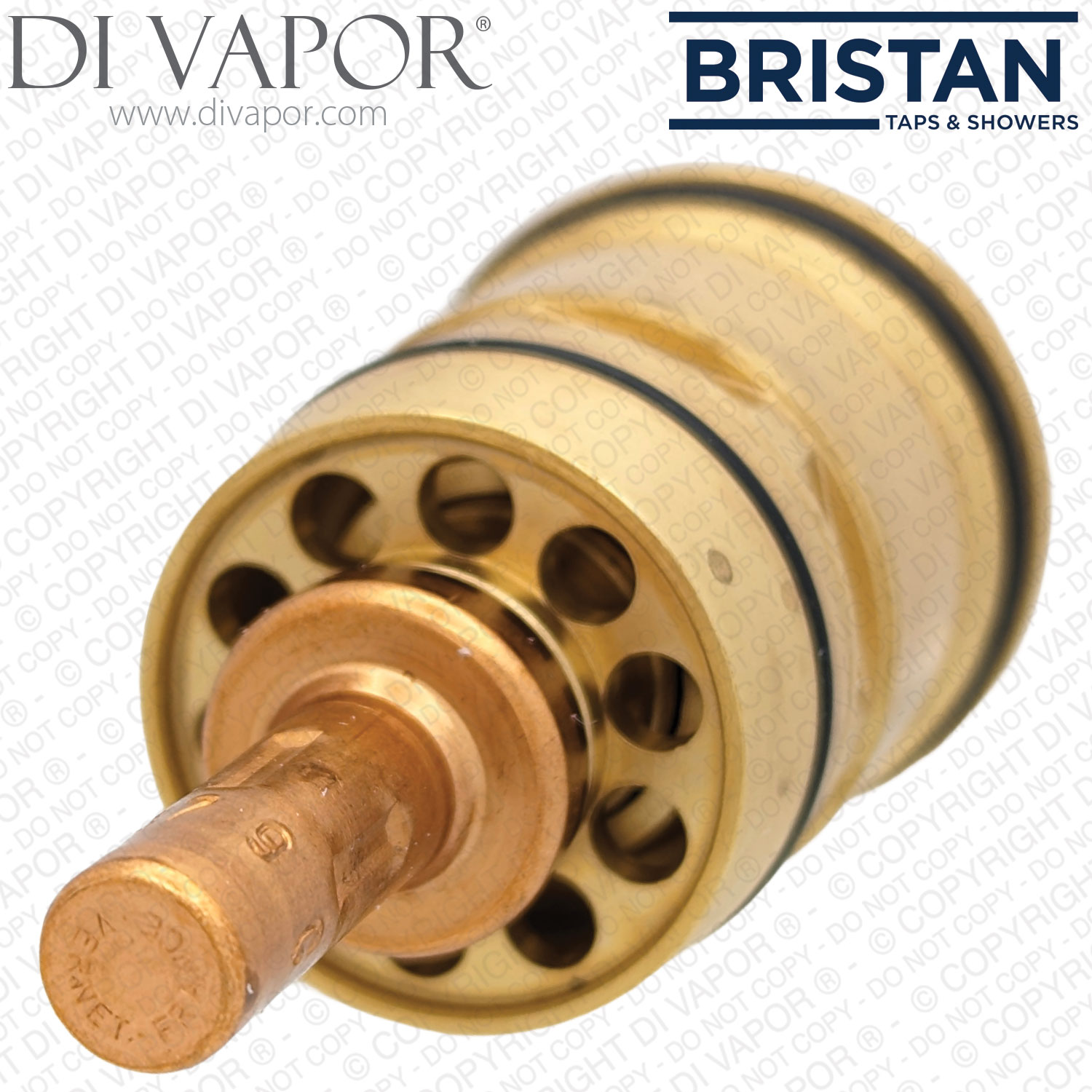

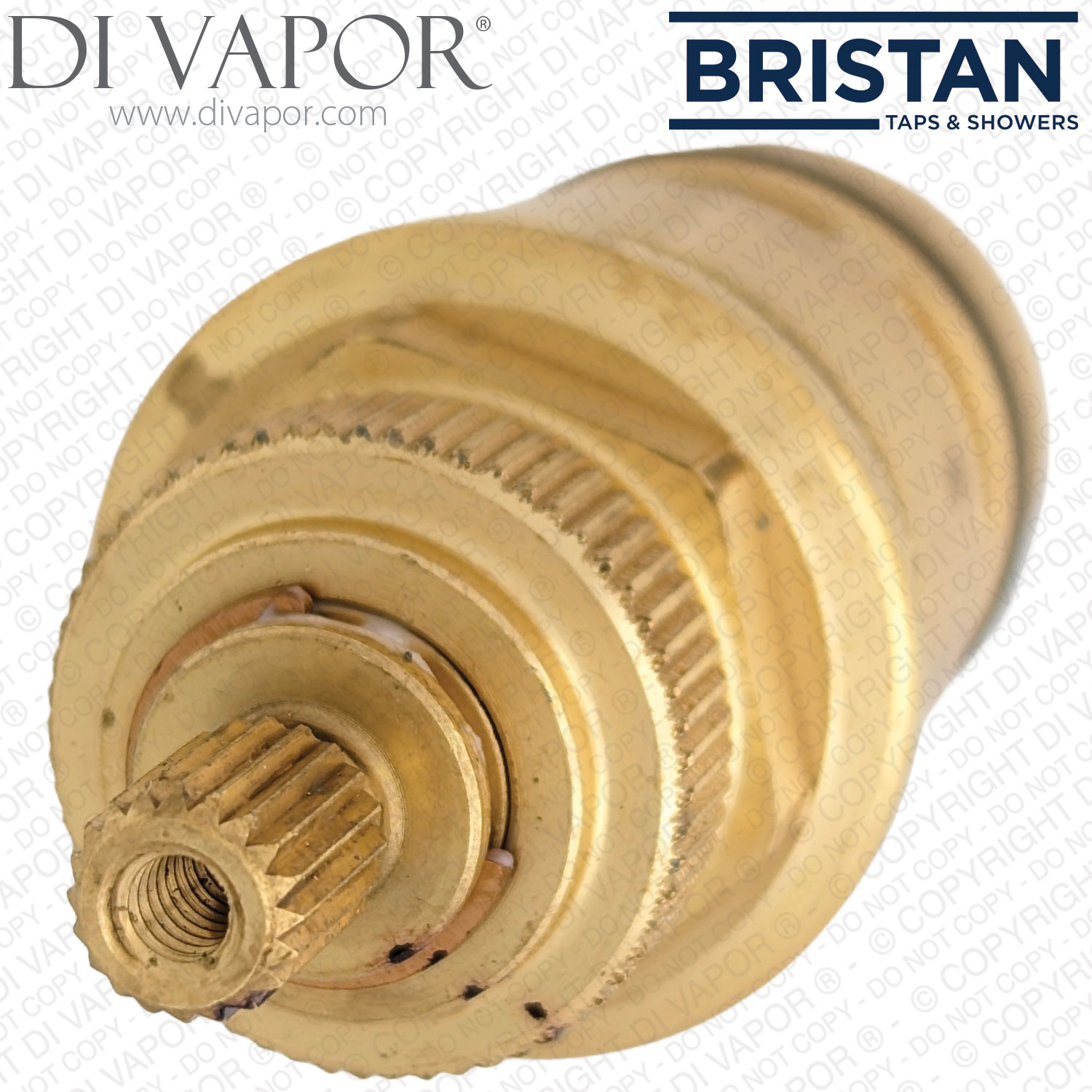

Bristan 00622415 Screw-in Thermostatic Brass Cartridge
Part number: 00622415
Price: £72.72
Sale: £55.96
You save: £16.76 (23%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary
Bristan 00622415 is a screw-in thermostatic cartridge used to control and stabilise mixed water temperature in selected Bristan bar shower valves and mixer shower valves.
The cartridge is used in Bristan Prism, Artisan, Easytherm, Trinity, Java, Qube, 1901, Chill, Solo, Art Deco and JS2 shower mixer valves where the screw-in 00622415 thermostatic cartridge is specified. The plastic version of this cartridge has been replaced by a brass version and the two versions are stated as cross compatible.
Technical Details
| Part code | 00622415 |
|---|---|
| Part type | screw-in thermostatic cartridge |
| Application | Bristan bar shower valves and mixer shower valves |
| Cartridge length | 92mm |
| Diameter | 31.45mm |
| Hex nut diameter flat to flat | 22.9mm to 23mm |
| Material | brass with Vernet 0847 copper thermostat element |
| O-rings | 2 |
| Spline tiers | 1 |
| Gauze filters | 0 |
| Fitting type | threaded screw-in body below the top O-ring |
| Factory temperature setting | 38 C |
| Temperature adjustment | turn the cartridge spindle anti-clockwise for hotter water and clockwise for cooler water |
| Removal tool | 23mm A/F box spanner |
| Service note | isolate both water supplies before removal and apply silicone grease to the visible black seals before refitting |
Confirmed Compatible Models
- Bristan AR SHCVO C Artisan Recessed Shower Valve Spare Parts
- Bristan AR2 SHCVO C Artisan Thermostatic Concealed Shower Valve Spare Parts BR DV 182
- Bristan AR SHCMT C Artisan Concealed Shower Valve with Adjustable Riser Spare Parts BR DV 178
- Bristan Artisan Thermostatic Surface Mounted Bar Shower with Riser and Mono Handset Spare Parts BR DV 132
- Bristan J CSHXVO C Java Thermostatic Shower Valve Spare Parts
- Bristan Java Thermostatic Surface Shower with Riser Rail Spare Parts BR DV 126
- Bristan Java Thermostatic Recessed Shower and Fixed Head Spare Parts BR DV 129
- Bristan Art Deco Built In Shower Spare Parts BR DV 351
- Bristan Solo Bar Shower Valve with Riser Kit Spare Parts BR DV 268
- Bristan ORB VSHXSPDIV C Orb Thermostatic Inline Shower Valve with Rigid Riser and Diverter Spare Parts
- Bristan ORB VSHXSPDIV B Orb Thermostatic Inline Shower Valve with Diverter Black Spare Parts
- Bristan Fairfax Thermostatic Shower Valve and Fixed Head Gold Spare Parts BR DV 202
- Bristan Fairfax Thermostatic Built In Shower Valve Spare Parts BR DV 359
- Bristan QU SHCDIV C Qube Dual Control Shower Valve with Integral Diverter Spare Parts BR DV 261
- Bristan OL SHCVO C Oval Thermostatic Concealed Dual Control Shower Valve Spare Parts
Common Fault Symptoms
| Symptom | only hot or cold water from the mixer outlet |
|---|---|
| Likely Cause | hot and cold inlets reversed |
| Solution | check that hot is on the left and cold is on the right when viewed from the front |
| Symptom | outlet temperature too hot or too cold |
| Likely Cause | no hot or cold water reaching the mixer or blocked filters |
| Solution | check water supply and clean insert filters |
| Symptom | fluctuating water or reduced flow |
| Likely Cause | blocked handset, hose, filters or insufficient balanced inlet pressure |
| Solution | check the handset, hose, filters, inlet pressures and hot water temperature |
| Symptom | leaking from controls |
| Likely Cause | cartridge seals damaged |
| Solution | replace seals or cartridge as required |
| Symptom | water leaking from the shower head after shut off |
| Likely Cause | short-term draining can be normal, but ongoing leakage can indicate pressure issues or damaged cartridge seals |
| Solution | check pressures and replace damaged seals if required |
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Bristan STOP 05421 Temperature Stop Ring
- Bristan HD 05536CSET1-BL Temperature Control Knob
- Bristan D282-126 Control Handle for Artisan Concealed Shower Valves and Shower Packs
- Bristan C-00603892 On/Off Ceramic Disc Cartridge for AR VSHXAR C Valves
- Bristan 00622206 Diverter Cartridge for Prism Artisan Chill JS2 Oval Qube and Quadrant Shower Valves
- Bristan 04048OF Flow Control Cartridge Assembly used in SU0510
- Bristan 00650436 3/4 inch Cold Flow Control Cartridge Replacement for Artisan Concealed Shower Valves - Half Turn
- Bristan 100067 Check Valve Removal Tool - B-100067
- O-Rings for Bristan 00622415 Cartridge
- Bristan 00621419 Flow Handle for 1901 Valves
- Bristan 00621143 Piston Housing - Hot - used in 1901 Art Deco Chilli Prism and Quest Valves
- Bristan 00621141 Piston Housing - Cold - used in 1901 Art Deco Chilli Prism and Quest Valves
- Bristan 00410903 Temperature Stop for AR SHXMT C and AR SHXSM C
Before ordering, match the code 00622415 and the screw-in cartridge format against the valve currently installed. Do not order from cartridge diameter alone.
