Porcelanosa Noken 100060452 NK Housing Assembly for 100056989 and 100060475 Diverter Cartridges
Part number: NOKEN-100060452
Price: £79.98
Sale: £39.96
You save: £40.02 (50%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

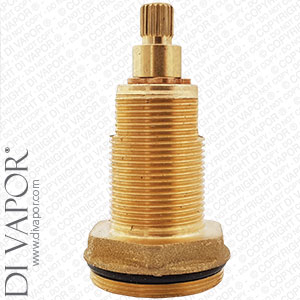

Porcelanosa Noken 100060452 NK is a brass diverter cartridge housing assembly used in selected concealed thermostatic shower valves. It retains and supports the diverter cartridge inside the valve body so water can be directed between outlets.
This listing is for the housing only and is used with diverter cartridges 100056989 and 100060475 depending on the valve version. Common reasons to replace the housing include damaged threads, worn sealing faces, persistent leakage around the diverter area, or poor cartridge seating after the diverter cartridge has been checked.
Technical Details
| Part type | brass diverter cartridge housing assembly. |
|---|---|
| Codes used for this housing | 100060452 and N252000004. |
- Used with diverter cartridge 100060475 on 100063401 and 100063400 after November 2021.
- Used with diverter cartridge 100056989 on 100140919 and 100140559 after April 2021.
| Total length | 61.8mm. |
|---|---|
| Length from top of nut to end | 50mm. |
| Spindle length including circlip | 17.6mm. |
| Top spline diameter | 7.8mm. |
| Top spline teeth or notches | 20. |
- Before you order check the exact valve code and any date-specific version on the spare parts diagram because 100063400 and 100140559 have date-related variants.
- When refitting inspect the diverter cartridge and seals at the same time and apply a light coating of silicone grease to the O-rings during reassembly.
Confirmed Compatible Models
- Noken Porcelanosa NK Logic Thermostatic Fit 3 Outlets 100063401.
- Noken Porcelanosa Urban Concealed Thermostatic 3 Ways 100063400 after November 2021.
- Noken Concealed 4 Way 3 Handle Thermostatic Valve with Wax Thermo-Element 100140919.
- Noken Concealed 4 Way 3 Handle Thermostatic Valve with Wax Thermo-Element 100140559 after April 2021.
- Noken Porcelanosa NK Logic Thermostatic Fit 2 Exits 100063404.
- Noken Porcelanosa NK Logic Thermostatic Fit 3 Exits 100063402.
- Faucets Urban 100160562.
- Faucets Urban 100160578.
Related Spares You May Need

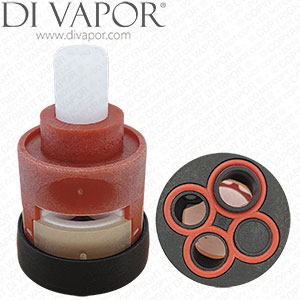

- Porcelanosa Noken 100056989 NK 3 Way Diverter Cartridge for Liberty and Logic Shower Valves 100060475 / 100060475_N2520000013.

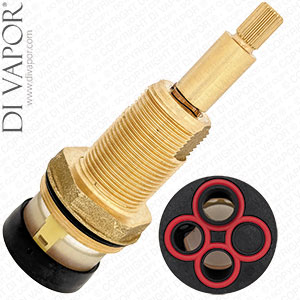

- Noken Square 100056989KT N234949936 Diverter Cartridge and Housing Assembly for Porcelanosa Liberty and Logic Shower Valves 100060475 / 100060475_N2520000013.

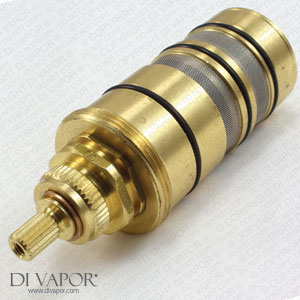

- Noken Square 100039544_5234350601 Thermostatic Cartridge Porcelanosa.
- Porcelanosa 100039526 Flow Cartridge Noken / NK Compatible Spare.
- Porcelanosa 100060455 Non Return Valve & Housing Cap 100060455 N252000003.
- Porcelanosa 100066742 Plastic Insert.

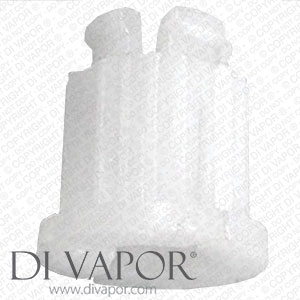

- Porcelanosa 100285114 Cartridge Adapter 100285114_N299998235.

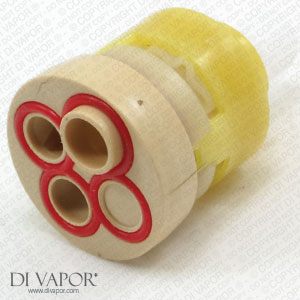

- Diverter Cartridge Assembly for NK Porcelanosa Valves Noken 100117768.
- Porcelanosa 250020949 Diverter Cartridge Noken / NK Compatible Spare.
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved.
