Porcelanosa 100066742 Plastic Insert
Send a photo of your item and we'll help confirm it.
Summary

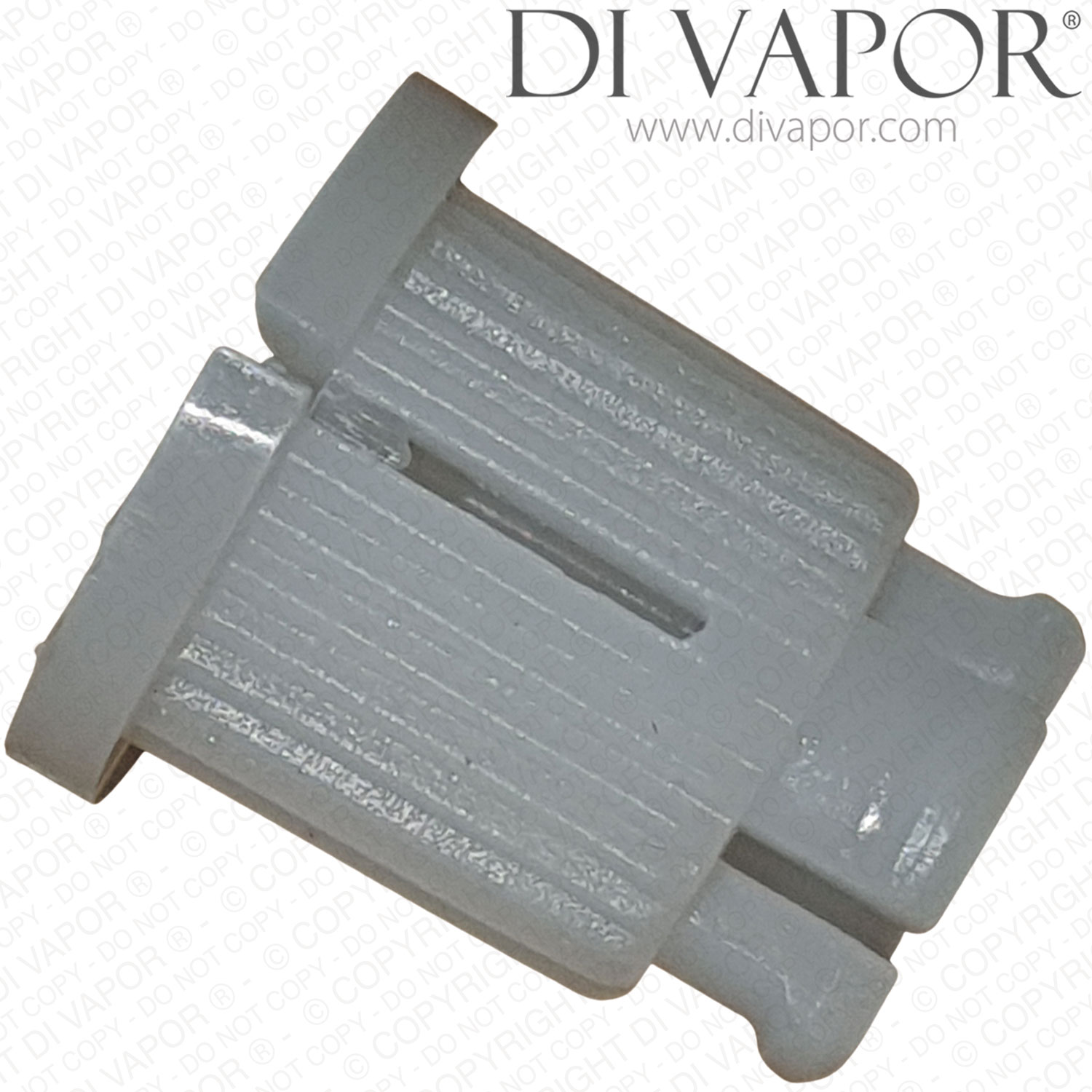

Porcelanosa 100066742 is a plastic insert used on selected Noken concealed thermostatic valve and stop valve controls.
It is also referenced as N199999941 and is commonly identified as a Clip13X20 style plastic insert for thermostatic mixer control applications.
Function
This insert helps provide the correct drive fit between the control handle and the valve spindle. A worn cracked or missing insert can cause a loose handle poor engagement or difficulty operating the control correctly.
Technical Details
| Part Number | 100066742 |
|---|---|
| Associated Noken reference | N199999941 |
| Material | plastic |

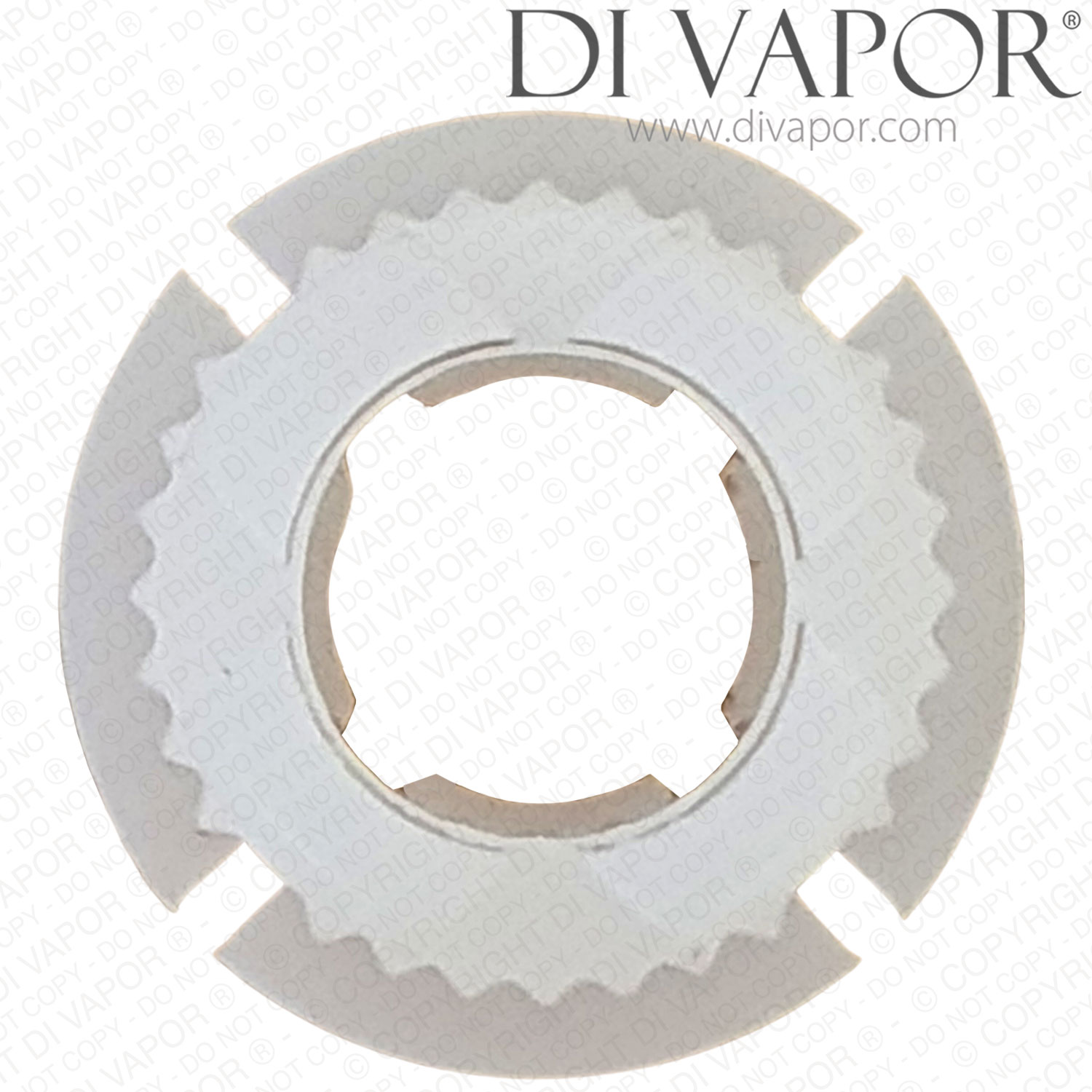

| Spline format | 8/20 |
-- Fits splines with 8mm diameter and 20 teeth
- Increases spline diameter to approximately 13mm
- Check the original insert shape spline count and handle fit before ordering
Confirmed Compatible Models
- Noken Porcelanosa NK Logic Thermostatic Fit 2 Exits 100063404 Spare Parts
- Noken Porcelanosa Urban Concealed Thermostatic 100065766 Spare Parts
- Noken 100093574 Wall Mounted Stop Valve 3/4 Inch Spare Parts
- Noken 100209822 Wall Mounted Stop Valve 3/4 Inch Spare Parts
- Lounge concealed thermostatic valve 100093579
- Tec Square 100220151 and 100272159
- Urban N 100345327 100345328 and 100345329
- Tec Round N 100377729
Related Spares You May Need
- Noken Square 100039544_5234350601 Thermostatic Cartridge (Porcelanosa)
- Noken Square 100056989_N234949936 Diverter Cartridge
- Noken Square 100060452 Brass Cartridge Housing (100060452_N252000004)
- Diverter Cartridge Assembly for NK Porcelanosa Valves (Noken) - 100117768
- Porcelanosa 100060455 Non Return Valve & Housing Cap - 100060455 N252000003
- Porcelanosa 100039526 Flow Cartridge (Noken / NK) Compatible Spare
