Noken Square 100056989_N234949936 Diverter Cartridge
Part number: 100056989
Out of stock - Ask a Question now
Price: £74.99
Sale: £39.96
You save: £35.03 (47%)
Price includes UK VAT (Region: UK▼)
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

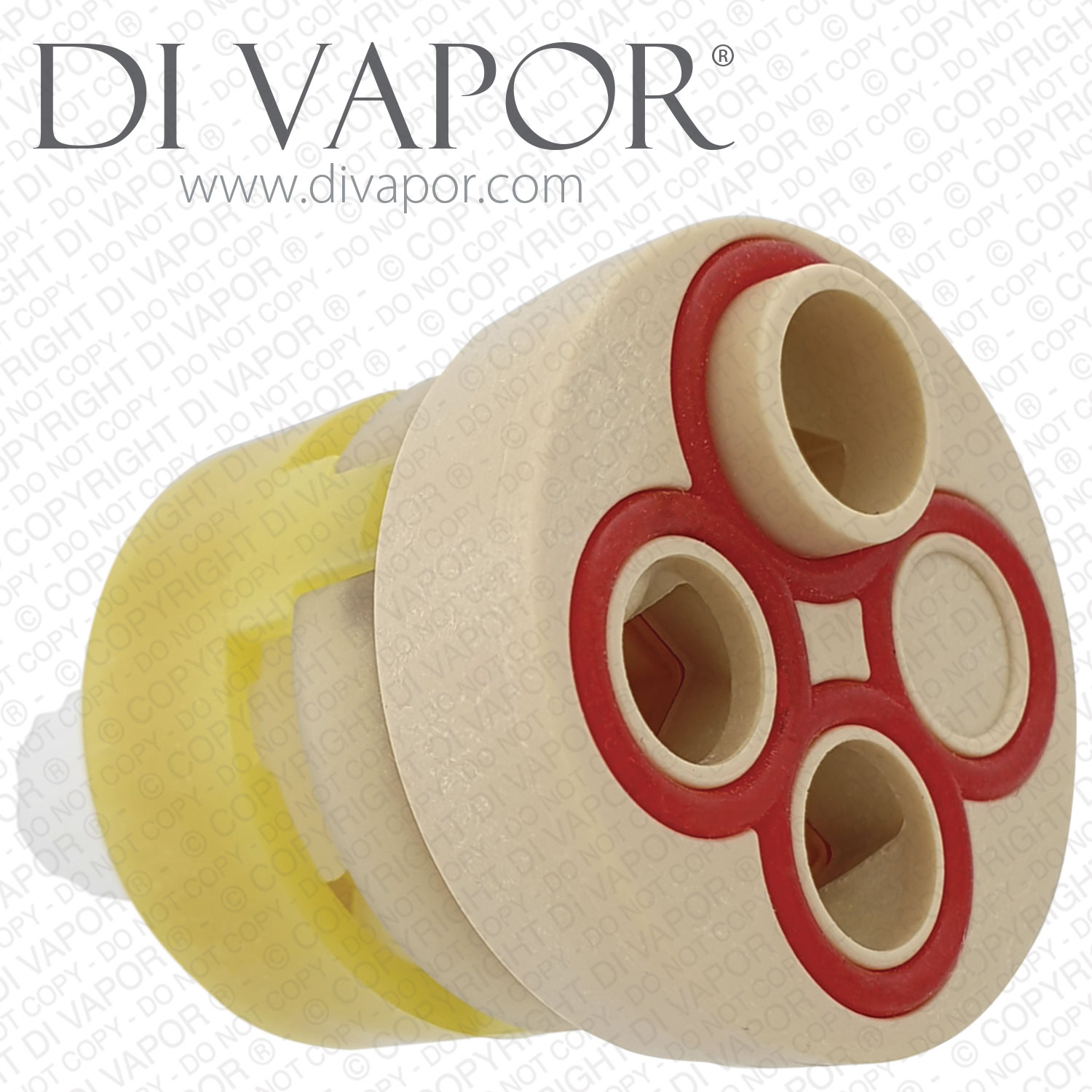

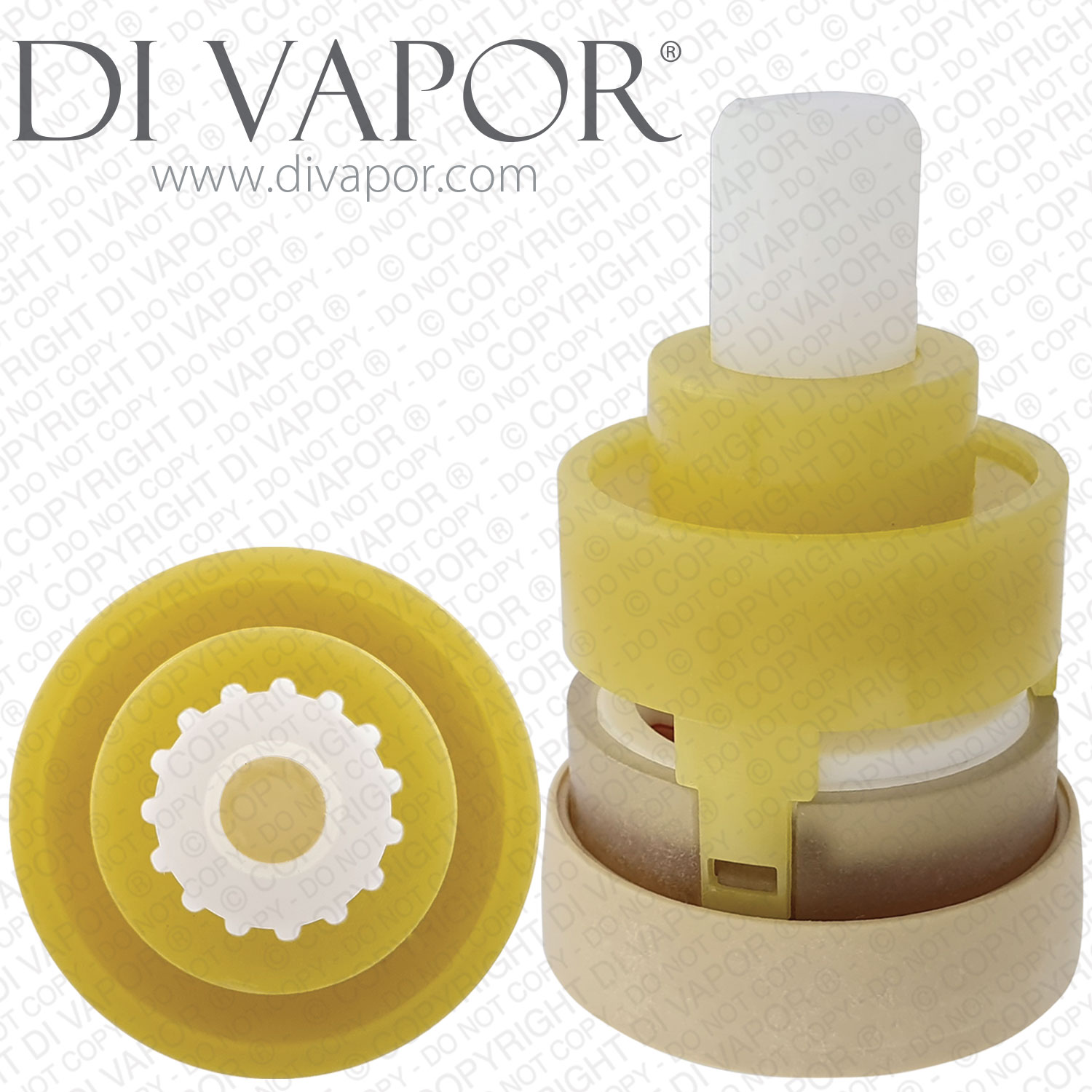

Noken Square 100056989_N234949936 is a 3 way diverter cartridge used in selected Porcelanosa Noken concealed thermostatic shower valves.
It controls outlet selection inside the valve body. Common signs of failure include difficulty switching between outlets or leakage from the diverter handle area.
Technical Details
| Part code | 100056989 |
|---|---|
| Secondary reference | N234949936 |
| Cartridge type | 3 way diverter cartridge |
| Total length | 46.3 mm excluding the protruding lower section |
| Barrel width at widest point | 29.9 mm |
| Width at yellow section widest point | 26.1 mm |
| Spline length | 12 mm |
| Spline count | 15 teeth |
| Spindle diameter | 10.1 mm |
| Construction | yellow and white plastic body |
- Supplied as the cartridge only
- Check the full part code, spline detail and key measurements before ordering
Confirmed Compatible Models
- Noken Square 100063404_N140140008 2 Way Shower Valve
- Noken Square 100063402_N172390003 3 Way Shower Valve
Installation Notes
- Apply silicone grease to the O-rings and bottom seals during installation
- If the housing is worn or damaged, replace the housing assembly at the same time
Related Spares You May Need
- Noken Square 100039544_5234350601 Thermostatic Cartridge (Porcelanosa)

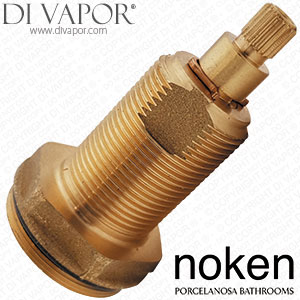

- Porcelanosa Noken 100060452 NK Housing Assembly for 100056989 and 100060475 Diverter Cartridges
- Noken Square 100056989KT N234949936 Diverter Cartridge and Housing Assembly for Porcelanosa Liberty and Logic Shower Valves (100060475 / 100060475_N2520000013)
- Diverter Cartridge Assembly for NK Porcelanosa Valves (Noken) - 100117768
- Porcelanosa 100066742 Plastic Insert
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
