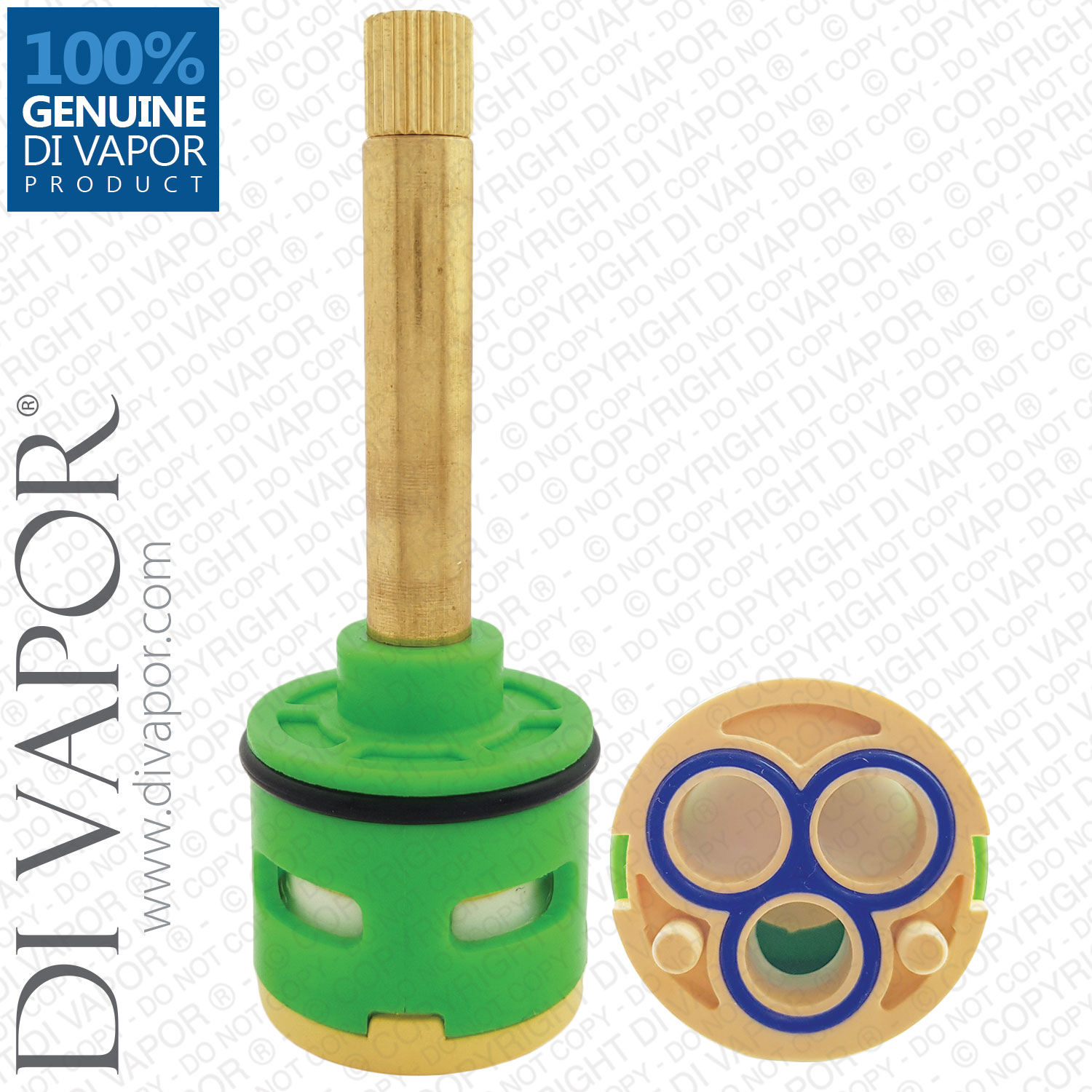

91mm 3-Way Diverter Cartridge 33mm Barrel Diameter with 55mm Spindle - 24 Splines
Send a photo of your item and we'll help confirm it.
Summary
91mm 3-Way Diverter Cartridge 33mm Barrel Diameter with 55mm Spindle - 24 Splines

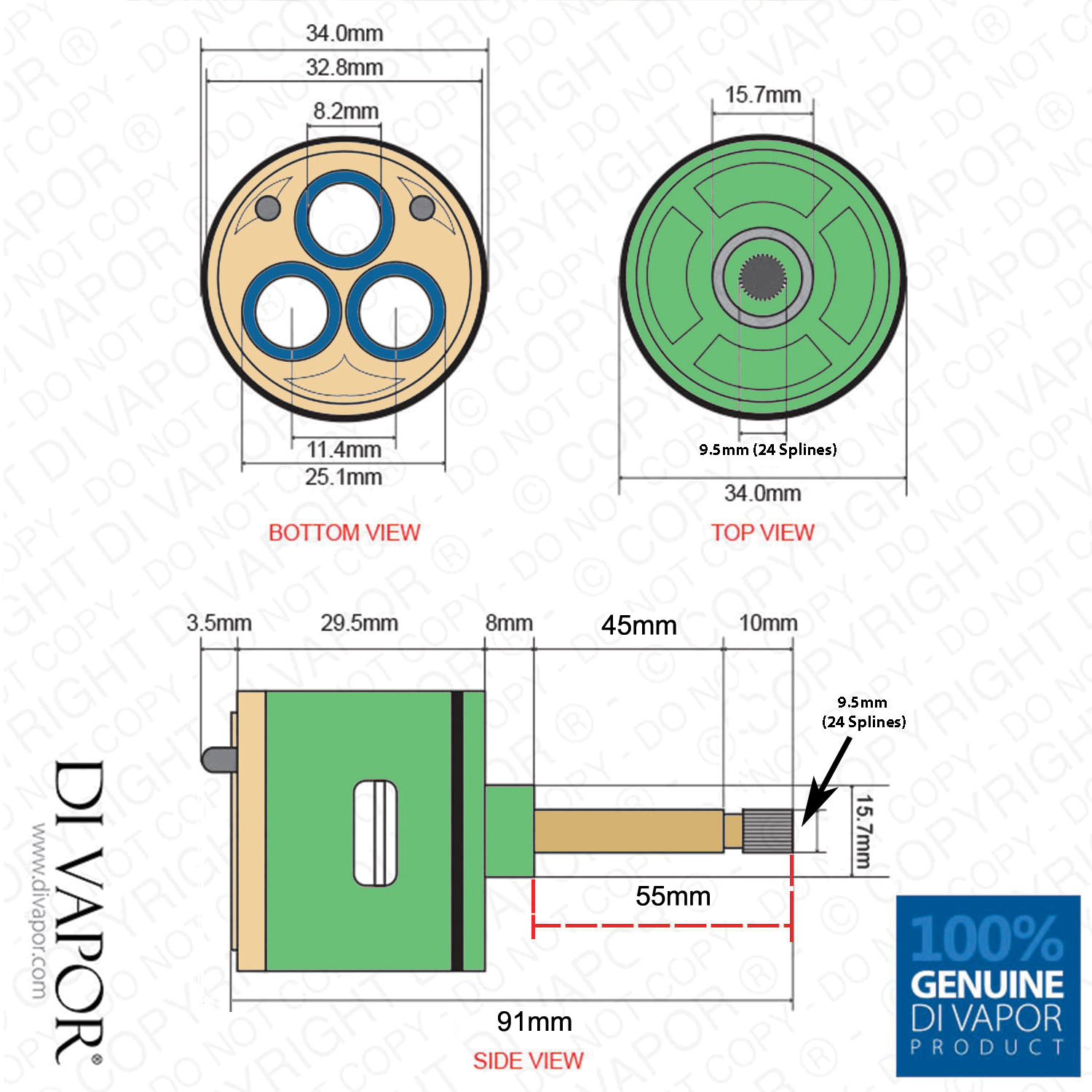

Cartridge Measurements:
| Total Length (including bottom seal) | 91mm (excluding locating pins) |
|---|---|
| Diameter at Widest Point | 34mm (at o'ring) |
| Top Spline Diameter | 7.6mm |

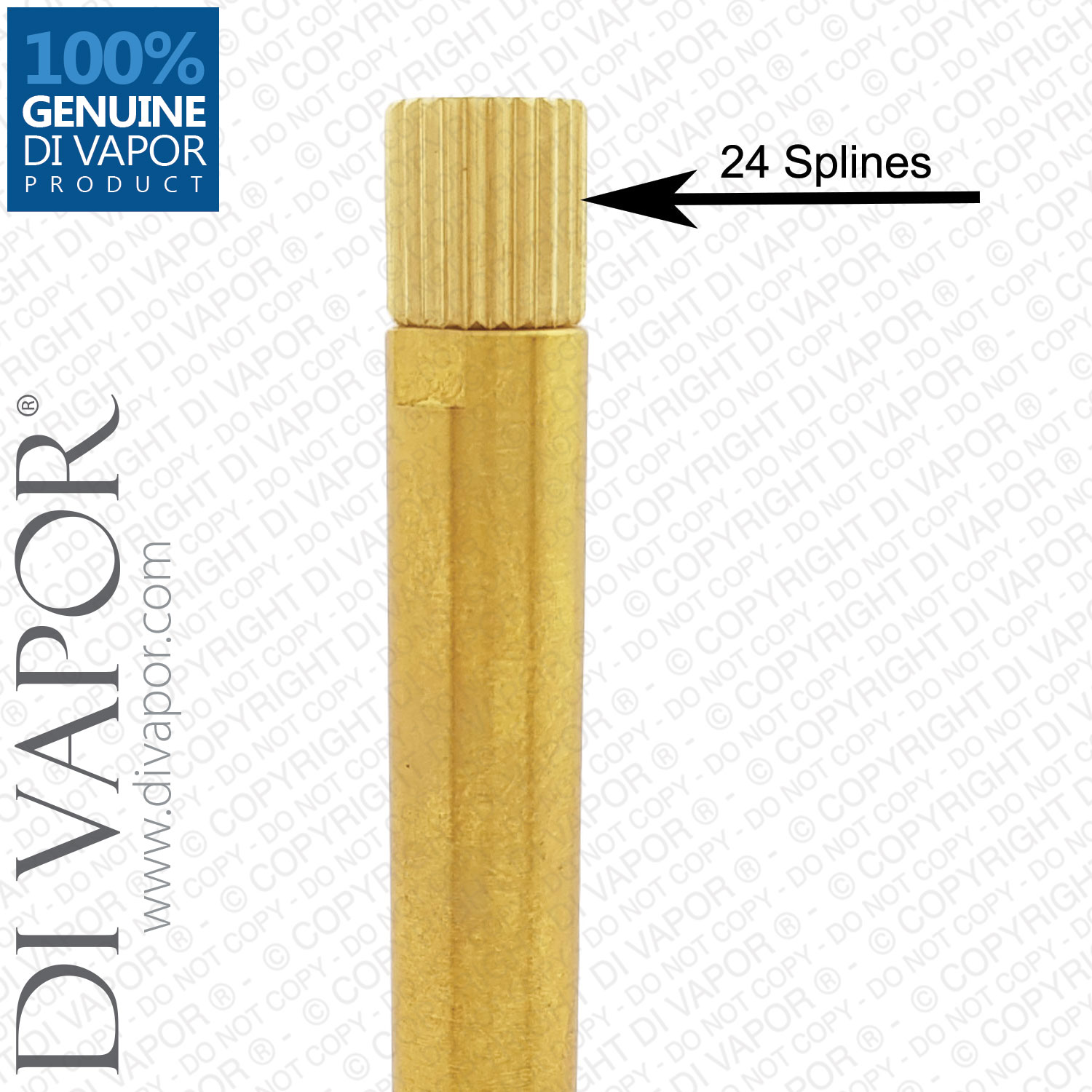

| Top Spline Teeth / Notches | 24 |
| Brass Spindle Length (Including Spline) | 55mm |
| Barrel Diameter | 33mm |
| Number of Function Outlets | 3 |
Distance Between Locating Pins at Bottom (Centre to Centre): 20mm
Frequently Asked Questions:3-Way Shower Diverter Valve Cartridge
Question: I just noticed the shower is leaking from the diverter knob. Must I change the cartridge?
Answer: If the leak is coming from the diverter and there are no other problems with the shower valve, then changing the 3-way shower diverter cartridge is the likely solution to address such a problem.
Question: Does applying silicone lubricant also apply to diverter cartridges?
Answer: Yes, you have to apply silicone grease on the O-rings of the new 3-way shower diverter cartridge before installing it to protect it from pinching and friction.

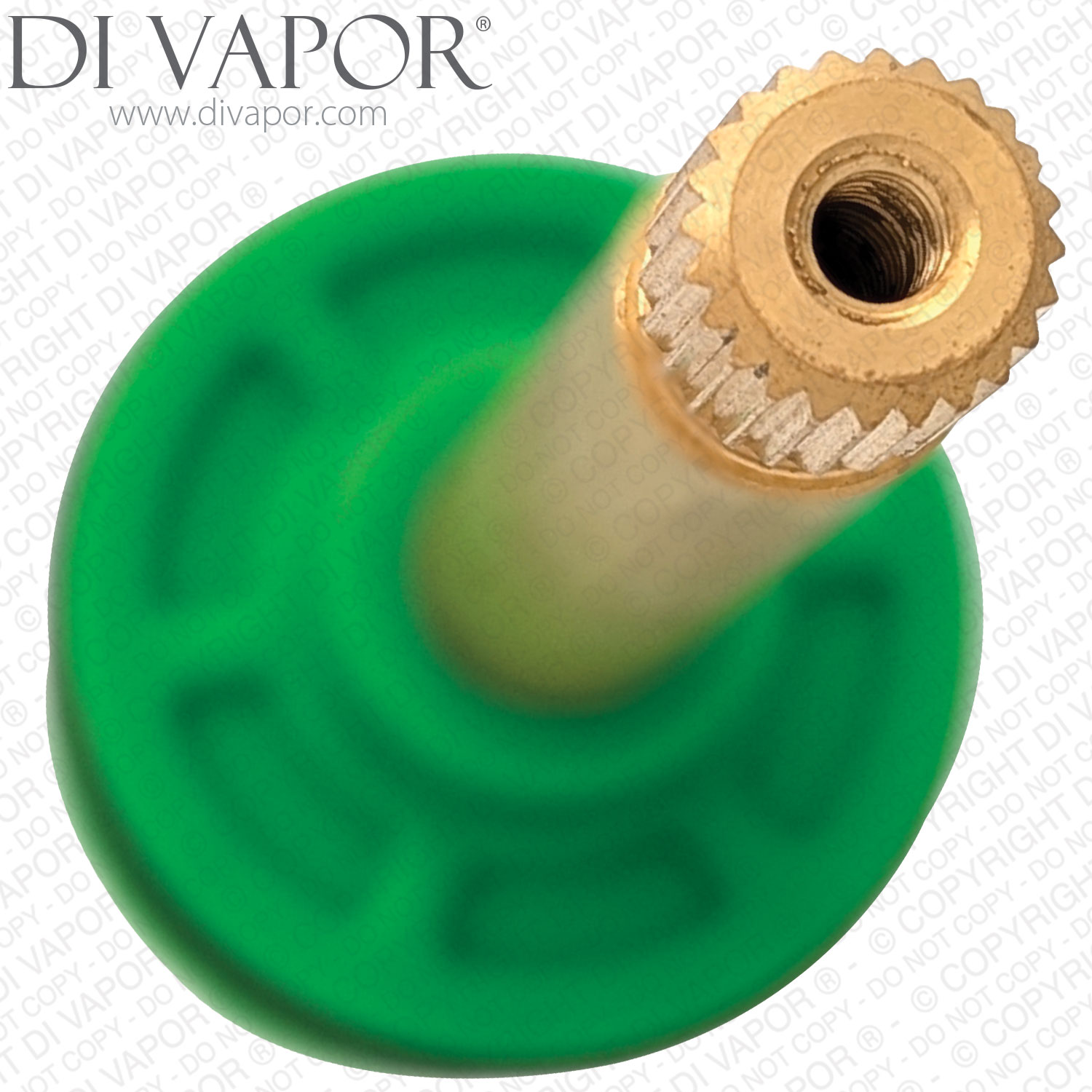

Question: I see this is a 91mm, 3-way shower diverter cartridge with 24 teeth on the spline. Any advice on how to count the teeth? And do the numbers have to match?
Answer: Splines serves as a rotational and an anti-rotational tool that allows you to turn the diverter valve on and off without the knob pivoting on its own. Yes, the number of teeth on the old cartridge must be the same as those on the replacement shower diverter cartridge. Reason being, there are grooves on the underside of the handle cap that must mate with those on the diverter. The handle cap will not fit if the count is not the same.
On the advice on counting the notches: you can use a pen to mark the point where you will start and count on from there.
Di Vapor provides many other shower diverter cartridge spares.
- Please let us help you if you have trouble finding the correct diverter replacement part.
