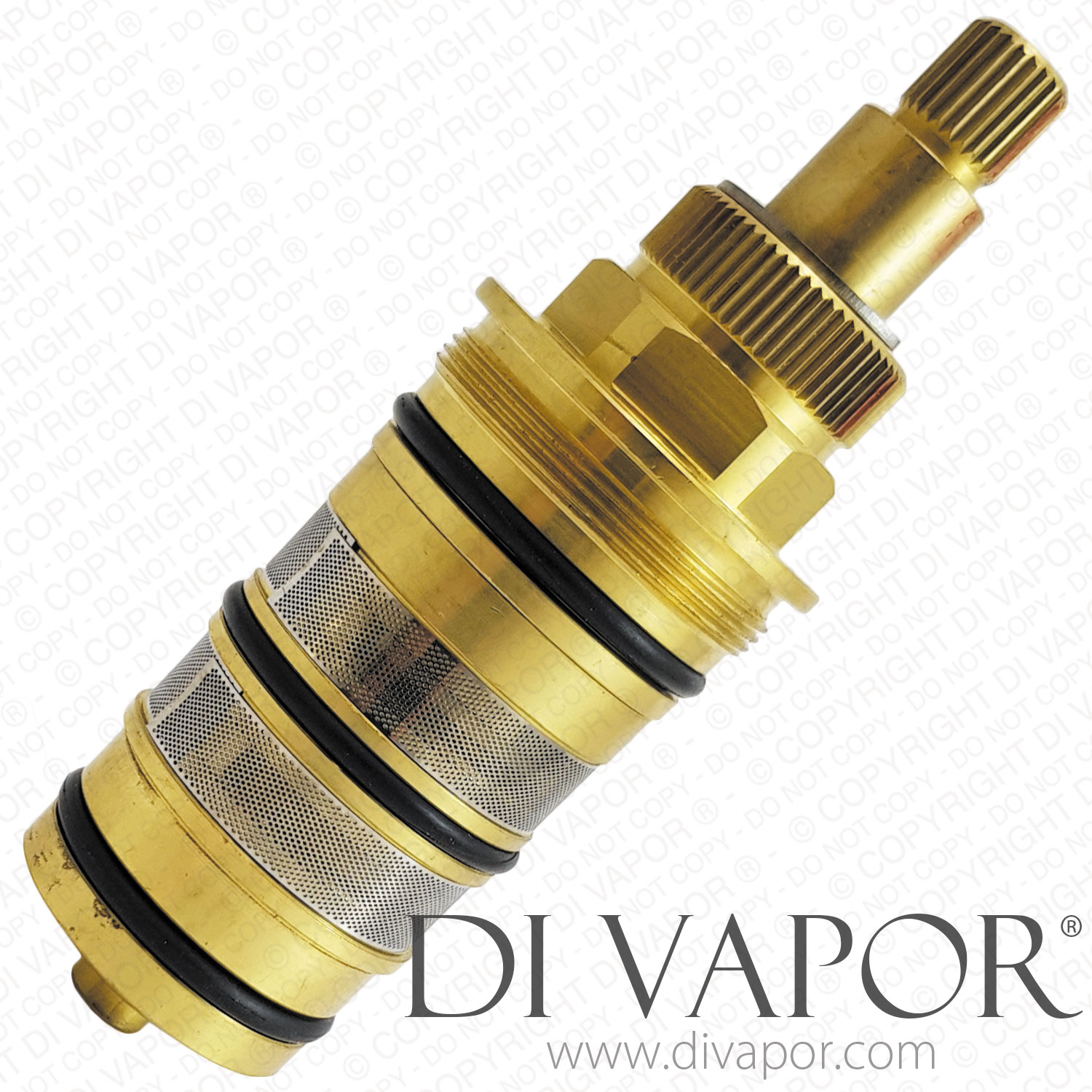

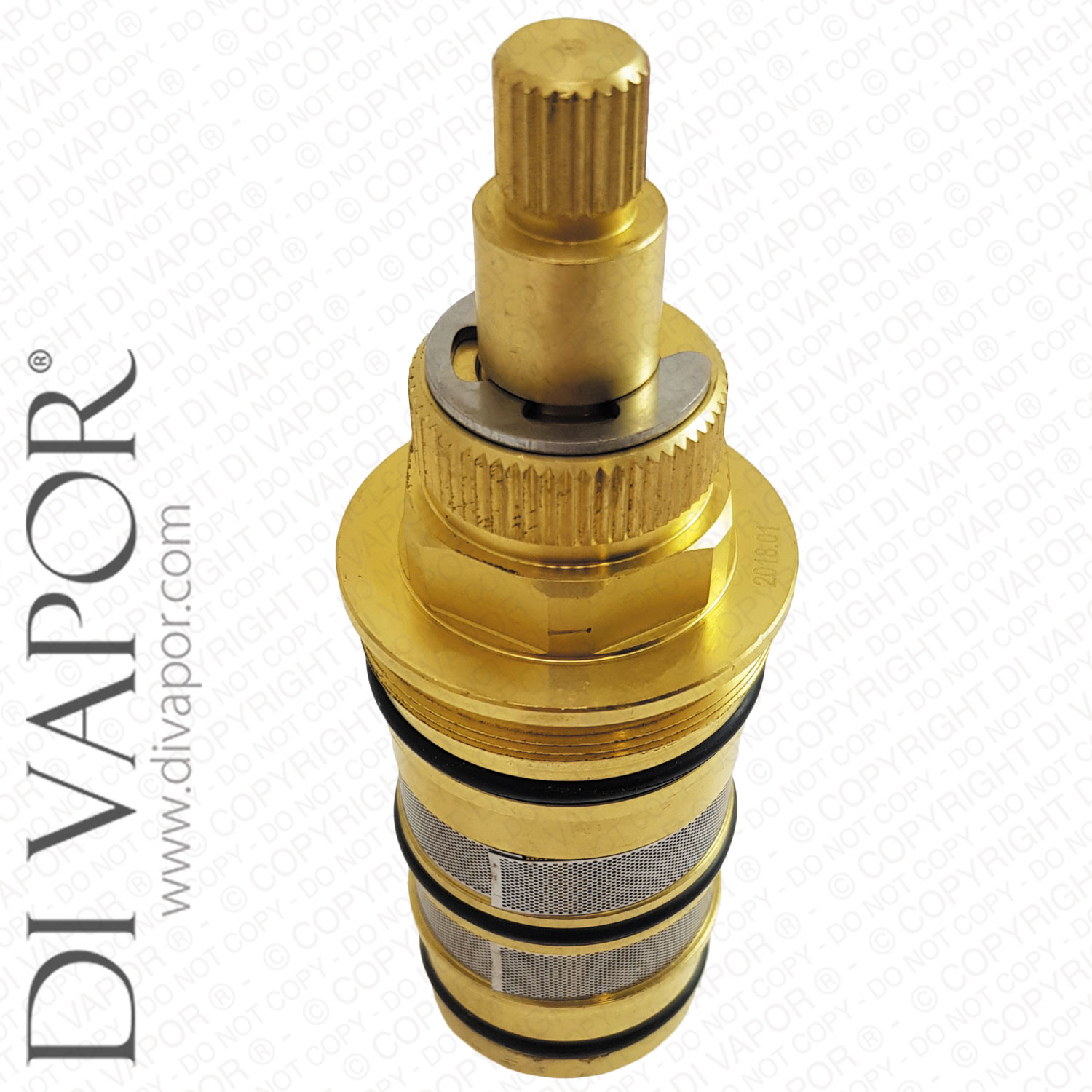

Thermostatic Cartridge for Victoria Plumb Concealed and Exposed Shower Valves (Screw Fit)
Send a photo of your item and we'll help confirm it.
Summary
Thermostatic Cartridge for Victoria Plumb Concealed and Exposed Shower Valves (Screw Fit)

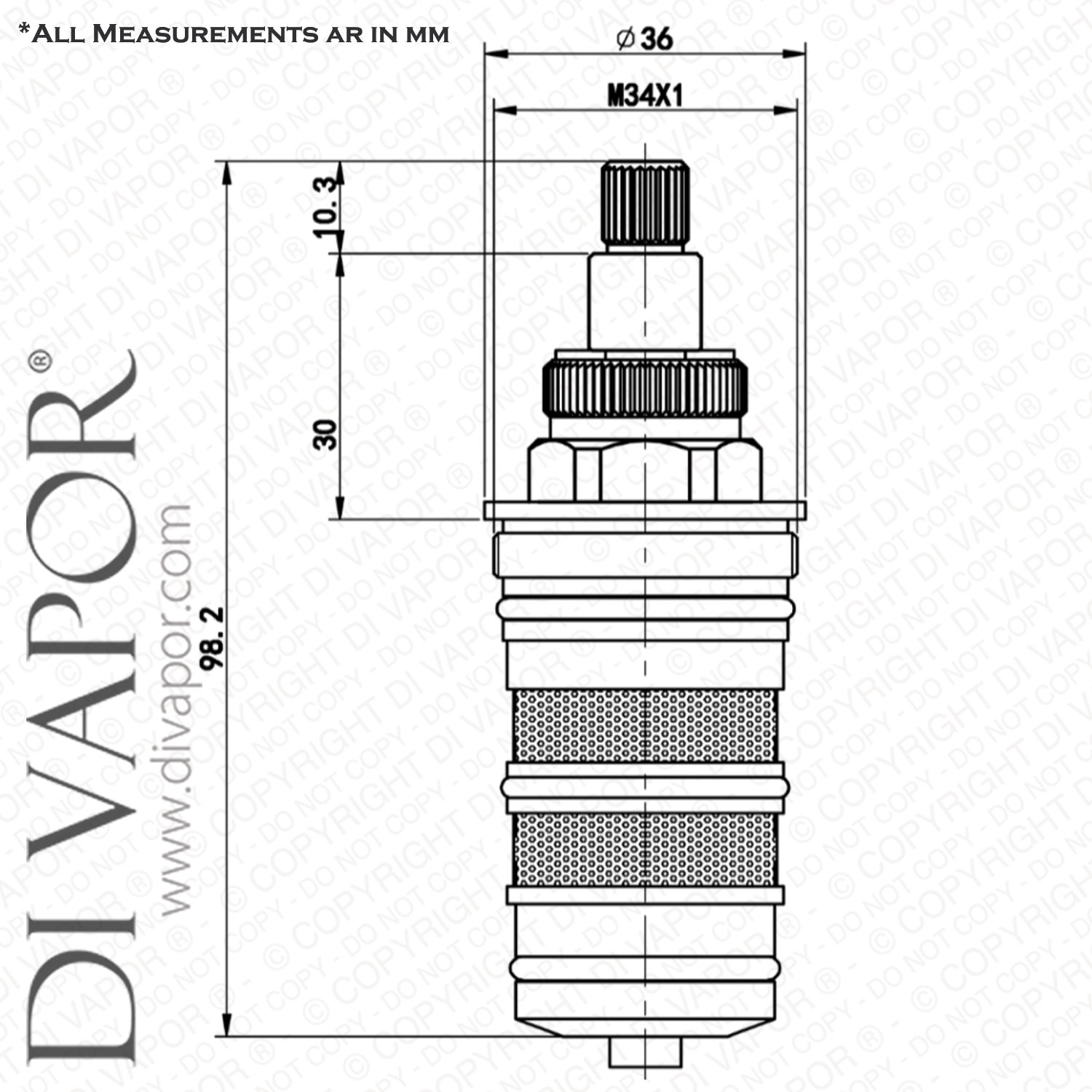

Technical Specifications
| Cartridge Total Length | 98.2mm (i.e. 9.82cm). This could be measured as 19.8mm or 10cm if not using callipers. |
|---|---|
| Diameter At Widest Metal Point | 36mm |
| Number of O Rings | 3 |
| Material | Brass |
| Type | Screw in (screws into the shower valve and has a thread on top of the cartridge which allows a fixing nut or plate to connect onto). |
| Gauze Filters | 2 |
| Number of Teeth | 24 |
- Diameter of toothed spindle which the temperature control handle connects onto: 9.4mm (0.94cm)
Frequently Asked Questions: Thermostatic Cartridge for Victoria Plumb Showers
Question: Can you please tell me if I need to replace my cartridge as the temperature of the water is too hot and won't get cold.
Answer: This definitely sounds like a thermostatic cartridge mixing issue. Do check first that the shower valve is receiving cold water, but if it is, then the cartridge is broken. Replacing the cartridge should fix the issue.
Question: If I order the part and it’s wrong can you accept the item to be returned please?
Answer: Yes, you can return the cartridge for a refund if it's wrong, as long as it's undamaged.
