Vado Sky C-502-LTC Kitchen Tap Cartridge - Hot Side
Send a photo of your item and we'll help confirm it.
Summary
Vado Sky C-502-LTC Kitchen Tap Cartridge - Hot Side

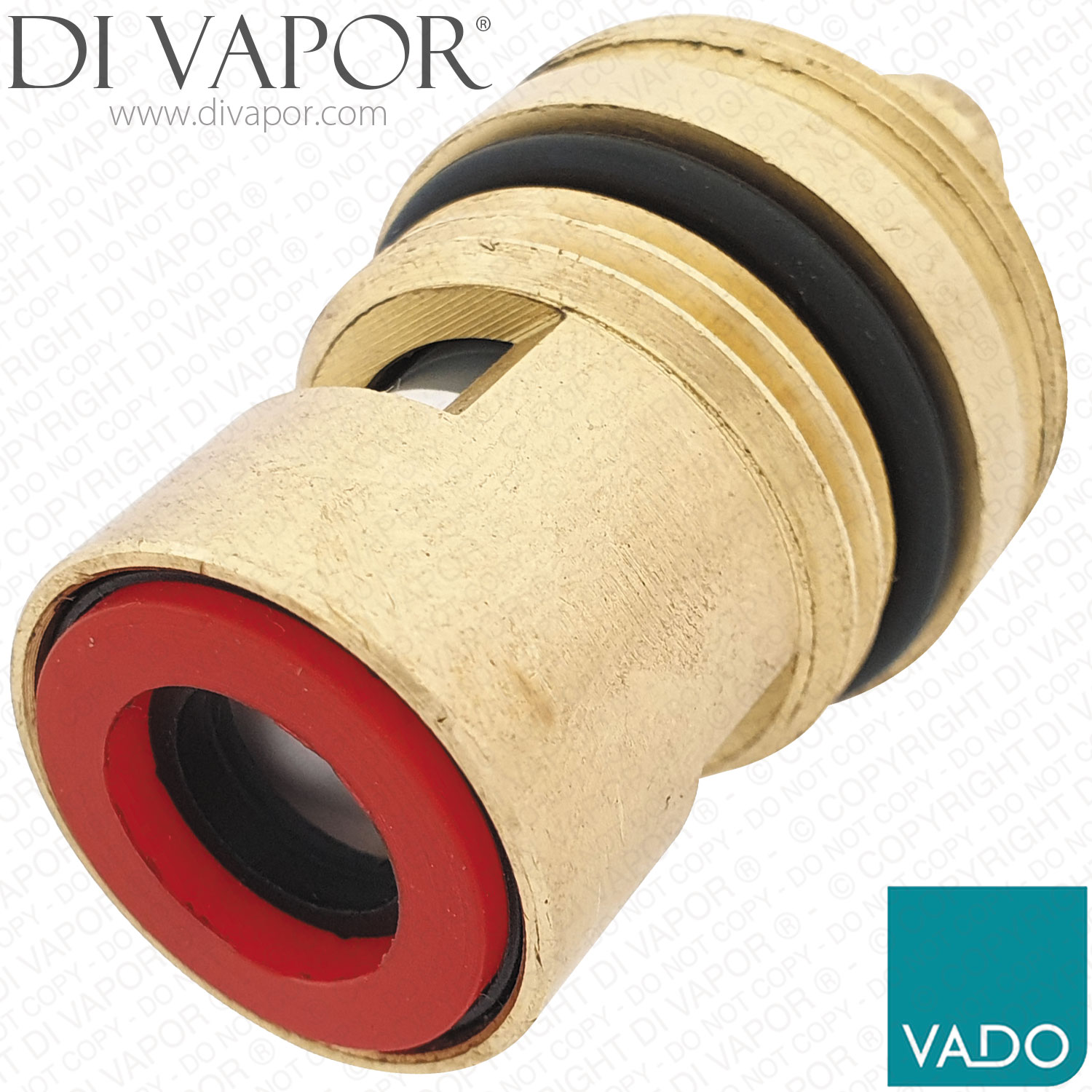

The Vado C-502-LTC is a hot-side ceramic disc cartridge for selected Vado two-handle kitchen mixer taps. It controls hot water flow and shut-off through the tap body and is used where the original hot valve has become stiff, worn, leaking or no longer closes correctly.

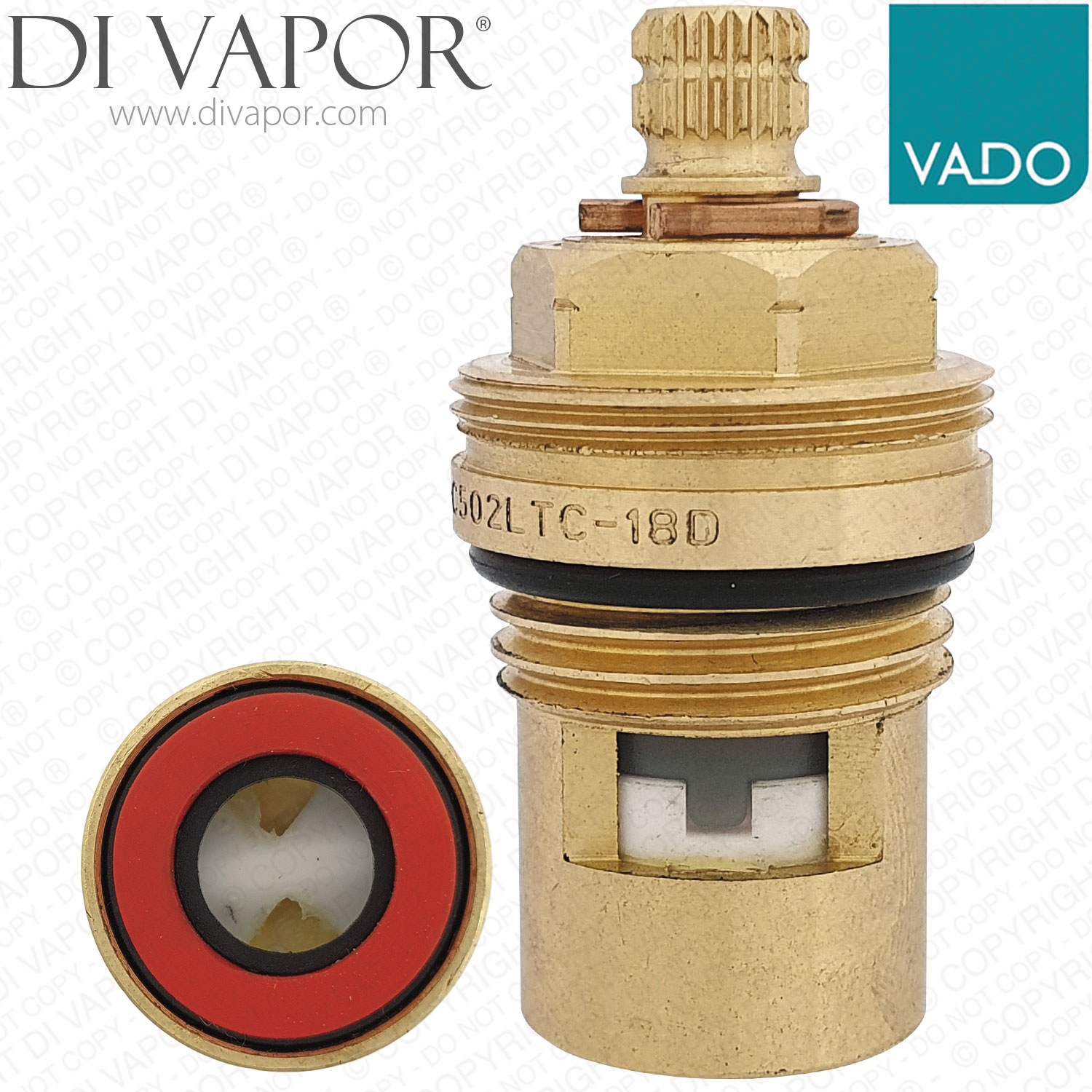

This cartridge is the clockwise-open / anti-clockwise-close hot-side valve with a red bottom seal. It should be matched by part code, side, close direction, spline count and thread size before ordering.
Technical Details
| Brand | Vado |
|---|---|
| Part Number | C-502-LTC |
| Part type | hot-side ceramic disc kitchen tap cartridge |
| Operation | 1/4 turn / 90 degree turn |
| Close direction | anti-clockwise close |
| Open direction | clockwise open |
| Bottom seal colour | red |
| Total length including bottom seal | 45.3mm |

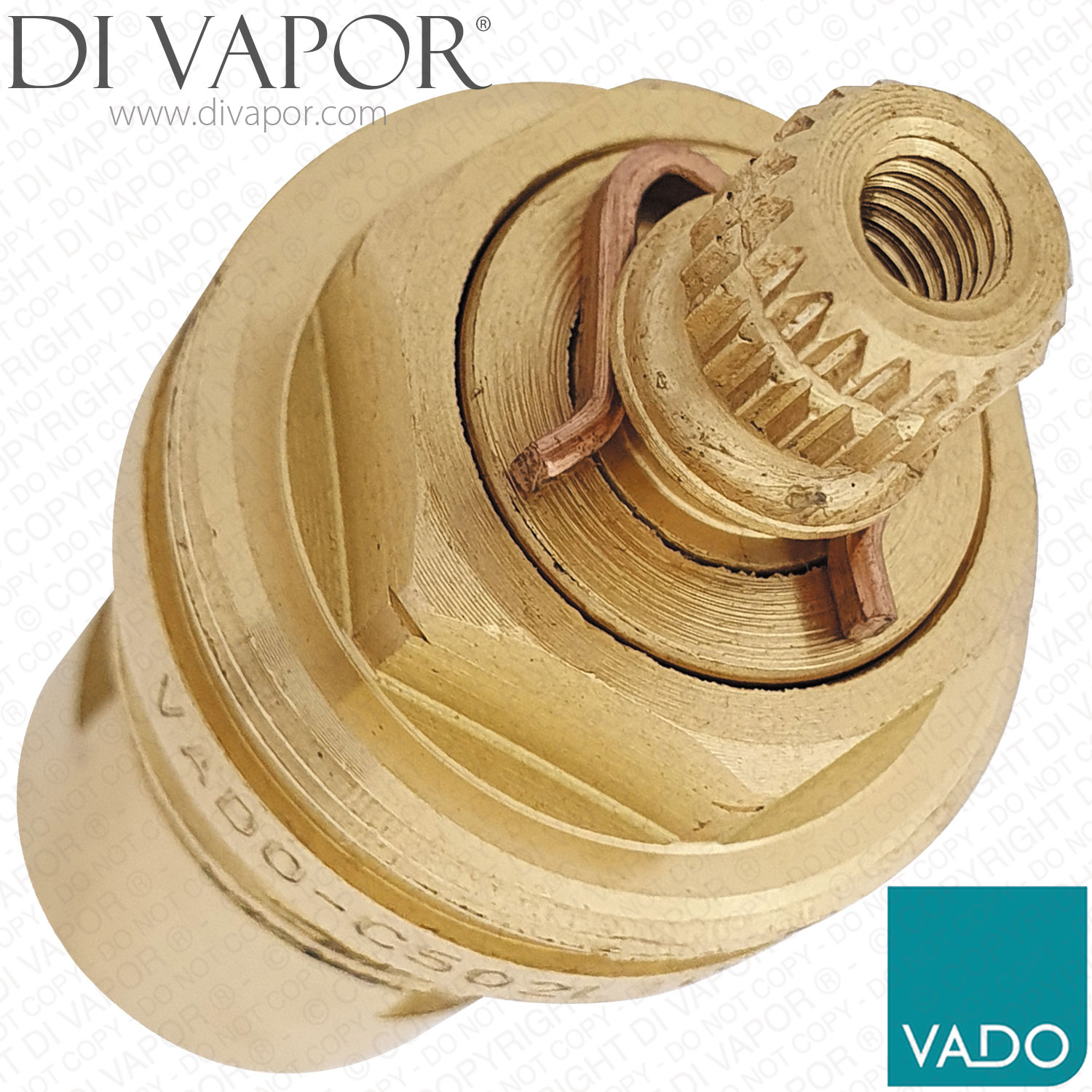

| Top spline diameter | 7.6mm |
| Top spline teeth | 20 |
| Lower fitting thread diameter | 20.6mm / 1/2 inch BSP |
| Barrel diameter below lower thread | 18.3mm |
| Upper thread diameter near spline | 23.8mm |
| Widest diameter | 23.8mm |
Confirmed Compatible Models
- VADO CUC-1060-C/P Sky Mono Kitchen Tap Deck Mounted with Swivel Spout Spare Parts
- VADO CUC-1061-C/P Vibe Professional Mono Kitchen Tap Deck Mounted with Swivel Spout Spare Parts
Common Fault Symptoms
- Water continues dripping from the spout when the hot side is turned off
- The hot handle has become stiff or difficult to turn
- The tap no longer shuts off cleanly on the hot side
- The cartridge splines are worn and the handle no longer grips correctly
Before Ordering
Check that the removed cartridge is the hot-side valve, has a red seal, uses a 20 tooth spline and matches the anti-clockwise close direction. Do not order by thread diameter alone, as visually similar ceramic cartridges can differ in close direction, spline form and seating depth.
Related Spares You May Need
- Vado Sky C-502-RTC Kitchen Tap Cartridge Cold Side 45mm 1/2 Inch
- TACSIL 3g Premium Cartridge Silicone Grease WRAS Approved
- Vado CUC-VALVE/CL-1/2 1/2 Inch Cold Ceramic Disc Valve Only to Suit CUC-1060 and CUC-1061
- VADO FR-100/5-PLA Flow Regulator Replaces Aerator in Most Mono Basin Mixer Mixers Regulating Flow to 5 Litres Per Minute
- Vado CUC-1061-HOSE-C/P Kitchen Tap Inner Hose for CUC-1061-C/P
- Vado CUC-1061-HANDSPRAY Kitchen Tap Hand Spray for CUC-1061-C/P Chrome
- Vado CUC-1061/INSERT Kitchen Tap Hand Spray Holder Insert for CUC-1061
If your tap version or cartridge markings differ, compare the removed part carefully before ordering or contact us for help identifying the correct Vado kitchen tap spare.
