Vado CUC-VALVE/CL-1/2 1/2 Inch Cold Ceramic Disc Valve Only to Suit CUC-1060 and CUC-1061
Send a photo of your item and we'll help confirm it.
Summary

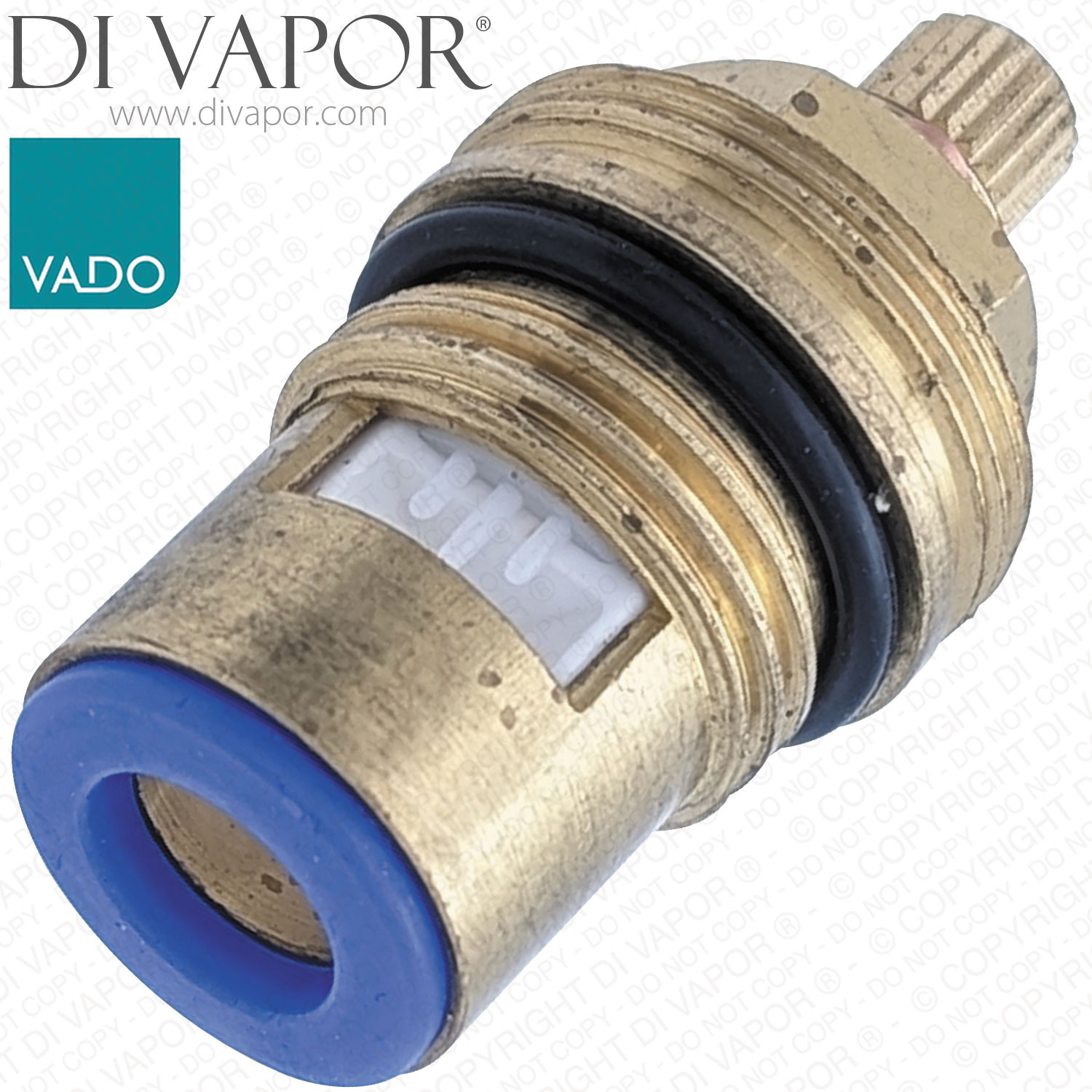

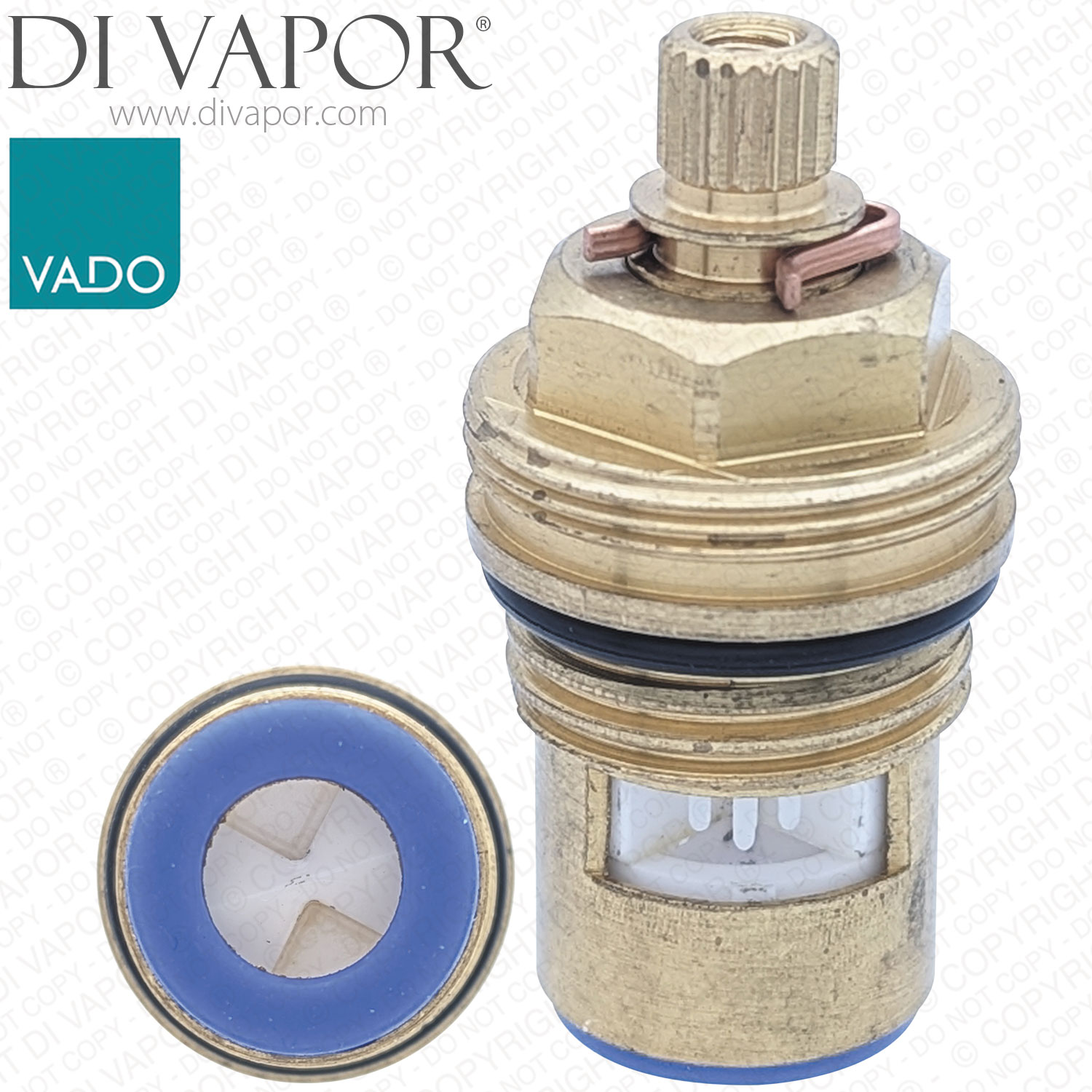

Vado CUC-VALVE/CL-1/2 is a cold-side ceramic disc valve for selected Vado twin-handle kitchen taps. It is used to control cold water flow and shut-off, and is fitted in the tap body behind the cold handle on CUC-1060-C/P and CUC-1061-C/P models.
Older VADO literature identifies the cold valve as CUC-VALVE/CL-1/2, while current literature for the same fitted taps lists the cold-side spare as C-502-RTC. This makes careful checking of the removed valve important before ordering.
A worn cold ceramic disc valve can cause dripping from the spout, stiffness when turning the handle, or difficulty shutting the cold water off fully.
Technical Details
- Cold-side ceramic disc valve for twin-handle kitchen taps
- Quarter-turn operation with 90 degree movement
- Close direction clockwise close and anti-clockwise open

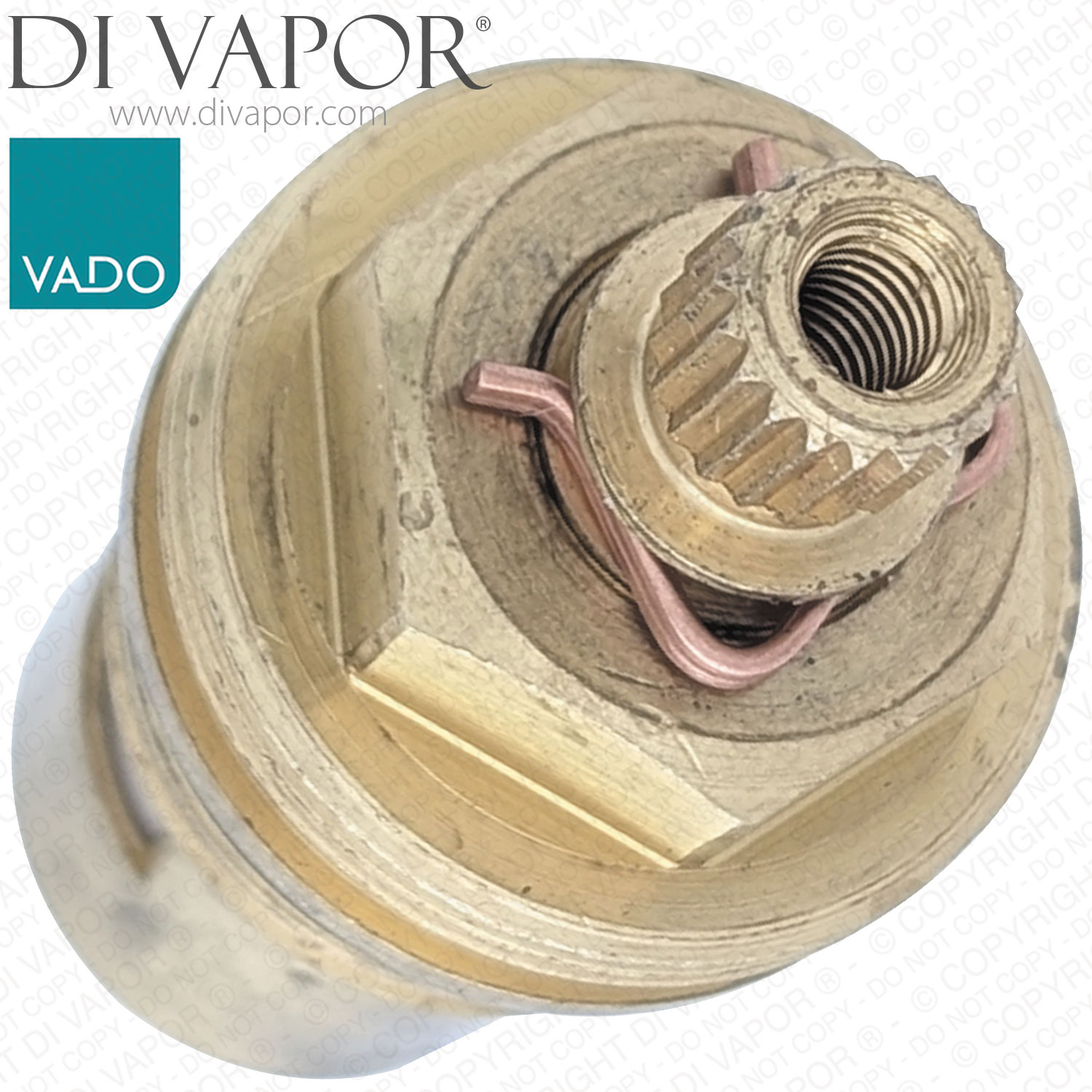

- Top spline diameter 7.6mm
- Top spline teeth / notches 20
- Lower fitting thread diameter 20.6mm 1/2 inch BSP
- Total length including bottom seal 45.3mm
- Diameter at widest point 23.8mm
- Barrel diameter below lower thread 18.3mm
- Bottom seal colour blue
Before you order check the removed valve code, the cold-side position, spline count, thread size and overall measurements against the valve fitted in your tap.
Confirmed Compatible Models
- VADO CUC-1060-C/P Sky Mono Kitchen Tap Deck Mounted with Swivel Spout Spare Parts
- VADO CUC-1061-C/P Vibe Professional Mono Kitchen Tap Deck Mounted with Swivel Spout Spare Parts
Related Spares You May Need
- Vado Sky C-502-LTC Kitchen Tap Cartridge - Hot Side
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- VADO FR-100/5-PLA Flow Regulator: Replaces Aerator In Most Mono Basin Mixer Mixers Regulating Flow To 5 Litres Per Minute
- Vado CUC-1061-HOSE-C/P Kitchen Tap Inner Hose for CUC-1061-C/P
- Vado CUC-1061-HANDSPRAY Kitchen Tap Hand Spray for CUC-1061-C/P Chrome
- Vado CUC-1061/INSERT Kitchen Tap Hand Spray Holder Insert for CUC-1061
