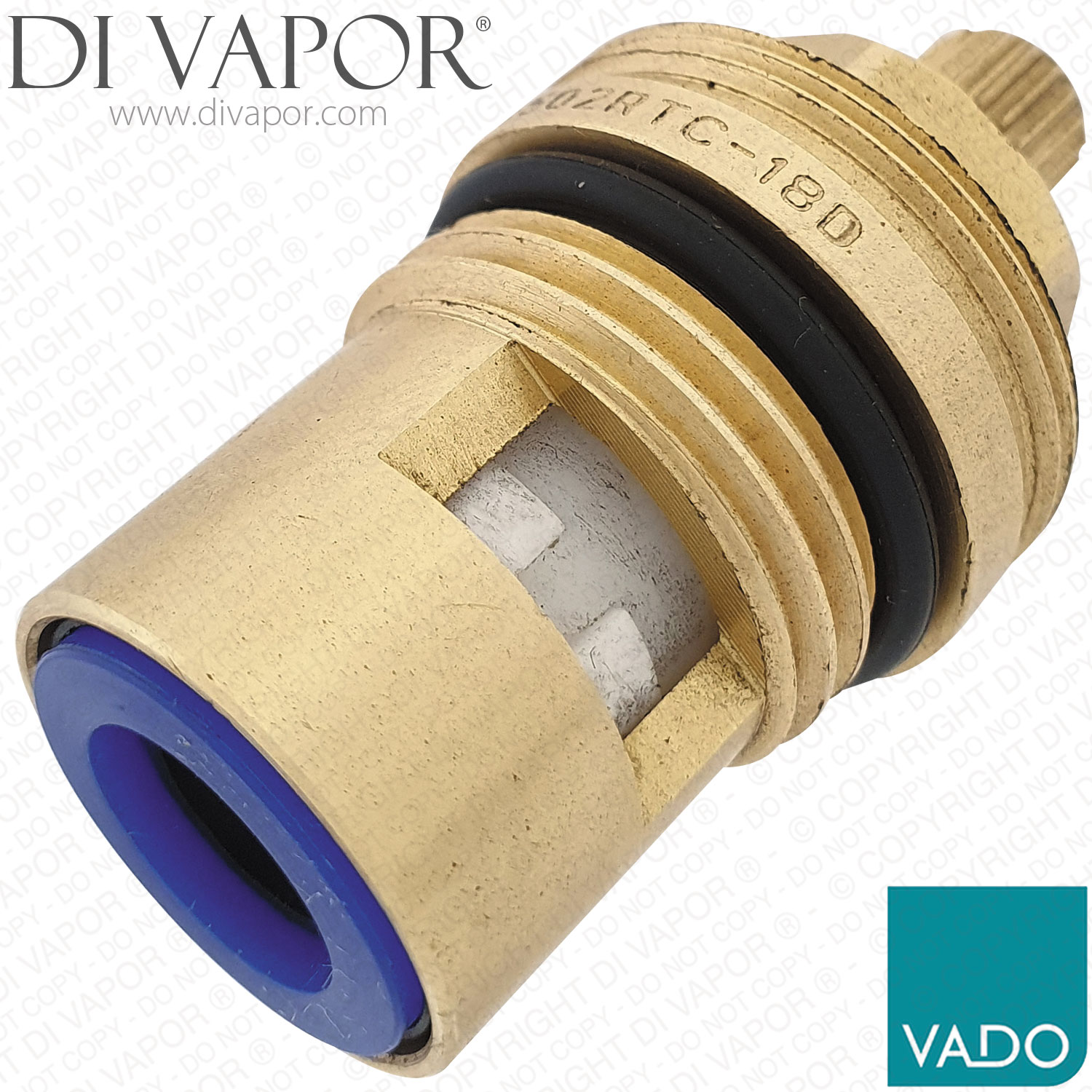

Vado Sky C-502-RTC Kitchen Tap Cartridge - Cold Side - 45mm - 1/​2"

SUMMARY

Vado Sky C-502-RTC Kitchen Tap Cartridge - Cold Side - 45mm - 1/2"

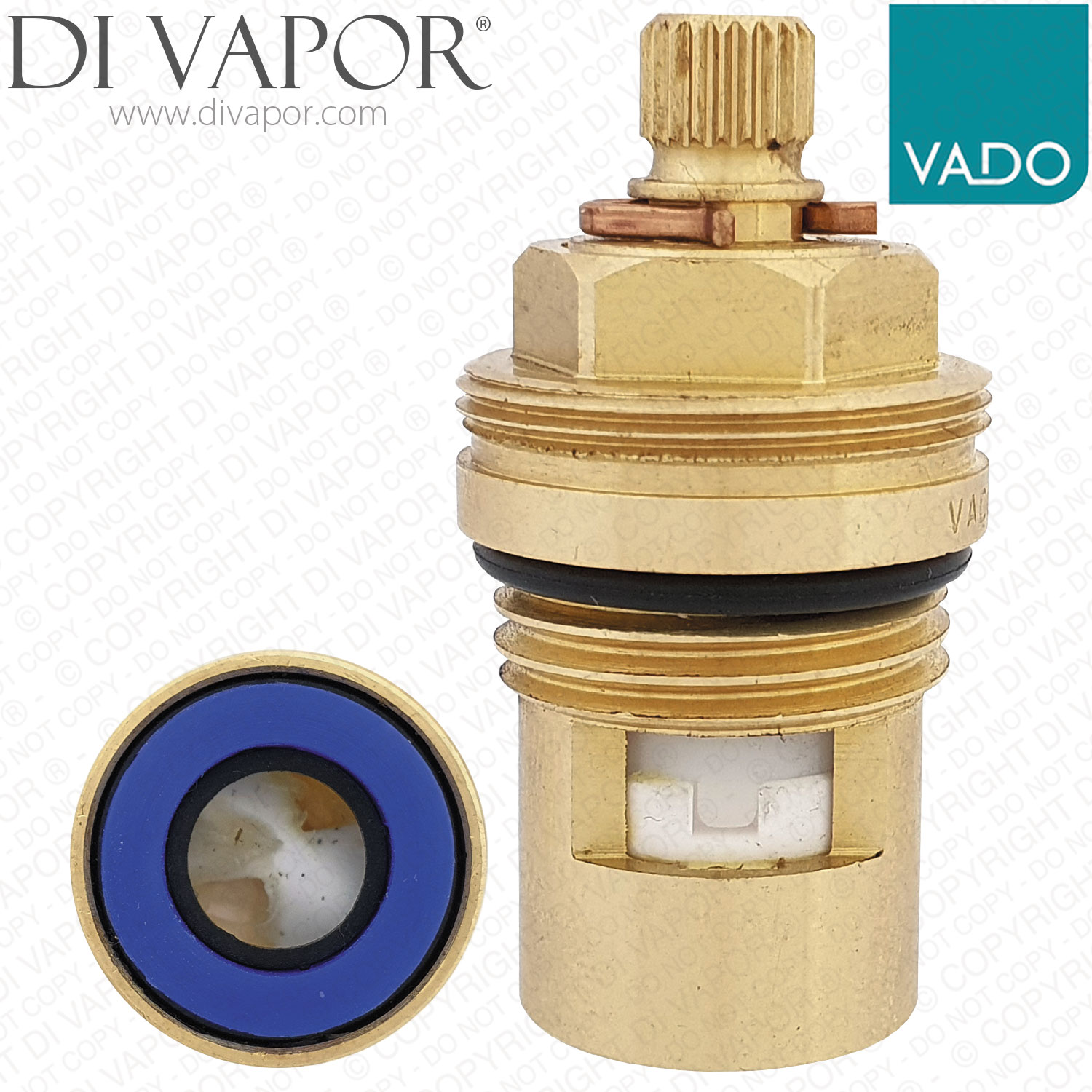

Cartridge Measurements:

Total Length (including bottom seal): 45.3mm

Spindle Length (from top of nut): 10mm

Diameter at Widest Point: 23.8mm

Top Spline Diameter: 7.6mm

Top Spline Teeth / Notches: 20

Lower Fitting Thread Diameter: 20.6mm (1/2" BSP)

Barrel Diameter Below Lower Thread: 18.3mm
Bottom Seal Colour: Blue

Close Direction: Clockwise Close (Anti-Clockwise Open)

Turn: Quarter Turn (1/4 Turn) 90°

Upper Thread (closer to spline): 23.8mm

The Vado C-502-RTC is a cold-side quarter-turn ceramic kitchen tap cartridge for selected VADO two-handle kitchen mixer taps. It controls the cold water flow through the tap and is identified by its blue bottom seal and clockwise close action.

This cartridge is used where the cold handle no longer shuts off correctly, feels stiff, turns loosely, or allows water to drip from the spout when the tap is turned off. Check the cartridge measurements, spline count, seal colour and close direction before ordering.

Technical Details

- - Part Number: C-502-RTC

Confirmed Compatible Models

- - VADO CUC-1060-C/P Sky Mono Kitchen Tap Deck Mounted with Swivel Spout Spare Parts

- - VADO CUC-1061-C/P Vibe Professional Mono Kitchen Tap Deck Mounted with Swivel Spout Spare Parts

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

- - Vado Sky C-502-LTC Kitchen Tap Cartridge - Hot Side

- - VADO FR-100/5-PLA Flow Regulator

Before You Order Check

Compare the removed cartridge against the measurements above and confirm that the required side is the cold side. The hot-side counterpart is C-502-LTC and has a red bottom seal with the opposite close direction.
