Schock 1/4 Turn Lever Hot 20 Spline Tap Cartridge with Bush Collar Compatible Spare - SCH688
Send a photo of your item and we'll help confirm it.
Summary
Schock 1/4 Turn Lever Hot 20 Spline Tap Cartridge with Bush Collar Compatible Spare - SCH688

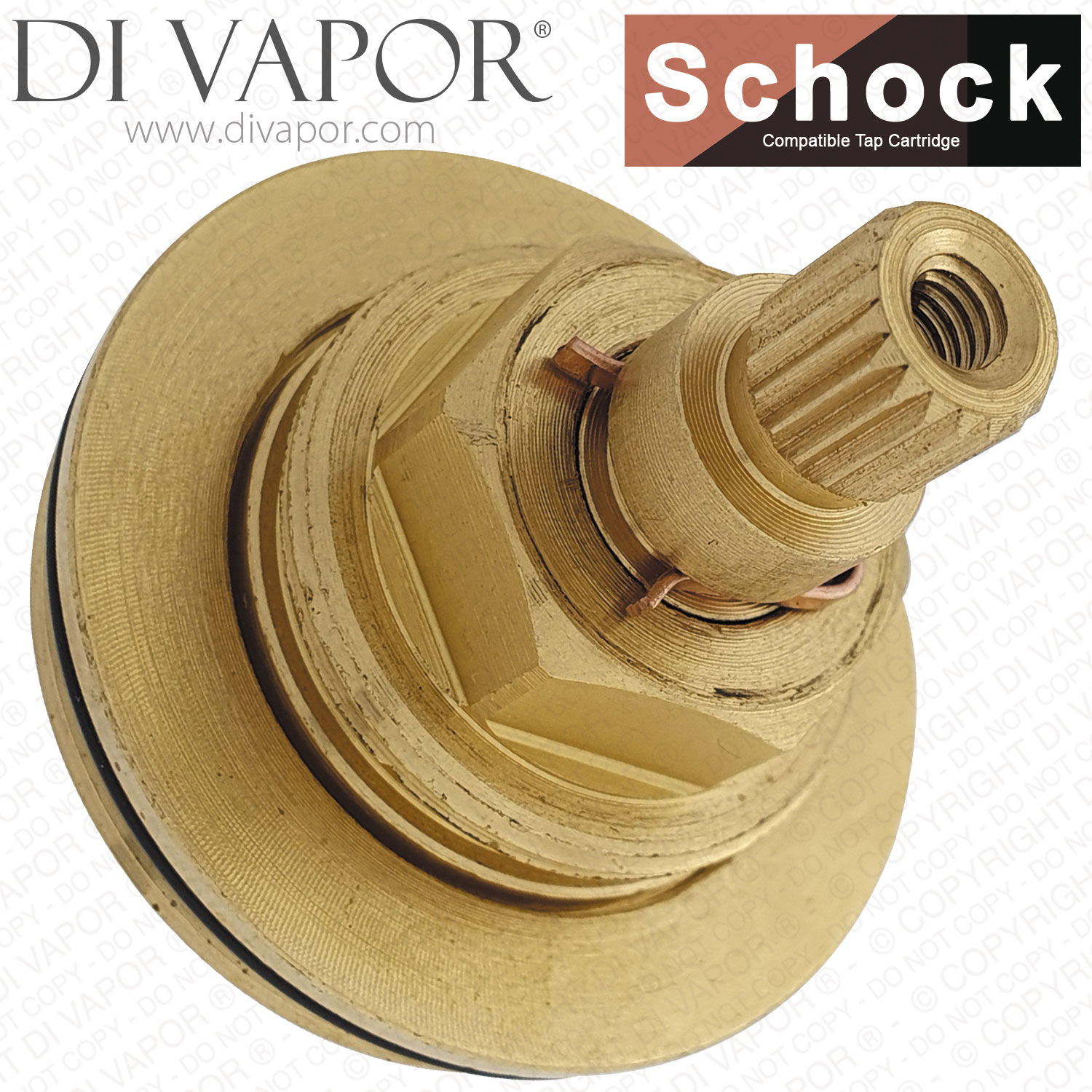

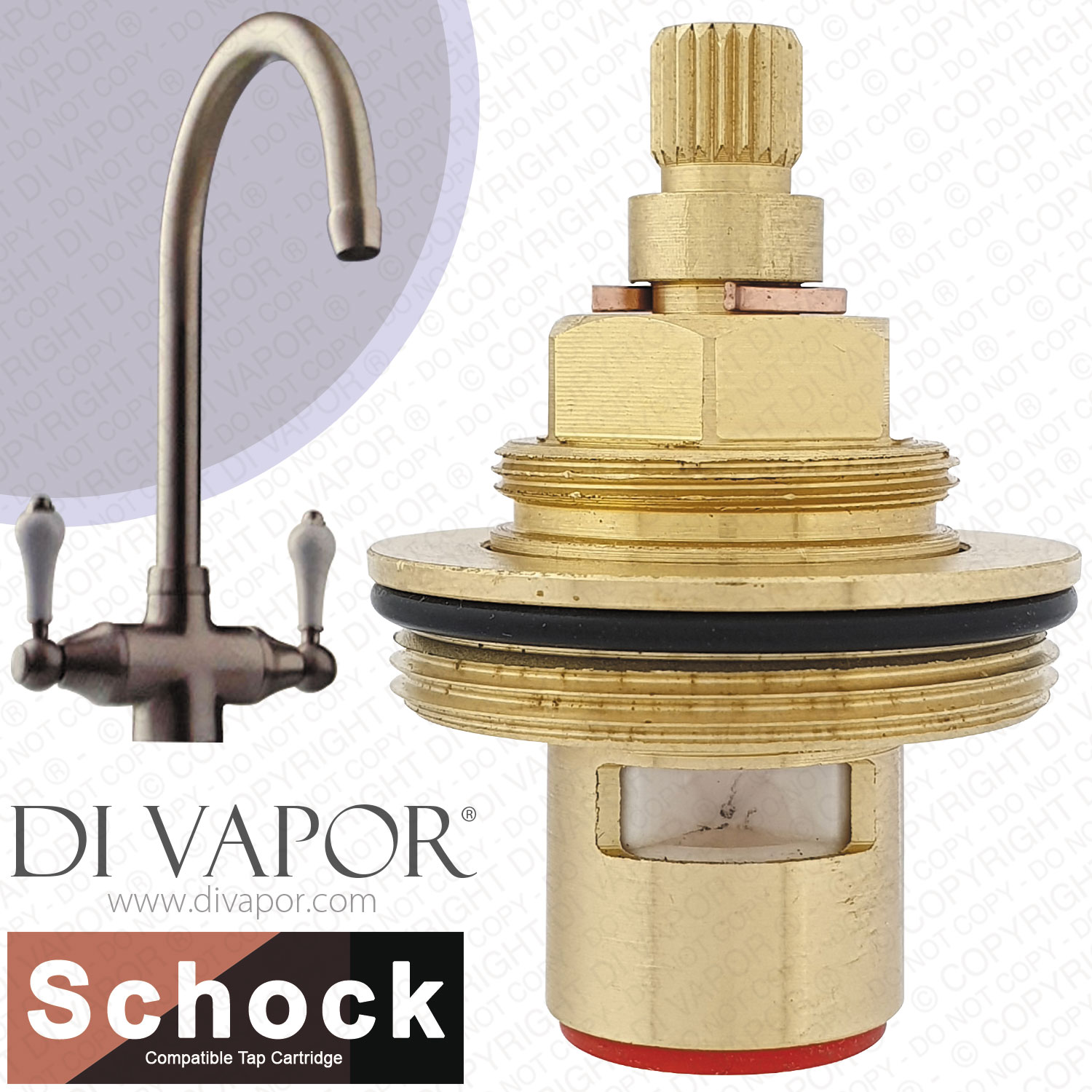

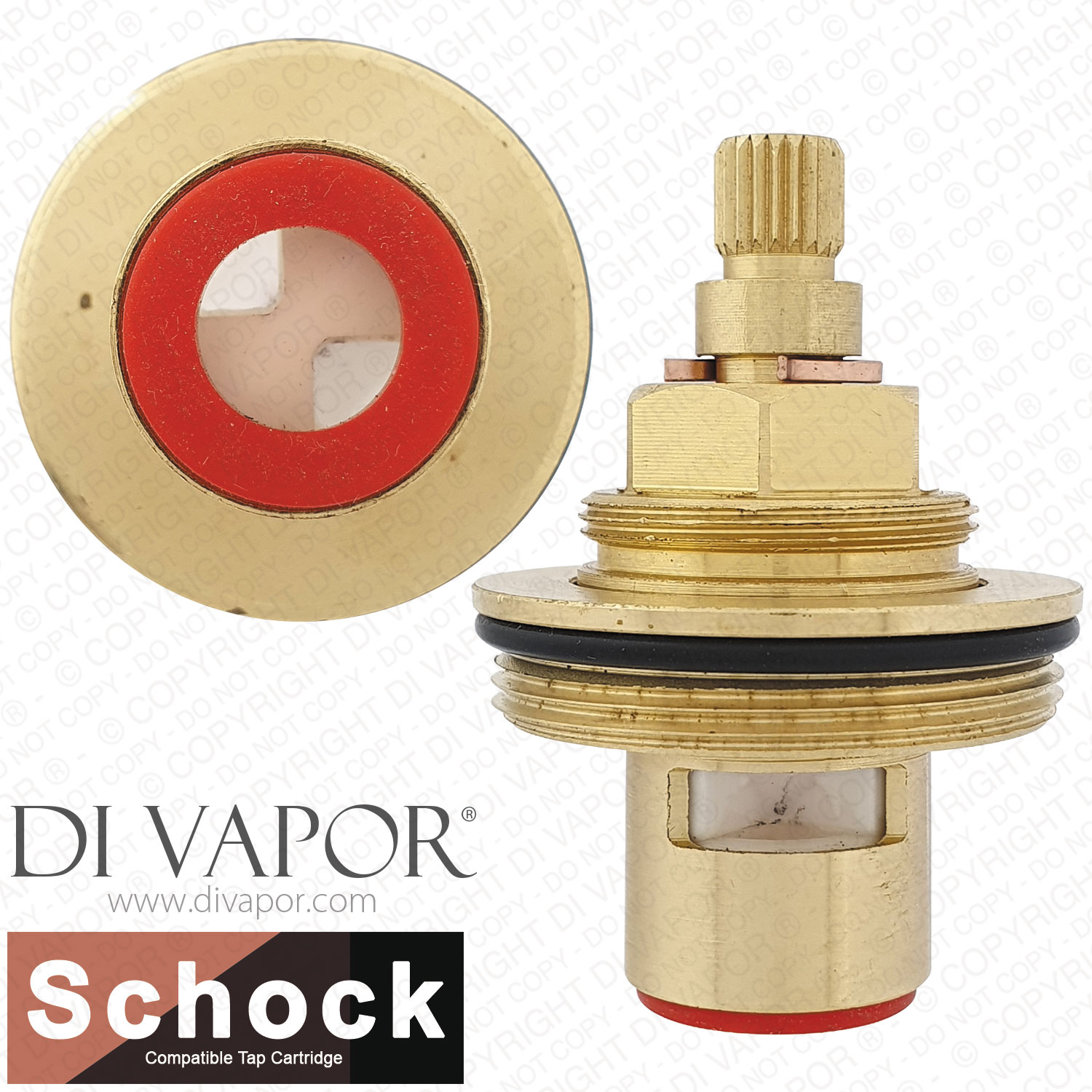

A quality clockwise open tap cartridge which can be used to repair a Schock quarter turn dual lever mixer tap. This spare part includes the brass bush collar.

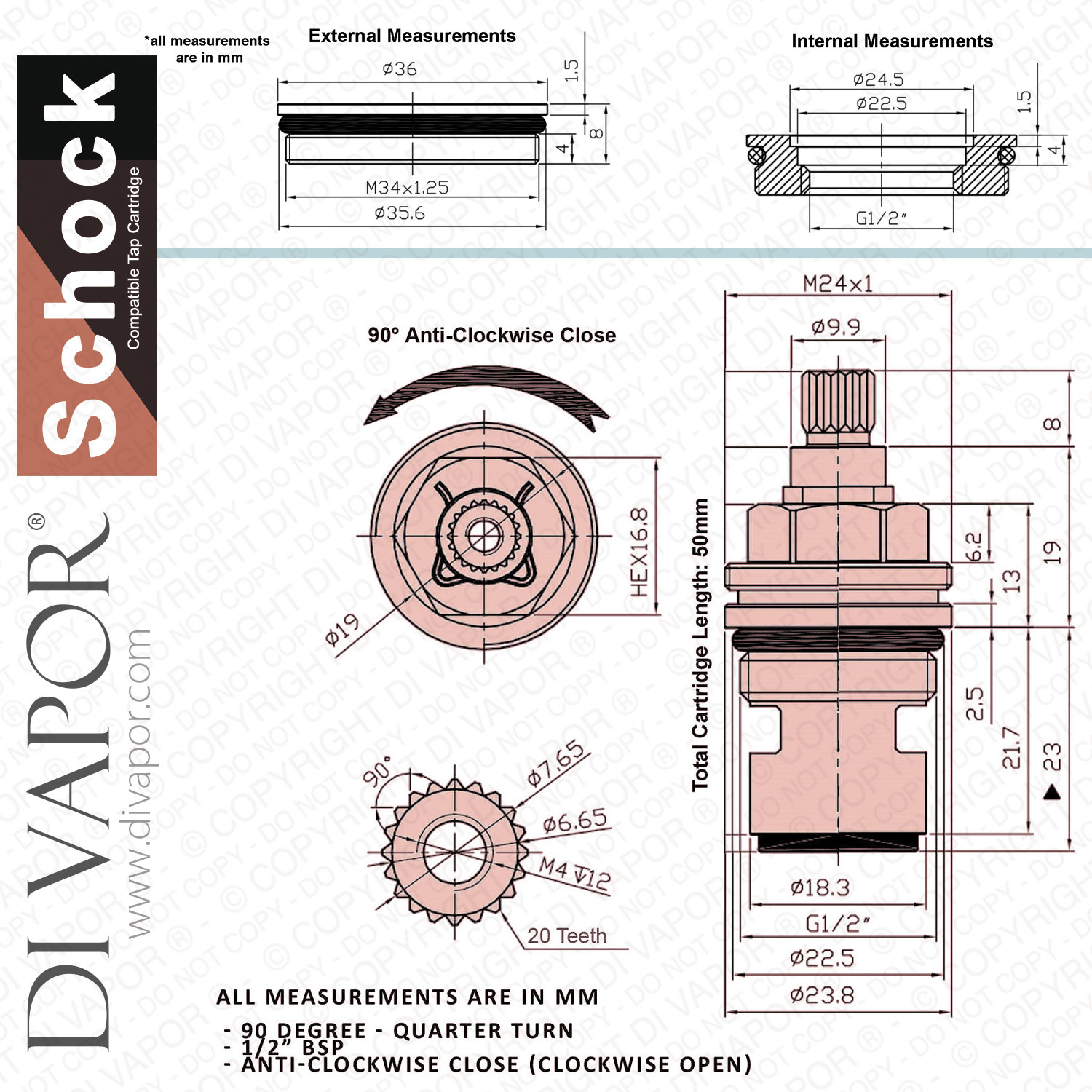

Technical Information
| Compatible with | Schock |
|---|---|
| Tap Model | 1/4 Turn Lever Kitchen Tap |
| Valve Type | Ceramic Disc Cartridge with Bush Collar |

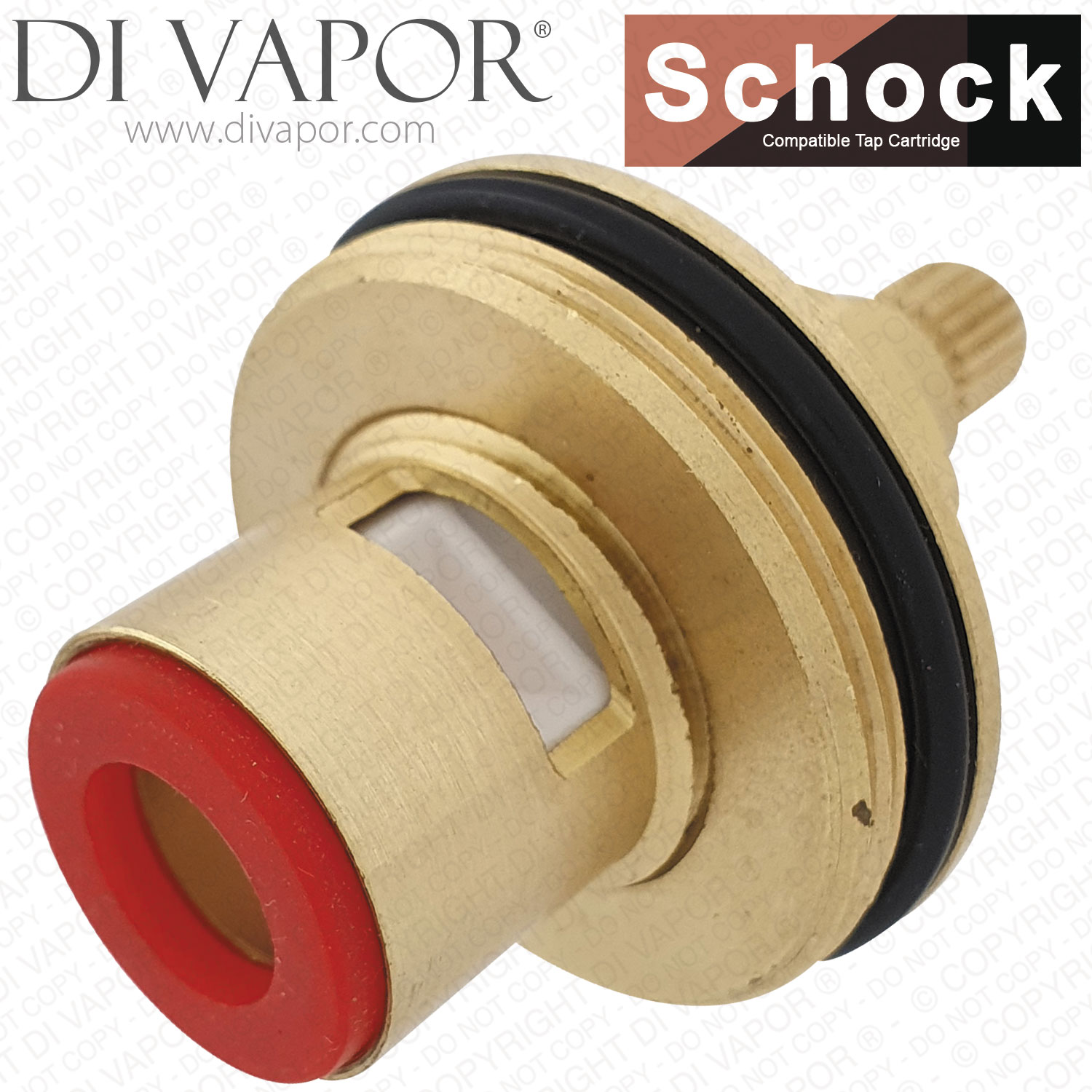

| Bottom Seal Colour | Red (Hot Insert) |
| Open Direction | Clockwise |
| Overall Length | 50mm |
| Diameter at Cartridge O-Ring | 22.5mm |
| Diameter at Bottom Part | 18.3mm |
| Diameter at Widest Part | 23.8mm |
| Diameter at Spline | 7.65mm |
| Spline Teeth Count | 20 |
| Collar Height | 8mm |
| Diameter at Widest Part | 36mm |
| Diameter at Collar O-Ring | 35.6mm |
Other Versions of the Tap Cartridge for Schock
As indicated in the above information, this cartridge has 20 spline teeth. Please be aware that the same cartridge has a 24 teeth version. If you need the other spare part, please click or tap on the link (red font).
20 Teeth
| Cold Cartridge and Bush | SCH687 |
|---|---|
| Hot Cartridge | SCH548 |
| Cold Cartridge | SCH547 |
24 Teeth
| Hot Cartridge | SCH423 |
|---|---|
| Cold Cartridge | SCH422 |
