Schock 1/4 Turn Lever Cold 20 Spline Tap Cartridge Compatible Spare - SCH547
Send a photo of your item and we'll help confirm it.
Summary

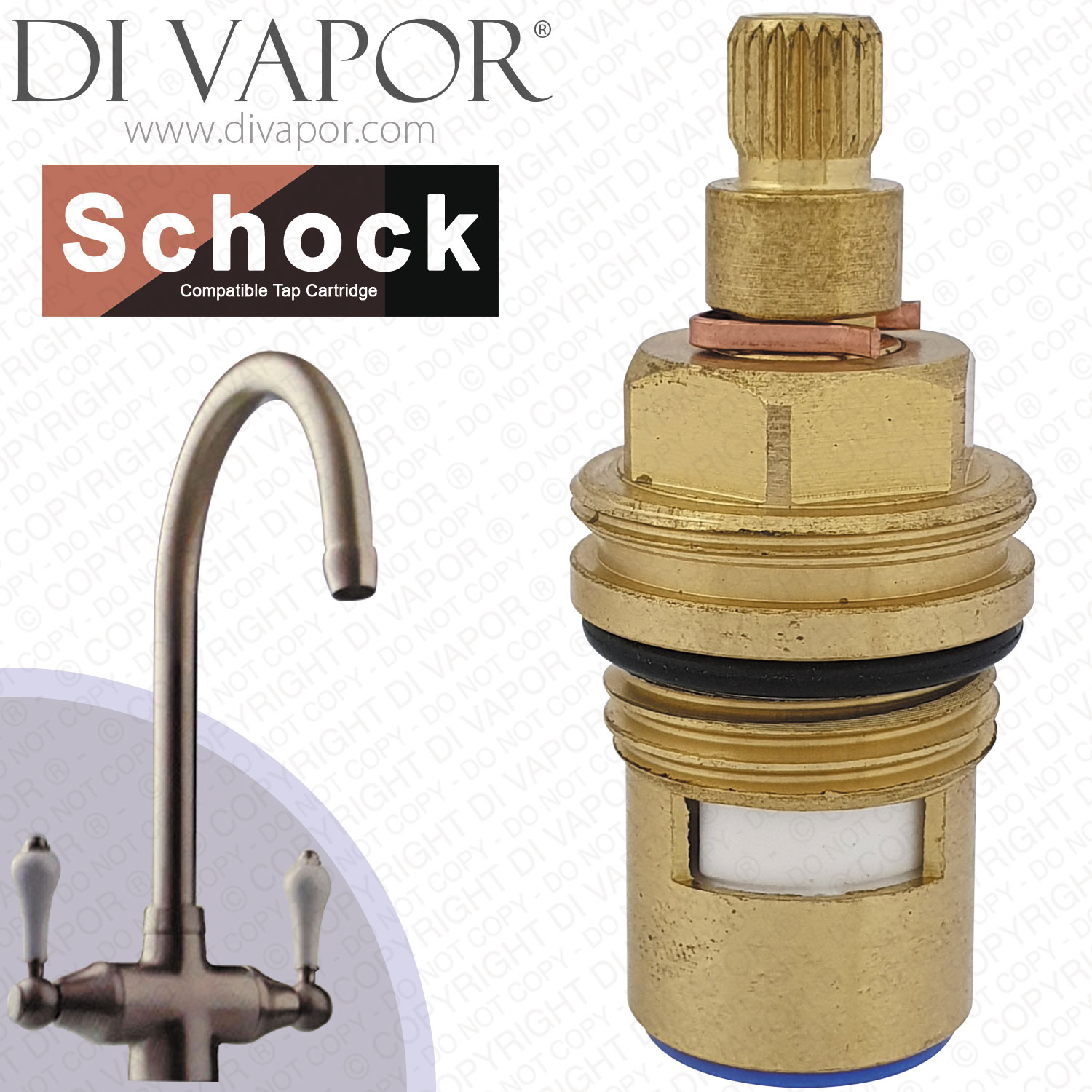

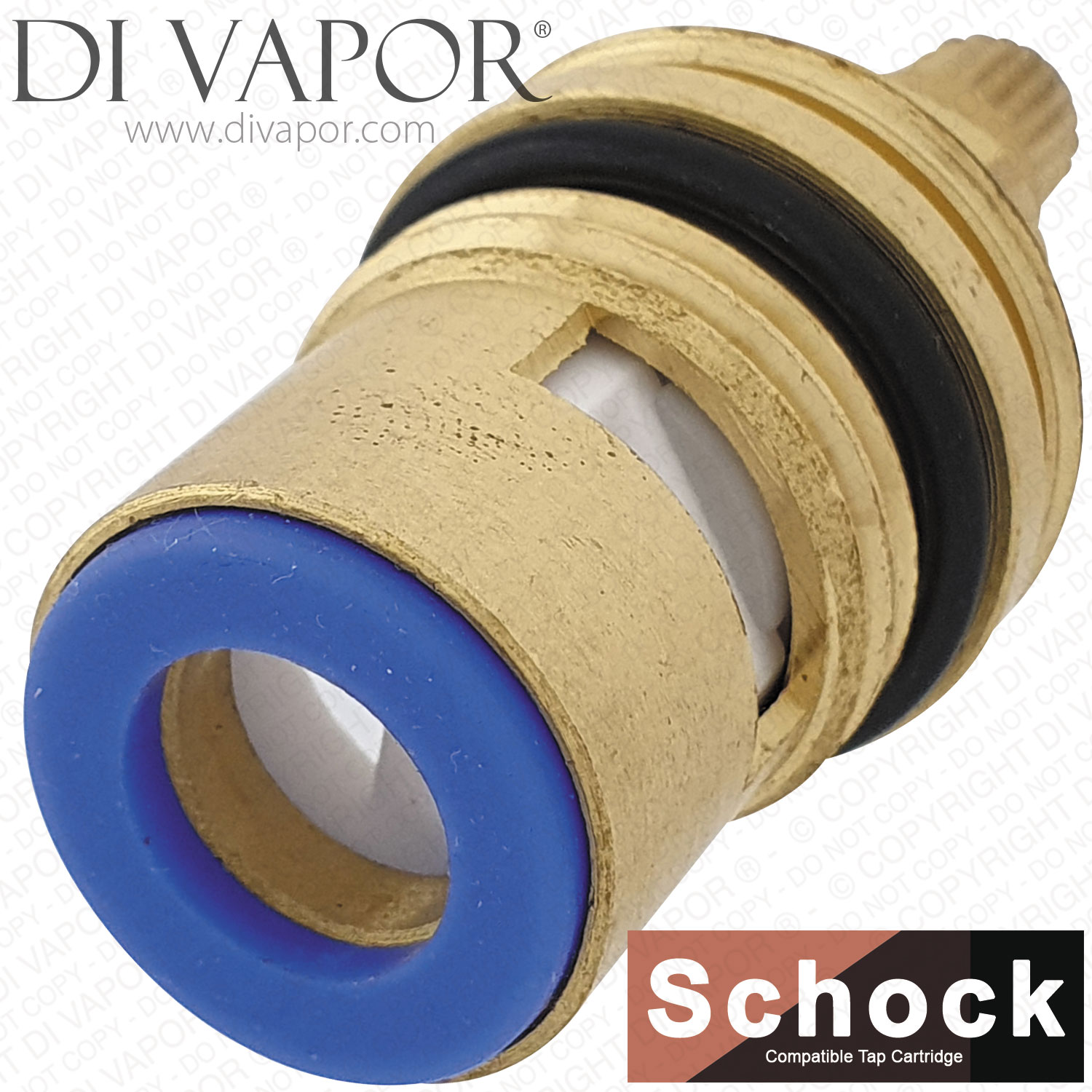

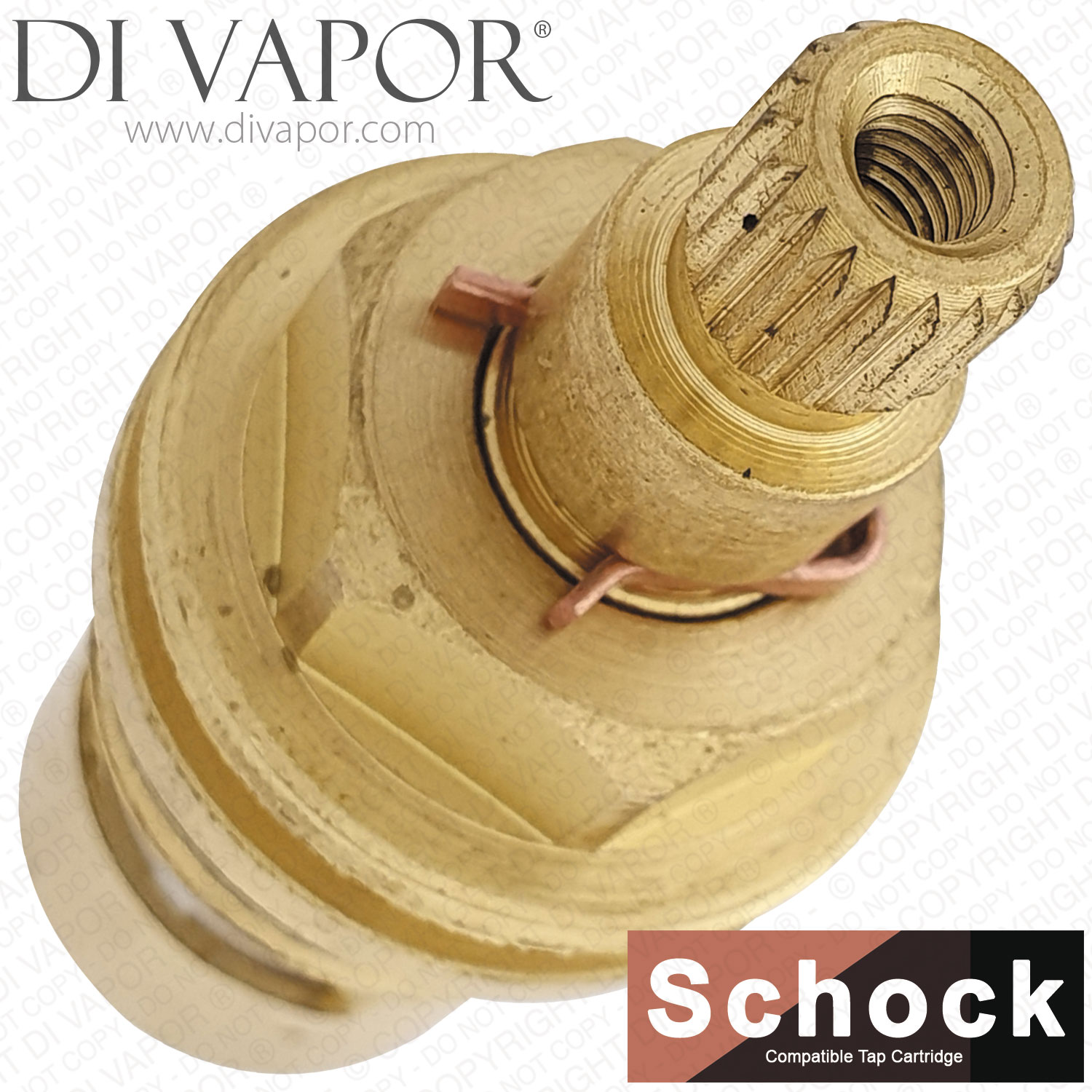

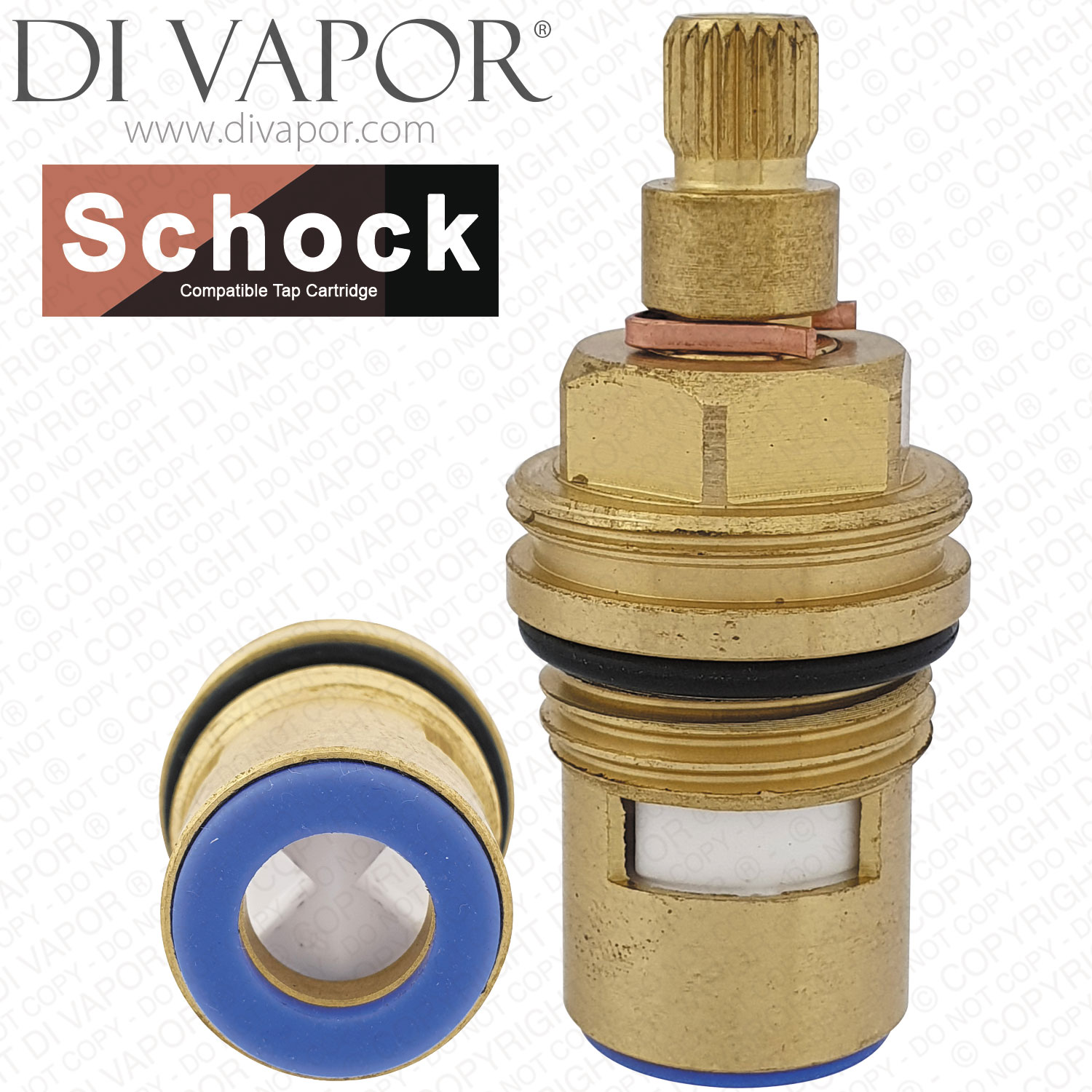

Schock 1/4 Turn Lever Cold 20 Spline Tap Cartridge Compatible Spare - SCH547
A quarter turn, anti-clockwise open valve replacement for Schock twin lever kitchen taps. This cartridge has a 24 spline teeth version.
Spline Counting Useful Tip: Use a pen or marker to mark one teeth. This will be the guide to know where the count begins and ends.
Schock Cartridge Measurements
| Diameter at Spline | 7.65mm |
|---|---|
| Spline Teeth Count | 20 |
| Cartridge Length | 50mm |
| Nut Height | 6.2mm |
| Diameter at O-Ring | 22.5mm |
| Diameter at Widest Part | 23.8mm |
More Schock Cartridge Versions
Please click on the red fonts (links) if you need the corresponding spare part.
(20 Spline)
| Hot Cartridge | SCH548 |
|---|---|
| Cold Cartridge with Bush | SCH687 |
| Hot Cartridge with Bush | SCH688 |
(24 Splines)
| Cold Cartridge | SCH422 |
|---|---|
| Hot Cartridge | SCH423 |
You can message us through our Cartridge Identification Service if you have any questions or other concerns.
