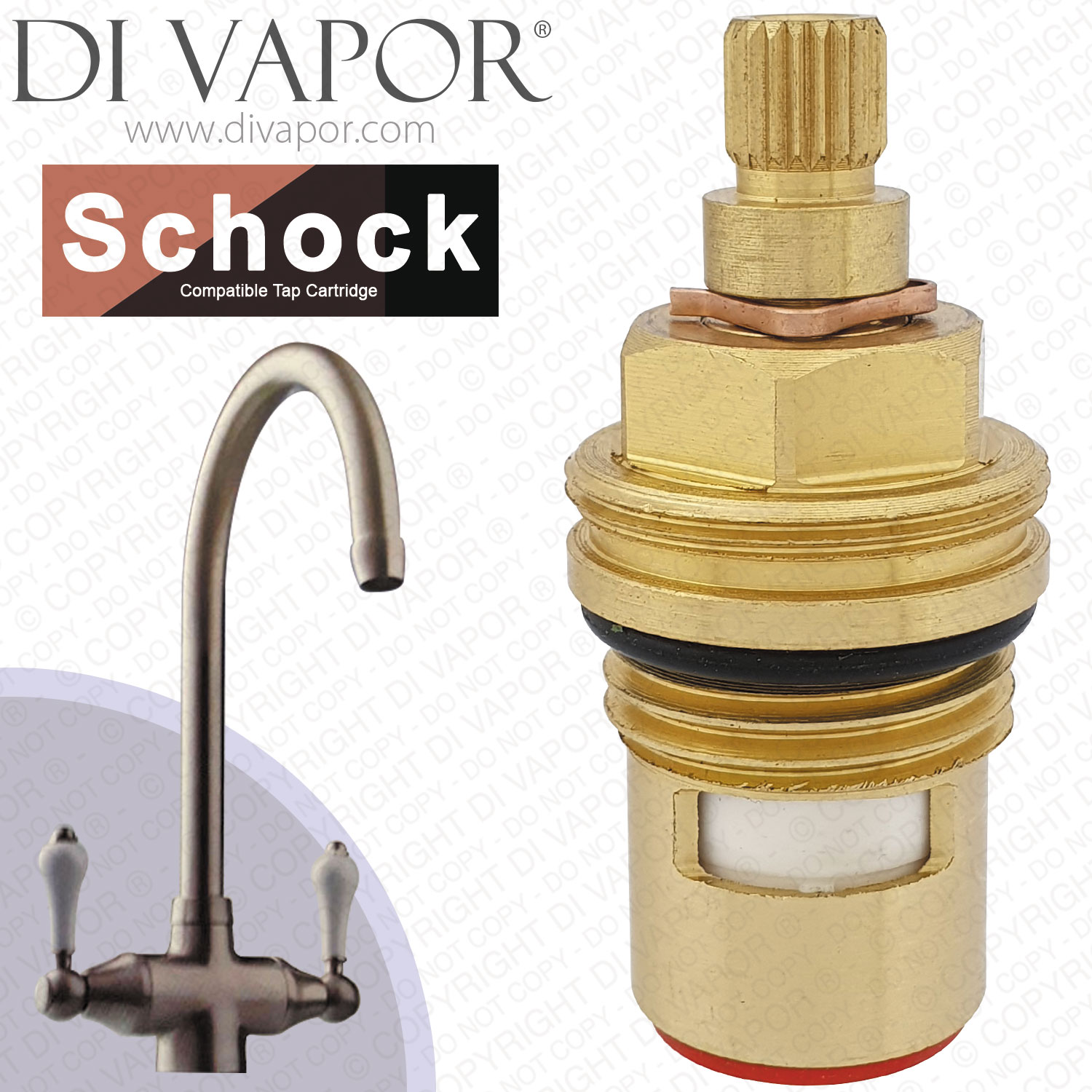

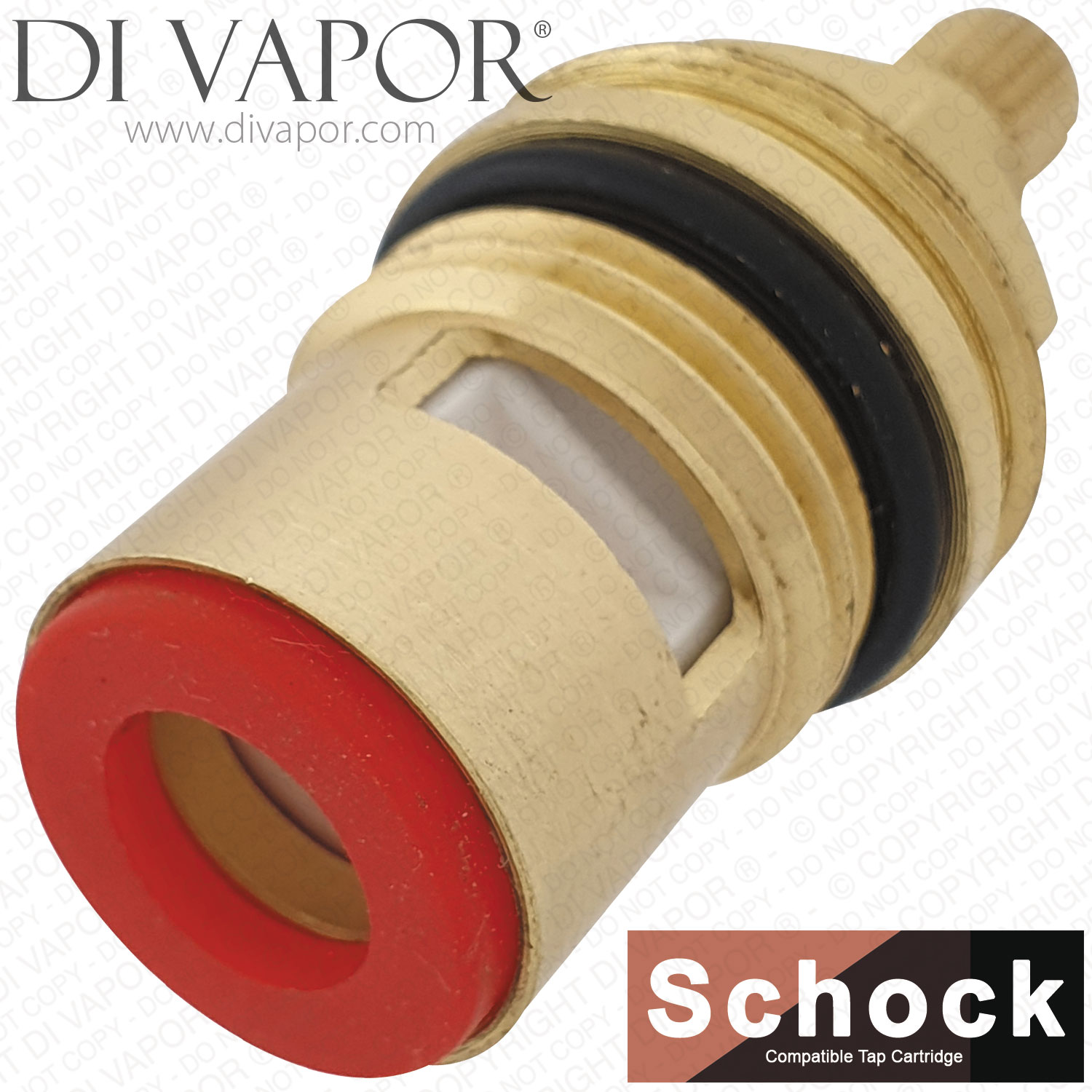

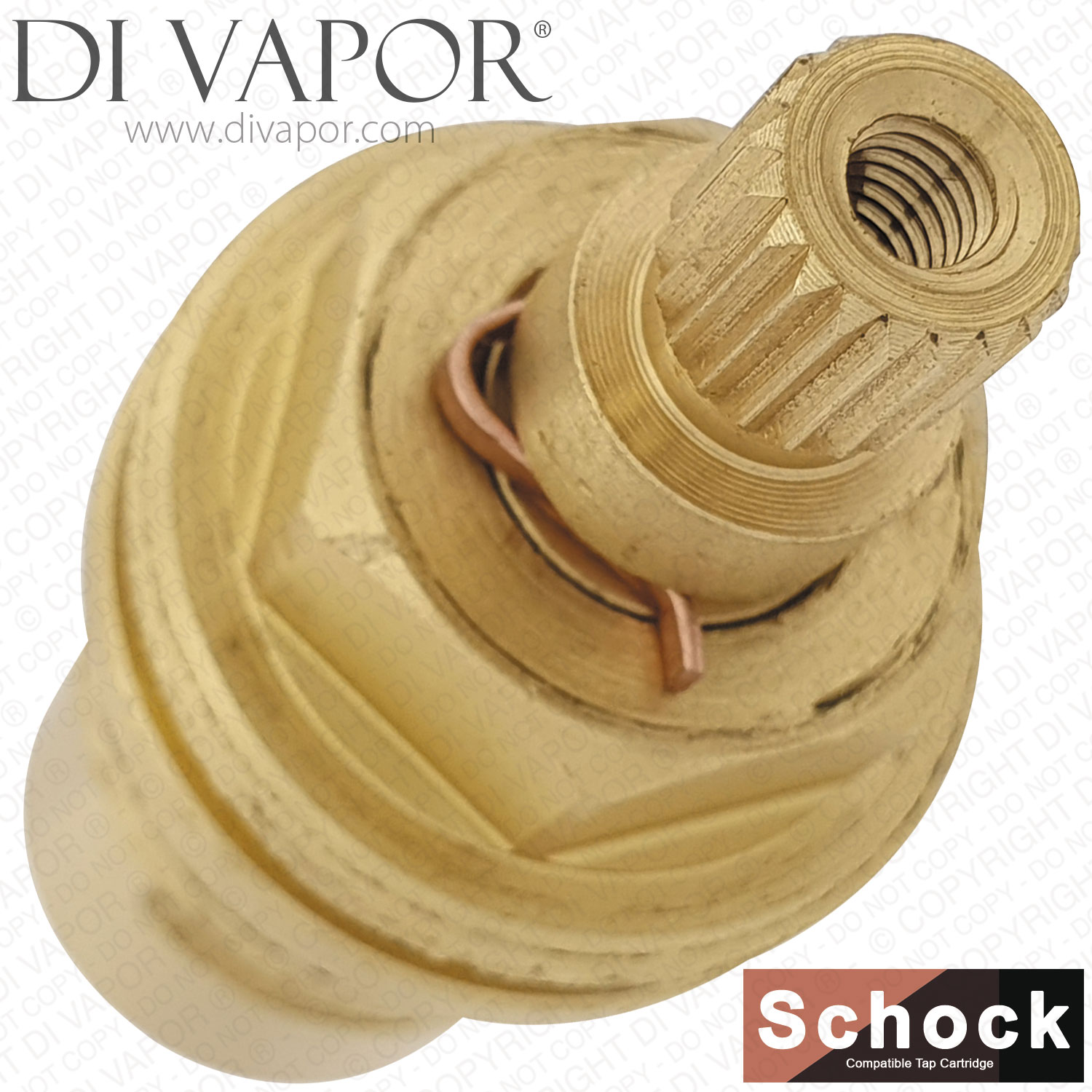

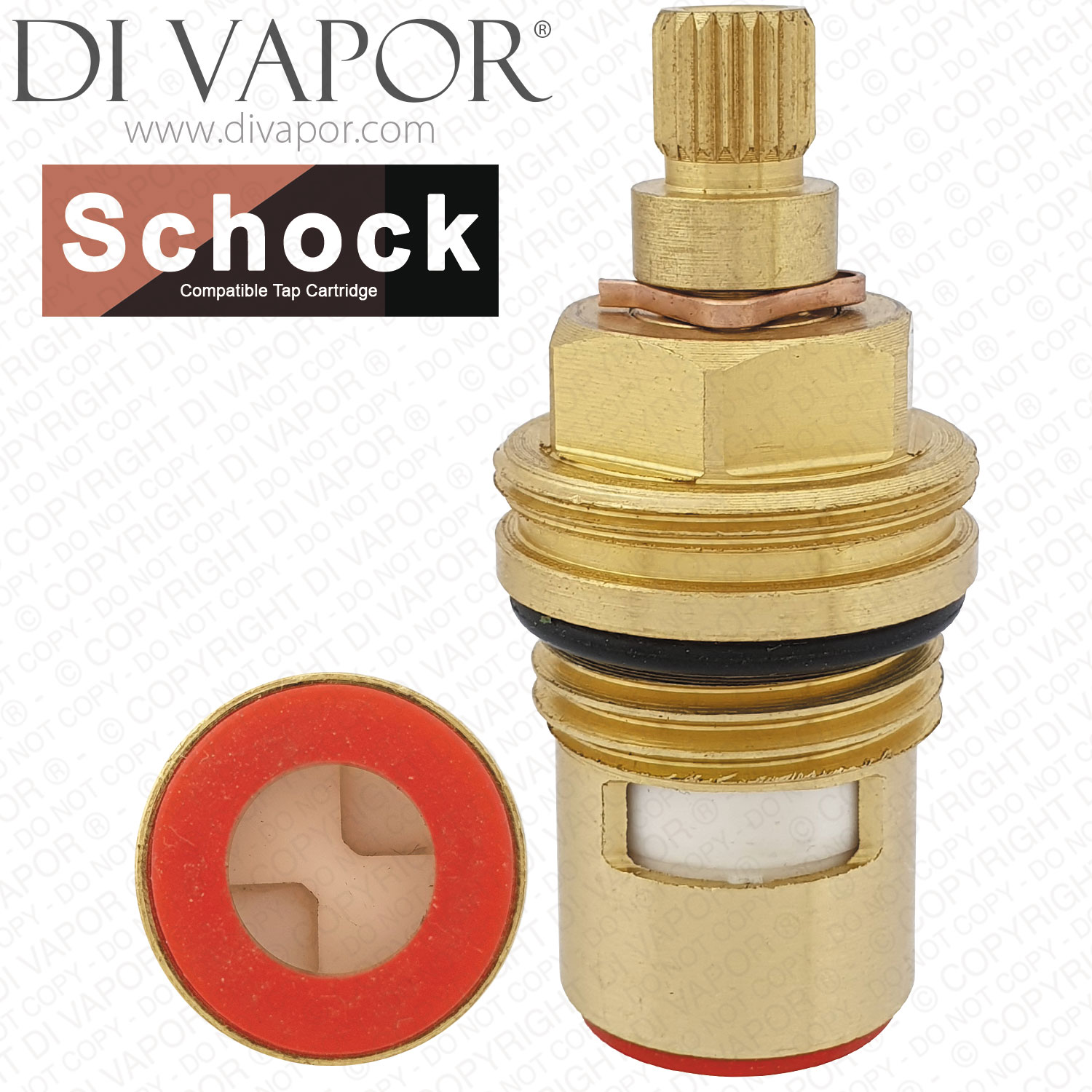

Schock 1/4 Turn Lever Hot 20 Spline Tap Cartridge Compatible Spare - SCH548
Part number: SCH548
Price: £28.00
Sale: £13.72
You save: £14.28 (51%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary
Schock 1/4 Turn Lever Hot 20 Spline Tap Cartridge Compatible Spare - SCH548
Tap Spares: Schock Cartridge Replacement
Please note that this cartridge has 20 spline teeth. There is a 24 teeth version of the Schock cartridge.

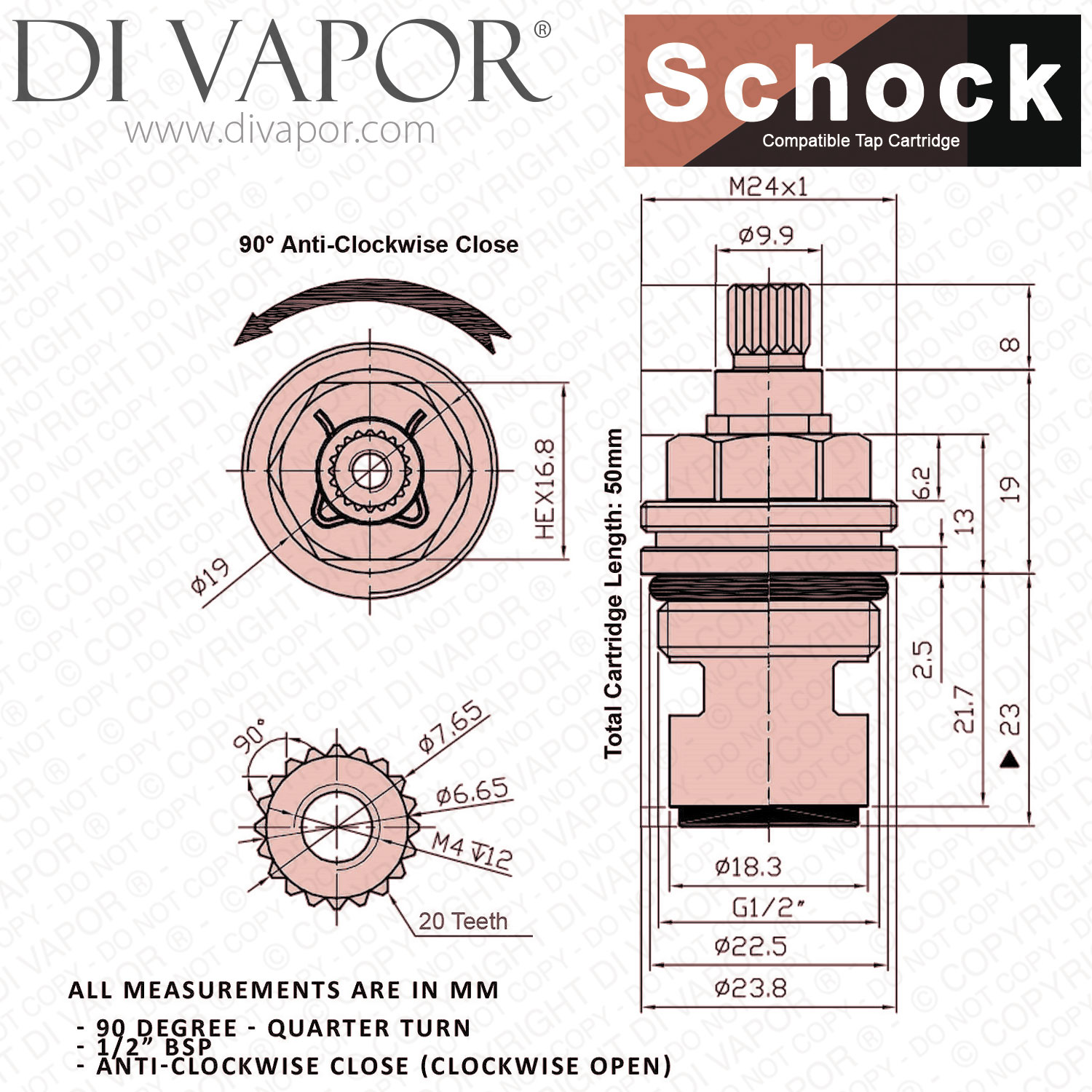

Cartridge Measurements
| Cartridge Length | 50mm |
|---|---|
| Diameter at O-Ring | 22.5mm |
| Diameter at Widest Part | 23.8mm |
| Diameter at Bottom Part | 18.3mm |
| Diameter at Spline | 7.65mm |
| Spline Teeth Count | 20 |
Other Information
| Valve Type | Ceramic Disc Cartridge |
|---|---|
| Bottom Seal Colour | Red |
| Rotation Angle | 90° (Quarter Turn) |
| Open Direction | Clockwise |
| Close Direction | Anti-Clockwise |
Compatibility Information
| Compatible with | Schock |
|---|---|
| Tap Model | Quarter Turn Lever Tap |
Other Spares
The red fonts are links that will take you to the Schock cartridge page when clicked or tapped.
(20 Spline)
| Cold Cartridge | SCH547 |
|---|---|
| Hot Cartridge with Bush | SCH688 |
| Cold Cartridge with Bush | SCH687 |
(24 Splines)
| Hot Cartridge | SCH423 |
|---|---|
| Cold Cartridge | SCH422 |
