Bristan Echo Easyfit Kitchen Tap Valve Cartridge (Hot Side) - 1/2" Compatible Cartridge - BR-EC030
Part number: BR-EC030
Price: £29.99
Sale: £12.98
You save: £17.01 (57%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

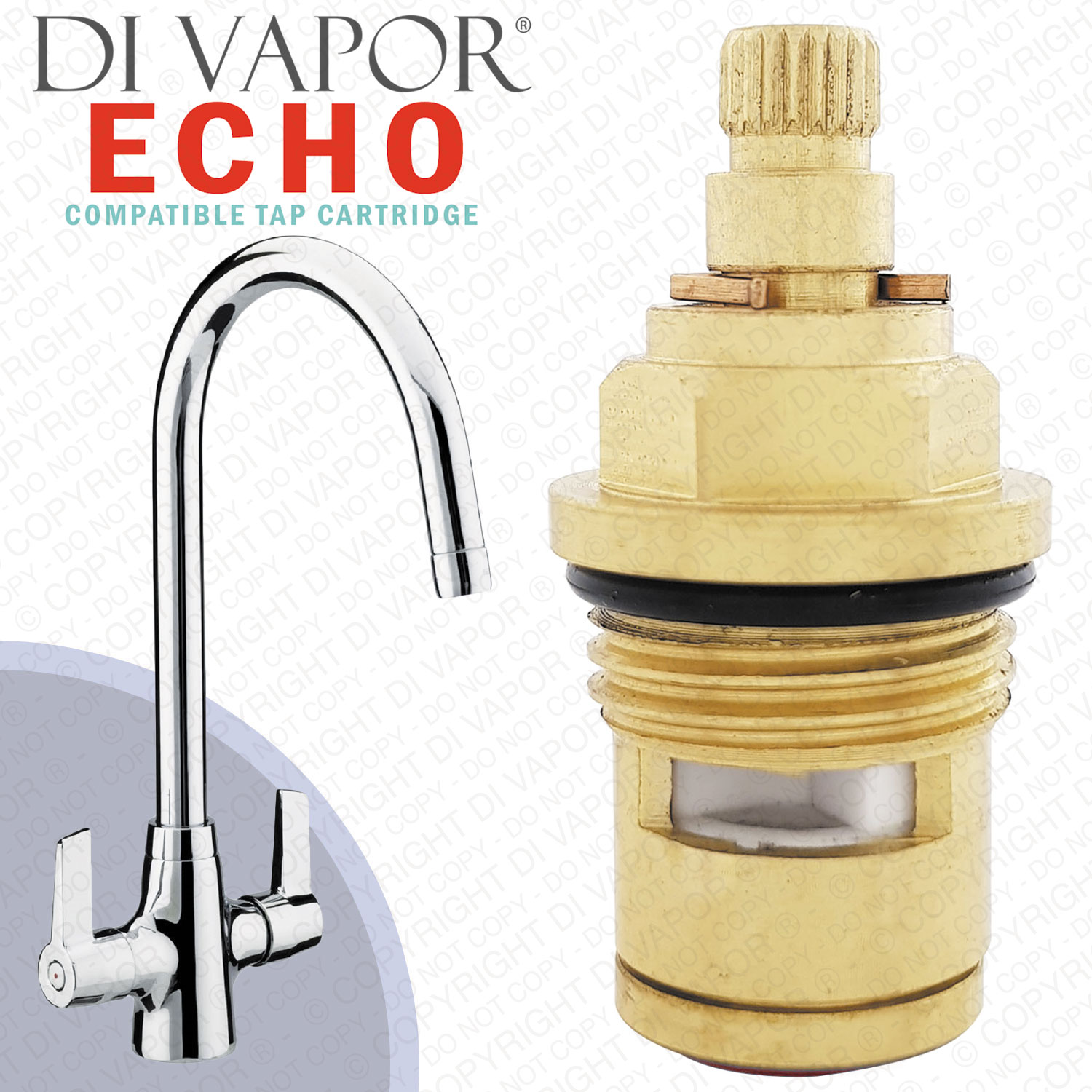

Bristan Echo Easyfit Kitchen Tap Valve Cartridge (Hot Side) - 1/2" Compatible Cartridge - BR-EC030
| Cartridge Compatibility | Bristan Echo |
|---|---|
| Spare Part | 1/2 Inch Tap Valve Cartridge Spare Part – Hot Side |
| Installation | Screw In |
| Material | Brass with Ceramic Corre |
Technical Information: Bristan Echo Tap Cartridge Compatible Replacement

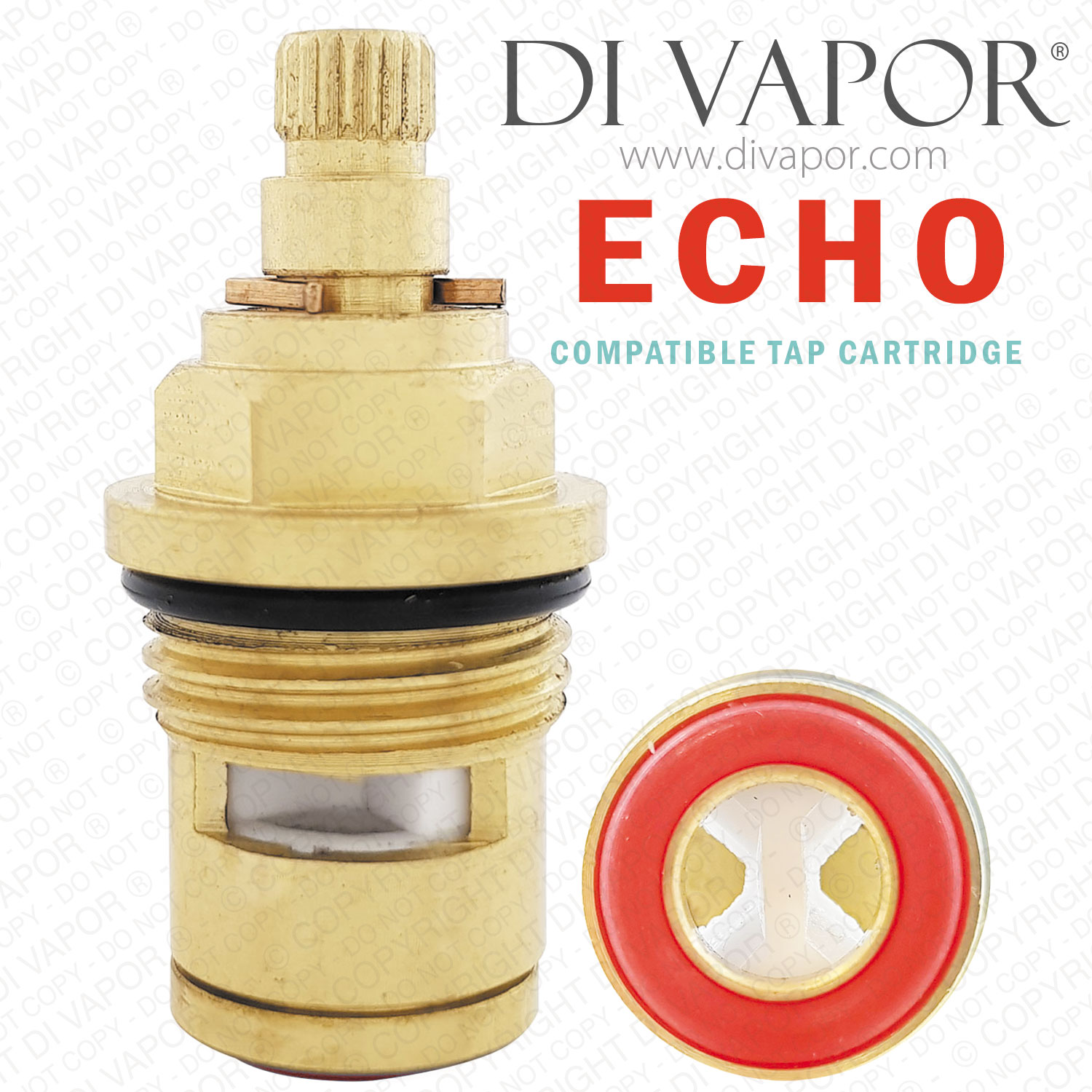

For further measurement details, please see the second image found above. Cartridge Measurements (Approximate): Total Length (including bottom seal): 44.7mm Diameter at Widest Point: 23.8mm Top Spline Diameter: 6.65mm to 7.65mm Top Spline Teeth / Notches: 20 Bottom Seal Colour: Red (for Hot Side) Close Direction: Anticlockwise Open Direction: ClockwiseBristan Echo Tap Cartridge Replacement Guide
Fixing a Bristan Echo tap is straightforward and simple. As always, the first step to tap – hot side – repair is to isolate hot water supply prior to starting. Set a stopper on your drain to block parts from rolling in it. Remove the hot indicator using a blunt and flat tool. Loosen the screw with a small screwdriver to separate the handle from the tap. Use an appropriate size spanner to release the threads of the screw-in cartridge. Apply plumbing grease on the Bristan Echo replacement cartridge O-ring. Position it in the valve housing and tighten the threads. Return the lever handle and screw. Snap the hot indicator button in.Is it Time to Replace the Bristan Echo Tap Cartridge?
Leaks and poor water flow are among the most common kitchen tap problems. When this happens to the Bristan Echo tap, most of the time, the cartridge needs to be replaced. Below are three of the frequent troubles usually encountered. Leaking Kitchen Tap Continuous dripping or water seeping from the tap valve may be the result of either a worn-out O-ring or a broken cartridge tap gland. Find out where the leak is originating. Check the seals, O-rings, and the Bristan Echo cartridge for any sign of damage. Too high water pressure can also result in a leaking tap. Reduce the pressure to stop the leakage. Insufficient or No Water Flow There are a number of possible causes that bring about water flow problems: – The isolation valves might not be open or it may be partly closed. – Low water pressure. – Clogged water supply lines, aerator, or the Bristan Echo tap cartridge. To remedy the situation, check if the isolation valve is open. Check water pressure using a water pressure gauge. If the pressure is low increase it. Clogged supply pipes will call for flushing the pipework to clear any form of debris. A clogged cartridge needs to be replaced. If you are interested in having your cartridge reconditioned, we offer a cartridge repair service. Unsteady Tap If the spout is not stable and wobbles when it is used, see if the grub screws fitted at the base of the tap are tightened securely, or, a reinforcing plate needs to be installed.Shipping & returns
