Grohe 23726003 Eurostyle Chrome Single-Lever Bath Shower Mixer (1/​2 Inch) Spare Parts

SUMMARY

Spares for Grohe 23726003 Eurostyle Chrome Single-Lever Bath Shower Mixer 1/2 Inch

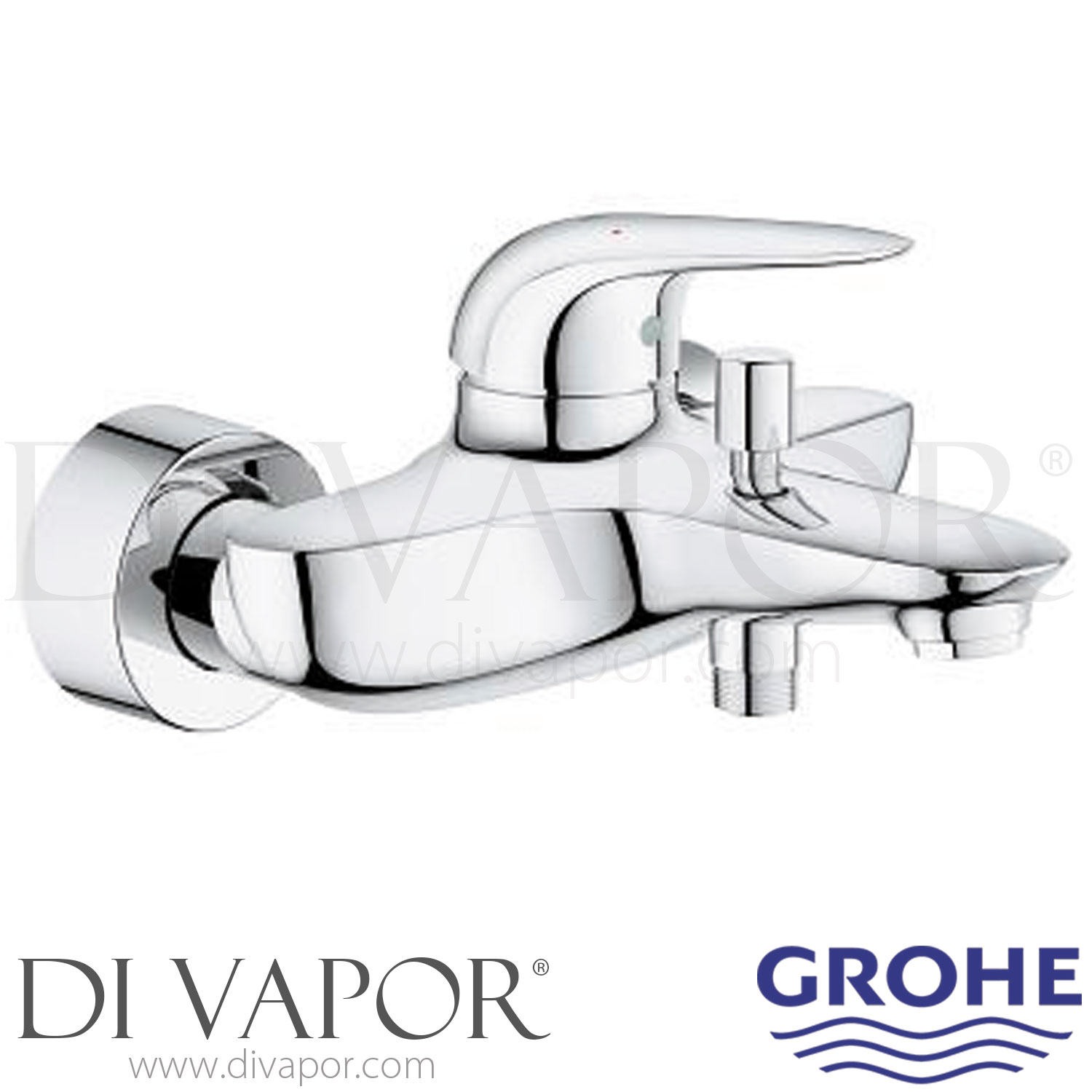

This page identifies spare parts for the Grohe 23726003 Eurostyle, a chrome, wall-mounted, exposed single-lever bath shower mixer with G 1/2 connections. The mixer combines hot and cold water through a 35 mm ceramic cartridge, then directs the mixed supply to either the bath outlet or a connected shower through its automatic diverter.

The listed Grohe spare parts cover lever control, outlet selection and servicing functions, allowing each repair component to be matched by its exact code before ordering.

Technical Details

- - Brand: Grohe

- - Range: Eurostyle

- - Category: Bath shower mixer

- - Model code: 23726003

- - Installation: Wall-mounted exposed mixer

- - Finish: Chrome

- - Cartridge: GROHE SilkMove 35 mm ceramic cartridge

- - Diverter: Automatic bath/shower diverter

- - Inlet centres: 150 mm, with 15 mm adjustment

- - Inlet connections: G 1/2

- - Shower outlet connection: G 1/2

- - Escutcheon diameter: 70 mm

- - Overall projection: 185 mm

- - Overall height: 128 mm

- - Minimum operating pressure: 0.5 bar

- - Recommended operating pressure: 1 to 5 bar

- - Maximum operating pressure: 10 bar

- - Bath outlet flow rate: 20 litres per minute at 3 bar

- - Shower outlet flow rate: 15 litres per minute at 3 bar

- - Maximum hot-water temperature: 70°C

- - Recommended hot-water temperature: 60°C

- - EAN: 4005176365256

Fault Guidance

- - Stiff lever movement, unstable mixed-water control or water continuing to pass from the bath outlet after shut-off may indicate wear or contamination in cartridge 46374000

- - Failure to change correctly between the bath and shower outlets may indicate a sticking diverter 65655000, a damaged diverter knob 64309000 or scale and debris around the diverter mechanism

- - Reduced bath flow may be caused by scale or debris in the outlet mousseur

Before You Order

Check the mixer code 23726003 and the required spare code against the existing installation before ordering. Similar-looking Eurostyle mixers, including different production and regional variants, can use different components, so the part should not be selected by appearance alone.
