Grohe 3282500L Eurosmart Cosmopolitan Single-Lever Basin Mixer (1/2 Inch) S-Size Spare Parts
Send a photo of your item and we'll help confirm it.
Summary

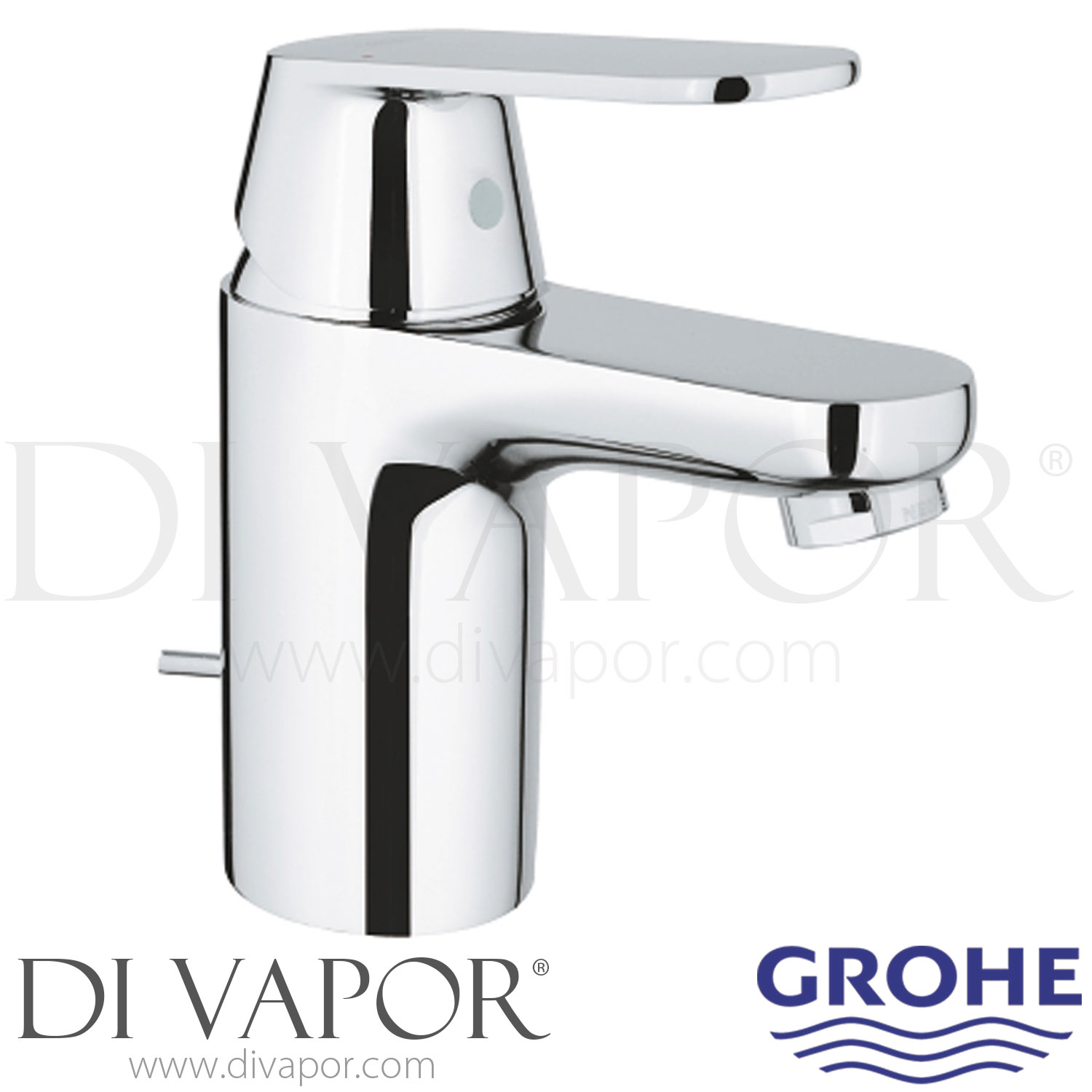

Spares for GROHE 3282500L Eurosmart Cosmopolitan Low Pressure Single Lever Basin Mixer
The GROHE 3282500L spare parts page covers service components for the Eurosmart Cosmopolitan S-Size single lever basin mixer designed for low-pressure water systems. This chrome monobloc basin mixer is installed through one tap hole and uses a 35mm ceramic cartridge to control water flow and temperature.
The mixer incorporates a pop-up waste mechanism and flexible inlet connections. Select spare parts using the exact mixer code and component code because the visually similar 32825000 and 3282500E are separate product variants.
Technical Details
| Brand | GROHE |
|---|---|
| Range | Eurosmart Cosmopolitan |
| Category | Basin mixer |
| Product code | 3282500L |
| Product type | Low-pressure single lever basin mixer |
| Size | S-Size |
| Finish | Chrome |
| Installation | Single-hole deck-mounted monobloc |
| Cartridge | GROHE 46374000 35mm ceramic cartridge |
| Recommended operating pressure | 0.2 to 5.0 bar |
| Flexible inlet connection size | G 3/8 |
| Pop-up waste connection | G1 1/4 |
| Tap height above the mounting surface | 148mm |
| Spout outlet height | 78mm |
| Spout projection | 92mm |
| Mixer base diameter | 50mm |
| Required mounting-hole diameter | 34mm |
| Maximum mounting-surface thickness | 30mm |
Function and Fault Guidance
The 46374000 ceramic cartridge regulates both water flow and temperature. A stiff lever, inconsistent mixing, reduced control or water continuing to drip from the spout after the lever is closed can indicate cartridge wear. Problems operating the pop-up waste may instead relate to the horizontal rod or waste linkage.
Before you order check
Confirm that the basin mixer code is 3282500L and match the existing component to the exact spare code. Check whether the standard 07052000 waste rod or the optional longer 07341000 350mm rod is required. Isolate both water supplies before dismantling the mixer.
GROHE 46460000 Screw Coupling Cartridge Headnut for Single-Lever MixersGROHE 46460000 is a screw coupling and cartridge-retaining headnut used around the single-lever cartridge assembly in specified GROHE basin, bidet, bath, shower, kitchen, GROHE Blue and GROHE Red mixers. It is...
GROHE 46374000 35mm SilkMove Ceramic Lever Cartridge for Single-Lever MixersGROHE 46374000 is a 35mm SilkMove ceramic lever cartridge used to control mixed water flow and temperature in selected GROHE single-lever basin mixers, bidet mixers, kitchen and sink mixers, bath mixers a...
GROHE 19332000 34mm and 32mm Socket Box Spanner for Tap and Shower CartridgesGROHE 19332000 is a double-ended tubular socket box spanner for servicing selected GROHE tap cartridges and thermostatic shower mixer assemblies. Its two differently sized hexagonal ends are used for the...

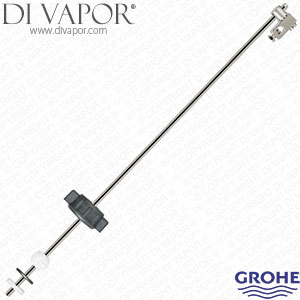

Grohe 07341000 350mm Horizontal Rod for PUW WasteThe Grohe 07341000 is a 350mm horizontal operating rod used in PUW waste control systems. It connects the tap mechanism to the basin waste linkage.FunctionThe rod enables mechanical operation of the waste plug. Incorrect length or ...
