Summary

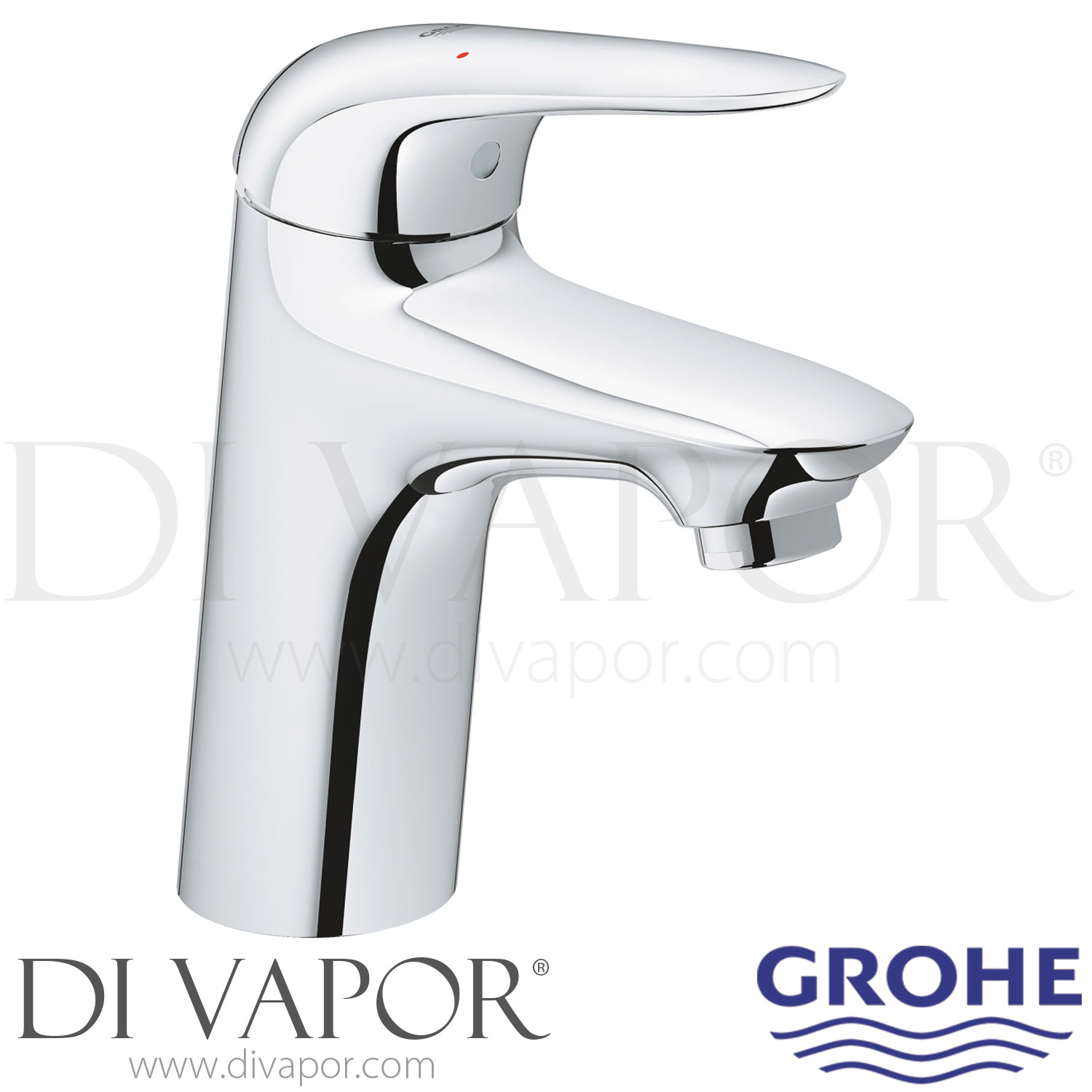

Spare parts for the GROHE 23715003 Eurostyle single lever basin mixer 1/2 Inch S-Size. This chrome deck-mounted basin mixer uses a single control lever to regulate water flow and temperature and is fitted with a smooth body and flexible connection hoses.

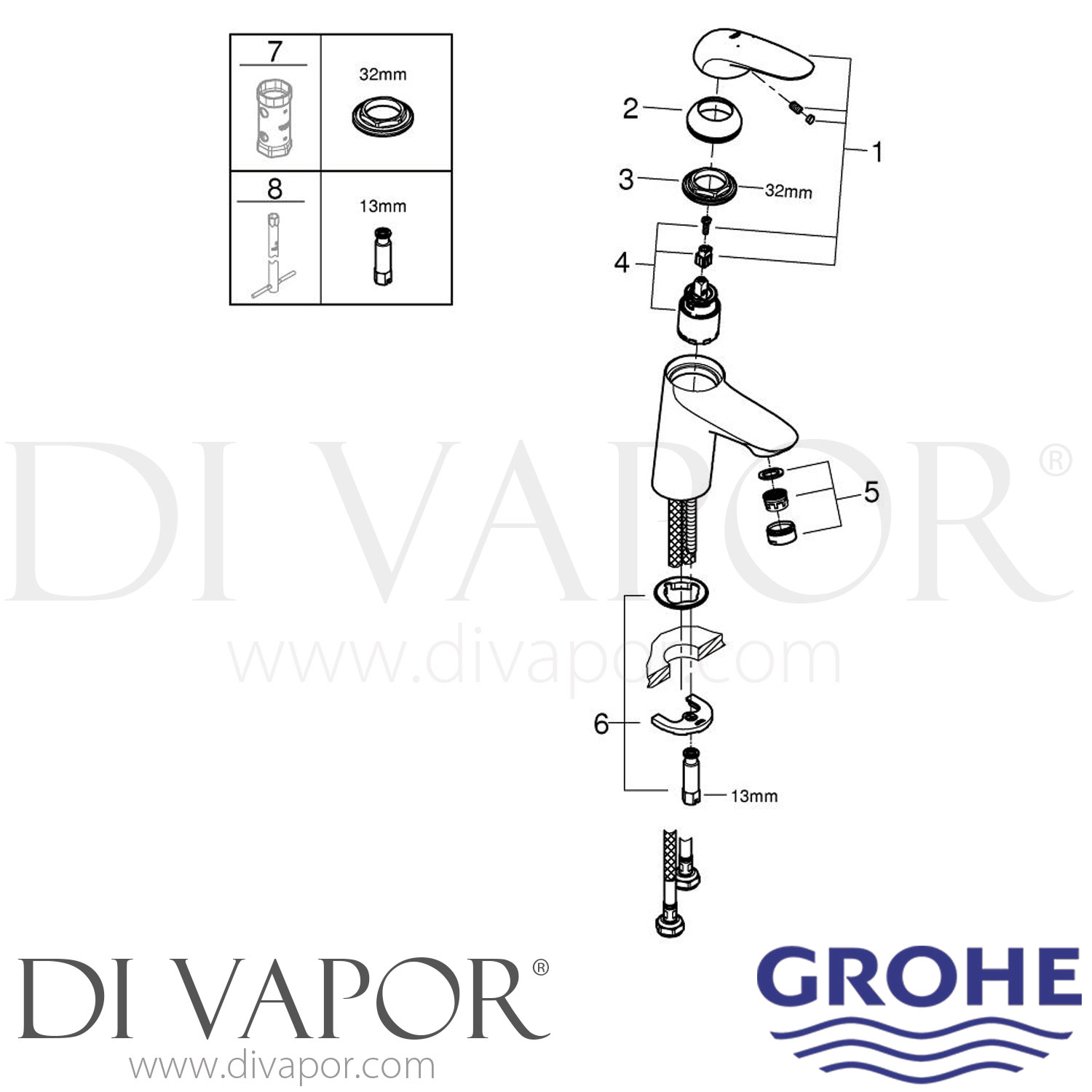

This page brings together the Grohe spare parts available for servicing the 23715003 Eurostyle basin mixer, including the 35mm ceramic lever cartridge, screw coupling and the appropriate 34mm service spanner.
Technical Details
| Brand | GROHE |
|---|---|
| Range | Eurostyle |
| Category | Basin mixer |
| Product code | 23715003 |
| Size | S-Size |
| Installation | Single-hole deck mounted |
| Body type | Smooth body |
| Finish | Chrome |
| Cartridge | GROHE SilkMove 35mm ceramic cartridge |
| Maximum flow rate | 5 l/min at 3 bar |
| Connection hoses | Flexible |
| Connection size | G3/8 |
| Overall height | approximately 163mm |
| Spout projection | approximately 110mm |
| Spout outlet height | approximately 82mm |
| Maximum deck thickness | 30mm |
| Mounting hole diameter | 34mm |
| Base diameter | 50mm |
| EAN | 4005176365065 |
Before you order check
Check the mixer code is 23715003 before ordering, as other Eurostyle basin mixers can use different components despite having a similar external appearance.
GROHE 46460000 Screw Coupling Cartridge Headnut for Single-Lever MixersGROHE 46460000 is a screw coupling and cartridge-retaining headnut used around the single-lever cartridge assembly in specified GROHE basin, bidet, bath, shower, kitchen, GROHE Blue and GROHE Red mixers. It is...
GROHE 46374000 35mm SilkMove Ceramic Lever Cartridge for Single-Lever MixersGROHE 46374000 is a 35mm SilkMove ceramic lever cartridge used to control mixed water flow and temperature in selected GROHE single-lever basin mixers, bidet mixers, kitchen and sink mixers, bath mixers a...
GROHE 19332000 34mm and 32mm Socket Box Spanner for Tap and Shower CartridgesGROHE 19332000 is a double-ended tubular socket box spanner for servicing selected GROHE tap cartridges and thermostatic shower mixer assemblies. Its two differently sized hexagonal ends are used for the...
