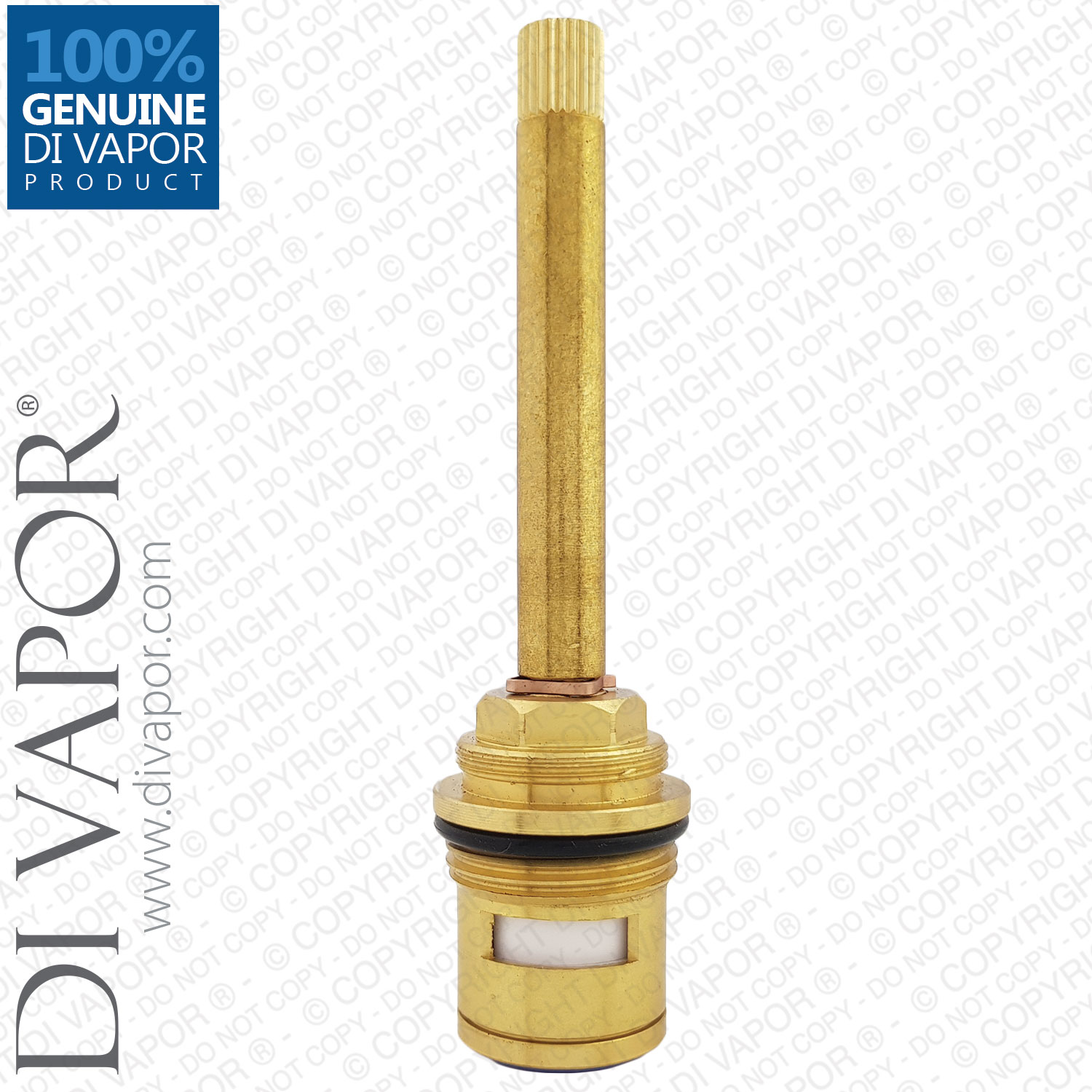

110mm Ceramic Disc Shower & Tap Valve On/Off Cartridge - 3/4" BSP, Quarter Turn Clockwise Close - 24 Teeth Spline
Send a photo of your item and we'll help confirm it.
Summary
110mm Ceramic Disc Shower & Tap Valve On/Off Cartridge - 3/4 BSP, Quarter Turn Clockwise Close - 24 Teeth Spline
| Total Length (including bottom seal) | 111.2mm |
|---|---|
| Diameter at Widest Point | 28.8mm |
| Top Spline Diameter | 9.5mm |
| Top Spline Teeth / Notches | 24 |
| Barrel Diameter | 23.6mm |
| Lower Thread | 3/4" |

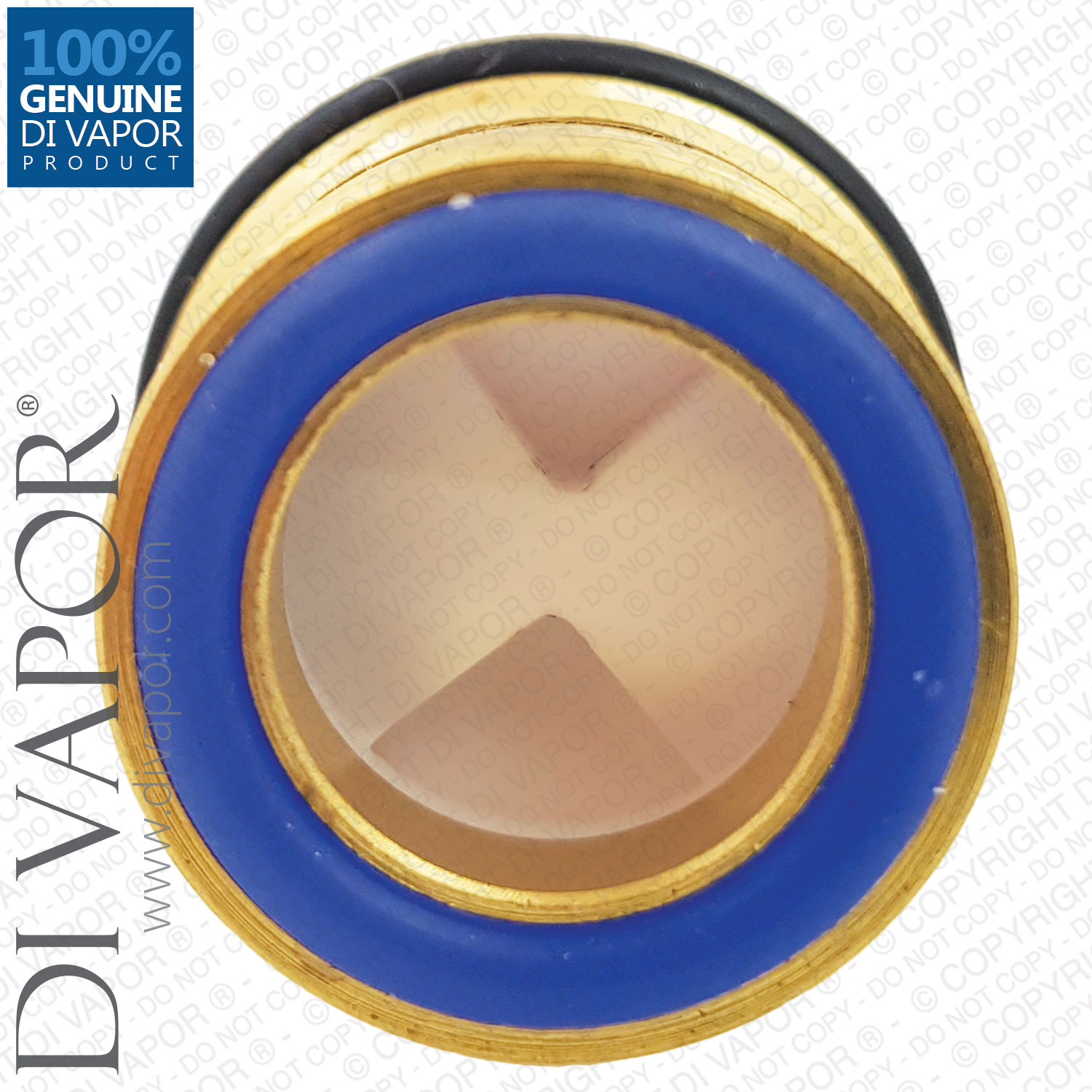

| Bottom Seal Colour | Blue (for Cold Side) |
| Close Direction | Clockwise Close (Anti-Clockwise Open) |
| Upper Thread (closer to spline) | 24mm |
Need the hot side ceramic disc cartridge for showers and taps?
- DF88M24 is the hot insert. Please visit the page for the FAQs.
Buying Guide: 110mm Ceramic Disc Shower / Tap Cartridge
So, you want to know if this replacement 110mm ceramic disc cartridge will fit in your shower or tap valve? These are the ways to determine it.
1. Remove the cartridge from the shower or tap valve.

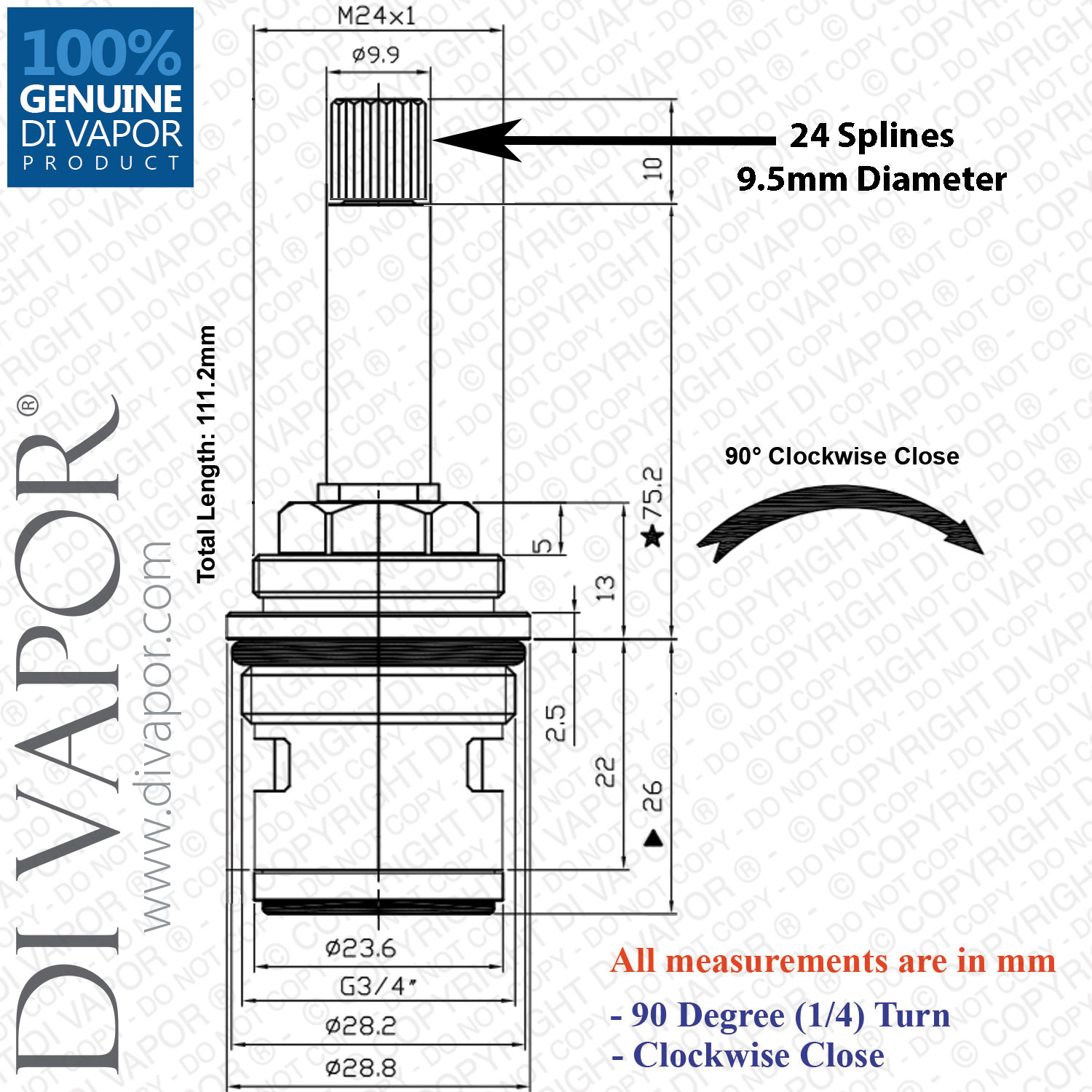

2. Grab a measuring tape or any normal ruler and measure the old cartridge you’ve just taken out. Then, see if the measurements are a match with those stated above. You can also use the second image in the gallery as a reference.

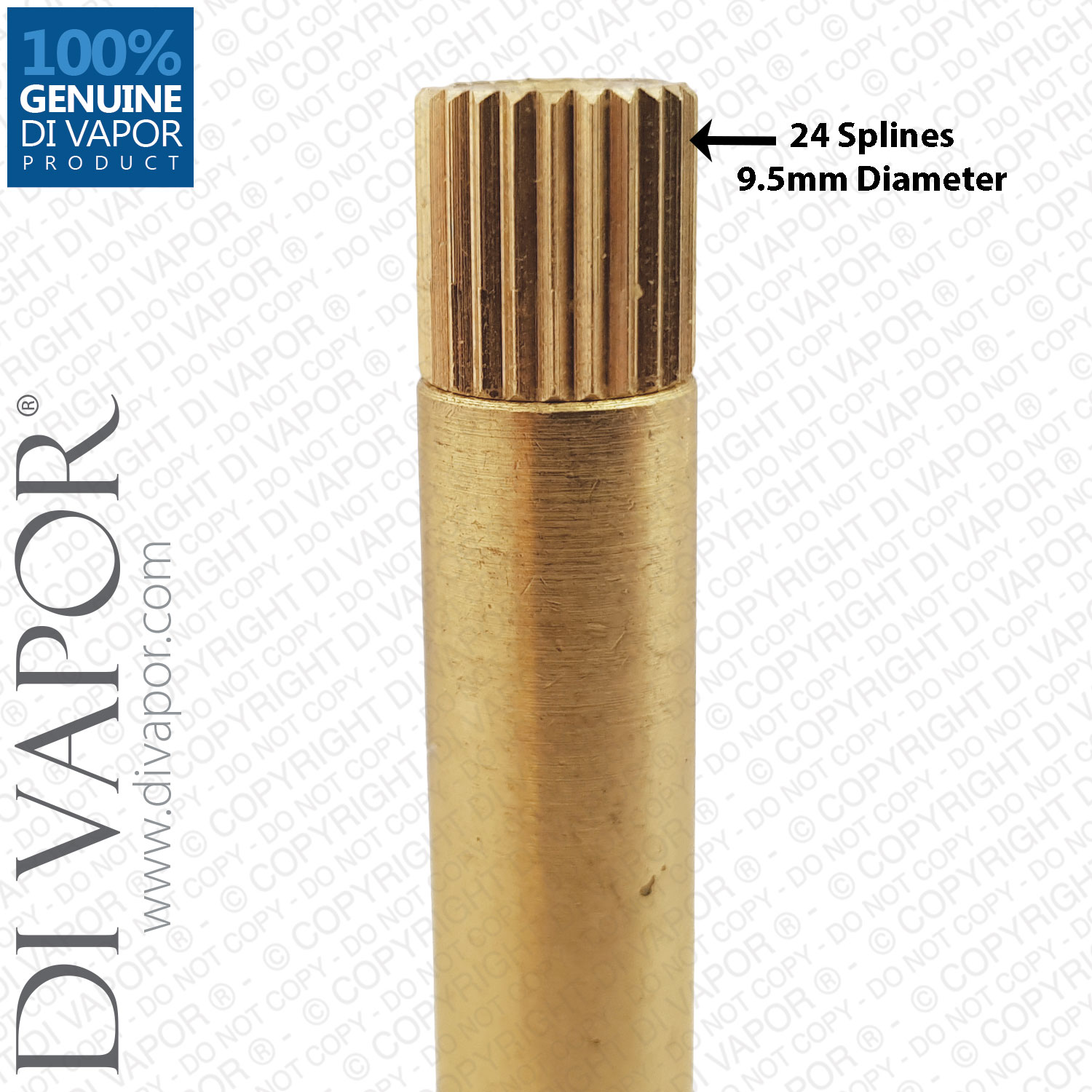

3. Grab a pen or any marker to mark the splines. After this, get ready to count the peaks of the splines. It must count to 24, the same as this 110mm ceramic disc cartridge, or else the spare part will not fit.
4. Make sure you get the correct side cartridge. This 110mm ceramic disc shower / tap cartridge insert is for the cold valve. This closes in a clockwise direction (and opens in the opposite).
Tip:
Don’t forget the importance of greasing the O-rings of the replacement shower and tap on/off cartridge. This will make it easy to seat and seal the part in the valve. Please scroll down to see the available silicone grease you can purchase.
Should you need another on/off shower and tap cartridge:
- Check out other flow cartridge spares we offer.
- Or, you can use our Find a Part free service. Our friendly in-house spares experts will gladly do the cartridge investigative work for you.
