VADO CEL-148B/SQ-3/4-C/P Celsius Shower Valve
Send a photo of your item and we'll help confirm it.
Summary
VADO CEL-148B/SQ-3/4-C/P Celsius Shower Valve
- Concealed 2 Handle Thermostatic Valve
- Rectangular Backplate
- Wall Mounted
- 0.2 bar LP
Features
A two handle one outlet valve is simple to operate, making it the perfect choice for those looking to control one function, top handle controls flow, the bottom handle controls the temperature.
Product specifications:
- concealed 2 handle thermostatic shower valve
- wall mounted
- with rectangular backplate
- Thermostatic temperature safety stop at 38C to prevent risk of scalding
- 2 x 3/4” female inlets
- 1 x 3/4” female outlet
- includes fittings for 1/2” and 3/4” pipework
- min-max wall mount 68-77mm (standard)
- optimum installation depth 73mm (standard)
- Minimum operating pressure required: 0.2 bar for shower operation, 1.0 bar Bath filler operation

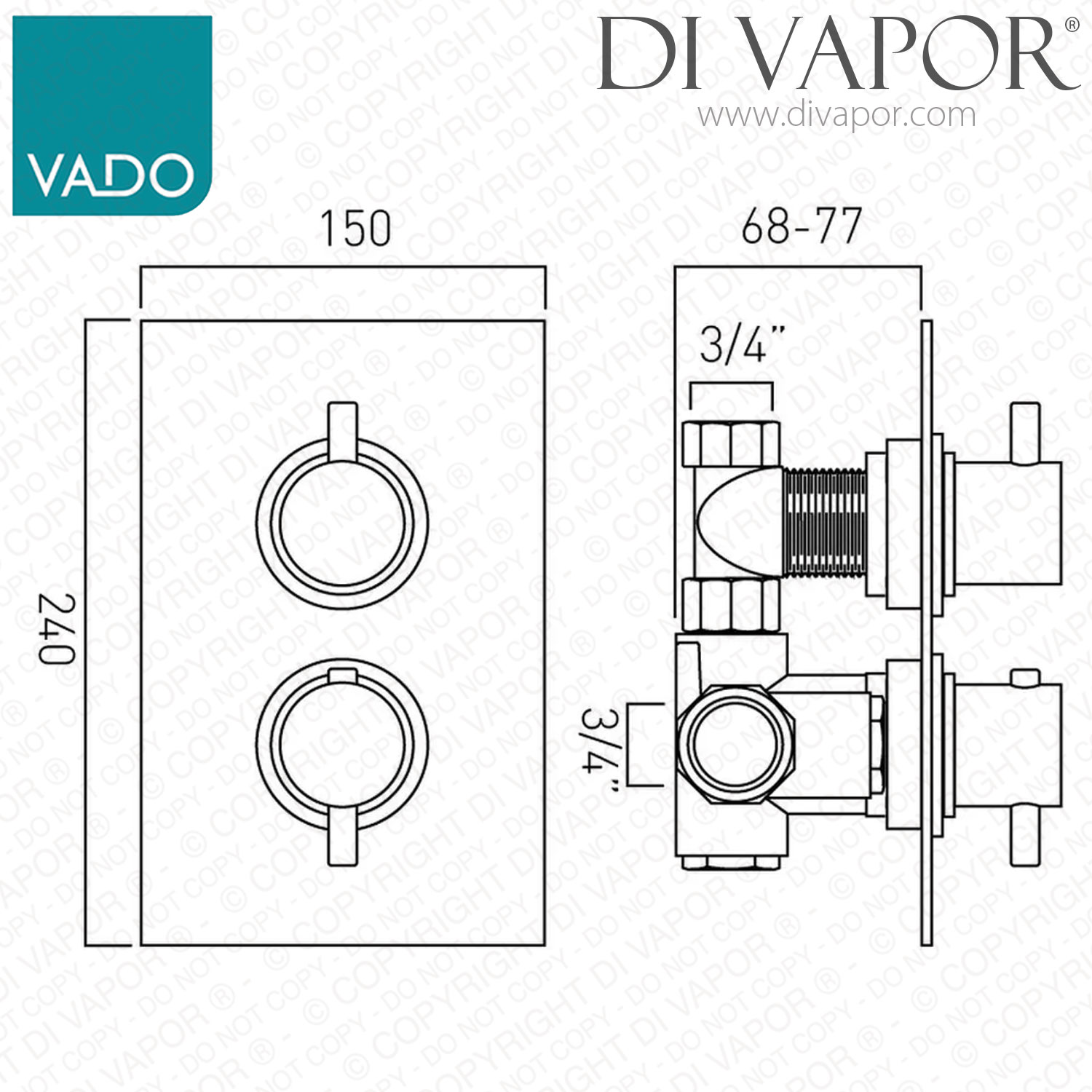

For complete size details please refer to the technical drawing.
This is a replacement thermostatic cartridge for VADO CEL-001B/B-WAX. The cartridge is a screw in type installation. You will receive the exact same cartridge that's in the photos. We are the only company who still has stock of this cartridge, and there are not many left. ...
VADO CEL-002A/B-3/4 On/Off ceramic disc flow cartridge. The cartridge closes / stops water flow by turning the handle clockwise (8:20 broach 3/4" ceramic disc valve). This CEL-002A/B-3/4 cartridge will fit the following Vado shower valves: - Vado Celsius CEL-148C - Vado N...

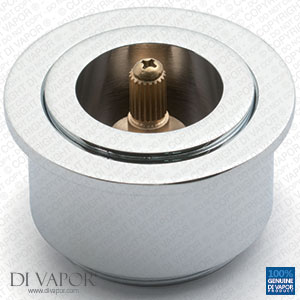

VADO Celsius CEL-148/FLOW-EXT Flow Extension ION Kit Used in all 148C Valves, all 128C ValvesThis flow extension is used in the following Vado valves: - all 148C valves - all 128C valves - except for Notion ION valve use Notion NOT-148/FLOW-EXT...
Sold Individually. VADO Celsius CEL-0021/B-C/P Plate SecuRing Rings Used in all 148C Valves, all 128C ValvesThis ring is used in the following Vado valves: - all 148C valves - all 128C valves...
VADO Celsius CEL-0023/B-C/P Temperature Shroud Used In All 148C Valves, All 128C ValvesThis shroud is used in the following Vado valves: - all 148C valves - all 128C valves - Notion NOT suitable for 2 or 3 way valves...
Vado CEL-1/TEMP-C/P temperature handle. The handle is designed to fit cartridge heads that have 20 teeth and are approximately 7.5mm in diameter. The temperature knob is made from a chrome finished stainless steel and has the 38 degrees Celsius marker on the side next to a spr...
Vado CEL-1/FLOW-C/P Flow Control Handle (On/Off) . The handle is designed to fit cartridge heads that have 20 teeth and are approximately 7.5mm in diameter. The FLOW knob is made from a chrome finished stainless steel and has the 38 degrees Celsius marker on the side next to a...
Vado CEL-003A-FIL Non-Return Valve HousingThe Vado CEL-003A-FIL is a non-return valve housing for selected Vado concealed thermostatic shower valves. It forms part of the non-return valve and check valve assembly and helps prevent reverse water flow through the valve body.This pa...
VADO Celsius CEL-148/FLOW-EXT Flow Extension ION Kit Used in all 148C Valves, all 128C ValvesThis flow extension is used in the following Vado valves: - all 148C valves - all 128C valves - except for Notion ION valve use Notion NOT-148/FLOW-EXT Brass Extension piece: 40.2mm I...
VADO Celsius CEL-148/2/3/FLOW-EXT 2/3 way Extension ION Kit Used in all 148C/2 and 148C/3 ValvesThis extension is used in the following Vado valves: - all 148C/2 and 148C/3 valves - except for Notion ION valve use Notion NOT-148/2/3-FLOW-EXT Please inquire with us if you hav...
Vado Shower Valve Reducing Bush - 3/4" to 1/2" - Pack of 3
VADO Celsius CEL-0024C-PLA Stop Ring Used in all 148C Valves, all 128C ValvesThis stop ring is used in the following Vado valves: - all 148C valves - all 128C valves - except Notion Height: 12.8mm Raised (stepped) Stopper Height: 16mm-17mm Internal Diameter: ~22.8mm Diamete...
Vado CEL-PLA-936 Grub Screw & Allen Key Set. Used with Vado CEL-RETROFIT/B Thermostatic Cartridge and Handle Assemblies. Allen Keys - 2mm, 2.5mm and 3mm Grubscrew Diameters: 3.7mm, 4.8mm and 5.6mm Got questions about the Vado CEL-PLA-936? + Please pop us a messag...
Vado CEL-0010/SQ-C/P Cover Plate Width: 150mm Height: 240mm Bottom Edge to Bottom of Bottom Hole: 52mm Top Edge to Top of Top Hole: 52mm Hole Diameters: 55mm Gap between holes: 25mm Distance between hole centres: 80mm...
