Vado CEL-1/TEMP-C/P Celsius Temperature Control Handle Chrome for Thermostatic Shower Valves
SUMMARY
The Vado CEL-1/TEMP-C/P is a chrome Celsius temperature control handle for selected Vado Celsius and Celcius thermostatic shower valves. It is used to operate the temperature side of the shower valve and restore the external control where the original handle is worn loose damaged scaled or cosmetically marked.

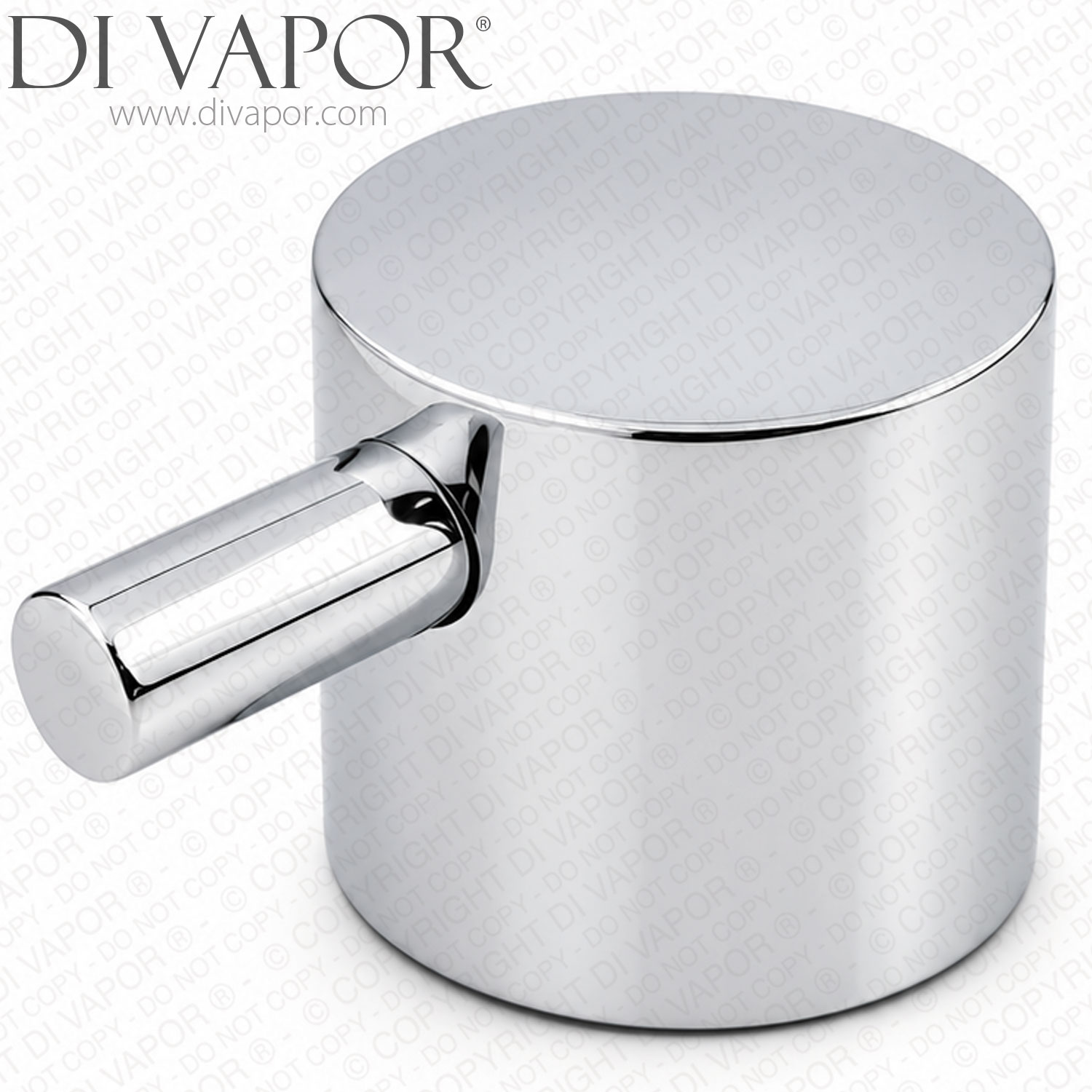

The handle is made from chrome finished stainless steel and includes the 38 degrees Celsius marker with a spring operated safety button. It is designed for cartridge spindle heads with 20 teeth and an approximate 7.5mm diameter but the valve model and original handle should still be checked before ordering.
Technical Details
- - Part Number: CEL-1/TEMP-C/P
- - Part type: temperature control handle
- - Finish: chrome
- - Material: chrome finished stainless steel
- - Spindle head detail: 20 teeth with approximate 7.5mm diameter
- - Temperature marking: 38 degrees Celsius marker beside spring operated button

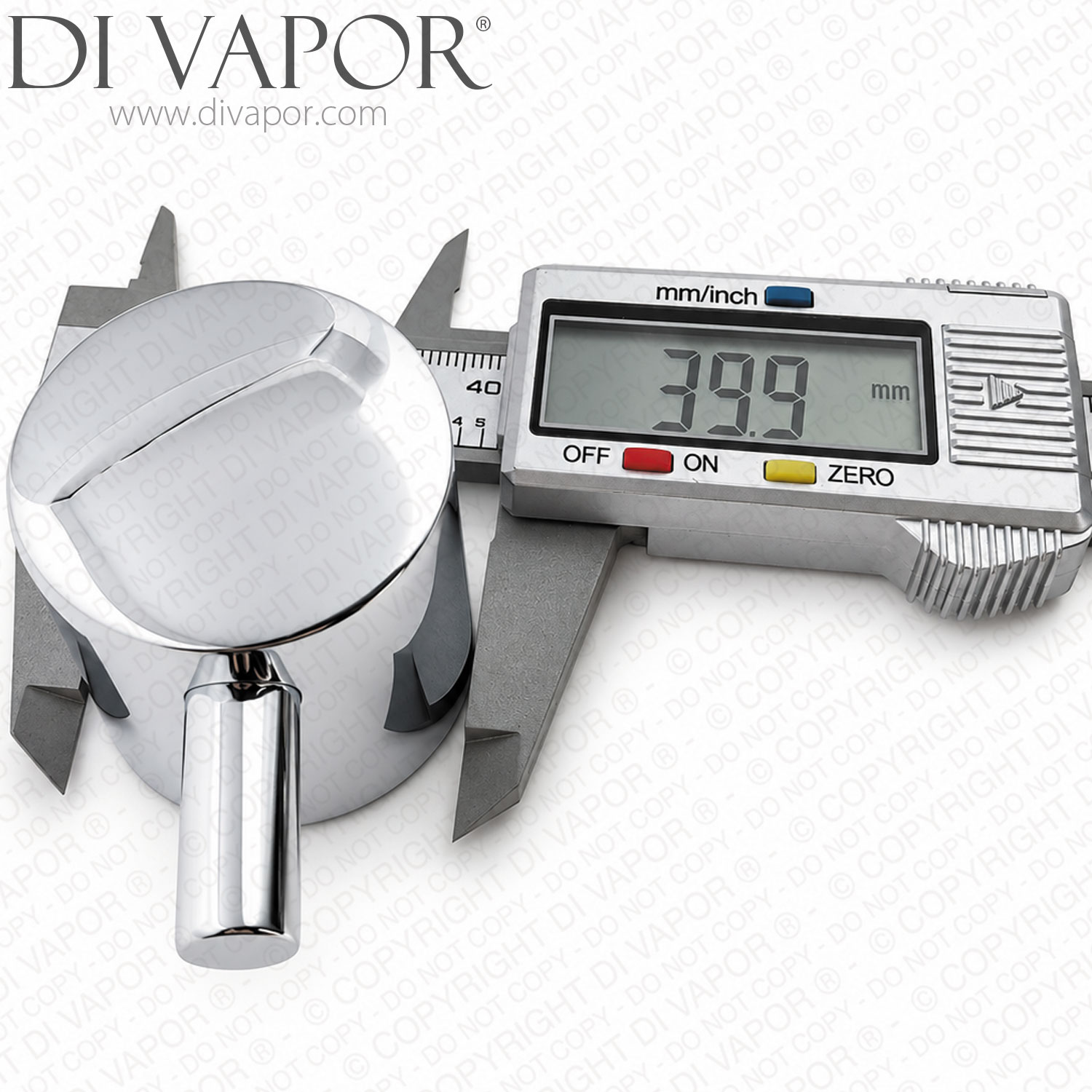

- - Body width: 40mm

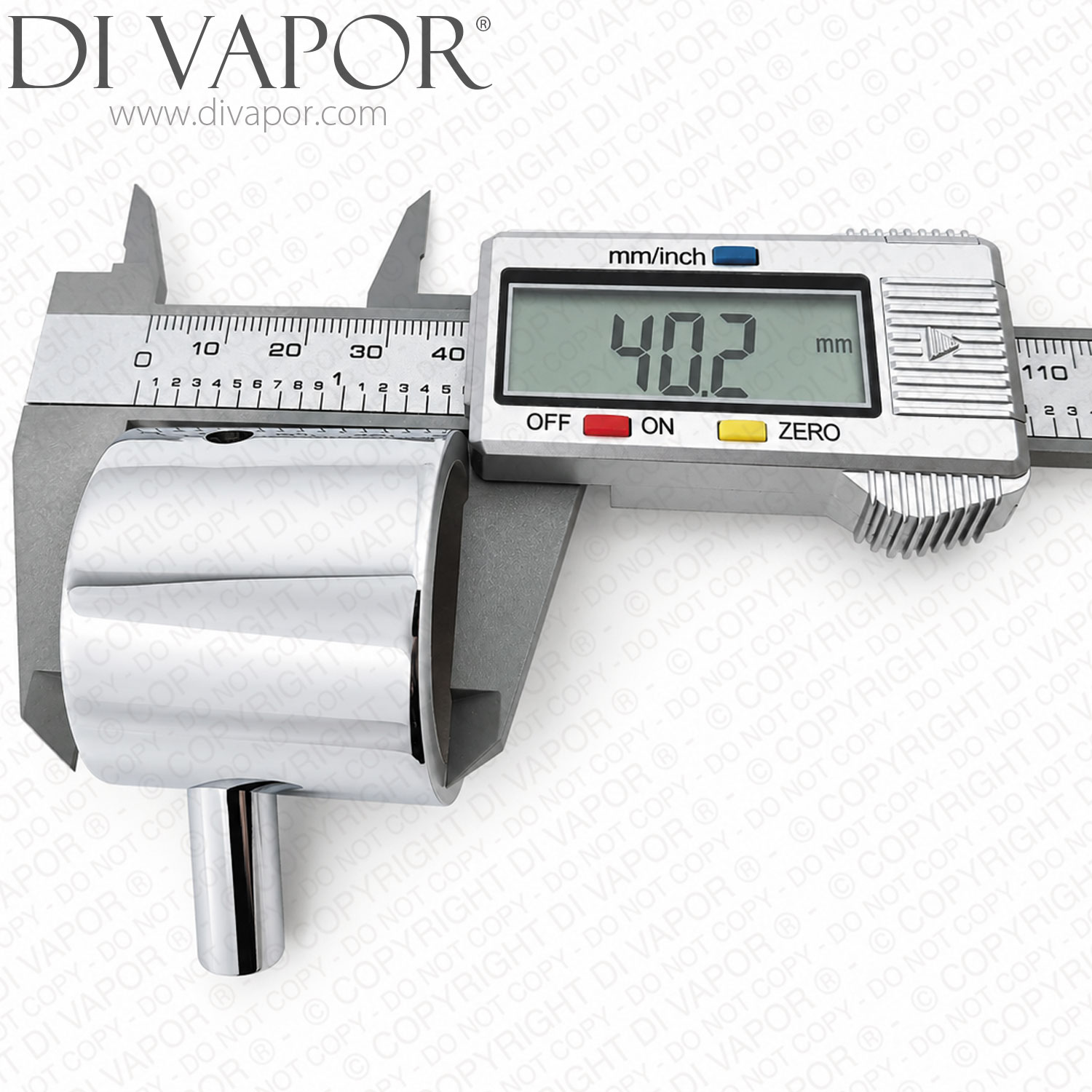

- - Height from top to bottom: 40mm
- - Width from lever end to opposite spindle side: 65mm

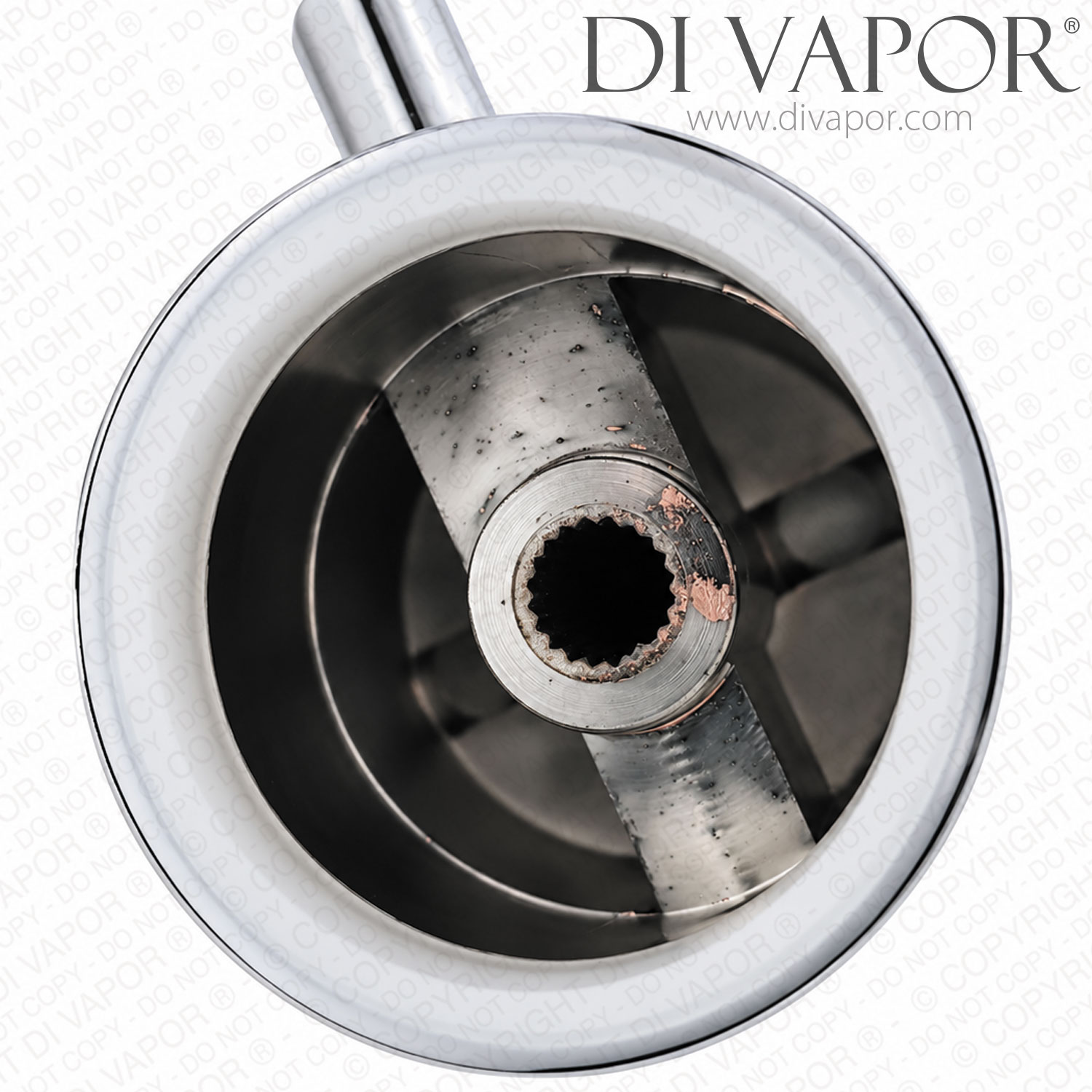

- - Internal detail: plastic insert sits at the bottom inside the handle
Before Ordering
- - Check the valve code and compare the original handle shape spindle tooth count and retaining screw position before ordering.
- - Do not order from spindle diameter alone because similar Vado handles and cartridges can use different spline counts or cartridge layouts.
Fitting Note
To remove the old temperature handle unscrew the lever by hand loosen the grub screw beneath the lever with a hex key press the spring operated button and withdraw the handle. Avoid moving the cartridge splines. Fit the replacement with the button positioned at 12 o'clock then tighten the grub screw and refit the lever.
Confirmed Compatible Models
- - Vado Celsius CEL-148B/2/RO Concealed 2 Way Thermostatic Shower Valve with Round Backplate
- - Vado Celcius CEL-148B/2/SQ 2 Way Thermostatic Shower Valve
- - Vado Celsius CEL-148B/3/RO Concealed 3 Way Thermostatic Shower Valve with Round Backplate
- - Vado Celsius CEL-148B/SQ-3/4-C/P Shower Valve
- - Vado Celsius CEL-148B/RO-3/4-C/P Concealed 2 Handle Thermostatic Shower Valve
Related Spares You May Need
- - Vado CEL-RETROFIT/B Retro-Fit Thermostatic Cartridge
- - VADO CEL-001B/B-WAX Thermostatic Cartridge for Celsius Nuance Notion Elements Shower Valves
- - VADO Celsius CEL-0023/B-C/P Temperature Shroud Used In All 148C Valves All 128C Valves
- - VADO Celsius CEL-0021/B-C/P Plate SecuRing Rings Used in all 148C Valves all 128C Valves
- - Vado CEL-PLA-936 Grub Screw and Allen Key Set
- - Vado CEL-1/FLOW-C/P Flow Control Handle On Off for 7.5mm 20 Tooth Spindle Heads
- - VADO Celsius CEL-0022/B-C/P Flow shroud Used in all 148C Valves all 128C Valves
- - Vado CEL-0010/RO-C/P Shower Valve Faceplate
- - VADO CEL-001B-WAX Thermostatic Cartridge for Celcius Shower Valves
