Meynell SPEL0003J Element Assembly (Mira)

SUMMARY

Meynell SPEL0003J Element Assembly (Mira)

Associated parts: SPHD0013J, SPSL0003J

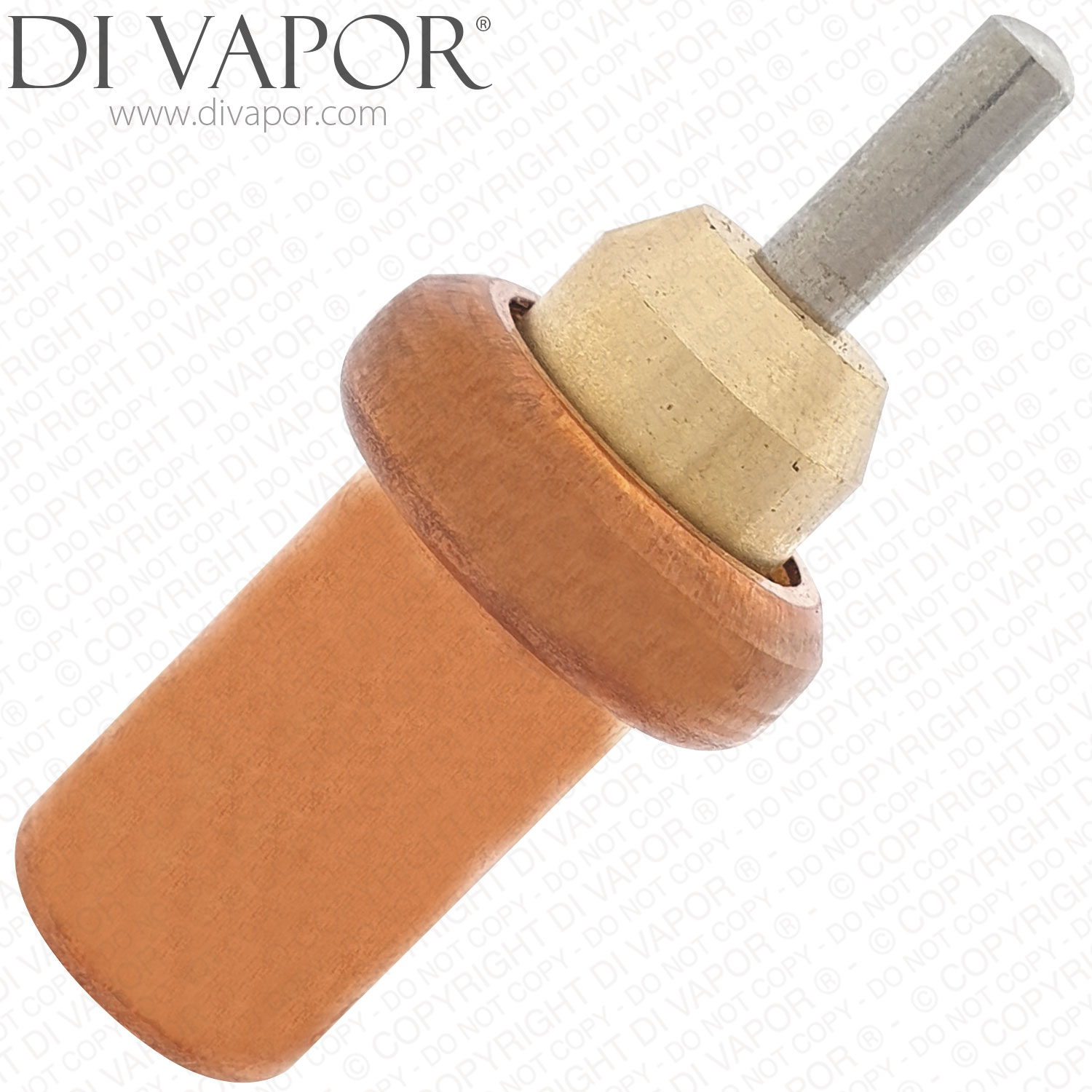

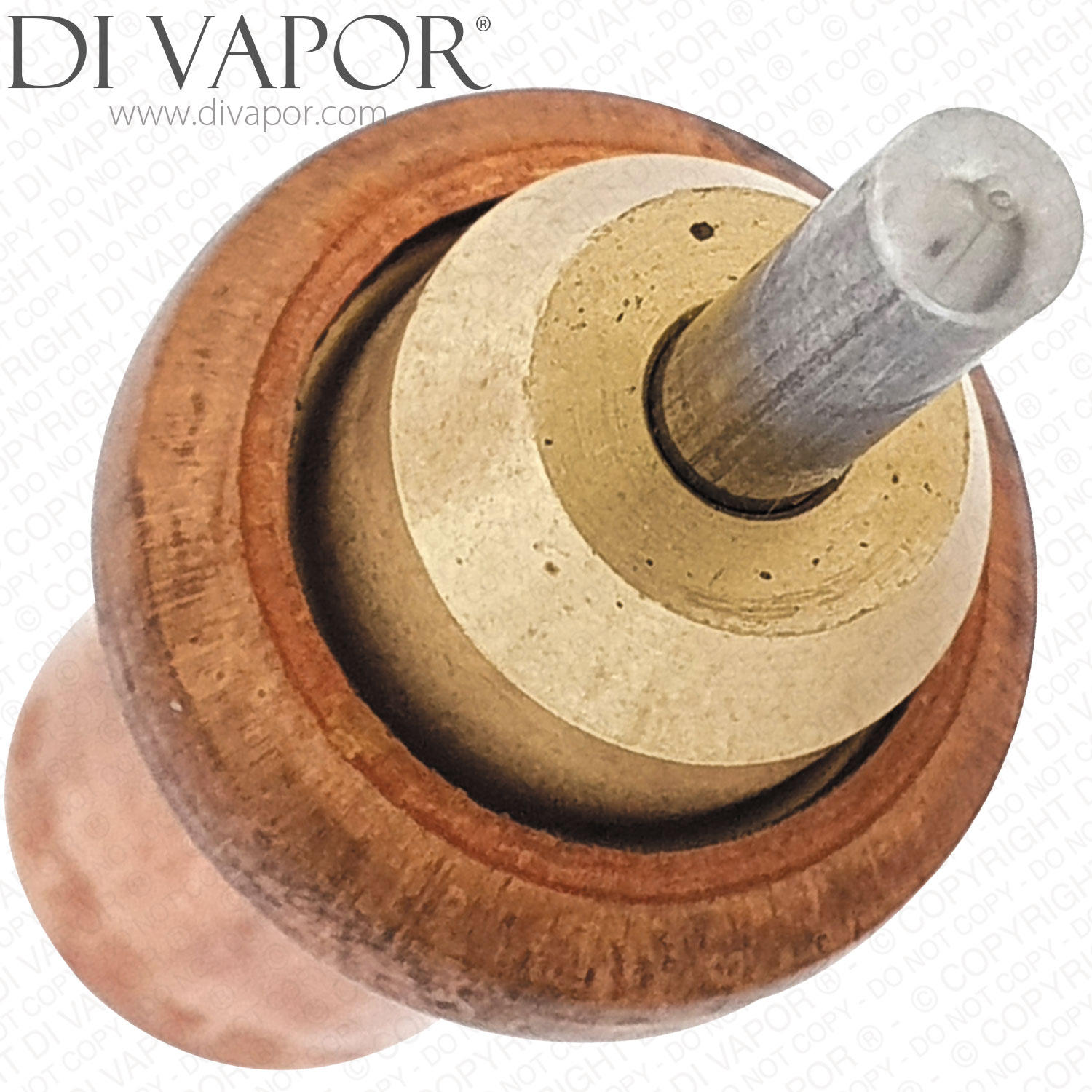

The Meynell SPEL0003J element assembly is a thermostatic wax element used within selected Mira and Meynell thermostatic shower temperature-control assemblies. It is the temperature-sensing element that helps the valve react to changes in hot and cold supply conditions so the mixed showering temperature can be controlled correctly.

This spare is intended for repair of the thermostatic control section rather than the full shower valve body. Check the existing element code and the valve spares diagram before ordering because similar Mira and Meynell assemblies can use different headwork, sleeve and element combinations.

Technical Details

- - Di Vapor Part Number: SPEL0003J

- - Part type: thermostatic element assembly

- - Application: thermostatic shower valve temperature-control assembly

- - Associated parts shown for the assembly: SPHD0013J and SPSL0003J

- - The element forms part of a wax capsule thermostatic control arrangement

- - Manufacturer service information shows the element area with a 17mm A/F spanner point

Confirmed Model Fitment

- - Mira Extra Bath Shower Mixer and Mira Extra BSM from 1998-current

- - Mira Mode thermostatic shower valves including surface mounted and recessed variants manufactured from August 2000

Before Ordering

- - Compare SPEL0003J against the removed element and the valve service diagram before purchase

- - Do not order this as a complete cartridge unless only the thermostatic element is required

- - If the shower has poor temperature control, fluctuating temperature or an incorrect maximum blend setting, also check the sleeve, seals, headwork and supply conditions

- - Hot and cold supplies should be correctly orientated and flushed before reassembly

- - Use silicone grease only on suitable static seals and O-rings during servicing

Related Spares You May Need

- - Meynell SPSL0003J Sleeve Assembly (Mira)

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
