Ultramix Trubert Eurotherm TX4 Cartridge (TX94E, TX94C, T/​X94CHP)

SUMMARY

Ultramix Trubert Eurotherm TX4 Cartridge (TX94E, TX94C, T/X94CHP, 10047814) - Flow Rate (Litres Per Minute): Minimum 5 - Maximum 175L

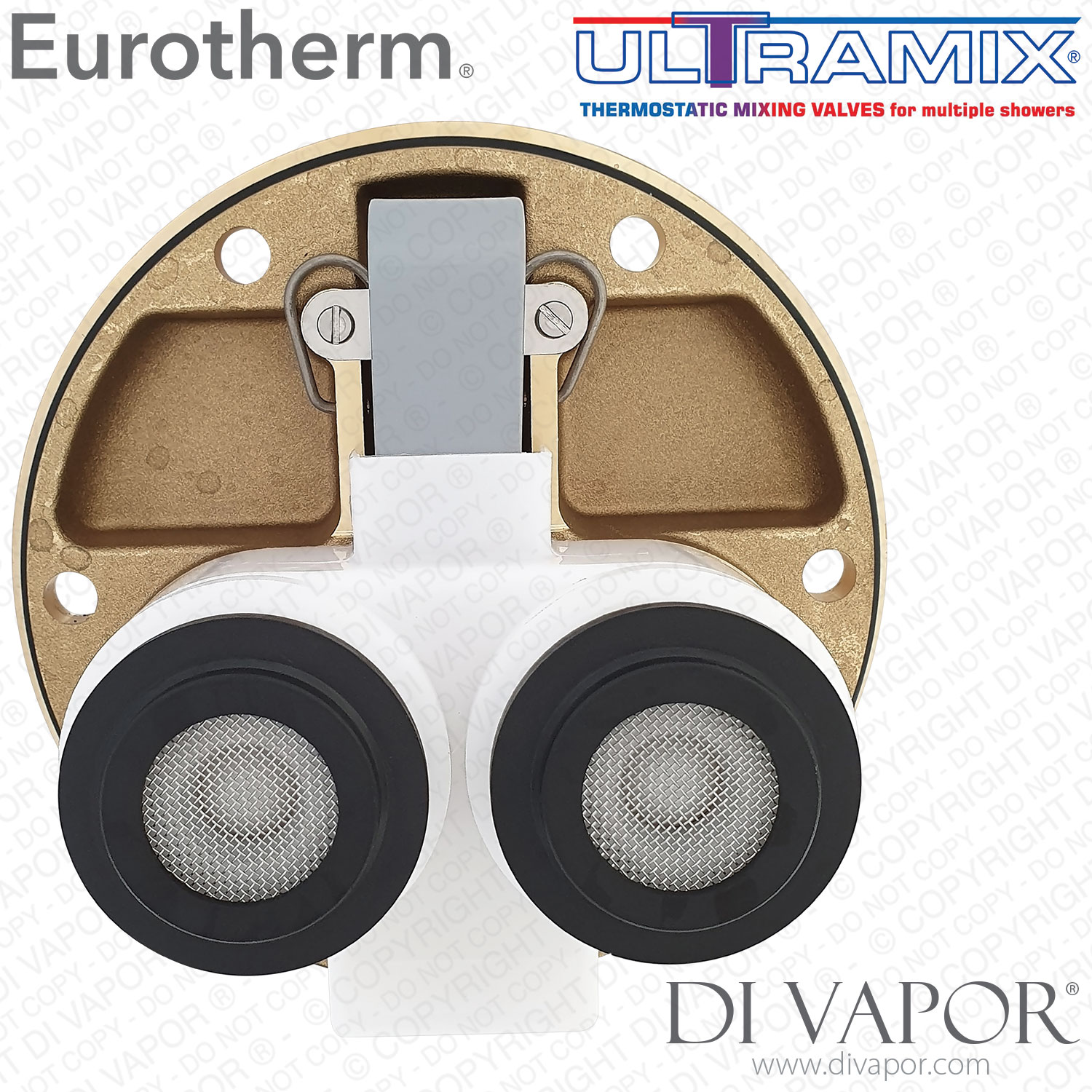

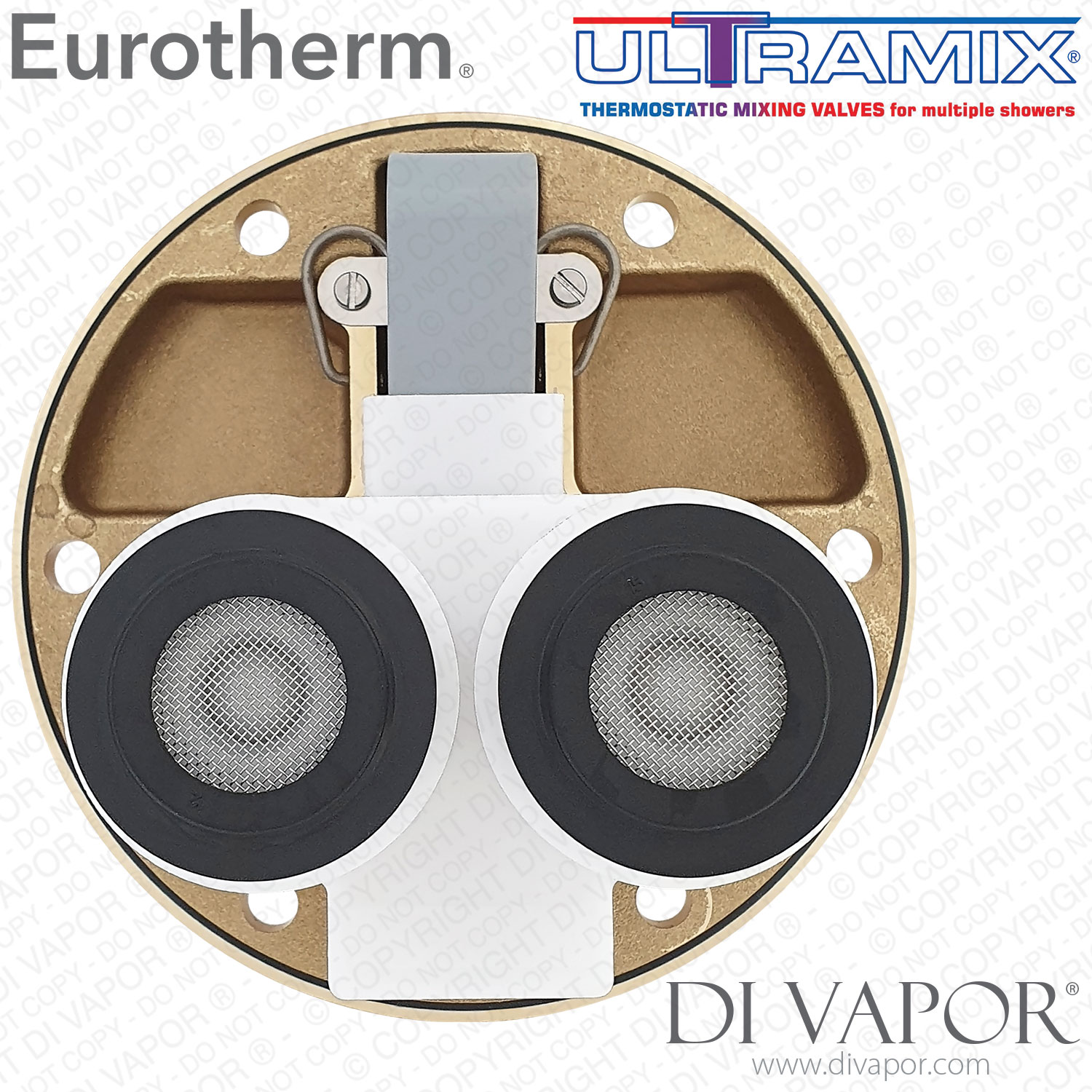

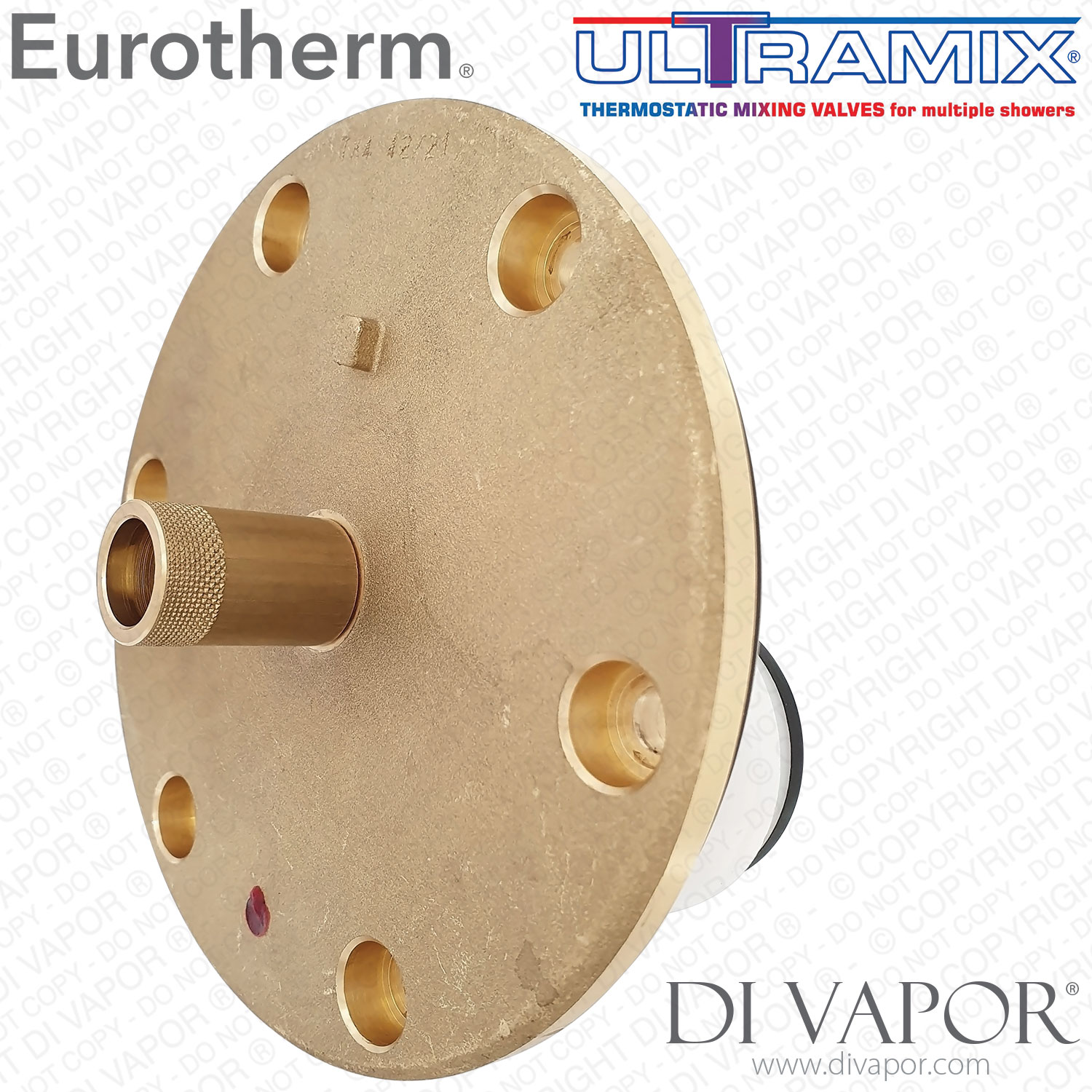

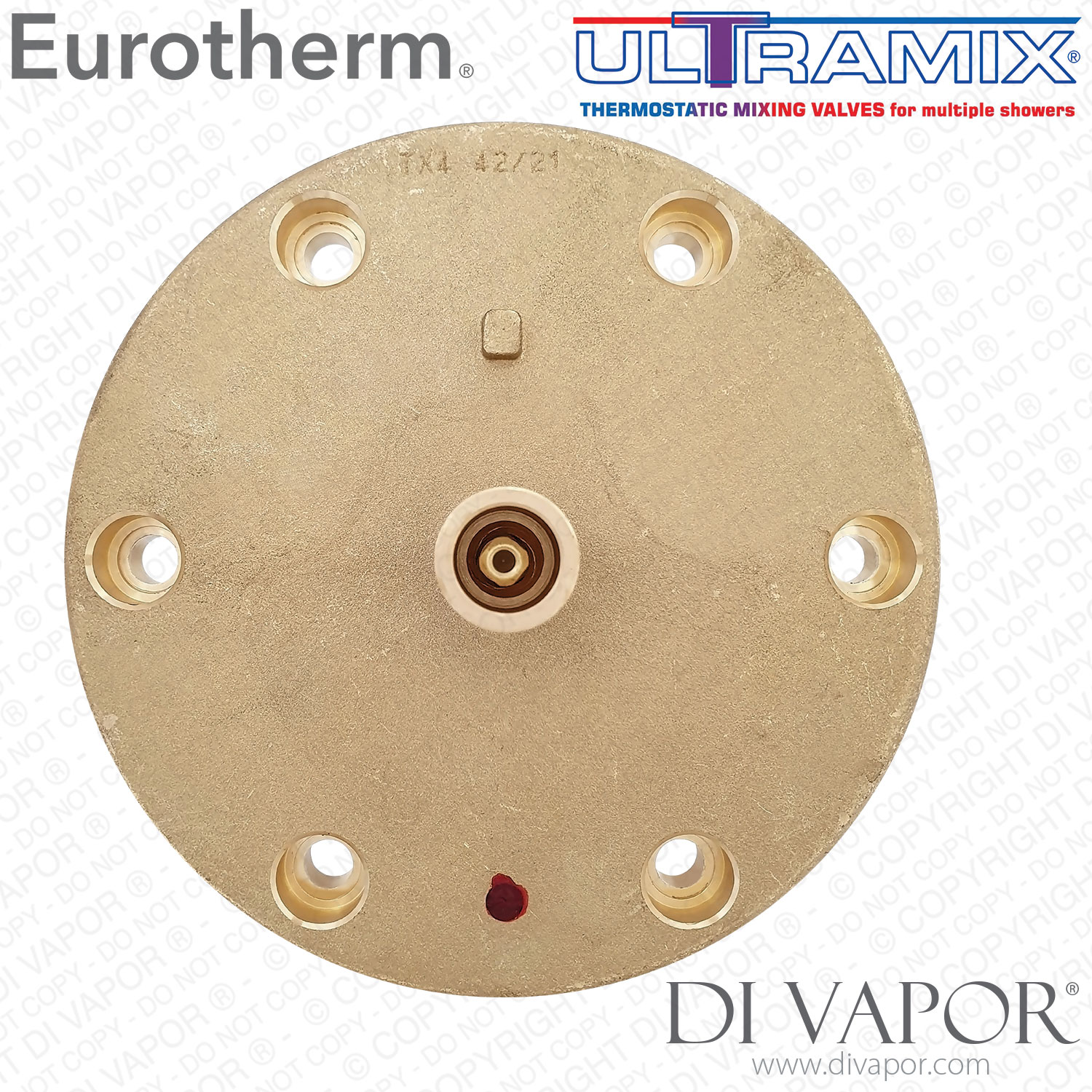

The Watts Industries Ultramix Trubert Eurotherm TX4 is a thermostatic replacement cartridge for TX90 Ultramix high-output thermostatic mixing valves using the 10 to 50 C TX94 cartridge set. This cartridge is associated with TX94E, TX94C, T/X94CHP, 10047814 and manufacturer reference 22TX4.

The cartridge controls blended outlet temperature inside the mixing valve and is used where the valve no longer regulates temperature correctly, becomes difficult to set, or needs cartridge replacement during servicing. Check the valve code and temperature range before ordering, as TX94E37 and TX94C37 use a separate 30 to 70 C cartridge and should not be matched to this TX4 listing.

Technical Details

- - Part Number: ET-TX4

- - Cartridge type: thermostatic replacement cartridge

- - Valve range: Ultramix Trubert Eurotherm TX90 high-output thermostatic mixing valves

- - Associated codes: TX94E, TX94C, T/X94CHP, 10047814, 22TX4

- - Temperature range: 10 to 50 C

- - Flow rate range: 5 to 175 L/min

- - Valve application size for TX94E and TX94C: 1.1/4 inch

- - Cartridge sizing: ØA 130 mm and ØB 139.5 mm

- - Function: bimetallic thermostatic temperature regulation for mixed water control

Confirmed Compatible Models

- - TX94E

- - TX94C

- - T/X94CHP

Before Ordering Check

Confirm the code on the existing valve or cartridge before ordering. Do not select this TX4 cartridge for TX94E37 or TX94C37 valves, as those are associated with the 30 to 70 C TX437 cartridge. If the valve code or temperature range cannot be read clearly, use the Find a Part service before ordering.
