Triton 83312670 Thermostatic Cartridge for Altessa, Eline, Mersey and Eldrino Shower Mixer Valves

Summary

Triton 83312670 Thermostatic Cartridge for Altessa, Eline, Mersey and Eldrino Shower Mixer Valves

The thermostatic cartridge is used in the following Triton models of shower mixers:

• Triton Altessa Bar
• Triton Eldrino
• Triton Elina Bar
• Triton Mersey Bar
• Triton Mersey Bar and Diverter

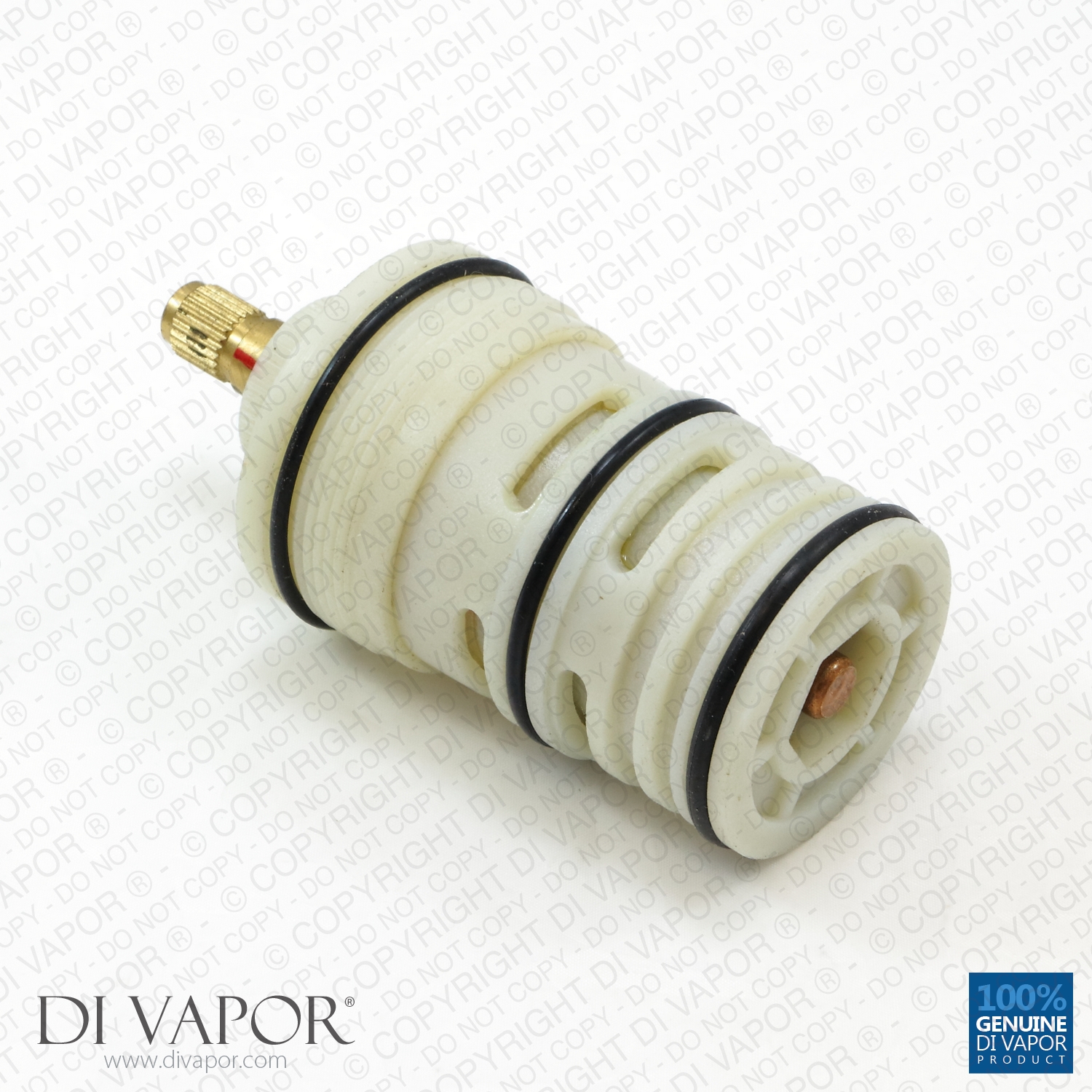

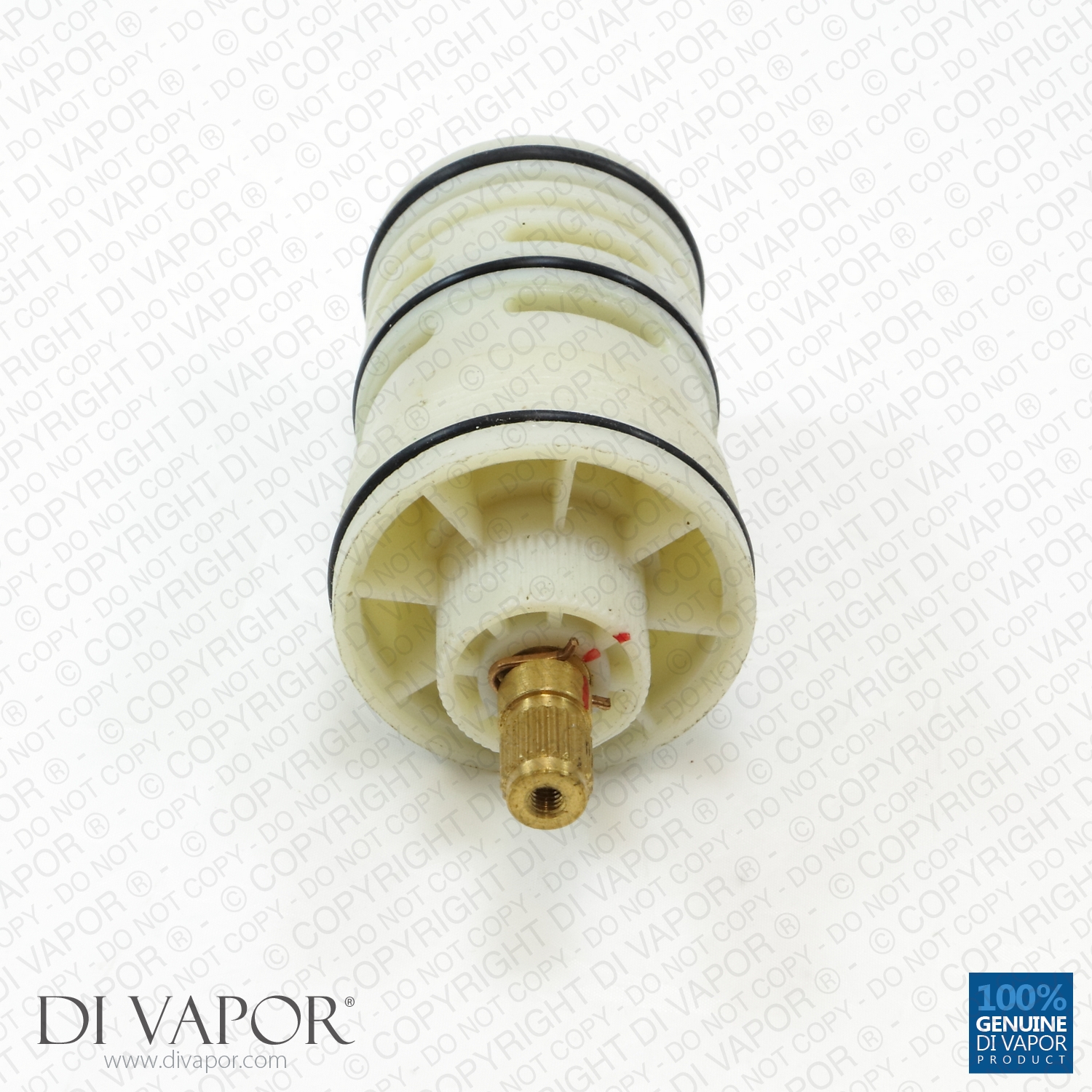

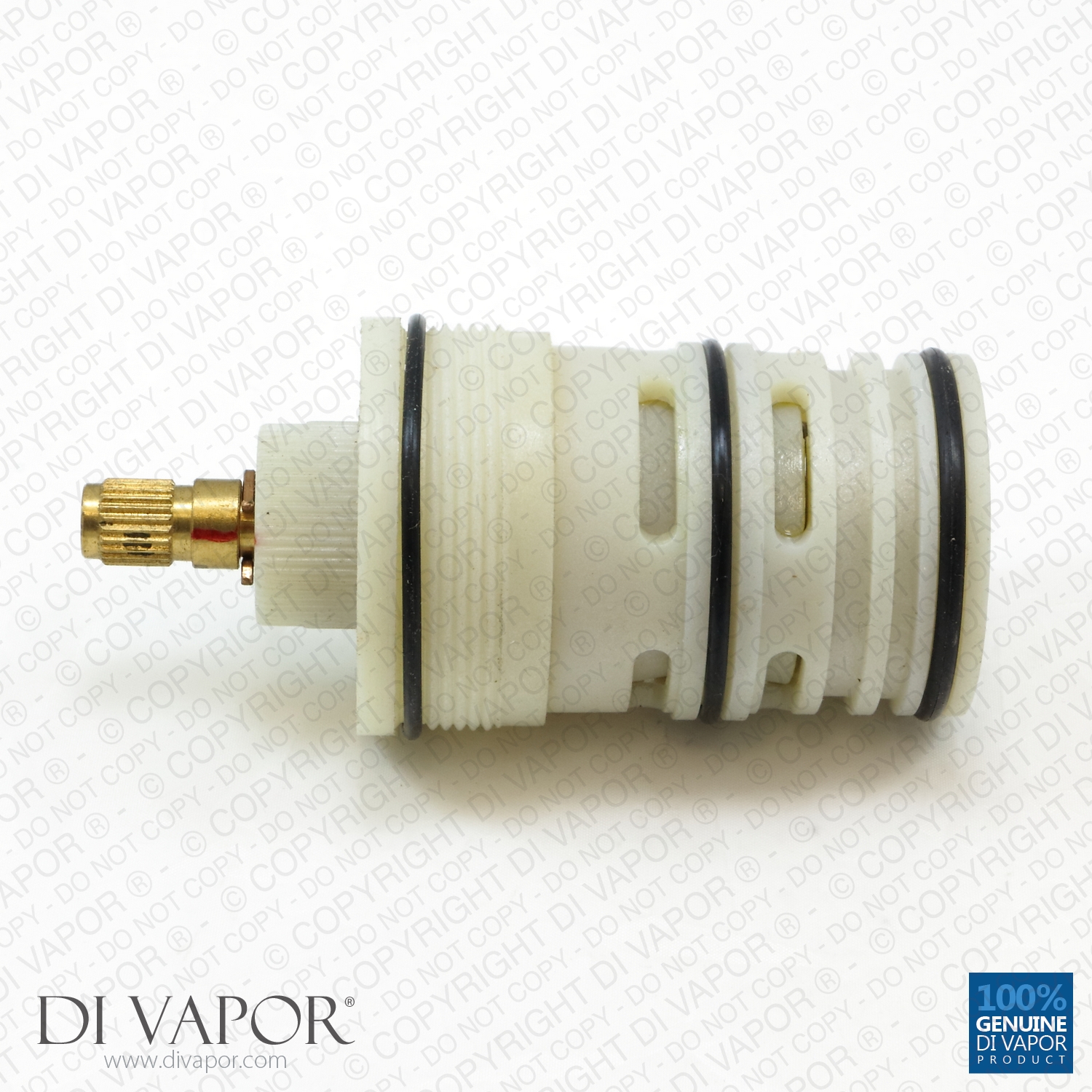

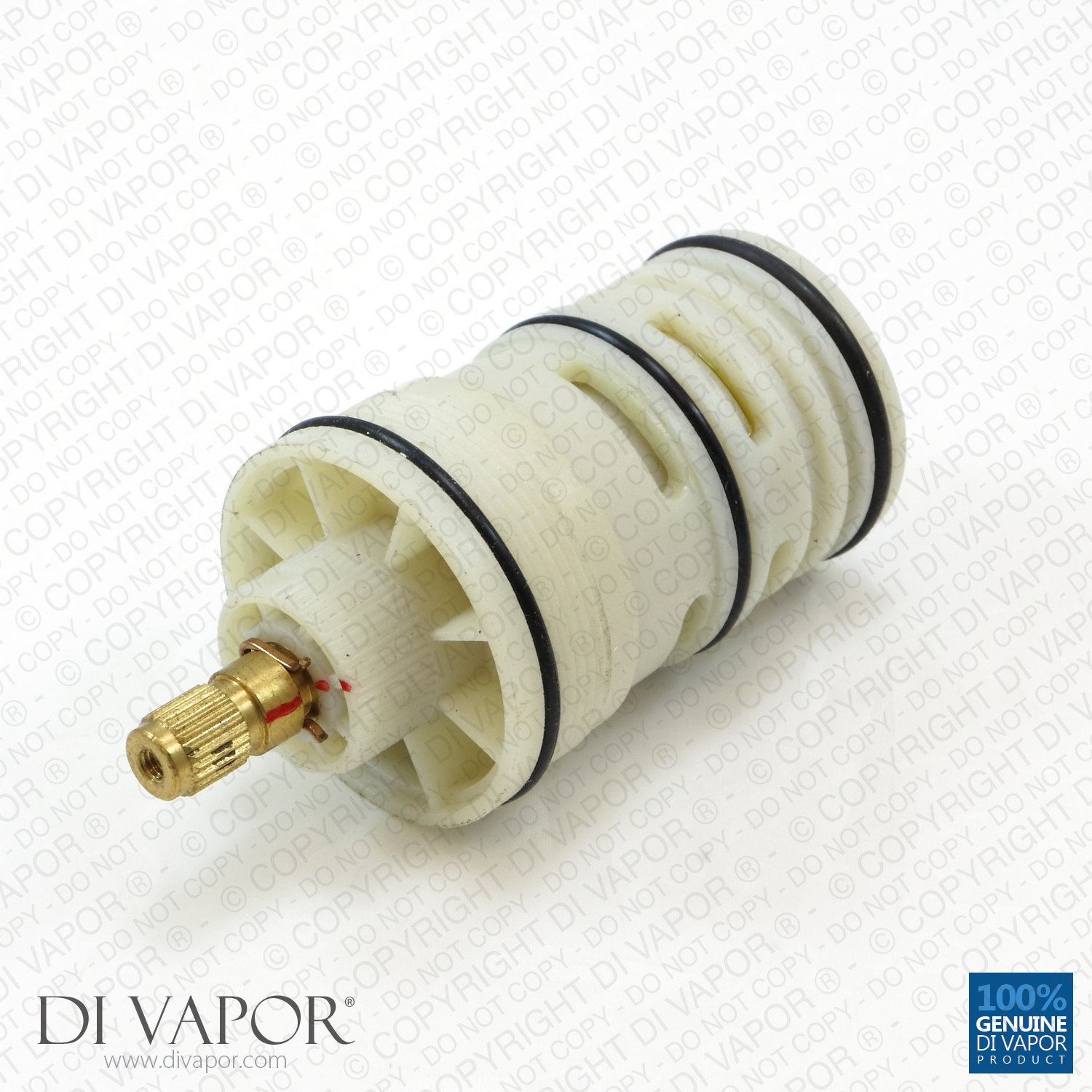

This is a plastic white polymer thermostatic cartridge and is a screw fit installation, usually used in shower bars.

To remove this cartridge rotate it anti-clockwise.

You will likely need a new thermostatic cartridge if the shower bar isn't outputting the correct water temperature. This can come in the form of too hot, too cold or temperature spikes (assuming there is a constant flow of hot and cold water to the valve). The 83312670 doesn't come with gauze filters, therefore blockages shouldn't be the issue.

Triton 83312670 Common Questions

Please pop us a message if you have further questions about the 83312670 Triton thermostatic cartridge replacement or need help matching shower or tap spares.

Our WhatsApp contact number is 07754 173340. Di Vapor’s accommodating spares experts will gladly respond to your queries. We are happy to serve you!

Question: How often should the 83312670 be changed? We’ve replaced ours four times in a year.

Answer: The Triton 83312670 is usually replaced after some years. If you have to replace the cartridge often there might be an excess in water pressure or the temperature is too high.

Question: Is this also the part for the Triton Mersey Built-In Shower?

Answer: Triton 83312670 is for the Triton Mersey bar shower. The part you are looking for is 83312810.

Question: How long is the 83312670 Triton thermostatic cartridge?

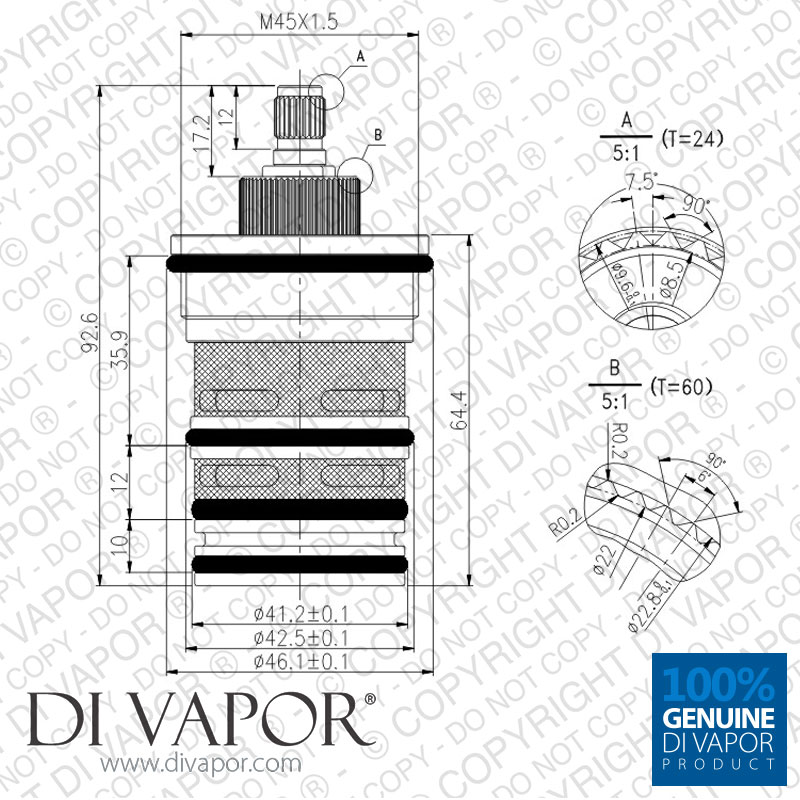

Answer: Triton 83312670 measures about 92.6 in height. For the complete measurement information please view the second photo in the gallery above.

How-To: Replacing the Triton 83312670 Thermostatic Cartridge

Triton 83312670 fits in the bar valve version of the Altessa, Eline, Mersey and Eldrino. Please isolate hot and cold water supply before starting the shower repair.

1. Remove the handle of the bar shower mixer valve.

• For the Triton Altessa and Elina: Unscrew the handle lever and loosen the grub screw to remove the handle body.
• For the Triton Eldrino and Mersey: Pop out the small circular screw cover at the side of the temperature control handle. Then, undo the screw to separate the handle from the valve.

2. Before removing the temperature stop ring, please make sure you remember the position of the “stop” (i.e. the elevated part on the face of the plastic stop ring). This part has to be returned in the same position; at 12:00. Remove the temperature stop ring.

3. Use an adjustable spanner to rotate the spent Triton 83312670 cartridge anti-clockwise to remove it from the valve.

4. Install the replacement 83312670 thermostatic cartridge and reassemble the valve handle.

The 83312670 Triton thermostatic cartridge and other Triton Shower Spares are dispatched on the same business day for purchases made before 3:00 PM (M-F).
