Thermostatic Cartridge for Shower / Steam Shower TMV Temperature Brass Valve Push-Fit 3 O Ring
Send a photo of your item and we'll help confirm it.
Summary
We deliver this part worldwide.

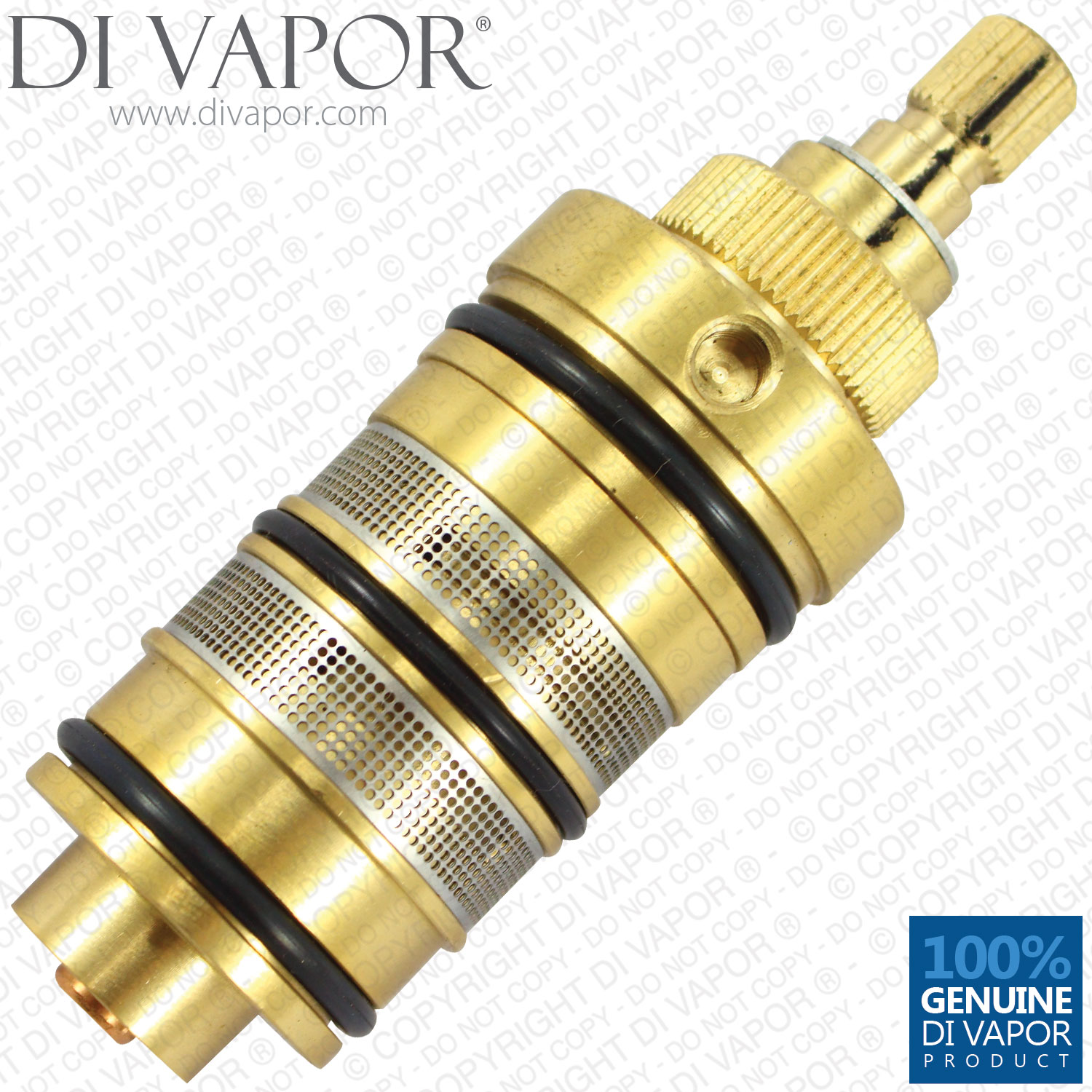

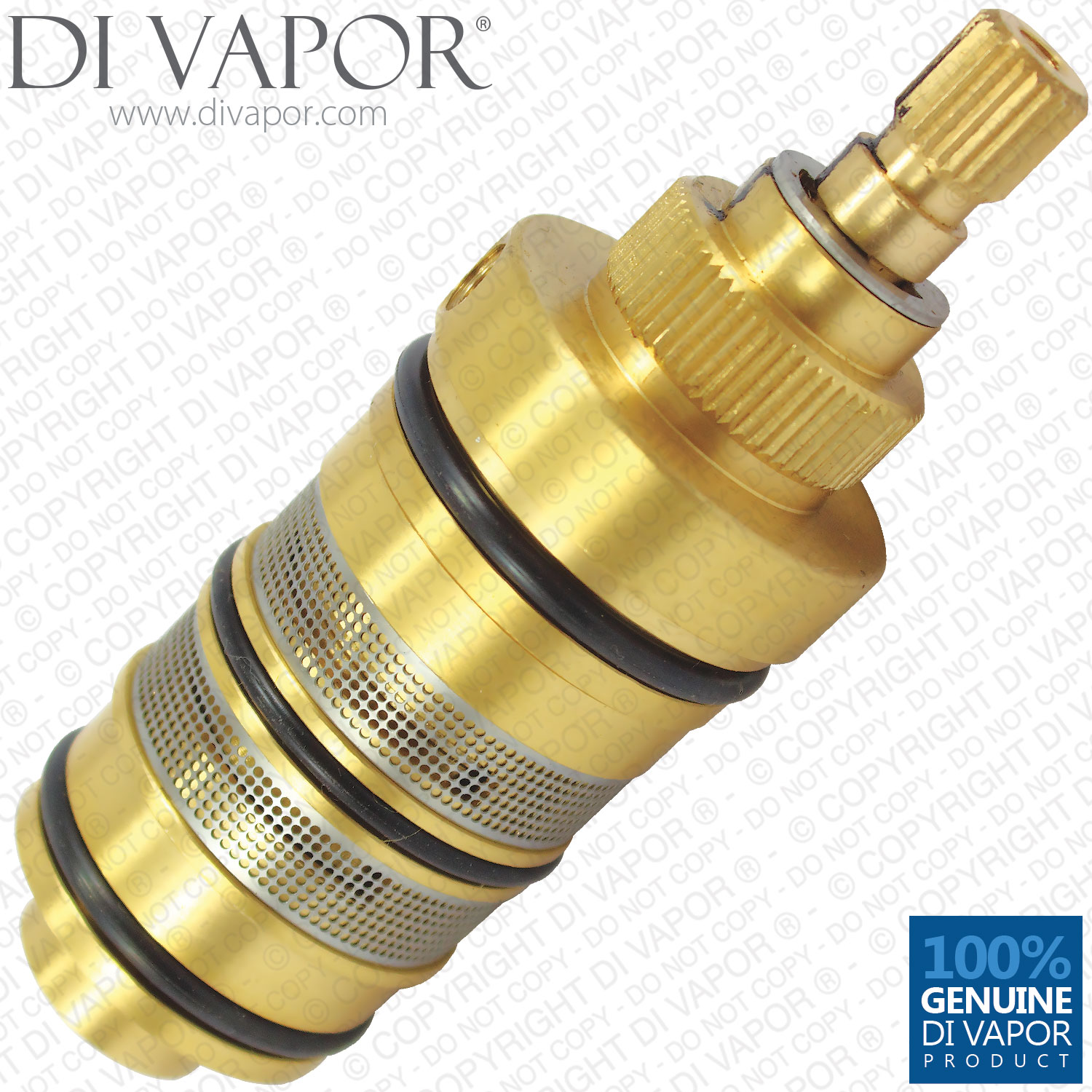

A generic thermostatic cartridge which is compatible to many different shower and bath valve brands and models. This brass / stainless steel thermostatic cartridge uses a wax element which is manufactured by Vernet in France. This fits into some many diverter mixer sets and can act as a replacement for thermostatic valves which have stopped working. They are often used on steam showers. Further to showers, this cartridge is also used on mixer valves used on baths.
The top spline has 24 teeth and the second toothed spline has 60 teeth.

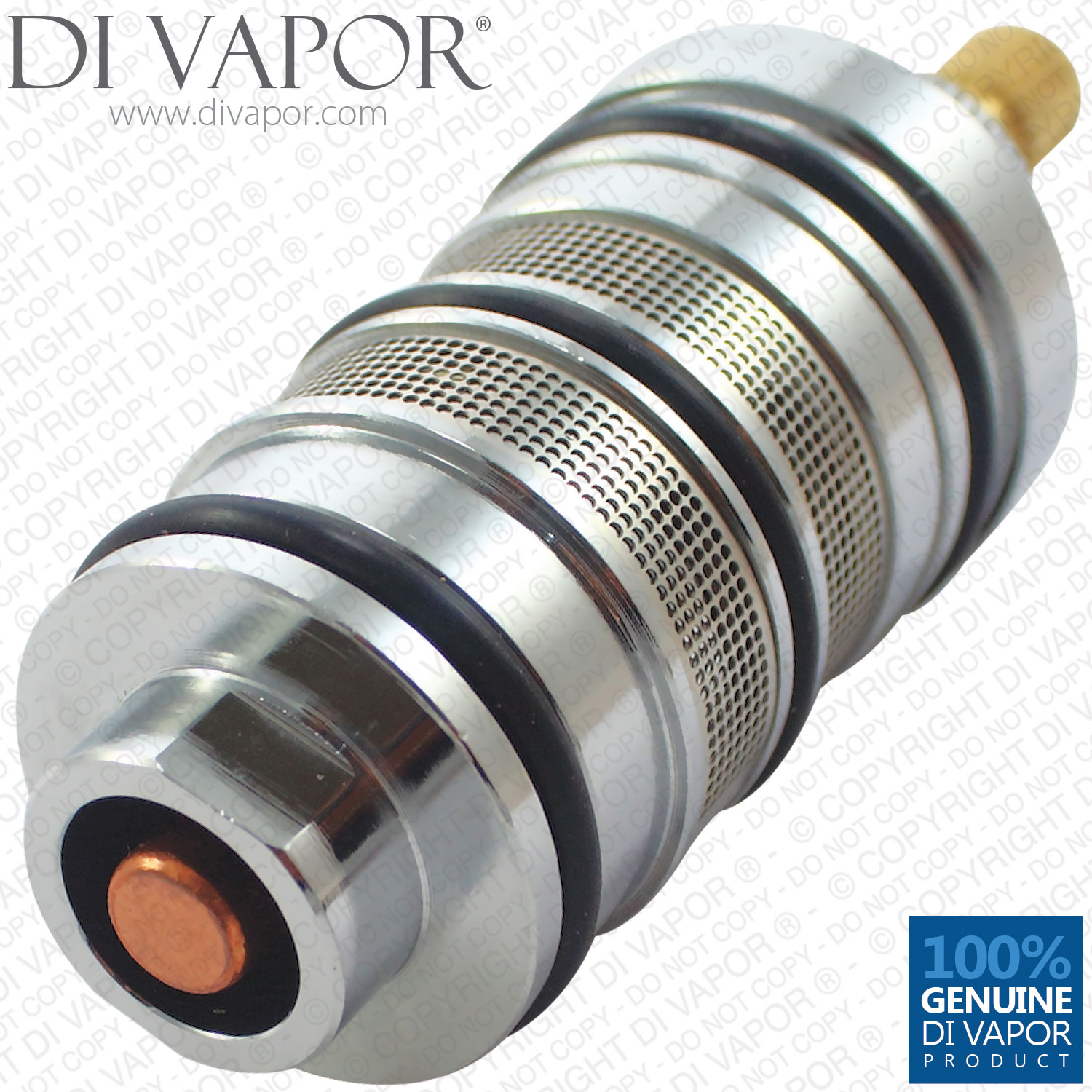

Please note, this thermostatic cartridge comes in both a brass gold and a silver colour, however both are to the same specifications and operate exactly the same. The silver coloured version of this cartridge is made out of stainless steel.
Technical information on the thermostatic core:
| Dynamic Pressure | 1 bar ≤ P ≤ 5 bar (0.5 bar minimum) |
|---|---|
| Static Pressure | 10 bar maximum |
| Hot Water Temperature | 95°C maximum (55°C ≤ Temperature ≤ 65°C) |
| Cold Water Temperature | Temperature ≤ 25°C |
| Safety Stop (Temperature) | 38°C |
| Life | ≥ 100,000 cycles |
| Temperature Accuracy | ±1.5°C |
Flow Information:
Flow Rate:
| Full Cold | 23 l/min |
|---|---|
| 34°C | 25 l/min |
| 38°C | 30 l/min |
| 42°C | 25 l/min |
| Full hot position | 22 l/min |
Discharged hot water volume as cold water failure (average data of 30 samples)
Discharged hot water volume:
| Five Seconds | 60ml |
|---|---|

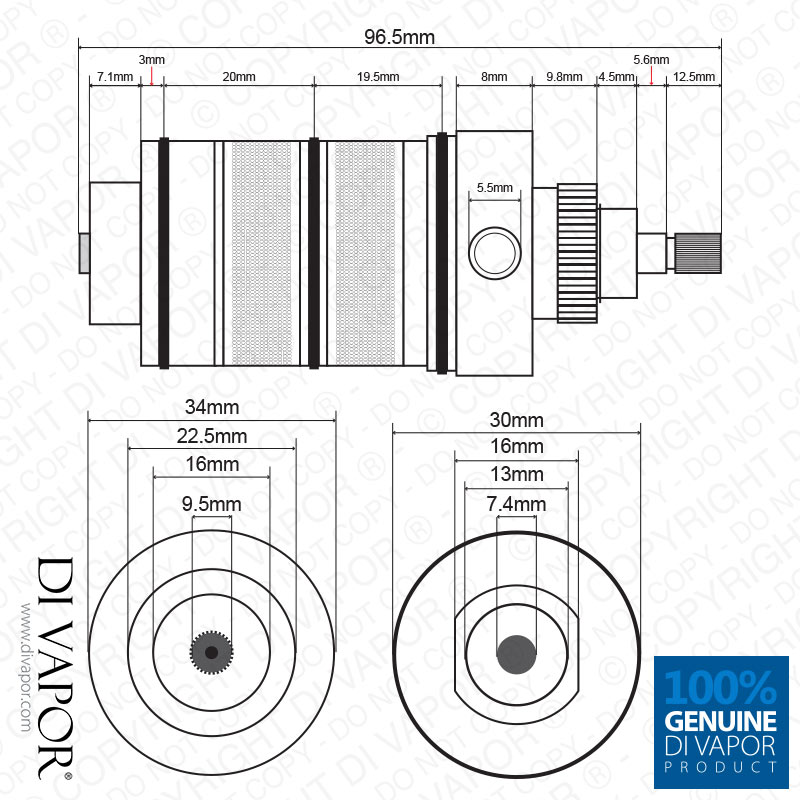

| Dimensions | 95mm (height) x 33mm (width at widest point) |
Colour or finish may vary
