Product description

SUMMARY

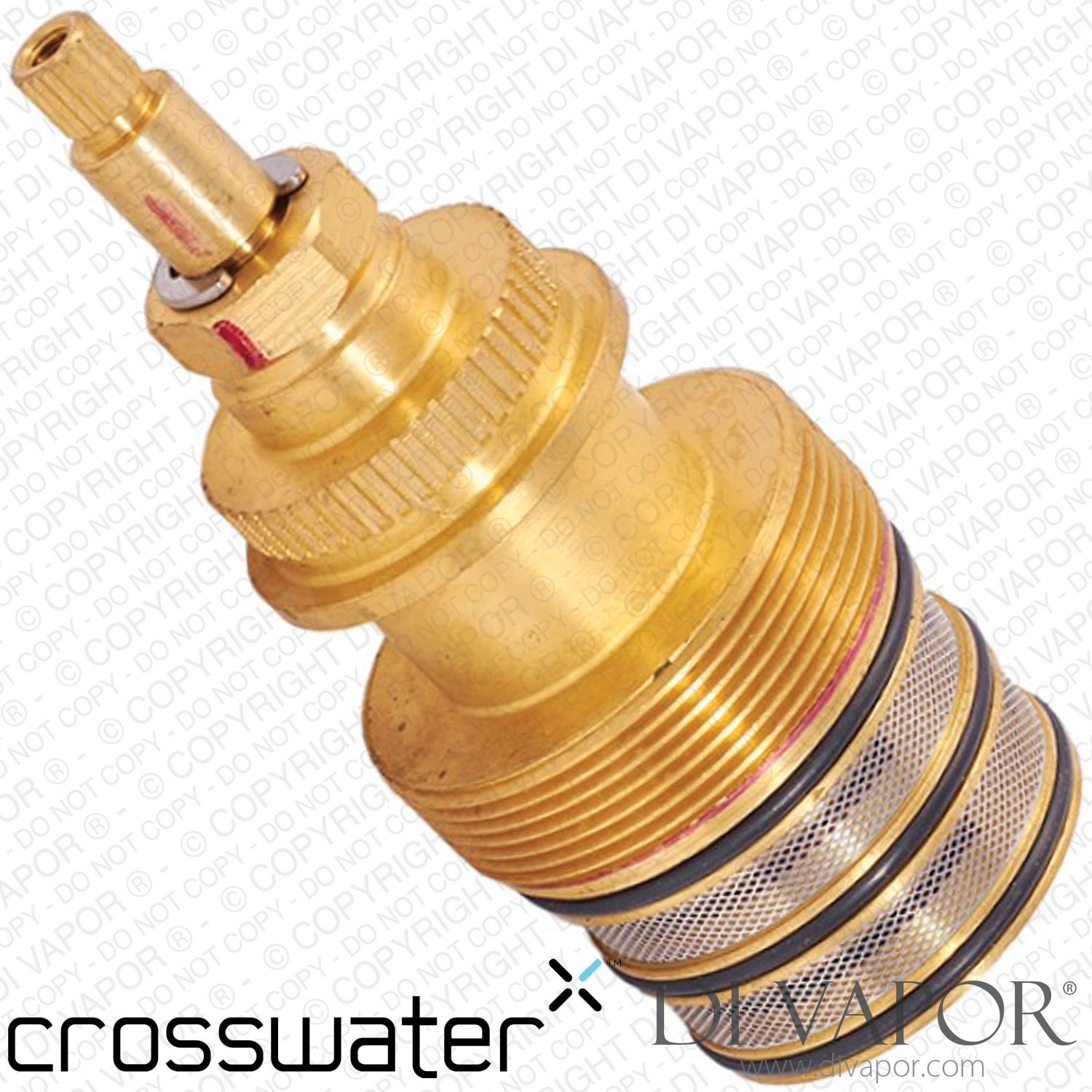

SPACW0004 Crosswater RV1103RC Thermostatic Cartridge for Traditional Recessed Shower Valves

The Crosswater SPACW0004 is a screw-in thermostatic cartridge for Crosswater SOL RV1102RC and RV1103RC recessed shower valves.

It regulates the blend of hot and cold water inside the valve to help maintain the selected showering temperature. A worn or seized thermostatic cartridge can cause fluctuating water temperatures or make the temperature control difficult to turn.

Technical Details

- - Part Number: SPACW0004

- - Part type: thermostatic shower cartridge

- - Material: brass

- - Installation: screw-in

- - Number of O-rings: 3

- - Length: 97.7mm

- - Cartridge diameter: 38mm

- - Spline diameter: 7.7mm

- - Number of splines: 20

- - Associated cartridge reference: GP0012174

Confirmed Compatible Models

- - Crosswater SOL RV1102RC recessed shower valve

- - Crosswater SOL RV1103RC recessed shower valve

For other parts in the same system, see the Crosswater Sol Recessed Shower Spare Parts - CW DV 172.

Before Ordering

Check the SPACW0004 reference and shower valve model, then compare the existing cartridge with the product photographs and dimensions. Match the threaded fitting, spline profile and O-ring arrangement as well as the length and diameter.

If water continues to drip from the shower head when the flow control is fully closed, check the separate on/off flow cartridge as well. Confirm which component is causing the fault before ordering.

Fitting Notes

Isolate the hot and cold water supplies before removing the cartridge. Unscrew the existing cartridge anti-clockwise and install the new cartridge clockwise. Apply a thin coating of suitable plumbing silicone grease to the O-rings, then check for leaks and correct temperature control after restoring the water supplies.

Related Spares You May Need

These items are supplied separately. Match any flow cartridge, non-return valve or hose to the existing part before ordering.

- - TACSIL 3g WRAS Approved Silicone Grease - Part Number: TAC86 - for lubricating cartridge O-rings during fitting

- - GROHE 2g SYNTHESO LM 220 Silicone Grease 18007031 - Part Number: GR-18007031 - an alternative grease option for lubricating seals

- - Crosswater GP0012052 3/4 Inch Ceramic Disc Flow Cartridge - Part Number: GP0012052 - the separate on/off flow-control cartridge for the Sol Recessed shower

- - Crosswater IBNRV Non-Return Valve - Part Number: IBNRV - a separate valve component supplied individually

- - JH90948 54mm Anti-Clockwise Open Flow Cartridge - Part Number: JH90948 - check the dimensions, spindle, sealing arrangement and closing direction against the existing flow cartridge

- - NXT734 150mm Shower Hose - Part Number: NXT734 - check the required hose length and end fittings before ordering

If you are unsure which part you need, use our part identification service for help.
