Crosswater GP0012052 Ceramic Disc Cartridge - 3/​4 Inch On/​Off Cartridge Compatible Spare

SUMMARY

Crosswater GP0012052 3/4 Inch Ceramic Disc Flow Cartridge for Sol Recessed Showers - Compatible Spare

This GP0012052 compatible spare is a 3/4-inch ceramic disc flow cartridge for the Crosswater Sol Recessed shower valve. It provides an alternative to the discontinued original Crosswater GP0012052 cartridge and operates the shower's on/off flow control.

The cartridge opens and shuts the water flow; it is not the separate thermostatic cartridge that regulates the shower temperature. Water continuing to drip from the shower head when the flow control is fully closed can indicate that the flow cartridge's ceramic discs or seals are no longer sealing correctly.

Technical Details

- - Part Number: GP0012052

- - Part type: ceramic disc flow control cartridge

- - Nominal size: 3/4 inch

- - Function: on/off water flow control

- - Application: Crosswater Sol Recessed shower valve

- - Product status: compatible spare

Confirmed Compatible Models

- - Crosswater Sol Recessed Shower - CW DV 172

Before Ordering

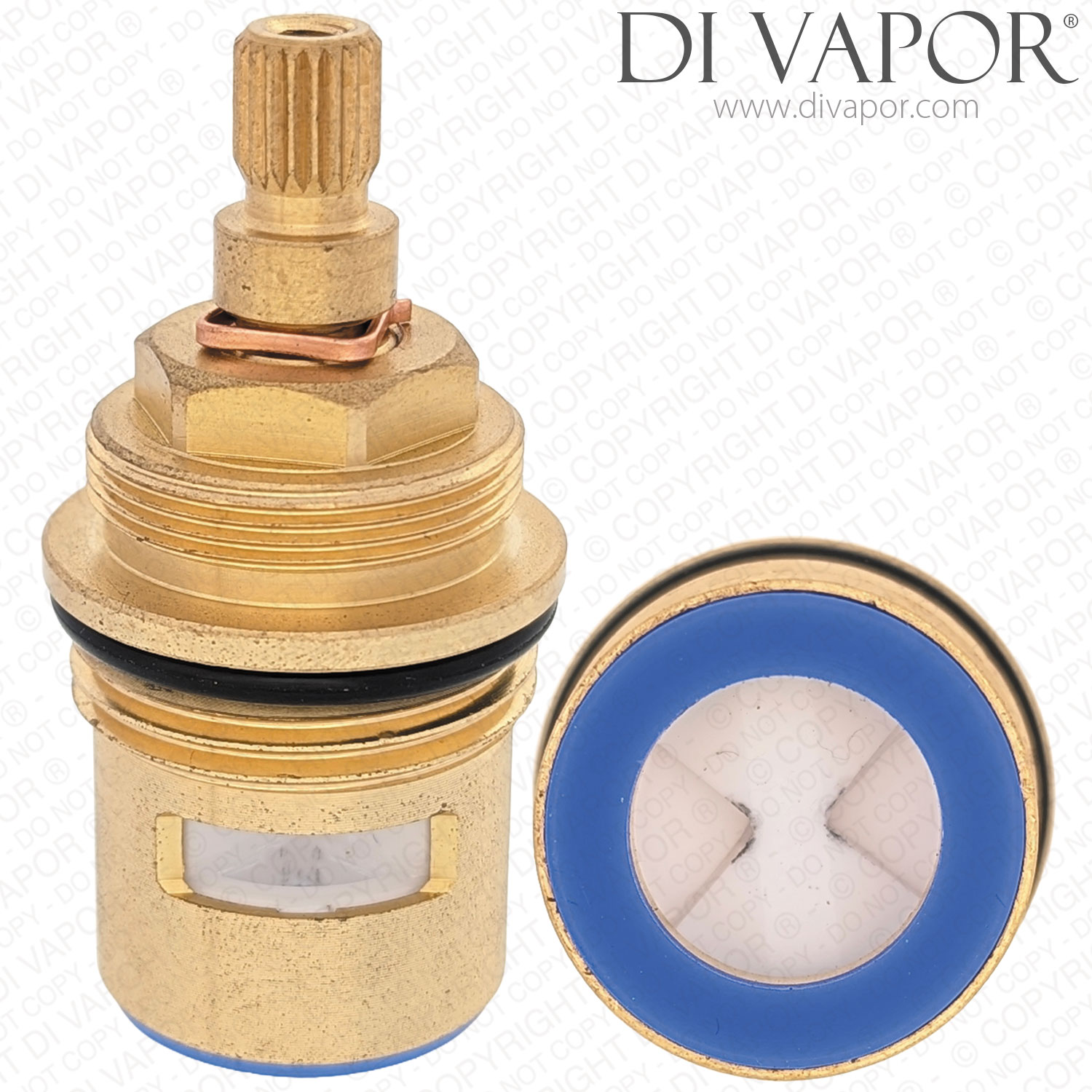

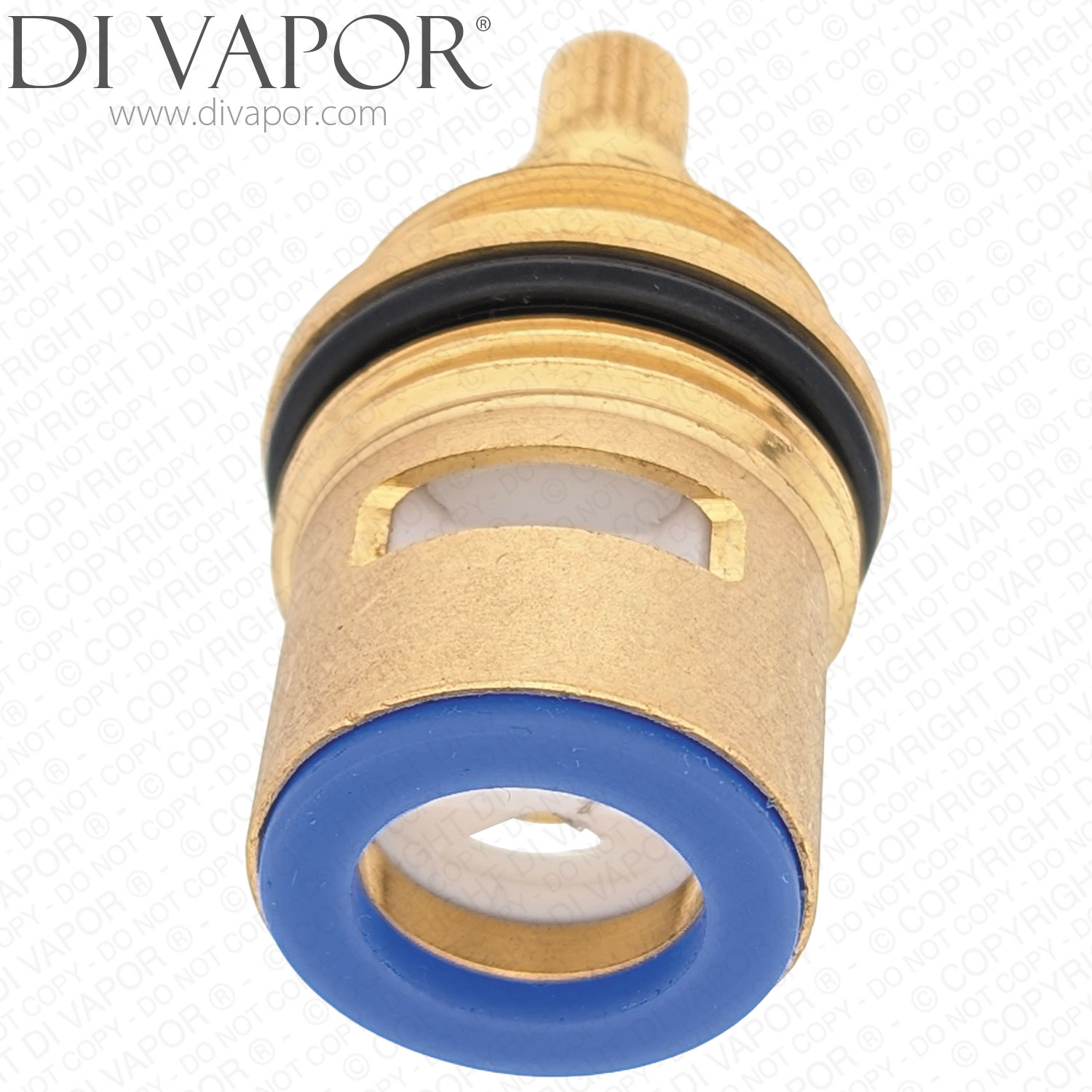

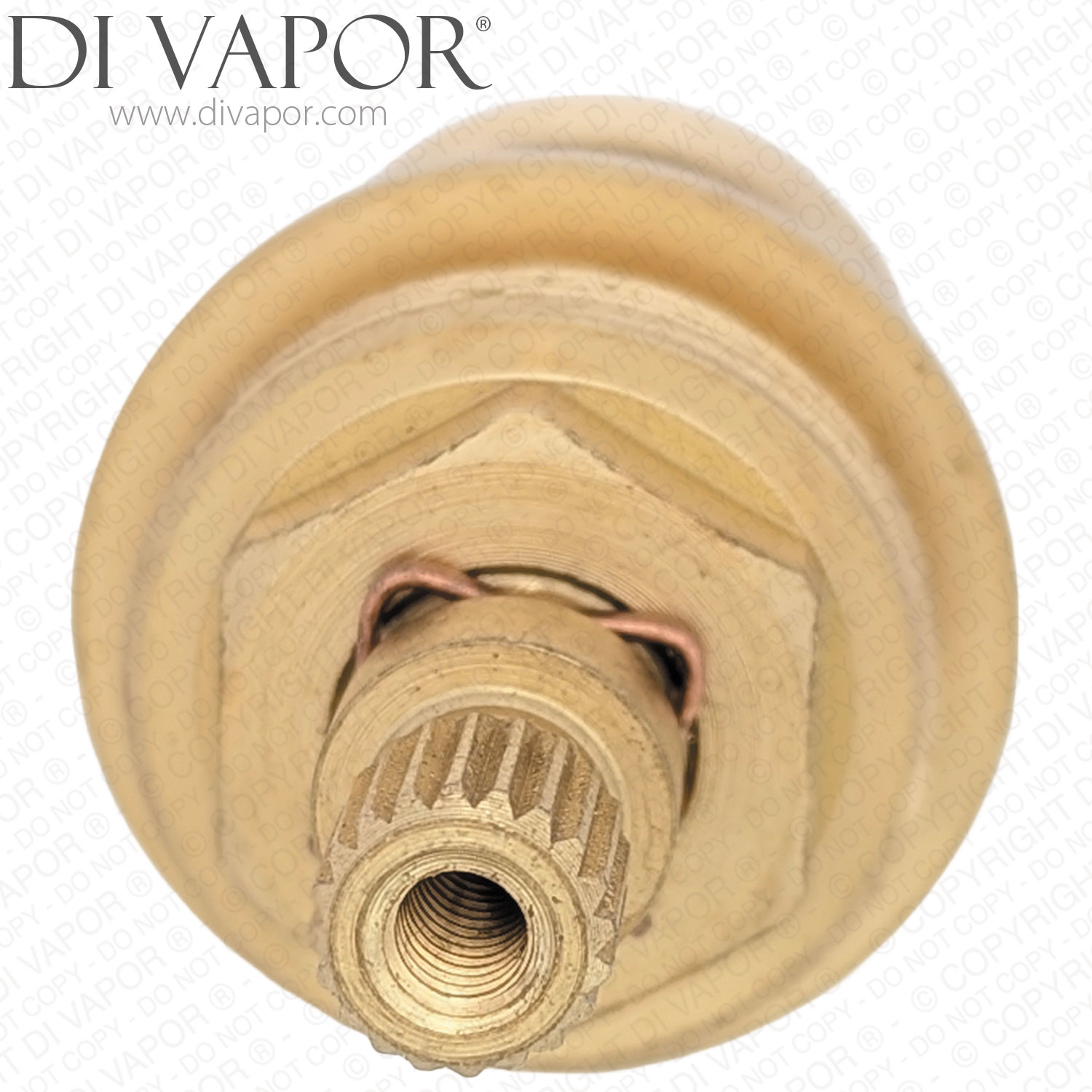

Check the GP0012052 reference and compare the existing cartridge with the product photographs. Check the overall length, spindle length, spline count, spline diameter, threaded fitting, sealing arrangement and closing direction. The 3/4-inch size alone does not establish fitment, and other Crosswater shower valves may use different flow cartridges.

Make sure you need the on/off cartridge rather than the thermostatic cartridge or a non-return valve. A temperature-control fault requires separate diagnosis and should not automatically be treated as a flow-cartridge fault.

Fitting Notes

Isolate the water supplies before removing the existing cartridge. Check the valve seating area for debris and apply a small amount of suitable silicone grease to the cartridge O-ring and bottom seal during installation. After fitting, restore the supplies and check for leaks and correct shut-off.

Related Spares You May Need

These items are available separately for installation or repairs to other components in the same shower valve.

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - Part Number: TAC86 - for lubricating the cartridge O-ring and bottom seal during fitting

- - Thermostatic Cartridge for Crosswater Sol GP0012174 / RV1102RC - Part Number: SOL-GP0012174 - the separate temperature-control cartridge for the Sol Recessed shower

- - Crosswater IBNRV Non-Return Valve - Part Number: IBNRV - a separate valve component that allows one-way flow and helps prevent backflow

Not sure which part you need? Use the Di Vapor part identification service and send us photos of your existing cartridge.
