Sirrus SK971006 Colonial Cartridge WITH Wax Thermostat and Piston by Gummers /​ Bristan

Summary

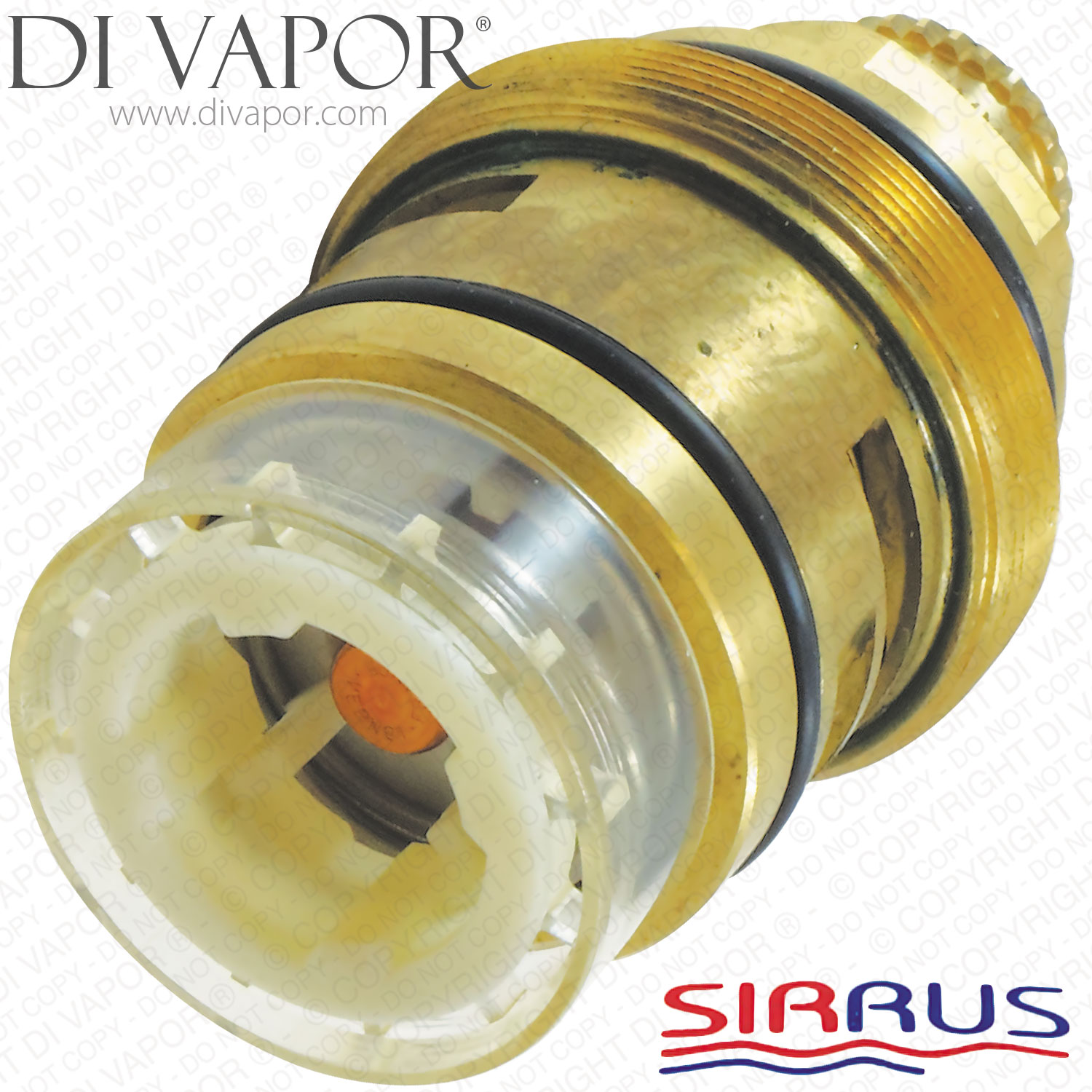

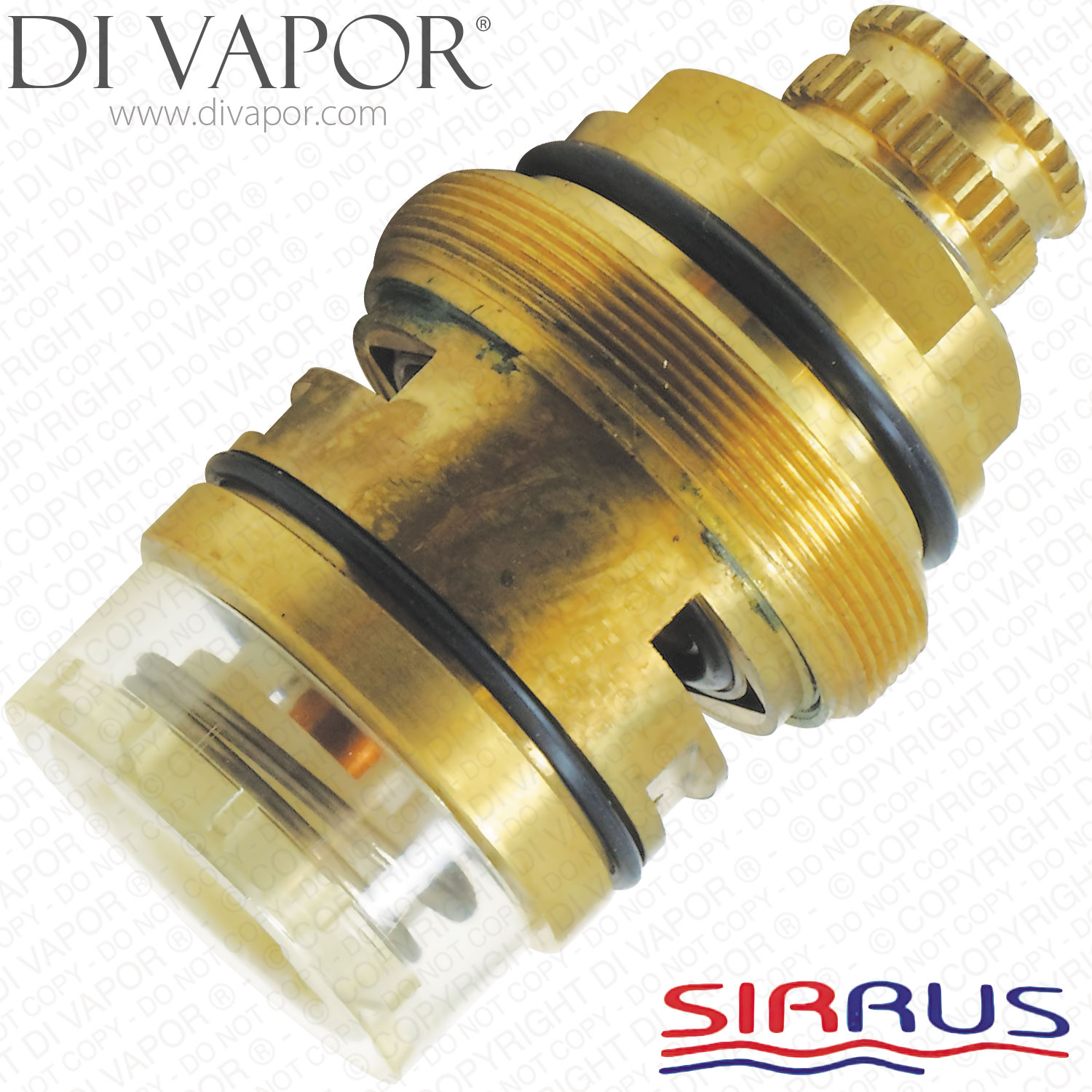

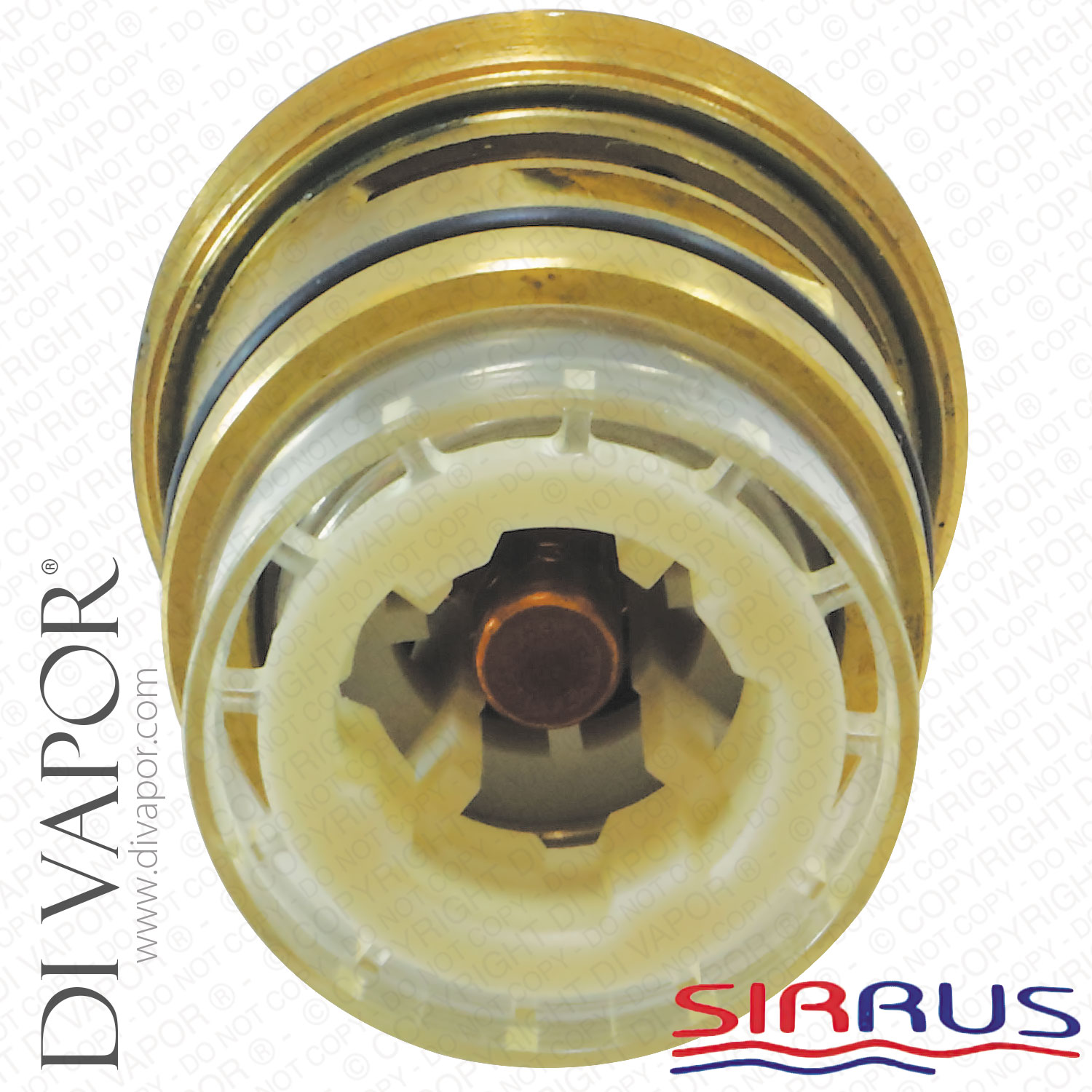

Sirrus SK971006 Colonial Cartridge WITH Wax Thermostat and Piston by Gummers for Colonial, Jute, Sonique and Fuse Cartridges.

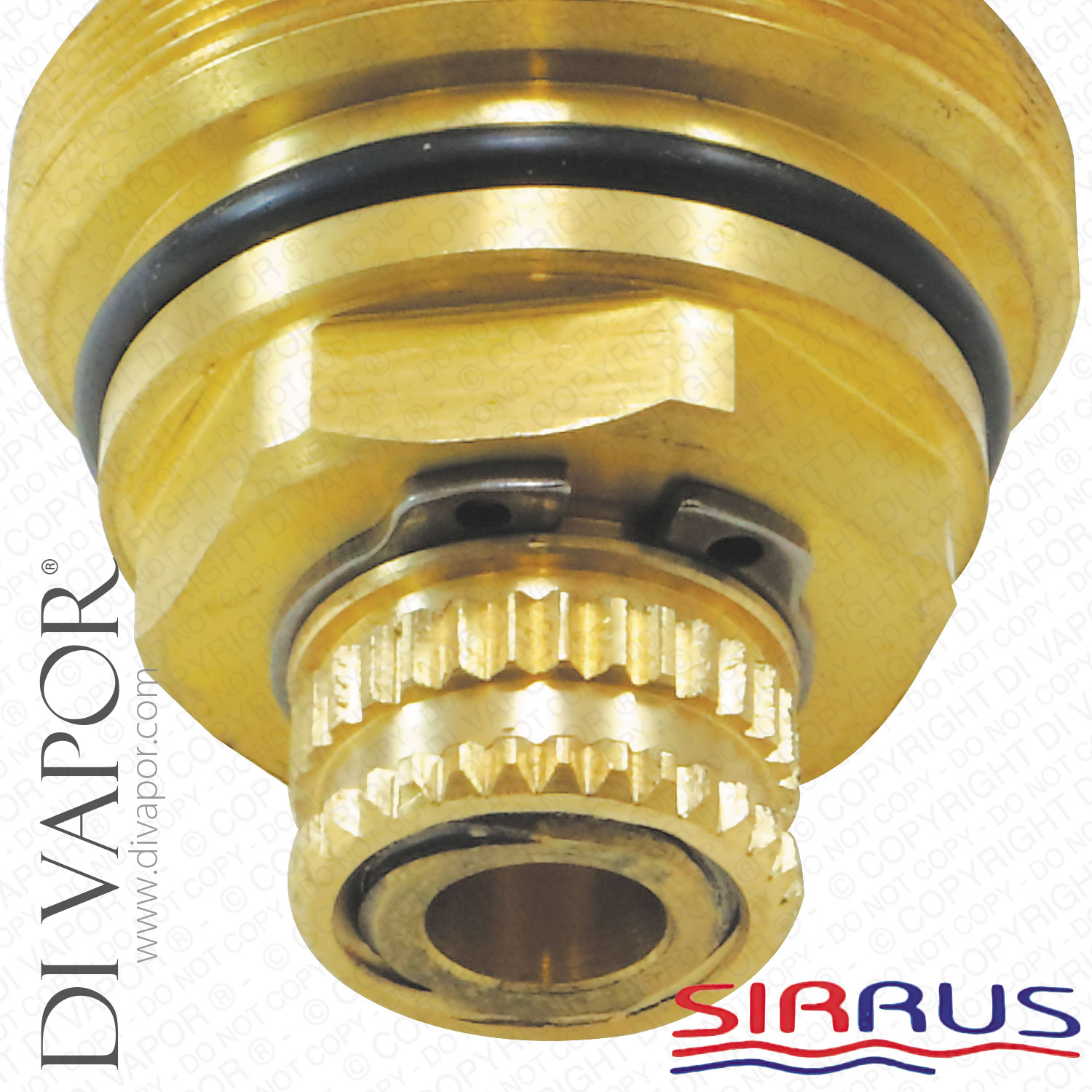

Please note that the original manufacturer has made changes to the appearance of the item. The item you receive has a slightly updated appearance with changes to the spline section.

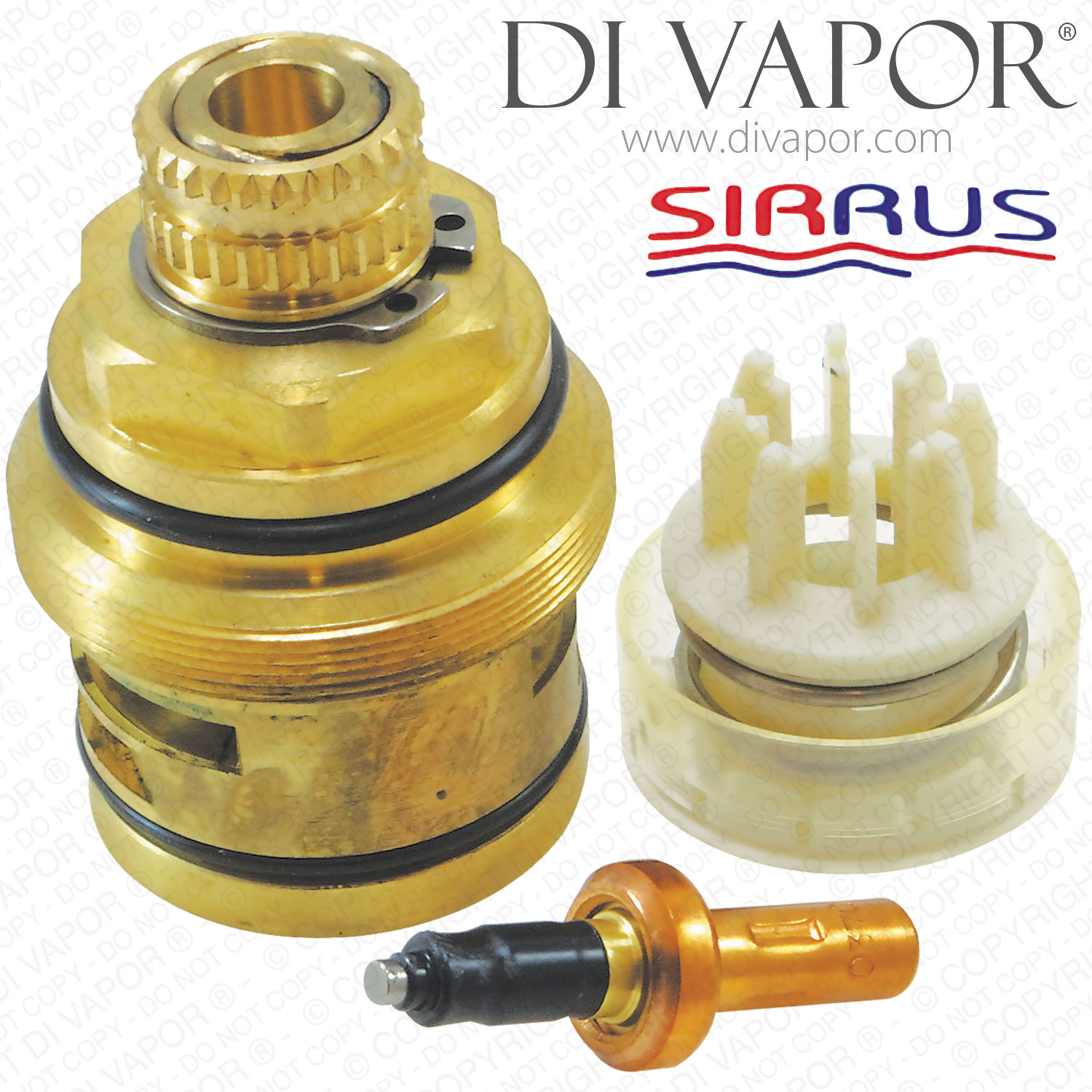

Included

• 1 x SK971006 cartridge
• 1 x Plastic shuttle piston
• 1 x Wax thermostat element (brass piece with rubber sleeve)

This cartridge will work in your shower regardless of the external finish (BRASS/GOLD/CHROME) as this is an INTERNAL fitting component.

Please note that most retailers don't sell the SK971006 cartridge with the piston and the element. There is an overwhelming chance that if the SK971006 cartridge housing needs replacing then the piston and the element need replacing also.

This cartridge is used in the following models:
- Bristan Jute Mini Twinline Thermostatic Shower Chrome Plated - Bristan Sonique Sequential Thermostatic Shower And Riser Kit - Chrome Shower Spares
- Bristan Colonial Single Sequential Thermostatic Shower And Adjustable Riser - Chrome Shower Spares
- Bristan Colonial Single Sequential Thermostatic Shower and Adjustable Riser Chrome Plated
- Bristan Colonial Single Sequential Thermostatic Shower and Rigid Riser Chrome Plated
- Bristan Capri Thermostatic Surface Mounted / Recessed Mini Shower Valve with Adjustable Riser
- Bristan Sonique Thermostatic Surface Mounted / Recessed Mini Shower Valve with Adjustable Riser Shower Spares
- Bristan Fuse Minitwinline Thermostatic Shower - Chrome Shower Spares
- Bristan Acute Shower Valves
- Bristan Colonial Single Sequential Thermostatic Shower And Rigid Riser - Chrome Shower Spares
- Capri CAP SHXAR C
- MT1200-2
- Thermostatic Exposed Single Control Mini Valve CAP2 SHXAR C

If you need fitting instructions for this cartridge, they can be found in the following link:

Fitting Instructions For Bristan Colonial and Sonique Valves using Sirrus SK971006.

This SK971006 Colonial Cartridge assembly with Wax Thermostat and Piston can be dispatched on the same working day when ordered before 3:00 PM, Monday to Friday.

Bristan SK971006 thermostatic cartridge assembly works with Bristan single control Colonial and Sonique shower valves. Both valves are compliant with the British Standards Institution’s BS EN 1287:1999 and BS EN 1111:1999.

To identify the main cause of your shower valve when it begins to encounter issues relating to the temperature regulation of water flow, please ensure the hot and cold water supply lines are properly connected to their respective side – hot side to the left and cold side to the right. Ascertain water from the supply lines are able to reach the valve unit.

See if the valve is correctly set-up and ensure the hot water from the boiler is at a 60°C minimum temperature.

The cause of the issue can also arise from the thermostatic cartridge residing inside the valve. Mineral residue from hard water can develop between the piston and the cartridge or between the cartridge and the valve unit.

Fitting the Bristan SK971006 Thermostatic Assembly for the Bristan Colonial and Sonique Shower Valves

To install the SK971006 Bristan cartridge, please ensure that hot and cold water are fully isolated. If isolation valves cannot be found, please shut off the main water supply.

1: Removing the Handle

A: For the Bristan Colonial shower valve: pop out the handle’s decorative indicator and unscrew the handle prong by hand.

B: For the Bristan Sonique shower valve: a screw can be found on the top of the handle cap.

2: Extract the handle cap. Use a spanner to undo the cartridge. Then remove the thermostat and piston assembly.

3: Lightly apply silicone grease on every o-rings and seals found on the new Bristan SK971006 cartridge assembly.

4: Affix the whole piston assembly, spring first, into the valve housing. Then install the thermostatic cartridge. Tighten it in place through a spanner.

5: Restore the handle cap and the handle prong.

Di Vapor provides Bristan spare parts for different shower models.

• Please send us a message or call us if you have trouble finding the correct Bristan spare part. We are here to assist you.
