Inta Mio MI20012CP Shower Mixing Valve Thermostatic Cartridge
SUMMARY
Inta Mio MI20012CP Shower Mixing Valve Cartridge

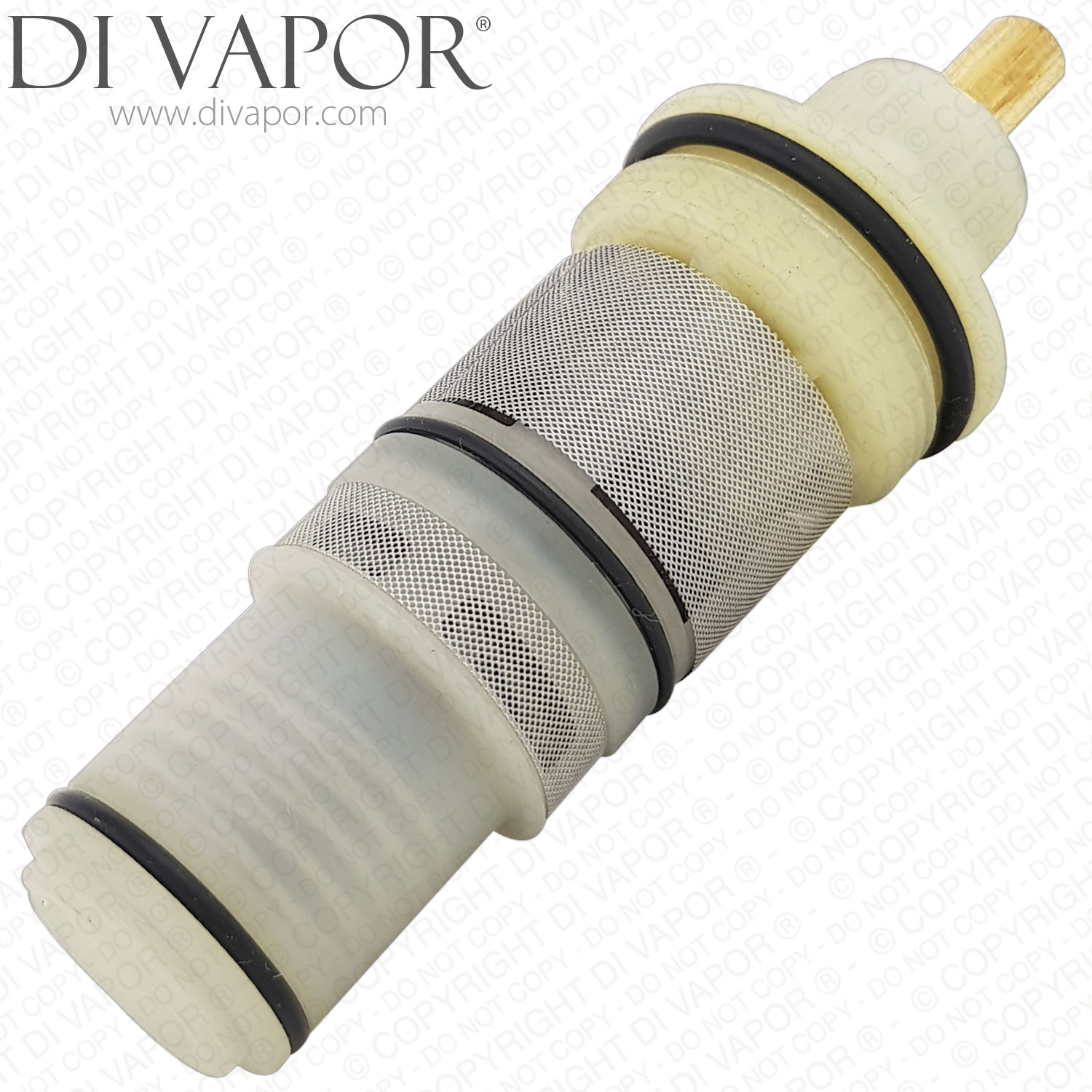

The Inta 22.04.AR is a thermostatic cartridge used in the Inta MI20012CP Mio Safe Touch thermostatic bar shower with fixed riser, overhead soaker and sliding handset. This cartridge controls and stabilises the mixed water temperature inside the shower valve body.

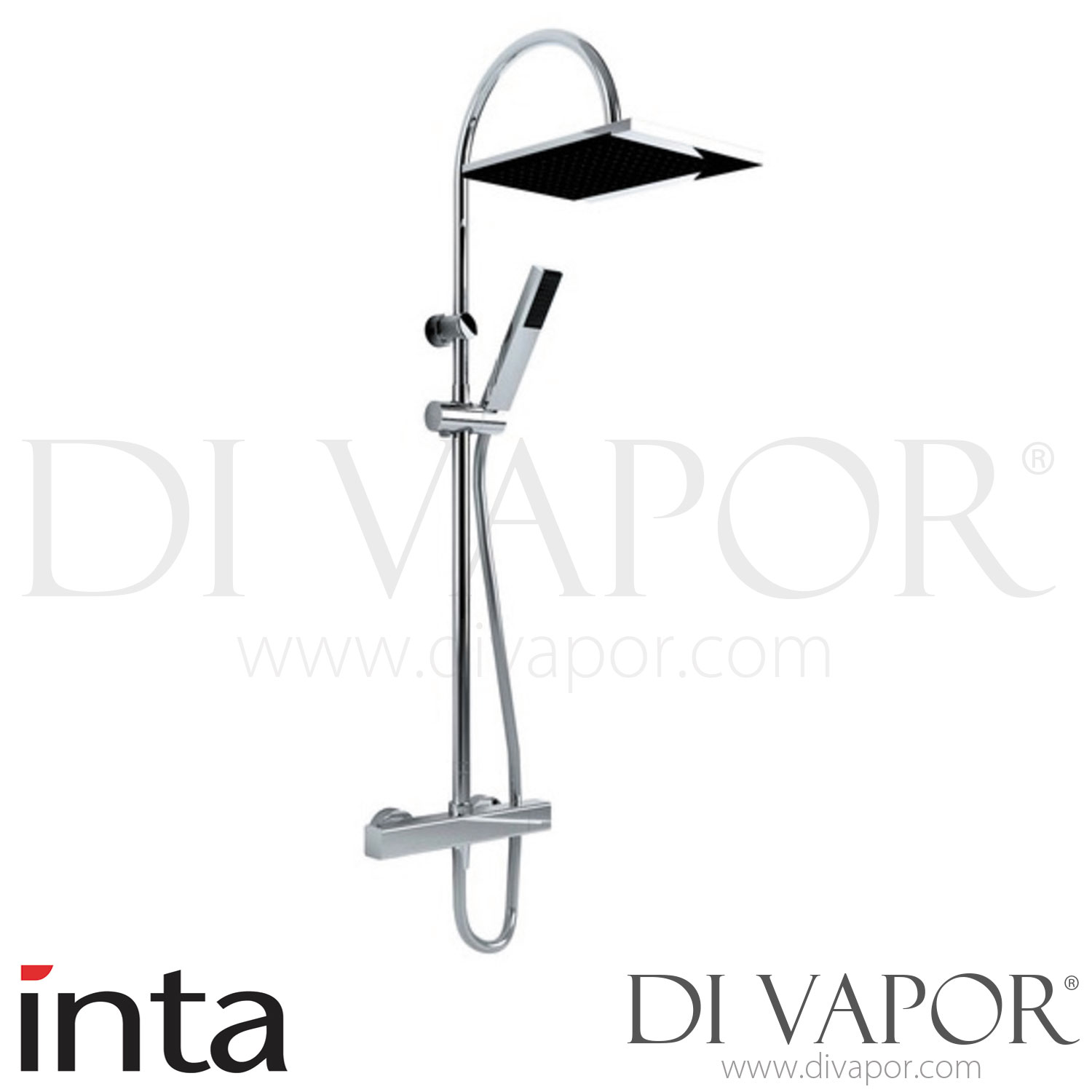

The MI20012CP valve is a safe touch thermostatic shower system with integrated flow diverter, top and bottom outlet connections, factory temperature setting and hot and cold failsafe protection. Replace the thermostatic cartridge when the temperature control becomes stiff, scaled, worn or unable to maintain a steady outlet temperature.
Technical Details
- - Brand: Inta
- - Part Number: 22.04.AR
- - Part type: thermostatic cartridge
- - Application: MI20012CP Mio Safe Touch thermostatic shower mixing valve
- - Function: controls and stabilises the blended outlet temperature
- - MI20012CP valve inlet connections: G 3/4" F BSP
- - MI20012CP valve outlet connections: G 3/4" F BSP top outlet and G 1/2" F BSP bottom outlet
- - MI20012CP operating pressure range: 0.4 bar to 5 bar
- - MI20012CP maximum inlet temperature: 85°C
- - MI20012CP factory pre-set temperature: 38°C with maximum temperature stop
- - Standalone cartridge dimensions were not published on the verified product page, so compare the removed cartridge, valve model code and Part Number before ordering.
Confirmed Compatible Models
This Inta temperature control spare part (10017) is fitted in showers:
- - (10010CO) Inta Ion
- - (10014CP) Inta Ion with Slide Rail
- - (10032CP) Inta Deluge Optimo
Before Ordering
- - Check the MI20012CP valve code and compare the removed thermostatic cartridge with the product images before purchase.
- - Do not substitute this thermostatic cartridge for the separate flow diverter cartridge used in the same shower system.
- - Isolate the hot and cold supplies before removal and apply suitable silicone grease to the cartridge O-rings during refitting.
- - Recalibrate the temperature stop after fitting where required by the valve design.
Related Spares You May Need
- - INTA KD.11 On/Off Flow Diverter Cartridge for Deluge Valves
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
Inta 22.04.AR is a thermostatic cartridge used to control and stabilise the blended water temperature in selected Inta shower valves and bath shower mixer systems. It is used where the existing temperature cartridge has become stiff to adjust, scaled, worn or unable to maintain a...
INTA KD.11 On/Off Flow Diverter Cartridge for Deluge Valves. You will now receive the plastic version of the cartridge as the brass version is discontinued.The INTA KD.11 is an on/off flow diverter cartridge used in selected Inta shower valves. It is the flow-control spare for th...
