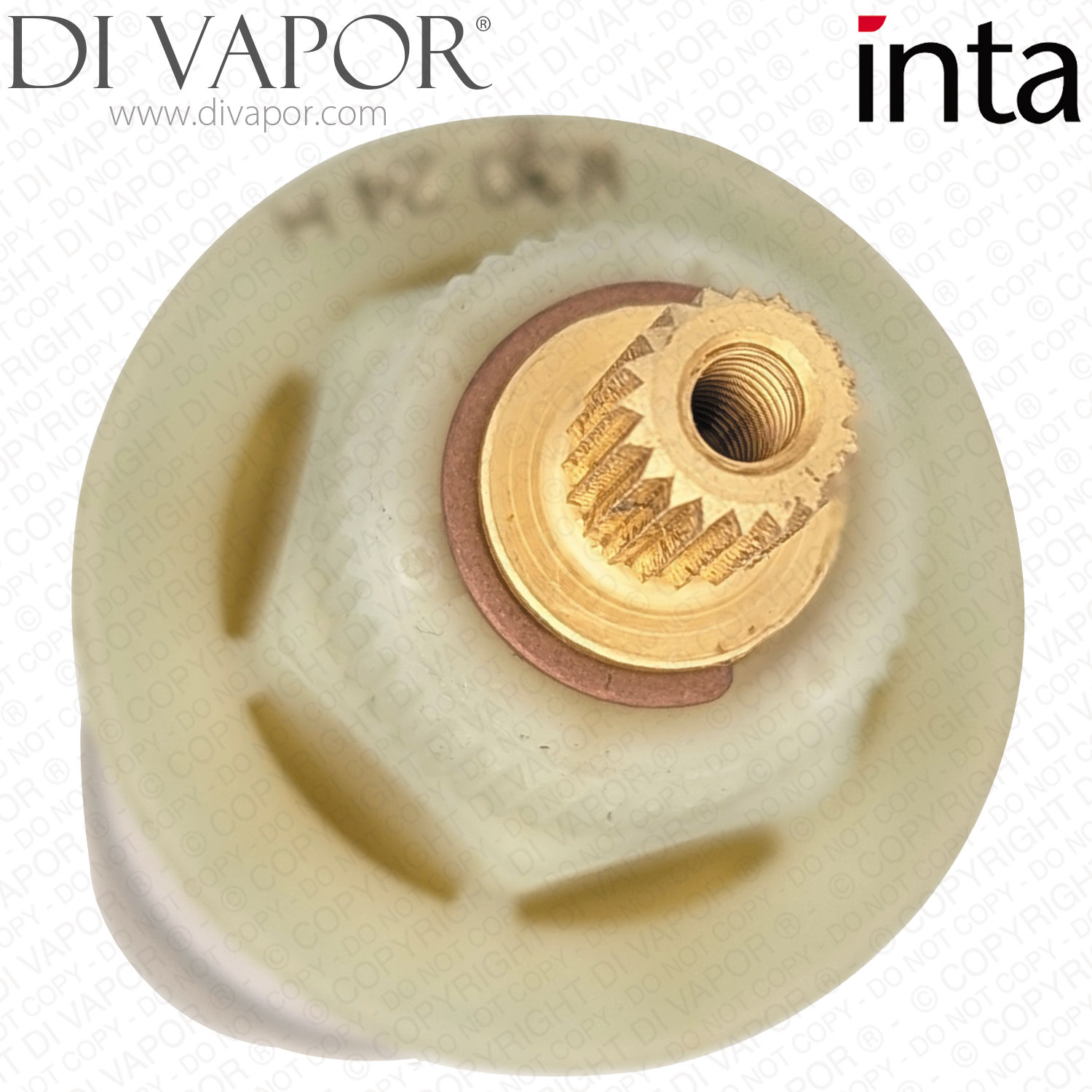

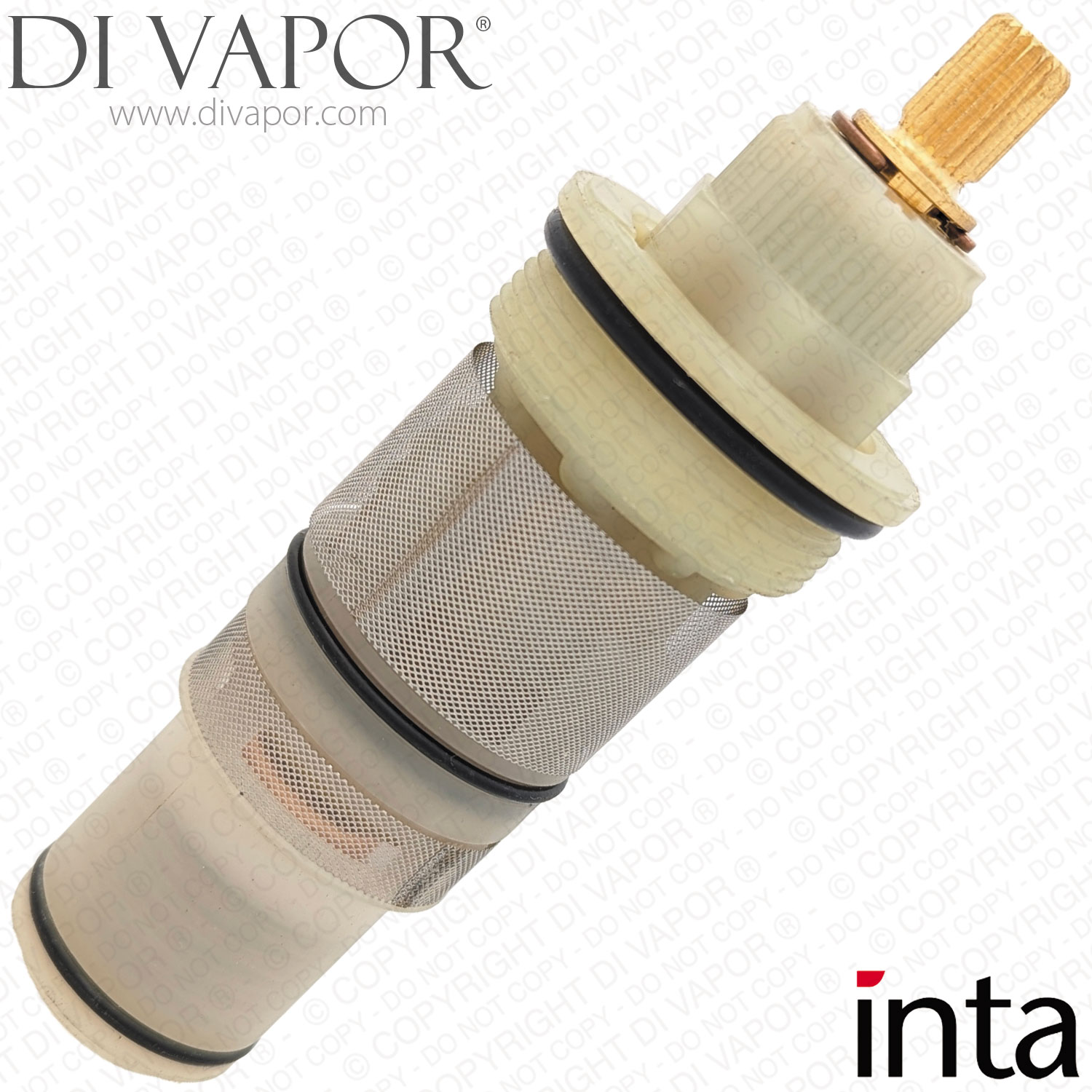

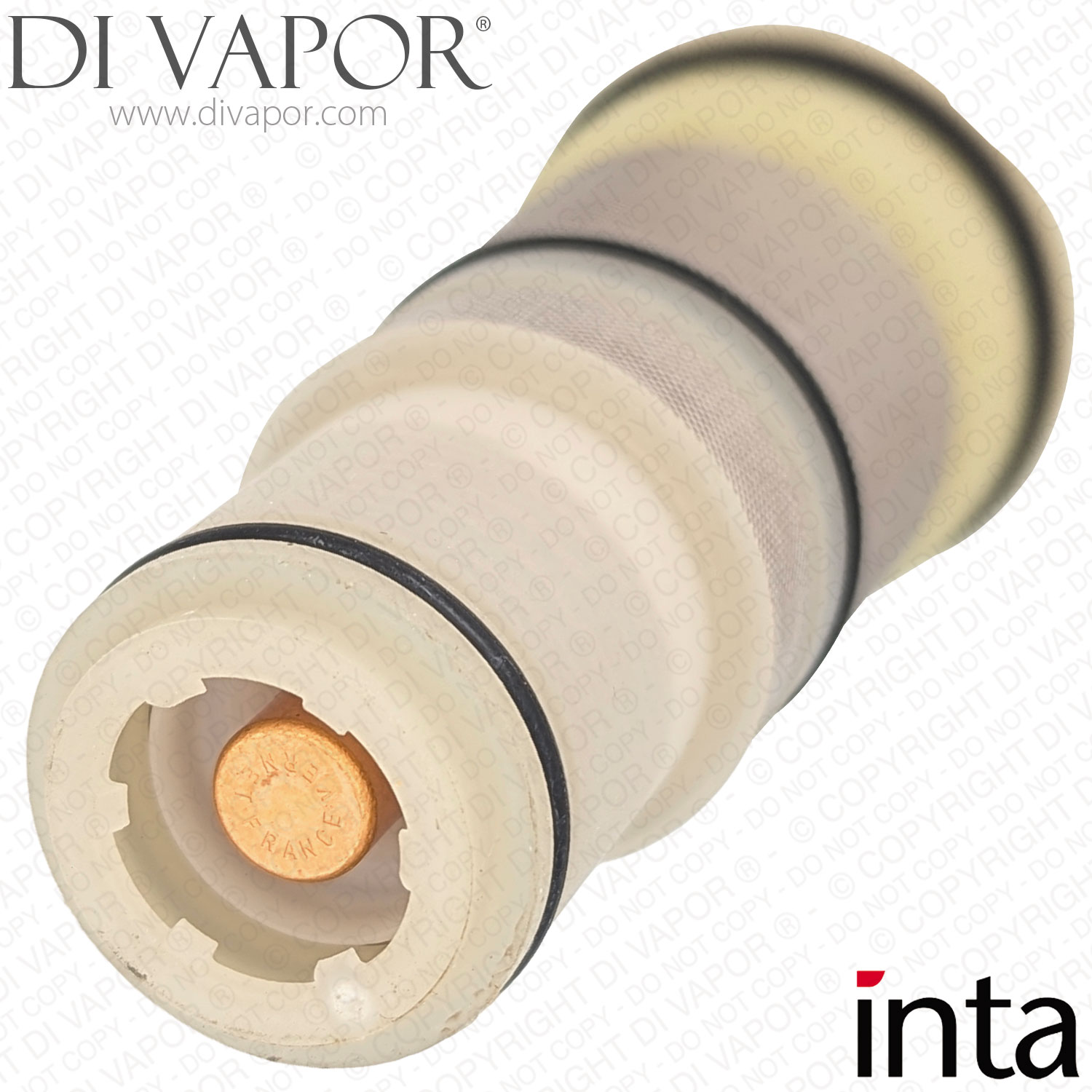

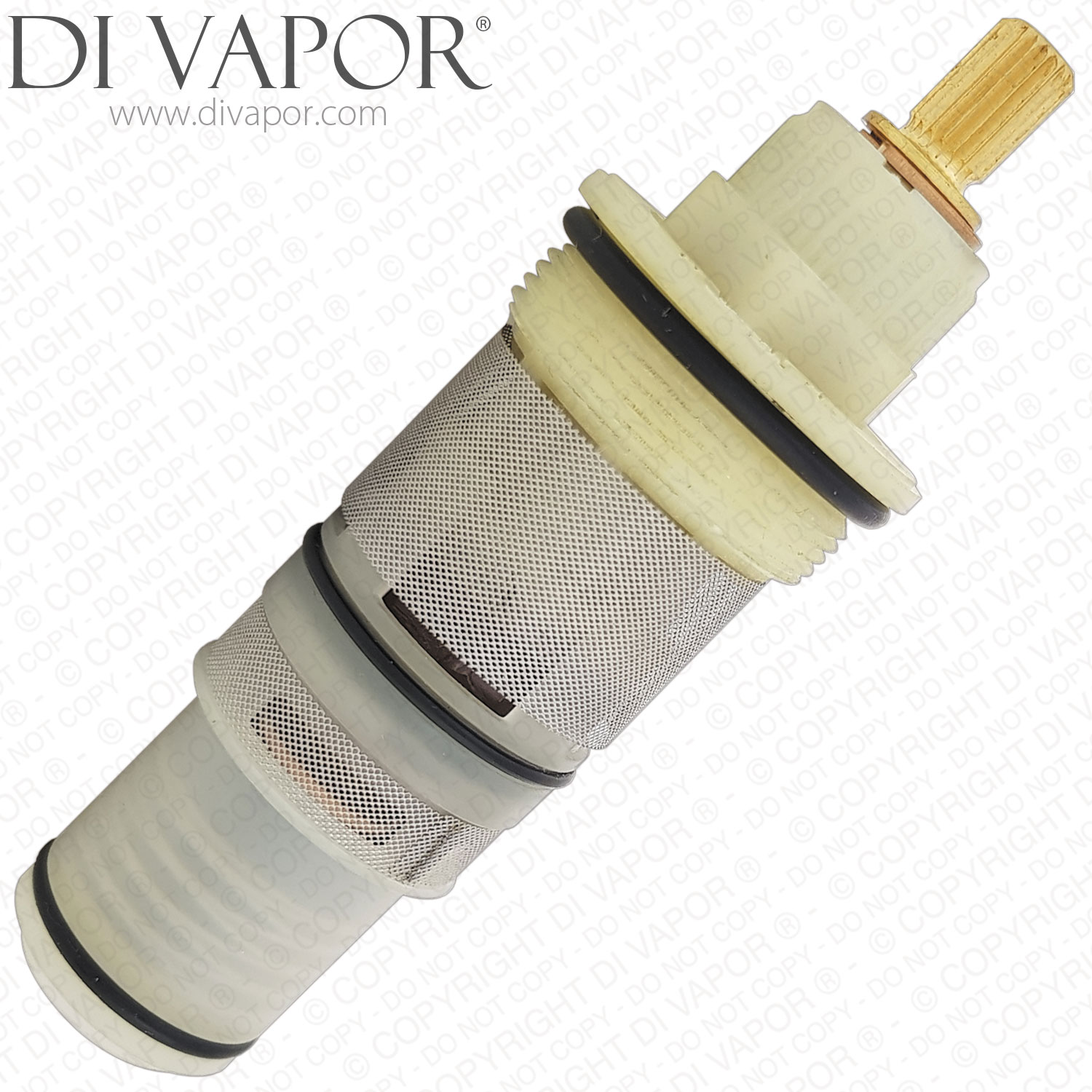

Inta 22.04.AR Thermostatic Cartridge
SUMMARY
Inta 22.04.AR is a thermostatic cartridge used to control and stabilise the blended water temperature in selected Inta shower valves and bath shower mixer systems. It is used where the existing temperature cartridge has become stiff to adjust, scaled, worn or unable to maintain a consistent outlet temperature.
This cartridge is shown on verified Di Vapor Inta spare pages for Mio Safe Touch, Enzo, Acura and MI20012CP systems. Some system pages display the linked item text as 2204AR, but the opened product page gives the Part Number as 22.04.AR.
Technical Details
- - Brand: Inta
- - Part Number: 22.04.AR
- - Part type: thermostatic cartridge
- - Function: controls the mixed outlet temperature inside the valve body
- - Application: selected Inta thermostatic showers, bath shower mixers and bath filler systems
- - Standalone cartridge dimensions were not published on the verified product page, so compare the removed cartridge, valve model code and Part Number before ordering.
Before Ordering
- - Check the valve model code and compare the removed cartridge with the product images before purchase.
- - Some Inta valve pages show more than one cartridge position, so do not substitute this cartridge for a flow or diverter cartridge.
- - Isolate hot and cold supplies before removal and apply suitable silicone grease to cartridge o-rings during refitting.
- - Recalibrate the temperature stop after fitting where the valve design requires adjustment.
Confirmed Used In Models
- - Inta MI10010CP Mio Safe Touch Thermostatic Shower Spare Parts
- - Inta MI10014CP Mio Safe Touch Thermostatic Shower With Flexible Slide Rail Kit Spare Parts
- - Inta MI30010CP Mio Safe Touch Thermostatic BSM Wall Mounted Spare Parts
- - Inta EZ20012CP Enzo Thermostatic Shower with Fixed Riser Overhead Soaker and Handset Spare Parts
- - Inta AC50010CP Acura Thermostatic TMV3 Wall Mounted Bath Filler Spare Parts
- - Inta AC50020CP Acura Thermostatic Bath Filler with Deck Mounting Legs Spare Parts
- - Inta Mio MI20012CP Shower Mixing Valve Thermostatic Cartridge
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- - INTA KD.11 On/Off Flow Diverter Cartridge for Deluge Valves
- - Inta VC10FLNF Flow Cartridge
- - Inta 10017 Thermostatic Cartridge for Ion | Mio | Deluge | Optimo Thermostatic Bar
